DtJtidsHeader Class Reference

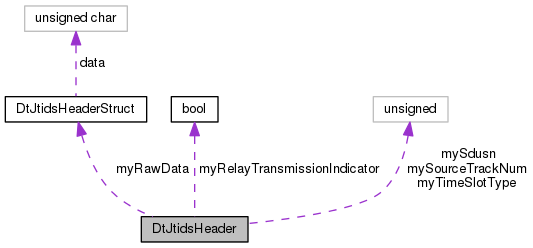

Collaboration diagram for DtJtidsHeader:

Public Member Functions
	DtJtidsHeader ()
	Default constructor. More...
virtual	~DtJtidsHeader ()
	Destructor. More...
	DtJtidsHeader (const DtJtidsHeader &orig)
	Copy constructor. More...
DtJtidsHeader &	operator= (const DtJtidsHeader &orig)
	Assignment operator. More...
virtual void	printData () const
virtual void	printDataToStream (std::ostream &stream) const
virtual void	setRelayTransmissionIndicator (bool val)
	Set/Get the Relay Transmission Indicator. More...
virtual bool	relayTransmissionIndicator () const
	Set/Get the Relay Transmission Indicator. More...
virtual void	setSdusn (DtU16 val)
	Set/Get the Secure Data Unit Serial Number. More...
virtual DtU16	sdusn () const
	Set/Get the Secure Data Unit Serial Number. More...
virtual void	setRawData (const DtJtidsHeaderStruct &data)
	Set/Get the raw data. Overwrites all fields. More...
virtual const DtJtidsHeaderStruct &	rawData () const
	Set/Get the raw data. Overwrites all fields. More...

Static Public Member Functions
static DtU32	rawDataSize ()

Protected Member Functions
virtual void	convertToRawData ()
	Converts the values in the individual fields into the raw data. More...
virtual void	convertToFields ()
	Converts raw data into each of the separate fields. More...

Protected Attributes
DtJtidsHeaderStruct	myRawData
	Raw data. More...
DtU8	myTimeSlotType
	Values for individual fields in header. More...
bool	myRelayTransmissionIndicator
	Values for individual fields in header. More...
DtU16	mySourceTrackNum
	Values for individual fields in header. More...
DtU16	mySdusn
	Values for individual fields in header. More...
virtual void	setTimeSlotType (DtU8 val)
	Set/Get the Time Slot Type. More...
virtual DtU8	timeSlotType () const
	Set/Get the Time Slot Type. More...
static DtU8	maxTimeSlotType ()
	Set/Get the Time Slot Type. More...
virtual void	setSourceTrackNumOfSender (DtU16 val)
	Set/Get the Source Track Number of Sender. More...
virtual DtU16	sourceTrackNumOfSender () const
	Set/Get the Source Track Number of Sender. More...
static DtU16	maxSourceTrackNumOfSender ()
	Set/Get the Source Track Number of Sender. More...

Constructor & Destructor Documentation

DtJtidsHeader::DtJtidsHeader

(

)

Default constructor.

virtual DtJtidsHeader::~DtJtidsHeader ( )

virtual

Destructor.

DtJtidsHeader::DtJtidsHeader

(

const DtJtidsHeader &

orig

)

Copy constructor.

Member Function Documentation

virtual void DtJtidsHeader::convertToFields ( )

protectedvirtual

Converts raw data into each of the separate fields.

virtual void DtJtidsHeader::convertToRawData ( )

protectedvirtual

Converts the values in the individual fields into the raw data.

static DtU16 DtJtidsHeader::maxSourceTrackNumOfSender ( )

inlinestatic

Set/Get the Source Track Number of Sender.

static DtU8 DtJtidsHeader::maxTimeSlotType ( )

inlinestatic

Set/Get the Time Slot Type.

DtJtidsHeader& DtJtidsHeader::operator=

(

const DtJtidsHeader &

orig

)

Assignment operator.

virtual void DtJtidsHeader::printData ( ) const

virtual

virtual void DtJtidsHeader::printDataToStream ( std::ostream &  stream ) const

virtual

virtual const DtJtidsHeaderStruct& DtJtidsHeader::rawData ( ) const

virtual

Set/Get the raw data. Overwrites all fields.

static DtU32 DtJtidsHeader::rawDataSize ( )

inlinestatic

References DtJtidsHeaderSize.

virtual bool DtJtidsHeader::relayTransmissionIndicator ( ) const

virtual

Set/Get the Relay Transmission Indicator.

virtual DtU16 DtJtidsHeader::sdusn ( ) const

virtual

Set/Get the Secure Data Unit Serial Number.

virtual void DtJtidsHeader::setRawData ( const DtJtidsHeaderStruct &  data )

virtual

Set/Get the raw data. Overwrites all fields.

virtual void DtJtidsHeader::setRelayTransmissionIndicator ( bool  val )

virtual

Set/Get the Relay Transmission Indicator.

virtual void DtJtidsHeader::setSdusn ( DtU16  val )

virtual

Set/Get the Secure Data Unit Serial Number.

virtual void DtJtidsHeader::setSourceTrackNumOfSender ( DtU16  val )

virtual

Set/Get the Source Track Number of Sender.

virtual void DtJtidsHeader::setTimeSlotType ( DtU8  val )

virtual

Set/Get the Time Slot Type.

virtual DtU16 DtJtidsHeader::sourceTrackNumOfSender ( ) const

virtual

Set/Get the Source Track Number of Sender.

virtual DtU8 DtJtidsHeader::timeSlotType ( ) const

virtual

Set/Get the Time Slot Type.

Member Data Documentation

DtJtidsHeaderStruct DtJtidsHeader::myRawData

protected

Raw data.

bool DtJtidsHeader::myRelayTransmissionIndicator

protected

Values for individual fields in header.

DtU16 DtJtidsHeader::mySdusn

protected

Values for individual fields in header.

DtU16 DtJtidsHeader::mySourceTrackNum

protected

Values for individual fields in header.

DtU8 DtJtidsHeader::myTimeSlotType

protected

Values for individual fields in header.

---

The documentation for this class was generated from the following file:

• jtidsHeader.h
