DtLeDetonationPdu Class Reference

Instances of DtLeDetonationPdu are used to send firing information for live entities. More...

Inheritance diagram for DtLeDetonationPdu:

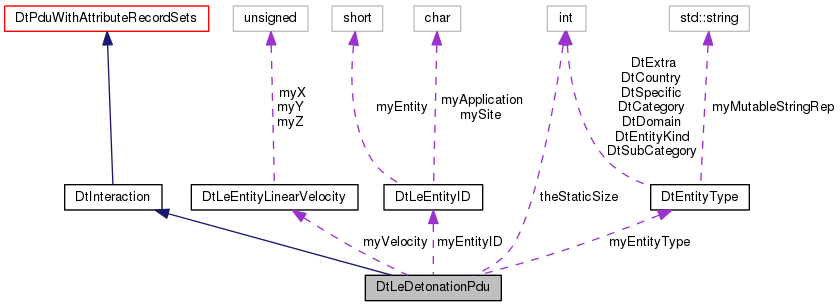

Collaboration diagram for DtLeDetonationPdu:

Public Member Functions
	DtLeDetonationPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...
	DtLeDetonationPdu (const DtNetLeDetonationPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	DtLeDetonationPdu (const DtLeDetonationPdu &orig)
virtual	~DtLeDetonationPdu ()
	destructor More...
DtLeDetonationPdu &	operator= (const DtLeDetonationPdu &orig)
	Assignment operator. More...
virtual void	setSubProtocol (DtSubProtocol value)
	Set/Get the sub-protocol number. More...
virtual DtSubProtocol	subProtocol () const
virtual void	setFiringEntityID (const DtLeEntityID &id)
	Set/Get firing entity ID. More...
virtual const DtLeEntityID &	firingEntityID () const
virtual DtU8	detonFlagsField () const
	Get flags field 1 (this field is automatically maintained by the PDU as other PDU fields are set). More...
virtual bool	getDeton2FlagsField (DtU8 &field) const
	Get flags field 2 (this field is automatically maintained by the PDU as other PDU fields are set). More...
virtual bool	detonFlag (DtLE_DetonFieldFlag flag) const
	Get the value for a specific flag from the first flags field. More...
virtual bool	getDeton2Flag (DtLE_DetonField2Flag flag, bool &value) const
	Get the value for a specific flag from the second flags field. More...
virtual void	setTargetEntityID (const DtLeEntityID &id)
	Some of following accessor functions refer to records which are optional. More...
virtual bool	getTargetEntityID (DtLeEntityID &id) const
virtual void	setMunitionID_Site (DtU8 value)
	Set/Get munition ID site (optional). More...
virtual bool	getMunitionID_Site (DtU8 &value) const
virtual void	setMunitionID_Application (DtU8 value)
	Set/Get munition ID application (optional). More...
virtual bool	getMunitionID_Application (DtU8 &value) const
virtual void	setMunitionID_Entity (DtU16 value)
	Set/Get munition ID entity (optional) More...
virtual bool	getMunitionID_Entity (DtU16 &value) const
virtual void	setEventID_Site (DtU8 value)
	Set/Get event ID site (optional). More...
virtual bool	getEventID_Site (DtU8 &value) const
virtual void	setEventID_Application (DtU8 value)
	Set/Get event ID application (optional). More...
virtual bool	getEventID_Application (DtU8 &value) const
virtual void	setEventID_Event (DtU16 value)
	Set/Get event ID event. More...
virtual bool	getEventID_Event (DtU16 &value) const
virtual void	setLocationWorld (const DtLeEntityLocationWorldCoordinates &value)
	Set/Get entity location (world coordinates). More...
virtual bool	getLocationWorld (DtLeEntityLocationWorldCoordinates &value) const
virtual void	setLocationEntity (const DtLeEntityLocationEntityCoordinates &value)
	Set/Get entity location (entity coordinates). More...
virtual bool	getLocationEntity (DtLeEntityLocationEntityCoordinates &value) const
virtual void	setVelocity (const DtLeEntityLinearVelocity &value)
	Set/Get entity linear velocity. More...
virtual const DtLeEntityLinearVelocity &	velocity () const
virtual void	setOrientation (const DtLeEntityOrientation &value)
	Set/Get entity orientation. More...
virtual bool	getOrientation (DtLeEntityOrientation &value) const
virtual void	setBurstMunitionType (DtEntityType &type)
	Set/Get burst munition type. More...
virtual const DtEntityType &	burstMunitionType () const
virtual void	setBurstWarhead (DtU16 value)
	Set/Get burst warhead (optional). More...
virtual bool	getBurstWarhead (DtU16 &value) const
virtual void	setBurstFuse (DtU16 value)
	Set/Get burst fuse (optional). More...
virtual bool	getBurstFuse (DtU16 &value) const
virtual void	setBurstQuantity (DtU16 value)
	Set/Get burst quantity (optional). More...
virtual bool	getBurstQuantity (DtU16 &value) const
virtual void	setBurstRate (DtU16 value)
	Set/Get burst rate (optional). More...
virtual bool	getBurstRate (DtU16 &value) const
virtual void	setDetonationResult (DtU8 value)
	Set/Get detonation result. More...
virtual DtU8	detonationResult () const
virtual void	printData () const
	Print the data contained by this PDU. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream. More...
virtual void	printHeader () const
	Print the header (override to include the new sub-protocol field). More...
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header to a stream. More...
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...
virtual	~DtInteraction ()
	destructor More...
	DtInteraction (const DtInteraction &orig)
	copy constructor More...
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...
virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...
virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...
virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...
virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	encode ()
	Encode method. More...
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...
virtual void	setAttributeStrategy (DtAttributePduStrategy strat)
virtual DtAttributePduStrategy	attributePduStrategy () const
virtual bool	shouldAttributePduBeCoupled () const
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...
virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...
virtual int	status () const
	Get PDU status. More...
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...
virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...
virtual DtTime	receivedTime () const
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...
virtual const char *	netRep () const
	Get network representation. More...
virtual int	length () const
	Get size of message. More...
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size)
	Changes the size of the message. More...
virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...
virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...
virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...
virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...
virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...
virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a DtLeDetonationPdu. More...
static void	addCallback (DtExerciseConn *conn, DtLeDetonationPduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received. More...
static void	removeCallback (DtExerciseConn *conn, DtLeDetonationPduCb cb, void *usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind. More...
virtual DtNetLeDetonationPdu *	netPduStruct () const
	Casts the netPdu element to our network struct. More...
DtLeDetonationPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...
virtual char *	var () const
	Returns a pointer to the first byte of variable length data. More...
virtual void	setDetonFlagsField (DtU8 value)
	Set first detonation flags field. More...
virtual void	setDeton2FlagsField (DtU8 value)
	Set second detonation flags field. More...
virtual void	setDetonFlag (DtLE_DetonFieldFlag flag)
	Set first detonation flag. More...
virtual void	setDeton2Flag (DtLE_DetonField2Flag flag)
	Set second detonation flag. More...
virtual int	detonFlagFieldOffset () const
	Returns the offset (in bytes) of a field within the variable data region. More...
virtual int	deton2FlagFieldOffset () const
virtual int	targetEntityID_Offset () const
virtual int	munitionID_Offset1 () const
virtual int	munitionID_Offset2 () const
virtual int	eventID_Offset1 () const
virtual int	eventID_Offset2 () const
virtual int	locationWorldOffset () const
virtual int	velocityOffset () const
virtual int	munitionOrientationOffset () const
virtual int	burstOffset1 () const
virtual int	burstOffset2 () const
virtual int	burstOffset3 () const
virtual int	locationEntityOffset () const
virtual int	resultOffset () const
Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...
virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const
Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...
virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...
virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...
virtual void	initPdu (const void *initial, DtBufferPtr buffer, DtPduFactory *pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...
virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...
virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...
virtual void	clearData ()
	zeros out all bytes after the PDU header. More...
virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...
virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...
virtual bool	isLVCApplicable () const
virtual bool	isCEIApplicable () const
virtual bool	isFTIApplicable () const
virtual bool	isDTIApplicable () const
virtual bool	isRAIApplicable () const
virtual bool	isIAIApplicable () const
virtual bool	isISMApplicable () const
virtual bool	isAIIApplicable () const

Protected Attributes
DtLeEntityID	myEntityID
	Temporary objects for reference returns. More...
DtLeEntityLinearVelocity	myVelocity
DtEntityType	myEntityType
Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...
bool	isRecordSetOwned
bool	isPduExtending
DtStandardVariableRecordFactory *	mySVRFactory
DtPduDecoder *	myAttributeDecoder
DtPduEncoder *	myAttributeEncoder
DtSimulationAddress	myAttributePduOriginatingSimulationAddress
DtAttributePduStrategy	myAttributePduStrategy
Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder
DtPduDecoder *	myDecoder
int	myOKStatus
DtTime	myReceivedTime
Protected Attributes inherited from DtBaseMsg
void *	myNetMsg
void *	myInternalBuff
int	myIntBuffSize
int	myMsgSize
int	myNetworkMsgSize

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records. More...
Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtLeDetonationPdu are used to send firing information for live entities.

Constructor & Destructor Documentation

DtLeDetonationPdu::DtLeDetonationPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtLeDetonationPdu::DtLeDetonationPdu	(	const DtNetLeDetonationPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

DtLeDetonationPdu::DtLeDetonationPdu

(

const DtLeDetonationPdu &

orig

)

virtual DtLeDetonationPdu::~DtLeDetonationPdu ( )

virtual

destructor

Member Function Documentation

static void DtLeDetonationPdu::addCallback ( DtExerciseConn *  conn, DtLeDetonationPduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when pdu is received.

virtual const DtEntityType& DtLeDetonationPdu::burstMunitionType ( ) const

virtual

virtual int DtLeDetonationPdu::burstOffset1 ( ) const

protectedvirtual

virtual int DtLeDetonationPdu::burstOffset2 ( ) const

protectedvirtual

virtual int DtLeDetonationPdu::burstOffset3 ( ) const

protectedvirtual

static DtPdu* DtLeDetonationPdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Create a DtLeDetonationPdu.

Caller is responsible for deletion.

virtual int DtLeDetonationPdu::deton2FlagFieldOffset ( ) const

protectedvirtual

virtual DtU8 DtLeDetonationPdu::detonationResult ( ) const

virtual

virtual bool DtLeDetonationPdu::detonFlag ( DtLE_DetonFieldFlag  flag ) const

virtual

Get the value for a specific flag from the first flags field.

virtual int DtLeDetonationPdu::detonFlagFieldOffset ( ) const

protectedvirtual

Returns the offset (in bytes) of a field within the variable data region.

Some fields have subfields which are optional, so some fields have multiple functions associated with them.

virtual DtU8 DtLeDetonationPdu::detonFlagsField ( ) const

virtual

Get flags field 1 (this field is automatically maintained by the PDU as other PDU fields are set).

virtual int DtLeDetonationPdu::eventID_Offset1 ( ) const

protectedvirtual

virtual int DtLeDetonationPdu::eventID_Offset2 ( ) const

protectedvirtual

virtual const DtLeEntityID& DtLeDetonationPdu::firingEntityID ( ) const

virtual

virtual bool DtLeDetonationPdu::getBurstFuse ( DtU16 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getBurstQuantity ( DtU16 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getBurstRate ( DtU16 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getBurstWarhead ( DtU16 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getDeton2Flag ( DtLE_DetonField2Flag  flag, bool &  value  ) const

virtual

Get the value for a specific flag from the second flags field.

Returns false if the field is not present in the PDU.

virtual bool DtLeDetonationPdu::getDeton2FlagsField ( DtU8 &  field ) const

virtual

Get flags field 2 (this field is automatically maintained by the PDU as other PDU fields are set).

Returns false if this field is not present.

virtual bool DtLeDetonationPdu::getEventID_Application ( DtU8 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getEventID_Event ( DtU16 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getEventID_Site ( DtU8 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getLocationEntity ( DtLeEntityLocationEntityCoordinates &  value ) const

virtual

virtual bool DtLeDetonationPdu::getLocationWorld ( DtLeEntityLocationWorldCoordinates &  value ) const

virtual

virtual bool DtLeDetonationPdu::getMunitionID_Application ( DtU8 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getMunitionID_Entity ( DtU16 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getMunitionID_Site ( DtU8 &  value ) const

virtual

virtual bool DtLeDetonationPdu::getOrientation ( DtLeEntityOrientation &  value ) const

virtual

virtual bool DtLeDetonationPdu::getTargetEntityID ( DtLeEntityID &  id ) const

virtual

virtual DtPduKind DtLeDetonationPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual int DtLeDetonationPdu::locationEntityOffset ( ) const

protectedvirtual

virtual int DtLeDetonationPdu::locationWorldOffset ( ) const

protectedvirtual

virtual int DtLeDetonationPdu::munitionID_Offset1 ( ) const

protectedvirtual

virtual int DtLeDetonationPdu::munitionID_Offset2 ( ) const

protectedvirtual

virtual int DtLeDetonationPdu::munitionOrientationOffset ( ) const

protectedvirtual

virtual DtNetLeDetonationPdu* DtLeDetonationPdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

DtLeDetonationPdu& DtLeDetonationPdu::operator=

(

const DtLeDetonationPdu &

orig

)

Assignment operator.

virtual void DtLeDetonationPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtLeDetonationPdu::printDataToStream ( std::ostream &  stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

virtual void DtLeDetonationPdu::printHeader ( ) const

virtual

Print the header (override to include the new sub-protocol field).

Reimplemented from DtPdu.

virtual void DtLeDetonationPdu::printHeaderToStream ( std::ostream &  stream ) const

virtual

Print the header to a stream.

Reimplemented from DtPdu.

static void DtLeDetonationPdu::removeCallback ( DtExerciseConn *  conn, DtLeDetonationPduCb  cb, void *  usr  )

static

virtual int DtLeDetonationPdu::resultOffset ( ) const

protectedvirtual

DtLeDetonationPdu* DtLeDetonationPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual void DtLeDetonationPdu::setBurstFuse ( DtU16  value )

virtual

Set/Get burst fuse (optional).

virtual void DtLeDetonationPdu::setBurstMunitionType ( DtEntityType &  type )

virtual

Set/Get burst munition type.

virtual void DtLeDetonationPdu::setBurstQuantity ( DtU16  value )

virtual

Set/Get burst quantity (optional).

virtual void DtLeDetonationPdu::setBurstRate ( DtU16  value )

virtual

Set/Get burst rate (optional).

virtual void DtLeDetonationPdu::setBurstWarhead ( DtU16  value )

virtual

Set/Get burst warhead (optional).

virtual void DtLeDetonationPdu::setDeton2Flag ( DtLE_DetonField2Flag  flag )

protectedvirtual

Set second detonation flag.

virtual void DtLeDetonationPdu::setDeton2FlagsField ( DtU8  value )

protectedvirtual

Set second detonation flags field.

virtual void DtLeDetonationPdu::setDetonationResult ( DtU8  value )

virtual

Set/Get detonation result.

virtual void DtLeDetonationPdu::setDetonFlag ( DtLE_DetonFieldFlag  flag )

protectedvirtual

Set first detonation flag.

virtual void DtLeDetonationPdu::setDetonFlagsField ( DtU8  value )

protectedvirtual

Set first detonation flags field.

virtual void DtLeDetonationPdu::setEventID_Application ( DtU8  value )

virtual

Set/Get event ID application (optional).

virtual void DtLeDetonationPdu::setEventID_Event ( DtU16  value )

virtual

Set/Get event ID event.

virtual void DtLeDetonationPdu::setEventID_Site ( DtU8  value )

virtual

Set/Get event ID site (optional).

virtual void DtLeDetonationPdu::setFiringEntityID ( const DtLeEntityID &  id )

virtual

Set/Get firing entity ID.

virtual void DtLeDetonationPdu::setLocationEntity ( const DtLeEntityLocationEntityCoordinates &  value )

virtual

Set/Get entity location (entity coordinates).

In this PDU, entity location is stored in world coordinates or entity coordinates but not both. Get returns false if the coordinates are stored in world coordinates.

virtual void DtLeDetonationPdu::setLocationWorld ( const DtLeEntityLocationWorldCoordinates &  value )

virtual

Set/Get entity location (world coordinates).

In this PDU, entity location is stored in world coordinates or entity coordinates but not both. Get returns false if the coordinates are stored in entity coordinates.

virtual void DtLeDetonationPdu::setMunitionID_Application ( DtU8  value )

virtual

Set/Get munition ID application (optional).

virtual void DtLeDetonationPdu::setMunitionID_Entity ( DtU16  value )

virtual

Set/Get munition ID entity (optional)

virtual void DtLeDetonationPdu::setMunitionID_Site ( DtU8  value )

virtual

Set/Get munition ID site (optional).

virtual void DtLeDetonationPdu::setOrientation ( const DtLeEntityOrientation &  value )

virtual

Set/Get entity orientation.

virtual void DtLeDetonationPdu::setSubProtocol ( DtSubProtocol  value )

virtual

Set/Get the sub-protocol number.

virtual void DtLeDetonationPdu::setTargetEntityID ( const DtLeEntityID &  id )

virtual

Some of following accessor functions refer to records which are optional.

The set methods create the record in the PDU if it does not already exist. The get methods return false if the record does not exist. Set/Get target entity ID (optional).

virtual void DtLeDetonationPdu::setVelocity ( const DtLeEntityLinearVelocity &  value )

virtual

Set/Get entity linear velocity.

virtual DtSubProtocol DtLeDetonationPdu::subProtocol ( ) const

virtual

virtual int DtLeDetonationPdu::targetEntityID_Offset ( ) const

protectedvirtual

virtual char* DtLeDetonationPdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

virtual const DtLeEntityLinearVelocity& DtLeDetonationPdu::velocity ( ) const

virtual

virtual int DtLeDetonationPdu::velocityOffset ( ) const

protectedvirtual

Member Data Documentation

DtLeEntityID DtLeDetonationPdu::myEntityID

protected

Temporary objects for reference returns.

DtEntityType DtLeDetonationPdu::myEntityType

protected

DtLeEntityLinearVelocity DtLeDetonationPdu::myVelocity

protected

const int DtLeDetonationPdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

---

The documentation for this class was generated from the following file:

• leDetonationPdu.h
