VR-Link API Documentation for DIS
|
Instances of DtLinearObjectRepository are used to maintain state information needed by linear object entities. More...

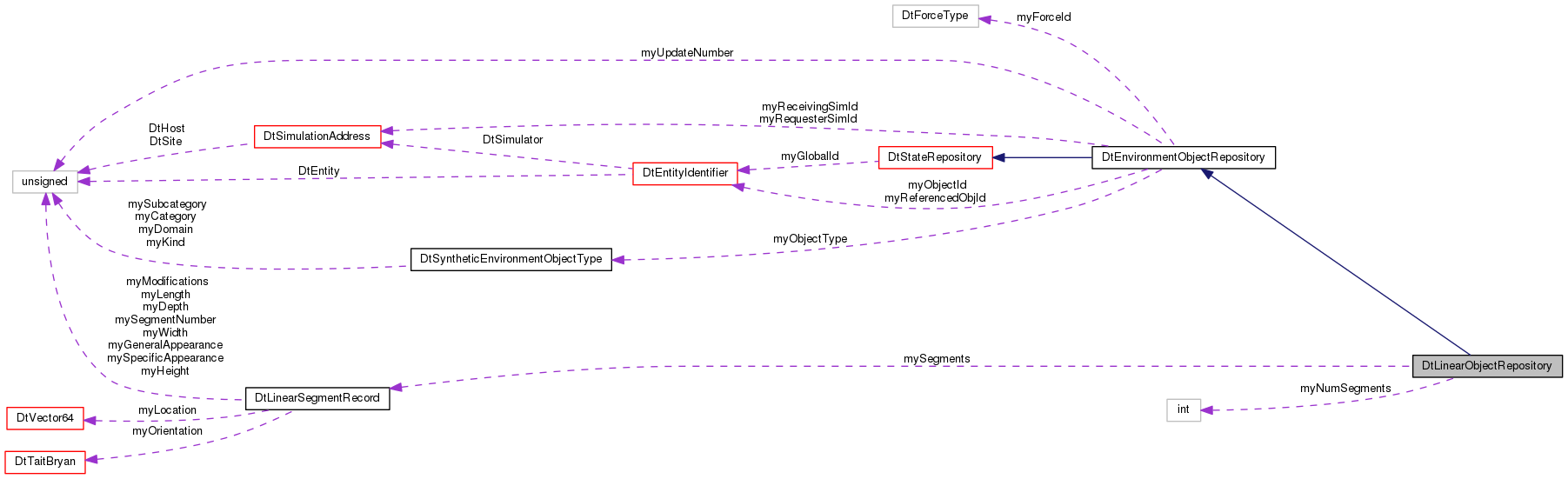

Inheritance diagram for DtLinearObjectRepository: Collaboration diagram for DtLinearObjectRepository:Public Member Functions | |
| DtLinearObjectRepository () | |
| CTOR. More... | |
| DtLinearObjectRepository (const DtLinearObjectRepository &orig) | |
| Copy CTOR. More... | |
| virtual | ~DtLinearObjectRepository () |
| Virtual DTOR. More... | |
| DtLinearObjectRepository & | operator= (const DtLinearObjectRepository &orig) |
| Assignment operator. More... | |
| virtual DtStateRepository * | clone (bool copy) const |
| Return a copy/empty object of the same type as this. More... | |
| virtual void | printData () const |
| Prints data to DtInfo. More... | |
| virtual void | printDataToStream (std::ostream &stream) const |
| Prints data to the specified stream. More... | |
Set/Get the number of Segment Records. | |
Set returns false if the requested number is too large. Changing this number will erase all previous data. | |
| virtual bool | setNumSegments (int newNumber) |
| virtual int | numSegments () const |
| virtual bool | setSegment (int index, const DtLinearSegmentRecord &record) |
| virtual bool | segment (int index, DtLinearSegmentRecord &record) const |
| Public Member Functions inherited from DtEnvironmentObjectRepository | |
| DtEnvironmentObjectRepository () | |
| CTOR. More... | |
| DtEnvironmentObjectRepository (const DtEnvironmentObjectRepository &orig) | |
| Copy CTOR. More... | |
| virtual | ~DtEnvironmentObjectRepository () |
| DTOR. More... | |
| DtEnvironmentObjectRepository & | operator= (const DtEnvironmentObjectRepository &orig) |
| Assignment operator. More... | |
| virtual void | setObjectId (const DtEntityIdentifier &identifier) |
| Set/Get Environment Object ID. More... | |
| virtual const DtEntityIdentifier & | objectId () const |
| virtual void | setReferencedObjectId (const DtGlobalObjectDesignator &rtiObject) |
| Set/Get Referenced Object ID. More... | |
| virtual const DtGlobalObjectDesignator & | referencedObjectId () const |
| virtual void | setUpdateNumber (DtU16 num) |
| Set/Get Update Number. More... | |
| virtual DtU16 | updateNumber () const |
| virtual void | setForceId (const DtForceType value) |
| Set/Get Force ID. More... | |
| virtual DtForceType | forceId () const |
| virtual void | setObjectType (const DtSyntheticEnvironmentObjectType &type) |
| Set/Get Object Type. More... | |
| virtual const DtSyntheticEnvironmentObjectType & | objectType () const |
| virtual void | setRequesterSimId (const DtSimulationAddress &addr) |
| Set/Get Requester Simulation ID. More... | |
| virtual const DtSimulationAddress | requesterSimId () const |
| virtual void | setReceivingSimId (const DtSimulationAddress &addr) |
| Set/Get Receiving Simulation ID. More... | |
| virtual const DtSimulationAddress | receivingSimId () const |
| Public Member Functions inherited from DtStateRepository | |
| DtStateRepository () | |
| default constructor More... | |
| DtStateRepository (const DtStateRepository &orig) | |
| copy constructor More... | |
| virtual | ~DtStateRepository () |
| destructor More... | |
| DtStateRepository & | operator= (const DtStateRepository &orig) |
| assignment operator More... | |
| virtual void | setGlobalId (const DtGlobalObjectDesignator &id) |
| Get/Set global identifier, or name. More... | |
| virtual const DtGlobalObjectDesignator & | globalId () const |
| virtual unsigned int | numberOfAttributeRecords () const |
| virtual void | setAttributeRecords (const DtAttributeRecordSet &records) |
| The following functions are related to the extendability part of DIS 7. More... | |
| virtual void | setAttributeRecords (const DtStandardVariableRecordPtrVector &records) |
| Replace the attribute record set with the records in the given vector. More... | |
| virtual const DtAttributeRecordSet & | attributeRecordSet () const |
| Return the attribute record set. More... | |
| virtual DtAttributeRecordSet & | attributeRecordSet () |
| Return the attribute record set. More... | |
| virtual const DtStandardVariableRecordPtrVector & | attributeRecords () const |
| Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual const DtStandardVariableRecordPtrVector & | attributeRecords (unsigned int recordType) const |
| Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual DtStandardVariableRecord * | attributeRecord (unsigned int recordType) const |
| Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More... | |
| virtual int | removeAttributeRecord (unsigned int recordType, bool removeAll=true) |
| Remove and discard the first record of the given record type (if there is one) or all them. More... | |
| virtual DtStandardVariableRecordPtrVector & | getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const |
| Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual DtStandardVariableRecordPtrVector & | getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const |
| Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual void | addAttributeRecord (DtStandardVariableRecord *record) |
| Add a clone of given record to the attribute record set. More... | |
| virtual void | addAttributeRecord (std::auto_ptr< DtStandardVariableRecord > record) |
| Add the given record to the attribute record set. More... | |
| virtual void | clearAttributeRecords () |
| Clear all records. More... | |
| virtual DtStateRepositoryExtension * | stateRepositoryExtension (DtString srExtName) const |
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |
| virtual std::vector< DtString > | stateRepositoryExtensionNames () const |
| Returns a set of the registered state repository extension names. More... | |
| virtual void | setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions) |
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |
| virtual const std::map < DtString, DtStateRepositoryExtension * > | stateRepositoryExtensions () const |
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |
Static Public Member Functions | |
| static DtLinearObjectRepository * | create () |
| Static creation method. More... | |
| Static Public Member Functions inherited from DtEnvironmentObjectRepository | |
| static DtEnvironmentObjectRepository * | create () |
| Static Public Member Functions inherited from DtStateRepository | |
| static bool | addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc) |
| The following functions are for extending state repositories through State Repository Extension classes. More... | |
Protected Attributes | |
| int | myNumSegments |
| DtLinearSegmentRecord * | mySegments |
| Protected Attributes inherited from DtEnvironmentObjectRepository | |
| DtEntityIdentifier | myObjectId |
| DtGlobalObjectDesignator | myReferencedObjId |
| DtU16 | myUpdateNumber |
| DtForceType | myForceId |
| DtSyntheticEnvironmentObjectType | myObjectType |
| DtSimulationAddress | myRequesterSimId |
| DtSimulationAddress | myReceivingSimId |
Additional Inherited Members | |
| Public Types inherited from DtStateRepository | |
| typedef std::map< DtString, DtStateRepositoryExtension * > | DtStateRepositoryExtensionMap |
| Public Attributes inherited from DtStateRepository | |
| DtGlobalObjectDesignator | myGlobalId |
| DtAttributeRecordSet | myAttributeRecords |
| DtStandardVariableRecordPtrVector | myReturnedRecords |
| DtStateRepositoryExtensionMap | myStateRepositoryExtensionMap |
| Static Public Attributes inherited from DtStateRepository | |
| static std::map< DtString, DtSrExtCreatorFnc > | theStateRepositoryExtensionCreatorMap |
Instances of DtLinearObjectRepository are used to maintain state information needed by linear object entities.
The states of BreachableLinearObjects, BreachObjects, ExhaustSmokeObjects, and MinefieldLaneMarkerObjects are all maintained within this class. In order to publish a specific type of object, the object type needs to be set to that of the object to be published. That specific object will then be published and updated.
One Object Repository is used for all types of linear objects, since there is one PDU that is used for all types of linear object
The type of Linear Object published depends on the object type Object type: Exhaust Smoke – Domain = 0 (other), Kind = 5 (tactical smoke) Category = 1 Minefield Lane Marker – Domain = 1 (land), Kind = 6 (obstacle), Category = 1 Breach Object – Domain = 1 (land), Kind = 7 (obstacle breach), Category = 1 Breachable Linear Object – Couldn't figure out Object type... currently not implemented in the mapper Any object types not specified will be published as OtherLinearObjects
| DtLinearObjectRepository::DtLinearObjectRepository | ( | ) |
CTOR.
| DtLinearObjectRepository::DtLinearObjectRepository | ( | const DtLinearObjectRepository & | orig | ) |
Copy CTOR.
|
virtual |
Virtual DTOR.
|
virtual |
Return a copy/empty object of the same type as this.
Reimplemented from DtEnvironmentObjectRepository.
|
static |
Static creation method.
|
virtual |
| DtLinearObjectRepository& DtLinearObjectRepository::operator= | ( | const DtLinearObjectRepository & | orig | ) |
Assignment operator.
|
virtual |
Prints data to DtInfo.
Reimplemented from DtEnvironmentObjectRepository.
|
virtual |
Prints data to the specified stream.
Reimplemented from DtEnvironmentObjectRepository.
|
virtual |
|
virtual |
|
virtual |
|
protected |
|
protected |
