DtLinkStrategy Class Reference

This is the DtLinkStrategy class. It is the abstract base class for all derived strategies. More...

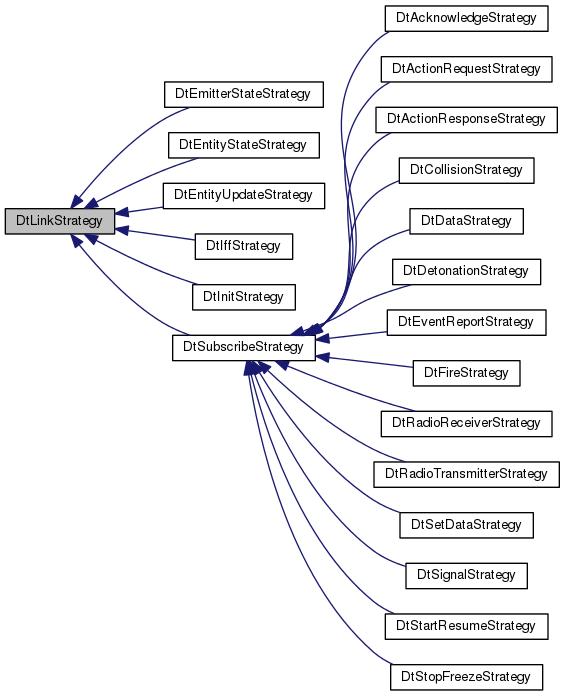

Inheritance diagram for DtLinkStrategy:

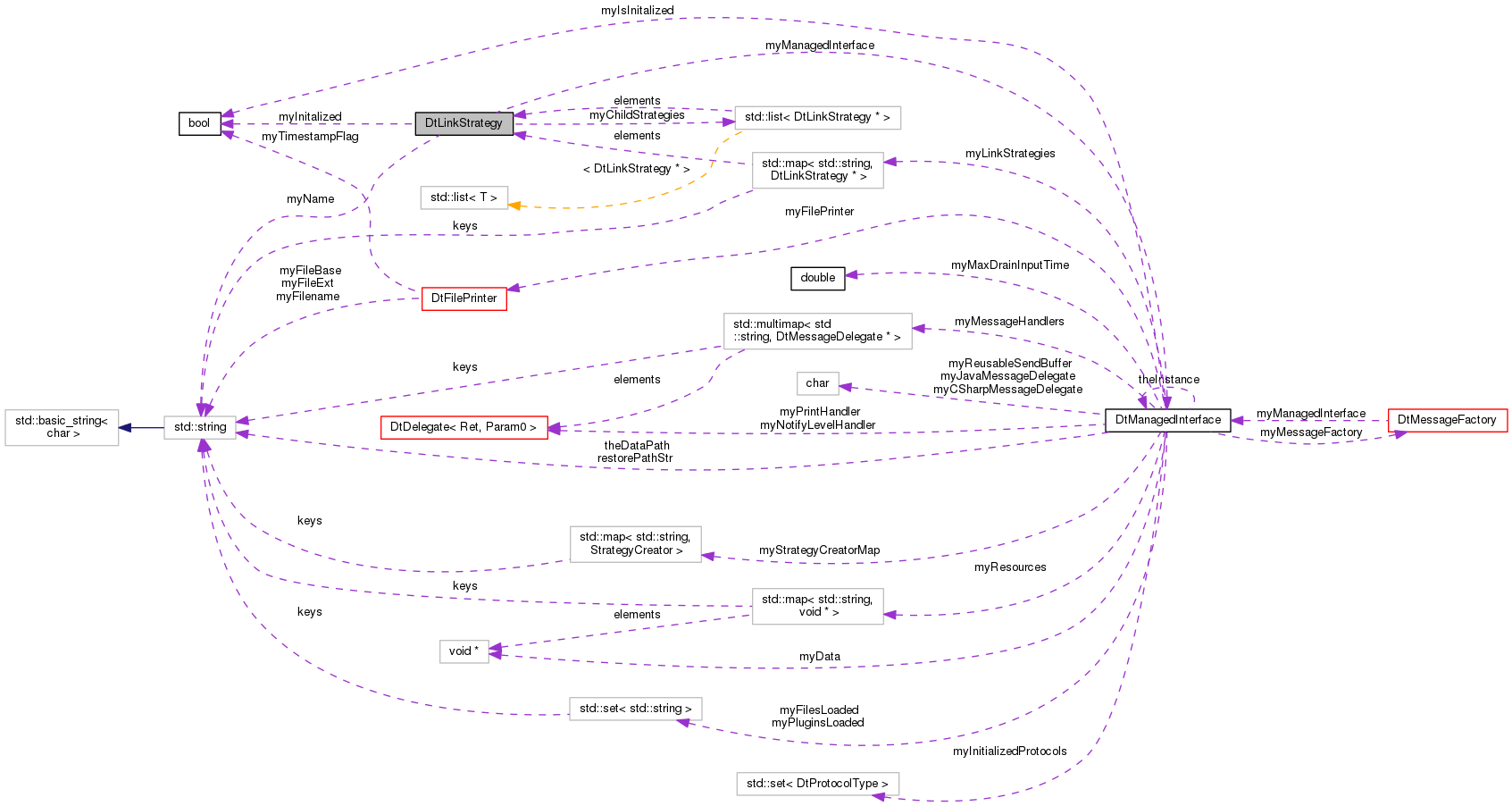

Collaboration diagram for DtLinkStrategy:

Public Member Functions
	DtLinkStrategy (std::string name, DtManagedInterface *link)
	constructor takes name More...
virtual	~DtLinkStrategy ()
	destructor More...
std::string	name ()
	Get the name of the strategy. More...
virtual bool	init ()=0
	Initialize the strategy. More...
virtual void	tick ()
	Tick the strategy to give it some CPU time. More...
virtual void	shutdown ()
	Shutdown the strategy and release any resources. More...
virtual void	addChildStrategy (DtLinkStrategy *strategy)
	Functions for adding, removing or finding any child strategies This is typically used for the initialization strategy that "owns" all the other strategies. More...
virtual bool	removeChildStrategy (std::string name)
virtual DtLinkStrategy *	findStrategy (std::string name)

Protected Attributes
DtManagedInterface *	myManagedInterface
std::string	myName
bool	myInitalized
std::list< DtLinkStrategy * >	myChildStrategies

Detailed Description

This is the DtLinkStrategy class. It is the abstract base class for all derived strategies.

Constructor & Destructor Documentation

DtLinkStrategy::DtLinkStrategy	(	std::string	name,
		DtManagedInterface *	link
	)

constructor takes name

virtual DtLinkStrategy::~DtLinkStrategy ( )

virtual

destructor

Member Function Documentation

virtual void DtLinkStrategy::addChildStrategy ( DtLinkStrategy *  strategy )

virtual

Functions for adding, removing or finding any child strategies This is typically used for the initialization strategy that "owns" all the other strategies.

virtual DtLinkStrategy* DtLinkStrategy::findStrategy ( std::string  name )

virtual

virtual bool DtLinkStrategy::init ( )

pure virtual

Initialize the strategy.

This function will be called multiple times to allow for dependent strategies to startup properly This function should return false if the strategy cannot get a resource it needs due to a dependency not being initialized yet.

Implemented in DtEmitterStateStrategy, DtAcknowledgeStrategy, DtActionRequestStrategy, DtActionResponseStrategy, DtCollisionStrategy, DtDataStrategy, DtEventReportStrategy, DtSetDataStrategy, DtStartResumeStrategy, DtStopFreezeStrategy, DtDetonationStrategy, DtIffStrategy, DtRadioReceiverStrategy, DtRadioTransmitterStrategy, DtEntityStateStrategy, DtSignalStrategy, DtFireStrategy, DtInitStrategy, and DtEntityUpdateStrategy.

std::string DtLinkStrategy::name

(

)

Get the name of the strategy.

virtual bool DtLinkStrategy::removeChildStrategy ( std::string  name )

virtual

virtual void DtLinkStrategy::shutdown ( )

virtual

Shutdown the strategy and release any resources.

Reimplemented in DtEmitterStateStrategy, DtAcknowledgeStrategy, DtActionRequestStrategy, DtActionResponseStrategy, DtCollisionStrategy, DtDataStrategy, DtEventReportStrategy, DtSetDataStrategy, DtStartResumeStrategy, DtStopFreezeStrategy, DtDetonationStrategy, DtIffStrategy, DtRadioReceiverStrategy, DtRadioTransmitterStrategy, DtEntityStateStrategy, DtSubscribeStrategy, DtSignalStrategy, DtFireStrategy, DtInitStrategy, and DtEntityUpdateStrategy.

virtual void DtLinkStrategy::tick ( )

virtual

Tick the strategy to give it some CPU time.

Reimplemented in DtEmitterStateStrategy, DtAcknowledgeStrategy, DtActionRequestStrategy, DtActionResponseStrategy, DtCollisionStrategy, DtDataStrategy, DtEventReportStrategy, DtSetDataStrategy, DtStartResumeStrategy, DtStopFreezeStrategy, DtDetonationStrategy, DtIffStrategy, DtRadioReceiverStrategy, DtRadioTransmitterStrategy, DtEntityStateStrategy, DtSignalStrategy, DtFireStrategy, DtInitStrategy, and DtEntityUpdateStrategy.

Member Data Documentation

std::list<DtLinkStrategy*> DtLinkStrategy::myChildStrategies

protected

bool DtLinkStrategy::myInitalized

protected

DtManagedInterface* DtLinkStrategy::myManagedInterface

protected

std::string DtLinkStrategy::myName

protected

---

The documentation for this class was generated from the following file:

• linkStrategy.h
