Instances of DtMinefieldQueryPdu are used to communicate minefield state information. More...

Inheritance diagram for DtMinefieldQueryPdu:

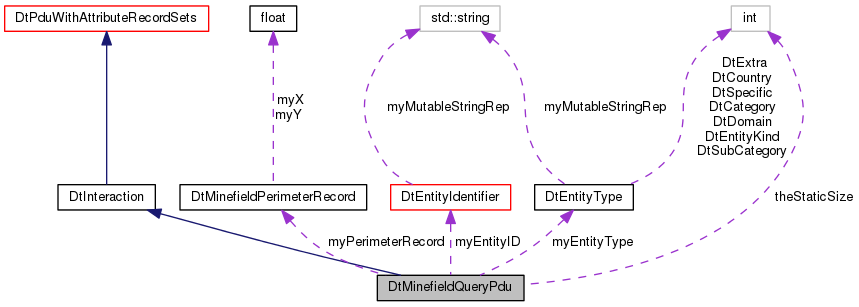

Collaboration diagram for DtMinefieldQueryPdu:

Public Member Functions
	DtMinefieldQueryPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...

	DtMinefieldQueryPdu (const DtNetMinefieldQueryPdu initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)

	DtMinefieldQueryPdu (const DtMinefieldQueryPdu &orig)

virtual	~DtMinefieldQueryPdu ()
	destructor More...

DtMinefieldQueryPdu &	operator= (const DtMinefieldQueryPdu &orig)
	Assignment operator. More...

virtual void	setMinefieldID (const DtEntityIdentifier &id)
	Set/Get minefield ID. More...

virtual const DtEntityIdentifier &	minefieldID () const

virtual void	setRequestingEntityID (const DtEntityIdentifier &id)
	Set/Get requesting entity ID. More...

virtual const DtEntityIdentifier &	requestingEntityID () const

virtual void	setRequestID (DtU8 id)
	Set/Get request ID. More...

virtual DtU8	requestID () const

virtual bool	setNumPerimeterPoints (DtU8 num)
	Set/Get the number of perimeter points. More...

virtual DtU8	numPerimeterPoints () const

virtual bool	setNumSensorTypes (DtU8 num)
	Set/Get the number of sensor types. More...

virtual DtU8	numSensorTypes () const

virtual void	setDataFilter (DtU32 value)
	Set/Get the data filter (as a 32-bit integer). More...

virtual DtU32	dataFilter () const

virtual void	setDataFilterField (DtMinefieldDataFilterField field, bool value)
	Set/Get data filter attributes. More...

virtual bool	getDataFilterField (DtMinefieldDataFilterField field)

virtual void	setRequestedMineType (const DtEntityType &type)
	Set/Get requested mine type. More...

virtual const DtEntityType &	requestedMineType () const

virtual bool	setPerimeterPoint (int index, const DtMinefieldPerimeterRecord &init)
	Set/Get a perimeter point coordinate record. More...

virtual bool	getPerimeterPoint (int index, DtMinefieldPerimeterRecord &record) const

virtual bool	getSensorTypeCategory (int index, DtSensorTypeCategory &value)
	Get the sensor type category for a record. More...

virtual bool	setSensorTypeSubcategory (int index, DtOpticalSensorTypeSubcategory value)
	Set a sensor type subcategory for a record. More...

virtual bool	setSensorTypeSubcategory (int index, DtFLIR_SensorTypeSubcategory value)

virtual bool	setSensorTypeSubcategory (int index, DtRADAR_SensorTypeSubcategory value)

virtual bool	setSensorTypeSubcategory (int index, DtMagneticSensorTypeSubcategory value)

virtual bool	setSensorTypeSubcategory (int index, DtLaserSensorTypeSubcategory value)

virtual bool	setSensorTypeSubcategory (int index, DtSONARSensorTypeSubcategory value)

virtual bool	setSensorTypeSubcategory (int index, DtPhysicalSensorTypeSubcategory value)

virtual bool	setSensorTypeSubcategory (int index, DtMultispectralSensorTypeSubcategory value)

virtual bool	getSensorTypeSubcategory (int index, DtOpticalSensorTypeSubcategory &value)
	Get a sensor type subcategory for a record. More...

virtual bool	getSensorTypeSubcategory (int index, DtFLIR_SensorTypeSubcategory &value)

virtual bool	getSensorTypeSubcategory (int index, DtRADAR_SensorTypeSubcategory &value)

virtual bool	getSensorTypeSubcategory (int index, DtMagneticSensorTypeSubcategory &value)

virtual bool	getSensorTypeSubcategory (int index, DtLaserSensorTypeSubcategory &value)

virtual bool	getSensorTypeSubcategory (int index, DtSONARSensorTypeSubcategory &value)

virtual bool	getSensorTypeSubcategory (int index, DtPhysicalSensorTypeSubcategory &value)

virtual bool	getSensorTypeSubcategory (int index, DtMultispectralSensorTypeSubcategory &value)

virtual void	printData () const
	Print the data contained by this PDU. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...

	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...

DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...

virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...

virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...

virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...

virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...

virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...

virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...

virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...

virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...

virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...

virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...

virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...

virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...

virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...

virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...

virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...

virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...

virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	encode ()
	Encode method. More...

virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...

virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...

virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...

virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...

virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const

virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...

virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...

virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...

virtual void	setAttributeStrategy (DtAttributePduStrategy strat)

virtual DtAttributePduStrategy	attributePduStrategy () const

virtual bool	shouldAttributePduBeCoupled () const

Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...

	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...

virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...

virtual int	status () const
	Get PDU status. More...

virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...

virtual int	protocolVersion () const

virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...

virtual int	exerciseId () const

virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...

virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...

virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...

virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...

virtual DtTime	receivedTime () const

virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...

virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...

virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...

virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...

virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...

virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...

virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...

virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...

virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...

virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...

virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...

virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...

virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...

virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...

virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...

virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...

virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...

virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...

virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...

virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...

virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...

virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...

virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...

virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...

virtual void	printDataToString (DtString &str) const

virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...

virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...

Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...

	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...

virtual const char *	netRep () const
	Get network representation. More...

virtual int	length () const
	Get size of message. More...

	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...

void	initMsg (int size, DtBufferPtr bufferPtr)

void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)

virtual void	changeSize (int size)
	Changes the size of the message. More...

virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...

virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...

virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...

virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...

virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...

virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...

virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)
	Create a DtMinefieldQueryPdu. More...

static void	addCallback (DtExerciseConn conn, DtMinefieldQueryPduCb cb, void usr)
	Add (register)/Remove (deregister) function to be called when pdu is received. More...

static void	removeCallback (DtExerciseConn conn, DtMinefieldQueryPduCb cb, void usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind. More...

virtual DtNetMinefieldQueryPdu *	netPduStruct () const
	Casts the netPdu element to our network struct. More...

DtMinefieldQueryPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

virtual char *	var () const
	Returns a pointer to the first byte of variable length data. More...

virtual int	perimeterPointRecordOffset (int recordIndex) const
	Returns a buffer offset to a perimeter point record. More...

virtual int	sensorTypeRecordOffset (int recordIndex) const
	Returns a buffer offset to a sensor type record. More...

virtual void	setSensorType (int index, DtU16 value)
	Set/Get the sensor type. (As a 16-bit integer.) More...

virtual DtU16	sensorType (int index) const

Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...

virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const

Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...

virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...

virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...

virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...

virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...

virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...

virtual void	clearData ()
	zeros out all bytes after the PDU header. More...

virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...

virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...

virtual bool	isLVCApplicable () const

virtual bool	isCEIApplicable () const

virtual bool	isFTIApplicable () const

virtual bool	isDTIApplicable () const

virtual bool	isRAIApplicable () const

virtual bool	isIAIApplicable () const

virtual bool	isISMApplicable () const

virtual bool	isAIIApplicable () const

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns. More...

DtEntityType	myEntityType

DtMinefieldPerimeterRecord	myPerimeterRecord

Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...

bool	isRecordSetOwned

bool	isPduExtending

DtStandardVariableRecordFactory *	mySVRFactory

DtPduDecoder *	myAttributeDecoder

DtPduEncoder *	myAttributeEncoder

DtSimulationAddress	myAttributePduOriginatingSimulationAddress

DtAttributePduStrategy	myAttributePduStrategy

Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder

DtPduDecoder *	myDecoder

int	myOKStatus

DtTime	myReceivedTime

Protected Attributes inherited from DtBaseMsg
void *	myNetMsg

void *	myInternalBuff

int	myIntBuffSize

int	myMsgSize

int	myNetworkMsgSize

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records. More...

Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtMinefieldQueryPdu are used to communicate minefield state information.

Constructor & Destructor Documentation

DtMinefieldQueryPdu::DtMinefieldQueryPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

DtMinefieldQueryPdu::DtMinefieldQueryPdu	(	const DtNetMinefieldQueryPdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

DtMinefieldQueryPdu::DtMinefieldQueryPdu ( const DtMinefieldQueryPdu & orig )

virtual DtMinefieldQueryPdu::~DtMinefieldQueryPdu ( )

virtual

destructor

Member Function Documentation

static void DtMinefieldQueryPdu::addCallback	(	DtExerciseConn *	conn,
		DtMinefieldQueryPduCb	cb,
		void *	usr
	)

static

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtMinefieldQueryPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

static

Create a DtMinefieldQueryPdu.

Caller is responsible for deletion.

virtual DtU32 DtMinefieldQueryPdu::dataFilter ( ) const

virtual

virtual bool DtMinefieldQueryPdu::getDataFilterField ( DtMinefieldDataFilterField field )

virtual

virtual bool DtMinefieldQueryPdu::getPerimeterPoint	(	int	index,
		DtMinefieldPerimeterRecord &	record
	)		const

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeCategory	(	int	index,
		DtSensorTypeCategory &	value
	)

virtual

Get the sensor type category for a record.

Returns false if the index is out of range. The category is set by setSensorTypeRecord.

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtOpticalSensorTypeSubcategory &	value
	)

virtual

Get a sensor type subcategory for a record.

false is returned if the index is out of range or if the category of the record does not match the category indicated by the type of the enumeration in the argument list.

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtFLIR_SensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtRADAR_SensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtMagneticSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtLaserSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtSONARSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtPhysicalSensorTypeSubcategory &	value
	)

virtual

virtual bool DtMinefieldQueryPdu::getSensorTypeSubcategory	(	int	index,
		DtMultispectralSensorTypeSubcategory &	value
	)

virtual

virtual DtPduKind DtMinefieldQueryPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual const DtEntityIdentifier& DtMinefieldQueryPdu::minefieldID ( ) const

virtual

virtual DtNetMinefieldQueryPdu* DtMinefieldQueryPdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual DtU8 DtMinefieldQueryPdu::numPerimeterPoints ( ) const

virtual

virtual DtU8 DtMinefieldQueryPdu::numSensorTypes ( ) const

virtual

DtMinefieldQueryPdu& DtMinefieldQueryPdu::operator= ( const DtMinefieldQueryPdu & orig )

Assignment operator.

virtual int DtMinefieldQueryPdu::perimeterPointRecordOffset ( int recordIndex ) const

protectedvirtual

Returns a buffer offset to a perimeter point record.

virtual void DtMinefieldQueryPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtMinefieldQueryPdu::printDataToStream ( std::ostream & stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

static void DtMinefieldQueryPdu::removeCallback	(	DtExerciseConn *	conn,
		DtMinefieldQueryPduCb	cb,
		void *	usr
	)

static

virtual const DtEntityType& DtMinefieldQueryPdu::requestedMineType ( ) const

virtual

virtual DtU8 DtMinefieldQueryPdu::requestID ( ) const

virtual

virtual const DtEntityIdentifier& DtMinefieldQueryPdu::requestingEntityID ( ) const

virtual

DtMinefieldQueryPdu* DtMinefieldQueryPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual DtU16 DtMinefieldQueryPdu::sensorType ( int index ) const

protectedvirtual

virtual int DtMinefieldQueryPdu::sensorTypeRecordOffset ( int recordIndex ) const

protectedvirtual

Returns a buffer offset to a sensor type record.

virtual void DtMinefieldQueryPdu::setDataFilter ( DtU32 value )

virtual

Set/Get the data filter (as a 32-bit integer).

virtual void DtMinefieldQueryPdu::setDataFilterField	(	DtMinefieldDataFilterField	field,
		bool	value
	)

virtual

Set/Get data filter attributes.

(true indicates that the data for that field is requested, false indicates that the data for that field is not requested.)

virtual void DtMinefieldQueryPdu::setMinefieldID ( const DtEntityIdentifier & id )

virtual

Set/Get minefield ID.

virtual bool DtMinefieldQueryPdu::setNumPerimeterPoints ( DtU8 num )

virtual

Set/Get the number of perimeter points.

virtual bool DtMinefieldQueryPdu::setNumSensorTypes ( DtU8 num )

virtual

Set/Get the number of sensor types.

virtual bool DtMinefieldQueryPdu::setPerimeterPoint	(	int	index,
		const DtMinefieldPerimeterRecord &	init
	)

virtual

Set/Get a perimeter point coordinate record.

Returns false if the index is out of range.

virtual void DtMinefieldQueryPdu::setRequestedMineType ( const DtEntityType & type )

virtual

Set/Get requested mine type.

virtual void DtMinefieldQueryPdu::setRequestID ( DtU8 id )

virtual

Set/Get request ID.

virtual void DtMinefieldQueryPdu::setRequestingEntityID ( const DtEntityIdentifier & id )

virtual

Set/Get requesting entity ID.

virtual void DtMinefieldQueryPdu::setSensorType	(	int	index,
		DtU16	value
	)

protectedvirtual

Set/Get the sensor type. (As a 16-bit integer.)

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtOpticalSensorTypeSubcategory	value
	)

virtual

Set a sensor type subcategory for a record.

The correct category is automatically set by this function according to type of the enumeration in the argument list. false is returned if the index is out of range.

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtFLIR_SensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtRADAR_SensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtMagneticSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtLaserSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtSONARSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtPhysicalSensorTypeSubcategory	value
	)

virtual

virtual bool DtMinefieldQueryPdu::setSensorTypeSubcategory	(	int	index,
		DtMultispectralSensorTypeSubcategory	value
	)

virtual

virtual char* DtMinefieldQueryPdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

Member Data Documentation

DtEntityIdentifier DtMinefieldQueryPdu::myEntityID

protected

Temporary objects for reference returns.

DtEntityType DtMinefieldQueryPdu::myEntityType

protected

DtMinefieldPerimeterRecord DtMinefieldQueryPdu::myPerimeterRecord

protected

const int DtMinefieldQueryPdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

The documentation for this class was generated from the following file:

minefieldQueryPdu.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
