Instances of this class provide a protocol independent interface to a list of reflected entities in a DIS environment. More...

Inheritance diagram for DtReflectedEntityList:

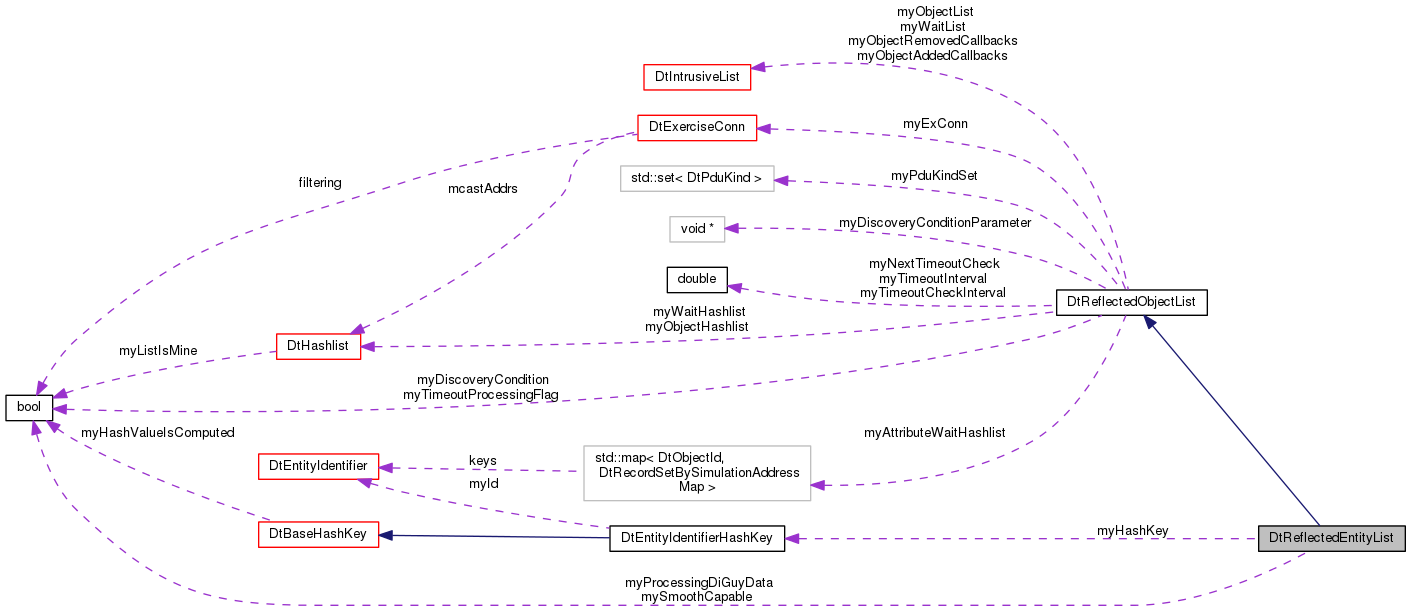

Collaboration diagram for DtReflectedEntityList:

Public Member Functions
	DtReflectedEntityList (DtExerciseConn *exConn, bool smoothCapable=false, bool processDiGuyData=false, int numBucketsPrimeNumber=503)
	Constructor. More...

virtual	~DtReflectedEntityList ()
	Destructor. More...

virtual DtReflectedEntity *	lookup (const DtObjectId &id) const
	Lookup an entity from its object ID. More...

virtual DtReflectedEntity *	first () const
	Get the first and last elements of the entity list. More...

virtual DtReflectedEntity *	last () const

virtual void	addToObjectList (DtReflectedObject *refObj)
	Adds an object the the list. More...

virtual void	addEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
	Entity added callback registration/deregistration. More...

virtual void	removeEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)

virtual void	addEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
	Entity removed callback registration/deregistration. More...

virtual void	removeEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)

virtual void	print ()
	Print the SRs of all objects. More...

virtual DtReflectedEntity *	processEntityState (const DtEntityStatePdu &pdu)
	Process an incoming entity state pdu. More...

virtual void	processRelativeLocationPdu (const DtRelativeLocationPdu &pdu)
	Process an incoming relativeLocation pdu. More...

virtual void	processEntityStateUpdatePdu (const DtEntityStateUpdatePdu &pdu)
	Process an incoming relativeLocation pdu. More...

virtual void	processDiGuyPdu (const DtDIGuyCustomPdu &pdu)
	Process an incoming DI Guy Custom PDU. More...

virtual void	processSeesPdu (const DtSuppEmisEntStatePdu &pdu)
	Process an incoming SEES PDU. More...

virtual void	discoverOnlyWhenEntityTypeKnown (bool yesNo)
	Allows one to specify whether the REL should wait until the entity type is known before adding the entity to the list. More...


virtual void	setProcessDiGuyPdus (bool enableProcessing)
	Set/Get whether to process DI-Guy data (PDU's or attributes). More...

virtual bool	processingDiGuyPdus () const

virtual void	setProcessDiGuyData (bool enableProcessing)
	Set/Get whether to process DI-Guy data (PDU's or attributes). More...

virtual bool	processingDiGuyData () const
	Set/Get whether to process DI-Guy data (PDU's or attributes). More...

Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...

virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete More...

virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU. More...

virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...

virtual DtReflectedObject *	lastObj () const

virtual int	count () const
	Get number of objects. More...

virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object. More...

virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...

virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...

virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...

virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	print () const
	Print the SRs of all objects. More...

virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...

virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...

virtual DtTime	timeoutInterval ()

virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref. More...

virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...

virtual void	removeAndDelete (DtReflectedObject obj, char msg=NULL)
	Remove the remote object from the list if found and delete it. More...

virtual void	removeObject (DtReflectedObject *obj)
	This is the same as removeAndDelete, it exists to maintain equality with HLA objects. More...

virtual DtTime	timeoutCheckInterval () const

virtual void	setTimeoutCheckInterval (DtTime interval)

Protected Member Functions
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Create a new object from a state message. More...

virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. Calls processEntityState(). More...

virtual void	objectAdded (DtReflectedObject *obj)
	Called after an entity is added and before additional callbacks are processed. More...

virtual void	finalPduIsSetAction (DtReflectedEntity *entity)
	Called when an entity sends its final PDU. More...

virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message. More...

virtual DtReflectedEntity *	newReflectedEntity (const DtEntityIdentifier &id, const DtEntityType &type) const
	Create a new reflected entity. More...

virtual void	entityAdded (DtReflectedEntity *ent)
	Called after an entity is added and before additional callbacks are processed. More...

Protected Member Functions inherited from DtReflectedObjectList
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...

virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...

void	emptyLists ()
	Empty the object list and the timeout list. More...

void	emptyCallbackLists ()

virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...

virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)

virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set. More...

virtual int	acceptPdu (const DtStateMsg &) const
	Determines if a PDU should be processed or not. More...

virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within. More...

virtual void	processAttributePduCb (DtAttributeInteraction *inter)

virtual void	processAttributePduRecordSet (const DtAttributeRecordSet &recordSet, const DtSimulationAddress &simAddr, DtReflectedObject *obj=0)

virtual void	processAttributePduWaitListCb (DtReflectedObject *obj)

virtual void	deleteRecordSetBySimulationAddressMap (DtRecordSetBySimulationAddressMap &recordSetMap, const DtSimulationAddress &simAddr=DtSimulationAddress()) const

Static Protected Member Functions
static void	entityStateCb (DtEntityStatePdu pdu, void usr)
	Callback for the exercise connection. More...

static void	relativeLocationCb (DtRelativeLocationPdu pdu, void usr)
	Callback which calls processRelativeLocationPdu. More...

static void	entityStateUpdateCb (DtEntityStateUpdatePdu pdu, void usr)
	Callback which calls processEntityStateUpdatePdu. More...

static void	diGuyPduCb (DtDIGuyCustomPdu pdu, void usr)
	Callback which calls processDiGuyPdu. More...

static void	seesPduCb (DtSuppEmisEntStatePdu pdu, void usr)
	SEES PDU callback. More...

static bool	checkEntityType (DtReflectedObject obj, void usr)
	Callback which checks whether the entity type has arrived yet; registered/deregistered using the fn, discoverOnlyWhenEntityTypeKnown. More...

Static Protected Member Functions inherited from DtReflectedObjectList
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...

static void	processAttributePduCb (DtAttributeInteraction inter, void usr)

static void	processAttributePduWaitListCb (DtReflectedObject obj, void userData)

Private Member Functions
DtReflectedEntityList &	operator= (const DtReflectedEntityList &orig)
	Assignment operator – not implemented. More...

	DtReflectedEntityList (const DtReflectedEntityList &orig)
	Copy constructor – not implemented. More...

Detailed Description

Instances of this class provide a protocol independent interface to a list of reflected entities in a DIS environment.

Examples

Constructor & Destructor Documentation

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = `false`,
		bool	processDiGuyData = `false`,
		int	numBucketsPrimeNumber = `503`
	)

Constructor.

virtual DtReflectedEntityList::~DtReflectedEntityList ( )

virtual

Destructor.

DtReflectedEntityList::DtReflectedEntityList ( const DtReflectedEntityList & orig )

private

Copy constructor – not implemented.

Member Function Documentation

virtual void DtReflectedEntityList::addEntityAdditionCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

Entity added callback registration/deregistration.

virtual void DtReflectedEntityList::addEntityRemovalCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

Entity removed callback registration/deregistration.

virtual void DtReflectedEntityList::addToObjectList ( DtReflectedObject * refObj )

virtual

Adds an object the the list.

static bool DtReflectedEntityList::checkEntityType	(	DtReflectedObject *	obj,
		void *	usr
	)

staticprotected

Callback which checks whether the entity type has arrived yet; registered/deregistered using the fn, discoverOnlyWhenEntityTypeKnown.

static void DtReflectedEntityList::diGuyPduCb	(	DtDIGuyCustomPdu *	pdu,
		void *	usr
	)

staticprotected

Callback which calls processDiGuyPdu.

virtual void DtReflectedEntityList::discoverOnlyWhenEntityTypeKnown ( bool yesNo )

virtual

Allows one to specify whether the REL should wait until the entity type is known before adding the entity to the list.

The default value is no, meaning entities will get added to the list immediately – regardless of whether it has received any attr values or not.

virtual void DtReflectedEntityList::entityAdded ( DtReflectedEntity * ent )

protectedvirtual

Called after an entity is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

static void DtReflectedEntityList::entityStateCb	(	DtEntityStatePdu *	pdu,
		void *	usr
	)

staticprotected

Callback for the exercise connection.

static void DtReflectedEntityList::entityStateUpdateCb	(	DtEntityStateUpdatePdu *	pdu,
		void *	usr
	)

staticprotected

Callback which calls processEntityStateUpdatePdu.

virtual void DtReflectedEntityList::finalPduIsSetAction ( DtReflectedEntity * entity )

protectedvirtual

Called when an entity sends its final PDU.

Currently, this removes and deletes the entity.

virtual DtReflectedEntity* DtReflectedEntityList::first ( ) const

virtual

Get the first and last elements of the entity list.

virtual const DtBaseHashKey& DtReflectedEntityList::hashKeyFromStateMessage ( const DtStateMsg * msg )

protectedvirtual

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedEntity* DtReflectedEntityList::last ( ) const

virtual

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( const DtObjectId & id ) const

virtual

Lookup an entity from its object ID.

virtual DtReflectedEntity* DtReflectedEntityList::newReflectedEntity	(	const DtEntityIdentifier &	id,
		const DtEntityType &	type
	)		const

protectedvirtual

Create a new reflected entity.

virtual DtReflectedObject* DtReflectedEntityList::newReflectedObj ( const DtStateMsg & msg )

protectedvirtual

Create a new object from a state message.

Calls newReflectedEntity() to create a new entity, and then tells the esr to use a smoother if smoothing is enabled.

Implements DtReflectedObjectList.

virtual void DtReflectedEntityList::objectAdded ( DtReflectedObject * obj )

protectedvirtual

Called after an entity is added and before additional callbacks are processed.

Calls entityAdded().

Reimplemented from DtReflectedObjectList.

DtReflectedEntityList& DtReflectedEntityList::operator= ( const DtReflectedEntityList & orig )

private

Assignment operator – not implemented.

virtual void DtReflectedEntityList::print ( )

virtual

Print the SRs of all objects.

virtual void DtReflectedEntityList::processDiGuyPdu ( const DtDIGuyCustomPdu & pdu )

virtual

Process an incoming DI Guy Custom PDU.

Only used if capability is turned on in the constructor.

virtual DtReflectedEntity* DtReflectedEntityList::processEntityState ( const DtEntityStatePdu & pdu )

virtual

Process an incoming entity state pdu.

Then calls down to base class processStateMessage().

virtual void DtReflectedEntityList::processEntityStateUpdatePdu ( const DtEntityStateUpdatePdu & pdu )

virtual

Process an incoming relativeLocation pdu.

virtual bool DtReflectedEntityList::processingDiGuyData ( ) const

virtual

Set/Get whether to process DI-Guy data (PDU's or attributes).

When true, enables processing of DI-Guy attributes and PDU (adds callback). When false, disables processing of DI-Guy attributes and PDU (removes callback).

Deprecated:: Use setProcessDiGuyData instead

virtual bool DtReflectedEntityList::processingDiGuyPdus ( ) const

virtual

Deprecated:: Use processingDiGuyData instead

virtual void DtReflectedEntityList::processRelativeLocationPdu ( const DtRelativeLocationPdu & pdu )

virtual

Process an incoming relativeLocation pdu.

virtual void DtReflectedEntityList::processSeesPdu ( const DtSuppEmisEntStatePdu & pdu )

virtual

Process an incoming SEES PDU.

virtual DtReflectedObject* DtReflectedEntityList::processStateMessage ( const DtStateMsg & msg )

protectedvirtual

Process an incoming state message. Calls processEntityState().

Reimplemented from DtReflectedObjectList.

static void DtReflectedEntityList::relativeLocationCb	(	DtRelativeLocationPdu *	pdu,
		void *	usr
	)

staticprotected

Callback which calls processRelativeLocationPdu.

virtual void DtReflectedEntityList::removeEntityAdditionCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedEntityList::removeEntityRemovalCallback	(	DtEntityCallbackFunction	cb,
		void *	userData
	)

virtual

static void DtReflectedEntityList::seesPduCb	(	DtSuppEmisEntStatePdu *	pdu,
		void *	usr
	)

staticprotected

SEES PDU callback.

virtual void DtReflectedEntityList::setProcessDiGuyData ( bool enableProcessing )

virtual

Set/Get whether to process DI-Guy data (PDU's or attributes).

When true, enables processing of DI-Guy attributes and PDU (adds callback). When false, disables processing of DI-Guy attributes and PDU (removes callback).

Deprecated:: Use setProcessDiGuyData instead

virtual void DtReflectedEntityList::setProcessDiGuyPdus ( bool enableProcessing )

virtual

Set/Get whether to process DI-Guy data (PDU's or attributes).

When true, enables processing of DI-Guy attributes and PDU (adds callback). When false, disables processing of DI-Guy attributes and PDU (removes callback).

Deprecated:: Use setProcessDiGuyData instead

Member Data Documentation

DtEntityIdentifierHashKey DtReflectedEntityList::myHashKey

protected

bool DtReflectedEntityList::myProcessingDiGuyData

protected

bool DtReflectedEntityList::mySmoothCapable

protected

The documentation for this class was generated from the following file:

reflectedEntityListDIS.h

Protected Attributes
bool	mySmoothCapable

DtEntityIdentifierHashKey	myHashKey

bool	myProcessingDiGuyData

Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn

DtIntrusiveList	myObjectAddedCallbacks

DtIntrusiveList	myObjectRemovedCallbacks

DtIntrusiveList	myObjectList

DtIntrusiveList	myWaitList

DtHashlist	myObjectHashlist

DtHashlist	myWaitHashlist

DtAttributesByObjectIdMap	myAttributeWaitHashlist

DtTime	myTimeoutInterval

DtTime	myNextTimeoutCheck

DtTime	myTimeoutCheckInterval

bool	myTimeoutProcessingFlag

DtDiscoveryCondition	myDiscoveryCondition

void *	myDiscoveryConditionParameter

std::set< DtPduKind >	myPduKindSet

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
