DtReflectedGriddedDataList Class Reference

Inheritance diagram for DtReflectedGriddedDataList:

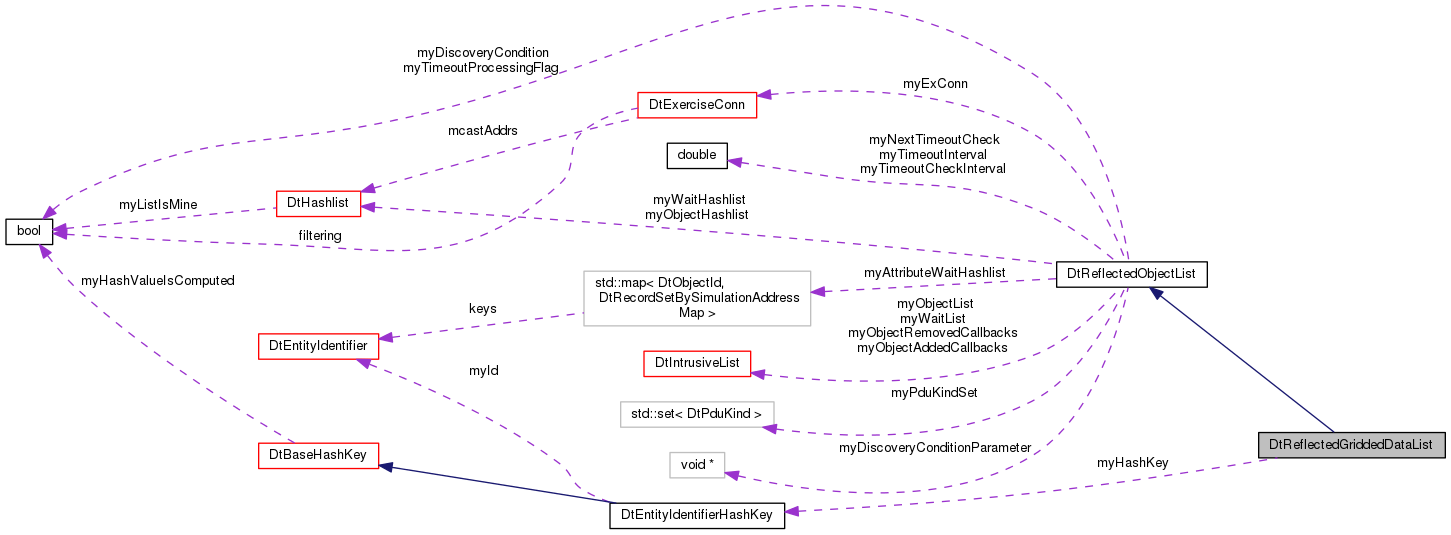

Collaboration diagram for DtReflectedGriddedDataList:

Public Member Functions
	DtReflectedGriddedDataList (DtExerciseConn *conn, int numBucketsPrimeNumber=503)
	constructor More...
virtual	~DtReflectedGriddedDataList ()
virtual DtReflectedGriddedData *	lookup (const DtObjectId &id) const
	Lookup a gridded data from its object ID. More...
virtual DtReflectedGriddedData *	first () const
	Get the first and last elements of the gridded data list. More...
virtual DtReflectedGriddedData *	last () const
virtual void	addGriddedDataAdditionCallback (DtGriddedDataCallbackFunction cb, void *userData)
	GriddedData added callback registration/deregistration. More...
virtual void	removeGriddedDataAdditionCallback (DtGriddedDataCallbackFunction cb, void *userData)
virtual void	addGriddedDataRemovalCallback (DtGriddedDataCallbackFunction cb, void *userData)
	GriddedData removed callback registration/deregistration. More...
virtual void	removeGriddedDataRemovalCallback (DtGriddedDataCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects. More...
virtual DtReflectedGriddedData *	processGriddedData (const DtGriddedDataPdu &pdu)
	Process an incoming gridded data pdu. More...
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...
virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete More...
virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU. More...
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects. More...
virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object. More...
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print () const
	Print the SRs of all objects. More...
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...
virtual DtTime	timeoutInterval ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref. More...
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Remove the remote object from the list if found and delete it. More...
virtual void	removeObject (DtReflectedObject *obj)
	This is the same as removeAndDelete, it exists to maintain equality with HLA objects. More...
virtual DtTime	timeoutCheckInterval () const
virtual void	setTimeoutCheckInterval (DtTime interval)

Protected Member Functions
DtReflectedGriddedDataList &	operator= (const DtReflectedGriddedDataList &orig)
	Assignment operator – not implemented. More...
	DtReflectedGriddedDataList (const DtReflectedGriddedDataList &orig)
	Copy constructor – not implemented. More...
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Create a new object from a state message. More...
virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. Calls processGriddedData(). More...
virtual void	objectAdded (DtReflectedObject *obj)
	Called after an gridded data is added and before addition callbacks are processed. More...
virtual void	finalPduIsSetAction (DtReflectedGriddedData *gridData)
	Called when an env process sends its final PDU. More...
virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message. More...
virtual DtReflectedGriddedData *	newReflectedGriddedData (const DtEntityIdentifier &id, const DtEntityType &type) const
	Create a new reflected gridded data. More...
virtual void	griddedDataAdded (DtReflectedGriddedData *ent)
	Called after an env process is added and before addition callbacks are processed. More...
Protected Member Functions inherited from DtReflectedObjectList
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...
void	emptyLists ()
	Empty the object list and the timeout list. More...
void	emptyCallbackLists ()
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set. More...
virtual int	acceptPdu (const DtStateMsg &) const
	Determines if a PDU should be processed or not. More...
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within. More...
virtual void	processAttributePduCb (DtAttributeInteraction *inter)
virtual void	processAttributePduRecordSet (const DtAttributeRecordSet &recordSet, const DtSimulationAddress &simAddr, DtReflectedObject *obj=0)
virtual void	processAttributePduWaitListCb (DtReflectedObject *obj)
virtual void	deleteRecordSetBySimulationAddressMap (DtRecordSetBySimulationAddressMap &recordSetMap, const DtSimulationAddress &simAddr=DtSimulationAddress()) const

Static Protected Member Functions
static void	griddedDataCb (DtGriddedDataPdu *pdu, void *usr)
	Callback for the exercise connection. More...
Static Protected Member Functions inherited from DtReflectedObjectList
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...
static void	processAttributePduCb (DtAttributeInteraction *inter, void *usr)
static void	processAttributePduWaitListCb (DtReflectedObject *obj, void *userData)

Protected Attributes
DtEntityIdentifierHashKey	myHashKey
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtIntrusiveList	myObjectList
DtIntrusiveList	myWaitList
DtHashlist	myObjectHashlist
DtHashlist	myWaitHashlist
DtAttributesByObjectIdMap	myAttributeWaitHashlist
DtTime	myTimeoutInterval
DtTime	myNextTimeoutCheck
DtTime	myTimeoutCheckInterval
bool	myTimeoutProcessingFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
std::set< DtPduKind >	myPduKindSet

Constructor & Destructor Documentation

DtReflectedGriddedDataList::DtReflectedGriddedDataList	(	DtExerciseConn *	conn,
		int	numBucketsPrimeNumber = 503
	)

constructor

virtual DtReflectedGriddedDataList::~DtReflectedGriddedDataList ( )

virtual

DtReflectedGriddedDataList::DtReflectedGriddedDataList ( const DtReflectedGriddedDataList &  orig )

protected

Copy constructor – not implemented.

Member Function Documentation

virtual void DtReflectedGriddedDataList::addGriddedDataAdditionCallback ( DtGriddedDataCallbackFunction  cb, void *  userData  )

virtual

GriddedData added callback registration/deregistration.

virtual void DtReflectedGriddedDataList::addGriddedDataRemovalCallback ( DtGriddedDataCallbackFunction  cb, void *  userData  )

virtual

GriddedData removed callback registration/deregistration.

virtual void DtReflectedGriddedDataList::finalPduIsSetAction ( DtReflectedGriddedData *  gridData )

protectedvirtual

Called when an env process sends its final PDU.

Currently, this removes and deletes the gridded data.

virtual DtReflectedGriddedData* DtReflectedGriddedDataList::first ( ) const

virtual

Get the first and last elements of the gridded data list.

virtual void DtReflectedGriddedDataList::griddedDataAdded ( DtReflectedGriddedData *  ent )

protectedvirtual

Called after an env process is added and before addition callbacks are processed.

Right now, this function only calls DtInfo.

static void DtReflectedGriddedDataList::griddedDataCb ( DtGriddedDataPdu *  pdu, void *  usr  )

staticprotected

Callback for the exercise connection.

virtual const DtBaseHashKey& DtReflectedGriddedDataList::hashKeyFromStateMessage ( const DtStateMsg *  msg )

protectedvirtual

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedGriddedData* DtReflectedGriddedDataList::last ( ) const

virtual

virtual DtReflectedGriddedData* DtReflectedGriddedDataList::lookup ( const DtObjectId &  id ) const

virtual

Lookup a gridded data from its object ID.

virtual DtReflectedGriddedData* DtReflectedGriddedDataList::newReflectedGriddedData ( const DtEntityIdentifier &  id, const DtEntityType &  type  ) const

protectedvirtual

Create a new reflected gridded data.

virtual DtReflectedObject* DtReflectedGriddedDataList::newReflectedObj ( const DtStateMsg &  msg )

protectedvirtual

Create a new object from a state message.

Calls newReflectedGriddedData() to create a new gridded data

Implements DtReflectedObjectList.

virtual void DtReflectedGriddedDataList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called after an gridded data is added and before addition callbacks are processed.

Calls griddedDataAdded().

Reimplemented from DtReflectedObjectList.

DtReflectedGriddedDataList& DtReflectedGriddedDataList::operator= ( const DtReflectedGriddedDataList &  orig )

protected

Assignment operator – not implemented.

virtual void DtReflectedGriddedDataList::print ( )

virtual

Print the SRs of all objects.

virtual DtReflectedGriddedData* DtReflectedGriddedDataList::processGriddedData ( const DtGriddedDataPdu &  pdu )

virtual

Process an incoming gridded data pdu.

Then calls down to base class processStateMessage().

virtual DtReflectedObject* DtReflectedGriddedDataList::processStateMessage ( const DtStateMsg &  msg )

protectedvirtual

Process an incoming state message. Calls processGriddedData().

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedGriddedDataList::removeGriddedDataAdditionCallback ( DtGriddedDataCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedGriddedDataList::removeGriddedDataRemovalCallback ( DtGriddedDataCallbackFunction  cb, void *  userData  )

virtual

Member Data Documentation

DtEntityIdentifierHashKey DtReflectedGriddedDataList::myHashKey

protected

---

The documentation for this class was generated from the following file:

• reflectedGriddedDataListDIS.h
