DtReflectedRadioReceiver Class Reference

Instances of DtReflectedRadioReceiver represent radio receiver objects simulated by remote applications. More...

Inheritance diagram for DtReflectedRadioReceiver:

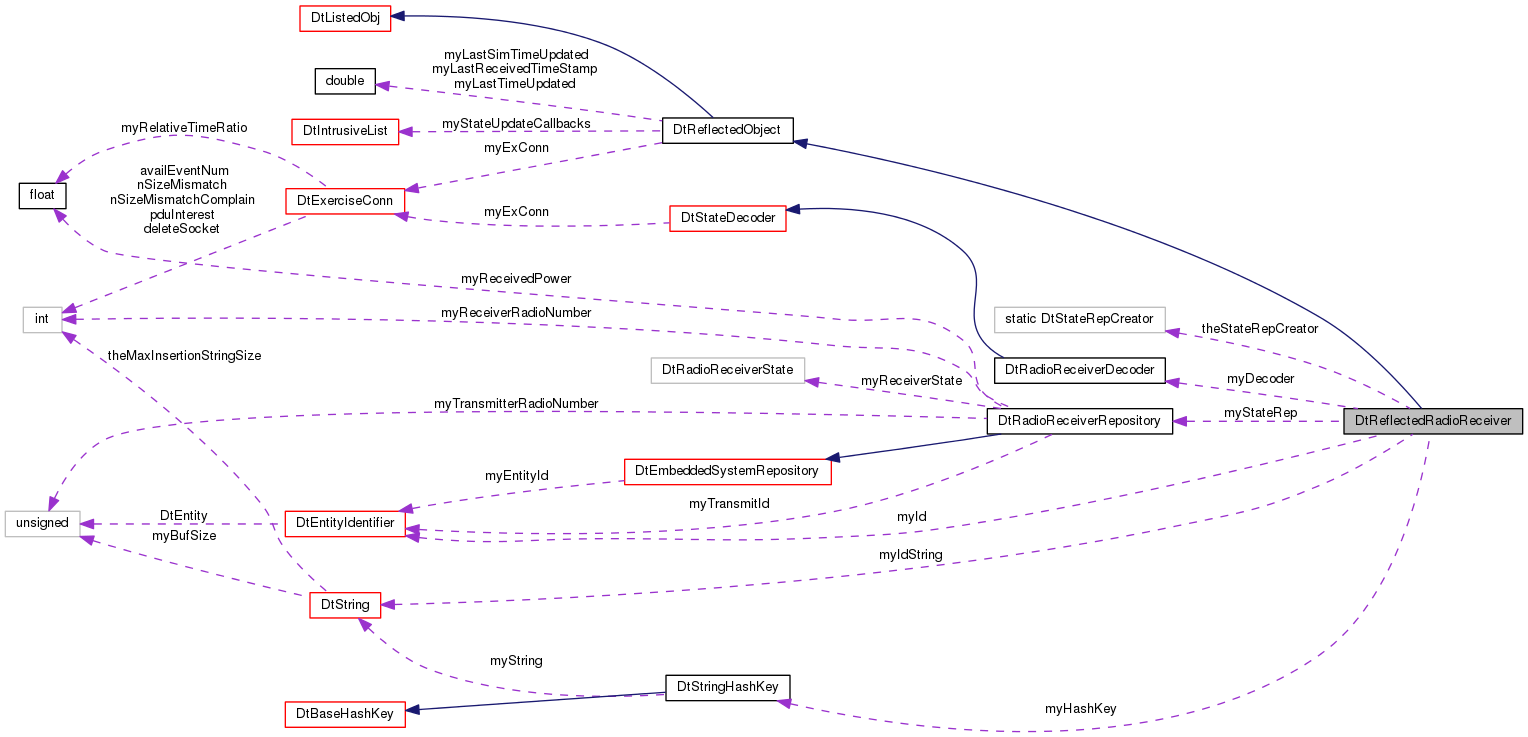

Collaboration diagram for DtReflectedRadioReceiver:

Public Types
typedef DtRadioReceiverRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtRadioReceiverRepositories. More...

Public Member Functions
	DtReflectedRadioReceiver (DtExerciseConn *conn, const DtEntityIdentifier &id, int radioId)
	Constructor. More...
virtual	~DtReflectedRadioReceiver ()
	Destructor. More...
virtual DtRadioReceiverRepository *	receiverRep () const
	Returns ptr to a DtRadioReceiverRepository – through which you can inspect current state info. More...
virtual DtRadioReceiverRepository *	rsr () const
	Synonym for receiverRep(). More...
virtual DtStateRepository *	stateRep () const
	Implementation for abstract base class. Calls rsr(). More...
virtual DtRadioReceiverDecoder *	decoder ()
	Returns a pointer to the decoder being used to decode state messages into our DtRadioReceiverRepository. More...
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier. More...
virtual const DtObjectId &	id () const
	Get the radio receiver's id. (For DIS, DtObjectId is DtEntityIdentifier). More...
virtual const DtObjectId &	localId () const
	Get the radio receiver's local id. For DIS - same as id(). More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the radio receiver's object's global object designator - for DIS, it's the same as its DtEntityIdentifier. More...
virtual int	radioId () const
	Get the radio receiver's radio ID. More...
virtual void	processStateMessage (const DtStateMsg &msg)
	Process a radio receiver PDU. More...
virtual DtReflectedRadioReceiver *	next () const
	Get the next and previous elements in the reflected radio receiver list. More...
virtual DtReflectedRadioReceiver *	prev () const
virtual DtReflectedRadioReceiver *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list. More...
virtual DtReflectedRadioReceiver *	wrapPrev () const
virtual void	addPostUpdateCallback (DtRadioReceiverCallbackFunction cb, void *userData)
	Radio Receiver callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtRadioReceiverCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object. More...
virtual DtString	idString () const
	Get a string identification of this object. More...
virtual void	processRadioReceiver (const DtReceiverPdu &pdu)
	Process a receiver PDU. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...
static DtStateRepCreator	stateRepCreator (void)

Protected Member Functions
	DtReflectedRadioReceiver (const DtReflectedRadioReceiver &orig)
	Copy constructor – not implemented. More...
DtReflectedRadioReceiver &	operator= (const DtReflectedRadioReceiver &orig)
	Assignment operator – not implemented. More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Protected Attributes
DtEntityIdentifier	myId
DtString	myIdString
DtRadioReceiverRepository *	myStateRep
DtRadioReceiverDecoder *	myDecoder
DtStringHashKey	myHashKey
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtReflectedRadioReceiver represent radio receiver objects simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtRadioReceiverRepository*(* DtReflectedRadioReceiver::DtStateRepCreator)()

Function prototype for functions that create DtRadioReceiverRepositories.

Constructor & Destructor Documentation

DtReflectedRadioReceiver::DtReflectedRadioReceiver	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		int	radioId
	)

Constructor.

virtual DtReflectedRadioReceiver::~DtReflectedRadioReceiver ( )

virtual

Destructor.

DtReflectedRadioReceiver::DtReflectedRadioReceiver ( const DtReflectedRadioReceiver &  orig )

protected

Copy constructor – not implemented.

Member Function Documentation

virtual void DtReflectedRadioReceiver::addPostUpdateCallback ( DtRadioReceiverCallbackFunction  cb, void *  userData  )

virtual

Radio Receiver callback registration/deregistration.

virtual DtRadioReceiverDecoder* DtReflectedRadioReceiver::decoder ( )

virtual

Returns a pointer to the decoder being used to decode state messages into our DtRadioReceiverRepository.

virtual const DtEntityIdentifier& DtReflectedRadioReceiver::entityId ( ) const

virtual

Returns the entity identifier.

virtual const DtGlobalObjectDesignator& DtReflectedRadioReceiver::globalId ( ) const

virtual

Get the radio receiver's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedRadioReceiver::hashKey ( ) const

virtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioReceiver::id ( ) const

virtual

Get the radio receiver's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedRadioReceiver::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioReceiver::localId ( ) const

virtual

Get the radio receiver's local id. For DIS - same as id().

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::next ( ) const

virtual

Get the next and previous elements in the reflected radio receiver list.

DtReflectedRadioReceiver& DtReflectedRadioReceiver::operator= ( const DtReflectedRadioReceiver &  orig )

protected

Assignment operator – not implemented.

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::prev ( ) const

virtual

virtual void DtReflectedRadioReceiver::processRadioReceiver ( const DtReceiverPdu &  pdu )

virtual

Process a receiver PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedRadioReceiver::processStateMessage ( const DtStateMsg &  msg )

virtual

Process a radio receiver PDU.

Calls processRadioReceiver().

Reimplemented from DtReflectedObject.

int DtReflectedRadioReceiver::radioId ( ) const

inlinevirtual

Get the radio receiver's radio ID.

References myStateRep, and DtRadioReceiverRepository::radioId().

virtual DtRadioReceiverRepository* DtReflectedRadioReceiver::receiverRep ( ) const

virtual

Returns ptr to a DtRadioReceiverRepository – through which you can inspect current state info.

virtual void DtReflectedRadioReceiver::removePostUpdateCallback ( DtRadioReceiverCallbackFunction  cb, void *  userData  )

virtual

virtual DtRadioReceiverRepository* DtReflectedRadioReceiver::rsr ( ) const

virtual

Synonym for receiverRep().

static void DtReflectedRadioReceiver::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedRadioReceiver::stateRep ( ) const

virtual

Implementation for abstract base class. Calls rsr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedRadioReceiver::stateRepCreator ( void  )

static

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::wrapNext ( ) const

virtual

Get the next and previous elements, wrap at the ends of the list.

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::wrapPrev ( ) const

virtual

Member Data Documentation

DtRadioReceiverDecoder* DtReflectedRadioReceiver::myDecoder

protected

DtStringHashKey DtReflectedRadioReceiver::myHashKey

protected

DtEntityIdentifier DtReflectedRadioReceiver::myId

protected

DtString DtReflectedRadioReceiver::myIdString

protected

DtRadioReceiverRepository* DtReflectedRadioReceiver::myStateRep

protected

Referenced by radioId().

DtStateRepCreator DtReflectedRadioReceiver::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedRadioReceiverDIS.h
