DtReflectedRadioTransmitter Class Reference

The reflected list for Radio Transmitter objects. More...

Inheritance diagram for DtReflectedRadioTransmitter:

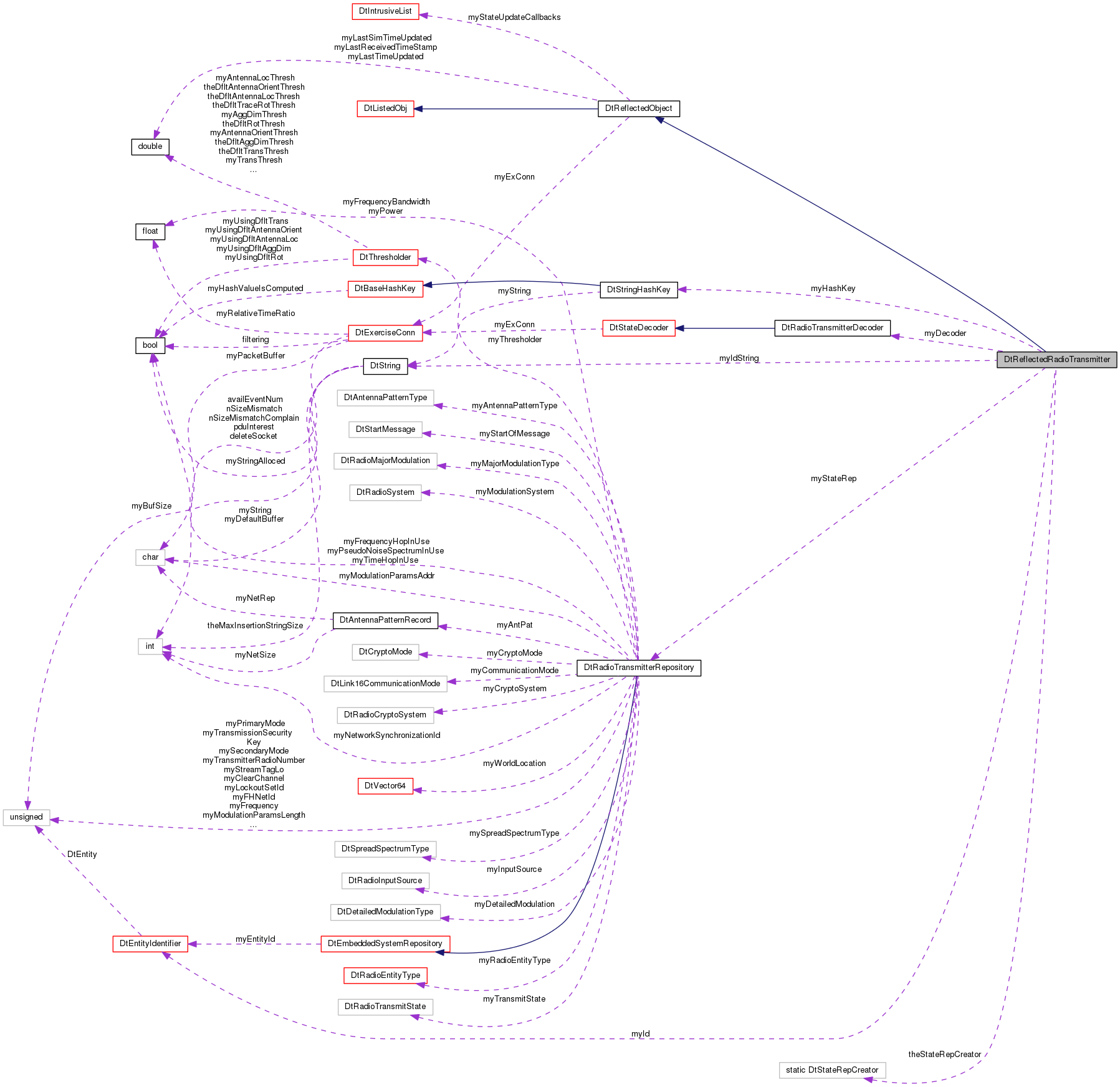

Collaboration diagram for DtReflectedRadioTransmitter:

Public Types
typedef DtRadioTransmitterRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtRadioTransmitterRepositories. More...

Public Member Functions
	DtReflectedRadioTransmitter (DtExerciseConn *conn, const DtEntityIdentifier &id, int radioId)
	constructor More...
virtual	~DtReflectedRadioTransmitter ()
	destructor More...
virtual DtRadioTransmitterRepository *	radioXmitRep () const
	Returns ptr to radioTransmitterRepository – through which you can inspect current state info. More...
virtual DtRadioTransmitterRepository *	tsr () const
	Synonym for radioXmitRep. More...
virtual DtStateRepository *	stateRep () const
	Implementation for abstract base class. Calls tsr(). More...
virtual DtRadioTransmitterDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our TSR. More...
virtual const DtEntityIdentifier &	entityId () const
	Returns the entity identifier. More...
virtual const DtObjectId &	id () const
	Get the radio transmitter's id. (For DIS, DtObjectId is DtEntityIdentifier). More...
virtual const DtObjectId &	localId () const
	Get the radio transmitter's local id. For DIS - same as id(). More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the radio transmitter's object's global object designator - for DIS, it's the same as its DtEntityIdentifier. More...
virtual int	radioId () const
	Get the radio transmitter's radio ID. More...
virtual void	processStateMessage (const DtStateMsg &msg)
	Process a radio transmitter PDU. More...
virtual DtReflectedRadioTransmitter *	next () const
	Get the next and previous elements in the reflected radio transmitter list. More...
virtual DtReflectedRadioTransmitter *	prev () const
virtual DtReflectedRadioTransmitter *	wrapNext () const
	Get the next and previous elements, wrap at the ends of the list. More...
virtual DtReflectedRadioTransmitter *	wrapPrev () const
virtual void	addPostUpdateCallback (DtRadioTransmitterCallbackFunction cb, void *userData)
	Radio Transmitter callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtRadioTransmitterCallbackFunction cb, void *userData)
virtual const DtBaseHashKey &	hashKey () const
	Get a hash key for this object. More...
virtual DtString	idString () const
	Get a string identification of this object. More...
virtual void	processRadioTransmitter (const DtTransmitterPdu &pdu)
	Process a transmitter PDU. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...
static DtStateRepCreator	stateRepCreator ()

Protected Member Functions
	DtReflectedRadioTransmitter (const DtReflectedRadioTransmitter &orig)
	copy constructor – not implemented More...
DtReflectedRadioTransmitter &	operator= (const DtReflectedRadioTransmitter &orig)
	assignment operator – not implemented More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Protected Attributes
DtEntityIdentifier	myId
DtRadioTransmitterRepository *	myStateRep
DtRadioTransmitterDecoder *	myDecoder
DtStringHashKey	myHashKey
DtString	myIdString
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

The reflected list for Radio Transmitter objects.

Member Typedef Documentation

typedef DtRadioTransmitterRepository*(* DtReflectedRadioTransmitter::DtStateRepCreator)()

Function prototype for functions that create DtRadioTransmitterRepositories.

Constructor & Destructor Documentation

DtReflectedRadioTransmitter::DtReflectedRadioTransmitter	(	DtExerciseConn *	conn,
		const DtEntityIdentifier &	id,
		int	radioId
	)

constructor

virtual DtReflectedRadioTransmitter::~DtReflectedRadioTransmitter ( )

virtual

destructor

DtReflectedRadioTransmitter::DtReflectedRadioTransmitter ( const DtReflectedRadioTransmitter &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedRadioTransmitter::addPostUpdateCallback ( DtRadioTransmitterCallbackFunction  cb, void *  userData  )

virtual

Radio Transmitter callback registration/deregistration.

virtual DtRadioTransmitterDecoder* DtReflectedRadioTransmitter::decoder ( )

virtual

Returns a pointer to the Decoder being used to decode state messages into our TSR.

virtual const DtEntityIdentifier& DtReflectedRadioTransmitter::entityId ( ) const

virtual

Returns the entity identifier.

virtual const DtGlobalObjectDesignator& DtReflectedRadioTransmitter::globalId ( ) const

virtual

Get the radio transmitter's object's global object designator - for DIS, it's the same as its DtEntityIdentifier.

Implements DtReflectedObject.

virtual const DtBaseHashKey& DtReflectedRadioTransmitter::hashKey ( ) const

virtual

Get a hash key for this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioTransmitter::id ( ) const

virtual

Get the radio transmitter's id. (For DIS, DtObjectId is DtEntityIdentifier).

virtual DtString DtReflectedRadioTransmitter::idString ( ) const

virtual

Get a string identification of this object.

Implements DtReflectedObject.

virtual const DtObjectId& DtReflectedRadioTransmitter::localId ( ) const

virtual

Get the radio transmitter's local id. For DIS - same as id().

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::next ( ) const

virtual

Get the next and previous elements in the reflected radio transmitter list.

DtReflectedRadioTransmitter& DtReflectedRadioTransmitter::operator= ( const DtReflectedRadioTransmitter &  orig )

protected

assignment operator – not implemented

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::prev ( ) const

virtual

virtual void DtReflectedRadioTransmitter::processRadioTransmitter ( const DtTransmitterPdu &  pdu )

virtual

Process a transmitter PDU.

Also calls down to base class processStateMessage().

virtual void DtReflectedRadioTransmitter::processStateMessage ( const DtStateMsg &  msg )

virtual

Process a radio transmitter PDU.

Calls processRadioTransmitter().

Reimplemented from DtReflectedObject.

int DtReflectedRadioTransmitter::radioId ( ) const

inlinevirtual

Get the radio transmitter's radio ID.

References myStateRep, and DtRadioTransmitterRepository::radioId().

virtual DtRadioTransmitterRepository* DtReflectedRadioTransmitter::radioXmitRep ( ) const

virtual

Returns ptr to radioTransmitterRepository – through which you can inspect current state info.

virtual void DtReflectedRadioTransmitter::removePostUpdateCallback ( DtRadioTransmitterCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedRadioTransmitter::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtStateRepository* DtReflectedRadioTransmitter::stateRep ( ) const

virtual

Implementation for abstract base class. Calls tsr().

Implements DtReflectedObject.

static DtStateRepCreator DtReflectedRadioTransmitter::stateRepCreator ( )

static

virtual DtRadioTransmitterRepository* DtReflectedRadioTransmitter::tsr ( ) const

virtual

Synonym for radioXmitRep.

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::wrapNext ( ) const

virtual

Get the next and previous elements, wrap at the ends of the list.

virtual DtReflectedRadioTransmitter* DtReflectedRadioTransmitter::wrapPrev ( ) const

virtual

Member Data Documentation

DtRadioTransmitterDecoder* DtReflectedRadioTransmitter::myDecoder

protected

DtStringHashKey DtReflectedRadioTransmitter::myHashKey

protected

DtEntityIdentifier DtReflectedRadioTransmitter::myId

protected

DtString DtReflectedRadioTransmitter::myIdString

protected

DtRadioTransmitterRepository* DtReflectedRadioTransmitter::myStateRep

protected

Referenced by radioId().

DtStateRepCreator DtReflectedRadioTransmitter::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedRadioTransmitterDIS.h
