Represent an undefined type of PDU. More...

Inheritance diagram for DtUnknownPdu:

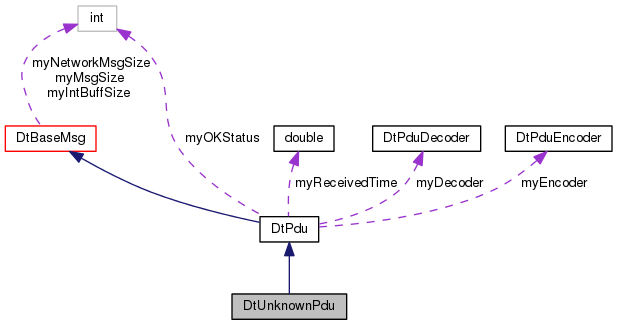

Collaboration diagram for DtUnknownPdu:

Public Types
enum	{ PduStaticSize =12 }

Public Member Functions
	DtUnknownPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)

	DtUnknownPdu (const DtNetPduHeader initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)

virtual void	printDataToStream (std::ostream &stream) const

void	setKind (DtPduKind kind)

Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...

	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...

virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...

virtual int	status () const
	Get PDU status. More...

virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...

virtual int	protocolVersion () const

virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...

virtual int	exerciseId () const

virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...

virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...

virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...

virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...

virtual DtTime	receivedTime () const

virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...

virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...

virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...

virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...

virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...

virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...

virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...

virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...

virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...

virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...

virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...

virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...

virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...

virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...

virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...

virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...

virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...

virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...

virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...

virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...

virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...

virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...

virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...

virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream. More...

virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...

virtual void	printData () const
	Print the PDU's data (not including header). More...

virtual void	printDataToString (DtString &str) const

virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...

virtual void	encode ()
	Encode method. More...

virtual void	decode (DtPduFactory *pduFactory)
	Decode method. More...

virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...

Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...

	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...

virtual const char *	netRep () const
	Get network representation. More...

virtual int	length () const
	Get size of message. More...

	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...

void	initMsg (int size, DtBufferPtr bufferPtr)

void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)

virtual void	changeSize (int size)
	Changes the size of the message. More...

virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...

virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...

virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...

virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...

virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...

virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...

virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)

static void	addCallback (DtPduKind kind, DtExerciseConn conn, DtUnknownPduCb cb, void usr)

static void	removeCallback (DtPduKind kind, DtExerciseConn conn, DtUnknownPduCb cb, void usr)

Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class. More...

Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...

virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...

virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...

virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...

virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...

virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...

virtual void	clearData ()
	zeros out all bytes after the PDU header. More...

virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...

virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...

virtual bool	isLVCApplicable () const

virtual bool	isCEIApplicable () const

virtual bool	isFTIApplicable () const

virtual bool	isDTIApplicable () const

virtual bool	isRAIApplicable () const

virtual bool	isIAIApplicable () const

virtual bool	isISMApplicable () const

virtual bool	isAIIApplicable () const

virtual bool	shouldAttributePduBeCoupled () const

Additional Inherited Members
Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder

DtPduDecoder *	myDecoder

int	myOKStatus

DtTime	myReceivedTime

Protected Attributes inherited from DtBaseMsg
void *	myNetMsg

void *	myInternalBuff

int	myIntBuffSize

int	myMsgSize

int	myNetworkMsgSize

Detailed Description

Represent an undefined type of PDU.

Member Enumeration Documentation

anonymous enum

Enumerator
PduStaticSize

Constructor & Destructor Documentation

DtUnknownPdu::DtUnknownPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

DtUnknownPdu::DtUnknownPdu	(	const DtNetPduHeader *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

Member Function Documentation

static void DtUnknownPdu::addCallback	(	DtPduKind	kind,
		DtExerciseConn *	conn,
		DtUnknownPduCb	cb,
		void *	usr
	)

static

static DtPdu* DtUnknownPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

static

DtPduKind DtUnknownPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

virtual void DtUnknownPdu::printDataToStream ( std::ostream & stream ) const

virtual

Reimplemented from DtPdu.

static void DtUnknownPdu::removeCallback	(	DtPduKind	kind,
		DtExerciseConn *	conn,
		DtUnknownPduCb	cb,
		void *	usr
	)

static

void DtUnknownPdu::setKind ( DtPduKind kind )

The documentation for this class was generated from the following file:

unknownPdu.h
