DtReflectedModeC Class Reference

Instances of DtReflectedModeC are used to represent a simulated HLAobjectRoot.IFFData.ModeC object reflected across a network. More...

Inheritance diagram for DtReflectedModeC:

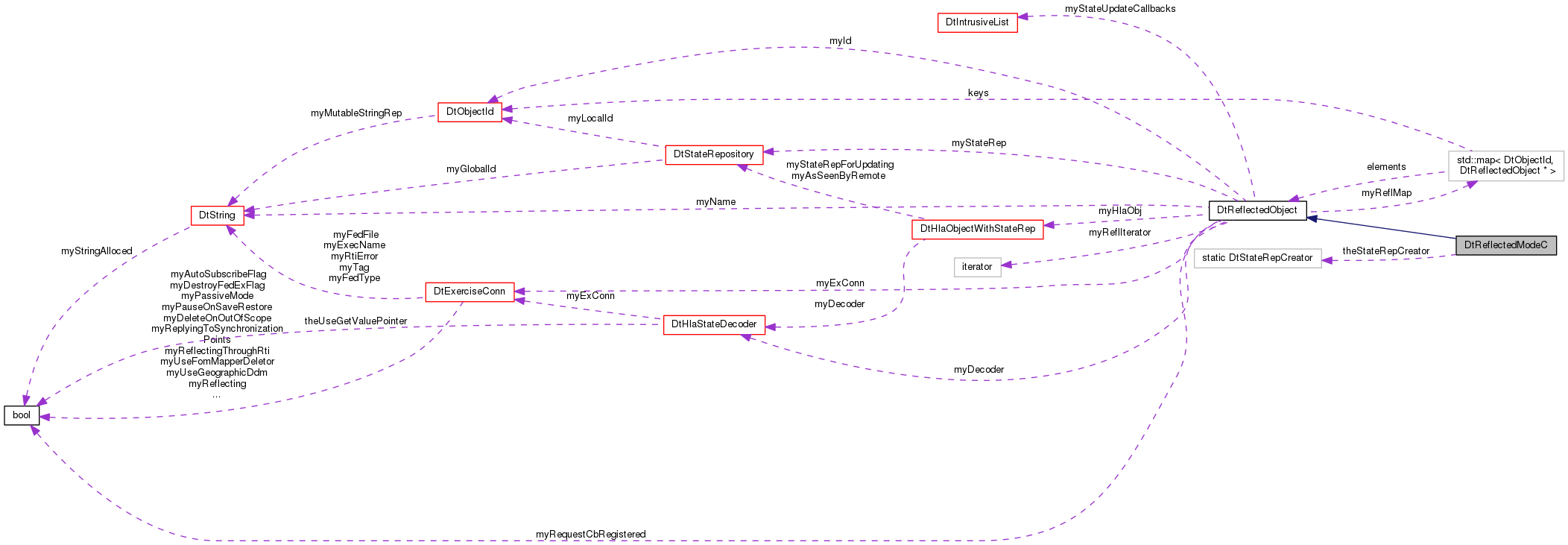

Collaboration diagram for DtReflectedModeC:

Public Types
typedef DtModeCStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create a DtModeCStateRepository. More...
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...

Public Member Functions
	DtReflectedModeC (DtHlaObject *obj, DtExerciseConn *exConn)
	Constructor. More...
virtual	~DtReflectedModeC ()
	Destructor. More...
virtual DtModeCStateRepository *	modeCStateRep () const
	Returns the ModeC's state repository. More...
virtual DtModeCStateRepository *	msr () const
	Shorter version of lifeformRep. More...
virtual DtReflectedModeC *	next () const
	Returns the next reflected ModeC in the DtReflectedModeCList. More...
virtual DtReflectedModeC *	prev () const
	Returns the previous reflected ModeC in the DtReflectedModeCList. More...
virtual DtReflectedModeC *	wrapNext () const
	Returns the next reflected ModeC. More...
virtual DtReflectedModeC *	wrapPrev () const
	Returns the previous reflected ModeC. More...
virtual void	addPostUpdateCallback (DtModeCCallbackFunction cb, void *userData)
	Add a callback that is called when the DtReflectedModeC is updated. More...
virtual void	removePostUpdateCallback (DtModeCCallbackFunction cb, void *userData)
	Remove the callback that is called when the DtReflectedModeC is updated. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor. More...
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...
virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...
virtual const DtString &	name () const
	Get the HLA object name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder. More...
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...
void	detachHlaObject ()
	Ends managing of current HLA object. More...
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Set the function to be called for creating state repositories. More...

Protected Member Functions
	DtReflectedModeC (const DtReflectedModeC &orig)
	Copy Constructor not implemented. More...
DtReflectedModeC &	operator= (const DtReflectedModeC &orig)
	Assignment operator not implemented. More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
	The function called to create state repositories. More...

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	requestUpdatePostDrainCb (void *usr)
	Calls requestUpdate. More...
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks. More...
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
bool	myRequestCbRegistered
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Detailed Description

Instances of DtReflectedModeC are used to represent a simulated HLAobjectRoot.IFFData.ModeC object reflected across a network.

Member Typedef Documentation

typedef DtModeCStateRepository*(* DtReflectedModeC::DtStateRepCreator)()

Function prototype for functions that create a DtModeCStateRepository.

Constructor & Destructor Documentation

DtReflectedModeC::DtReflectedModeC	(	DtHlaObject *	obj,
		DtExerciseConn *	exConn
	)

Constructor.

virtual DtReflectedModeC::~DtReflectedModeC ( )

virtual

Destructor.

DtReflectedModeC::DtReflectedModeC ( const DtReflectedModeC &  orig )

protected

Copy Constructor not implemented.

Member Function Documentation

virtual void DtReflectedModeC::addPostUpdateCallback ( DtModeCCallbackFunction  cb, void *  userData  )

virtual

Add a callback that is called when the DtReflectedModeC is updated.

DtModeCStateRepository * DtReflectedModeC::modeCStateRep ( ) const

inlinevirtual

Returns the ModeC's state repository.

References DtReflectedObject::myStateRep.

DtModeCStateRepository * DtReflectedModeC::msr ( ) const

inlinevirtual

Shorter version of lifeformRep.

References DtReflectedObject::myStateRep.

virtual DtReflectedModeC* DtReflectedModeC::next ( ) const

virtual

Returns the next reflected ModeC in the DtReflectedModeCList.

DtReflectedModeC& DtReflectedModeC::operator= ( const DtReflectedModeC &  orig )

protected

Assignment operator not implemented.

virtual DtReflectedModeC* DtReflectedModeC::prev ( ) const

virtual

Returns the previous reflected ModeC in the DtReflectedModeCList.

virtual void DtReflectedModeC::removePostUpdateCallback ( DtModeCCallbackFunction  cb, void *  userData  )

virtual

Remove the callback that is called when the DtReflectedModeC is updated.

static DtStateRepCreator DtReflectedModeC::setStateRepCreator ( DtStateRepCreator  creator )

static

Set the function to be called for creating state repositories.

virtual DtReflectedModeC* DtReflectedModeC::wrapNext ( ) const

virtual

Returns the next reflected ModeC.

Will cycle back to the first remote ModeC in the DtReflectedModeCList.

virtual DtReflectedModeC* DtReflectedModeC::wrapPrev ( ) const

virtual

Returns the previous reflected ModeC.

Will cycle back to the first remote ModeC in the DtReflectedModeCList.

Member Data Documentation

DtStateRepCreator DtReflectedModeC::theStateRepCreator

staticprotected

The function called to create state repositories.

---

The documentation for this class was generated from the following file:

• iffDataReflected.h
