DtReflectedRadioReceiver Class Reference

class DtReflectedRadioReceiver: More...

Inheritance diagram for DtReflectedRadioReceiver:

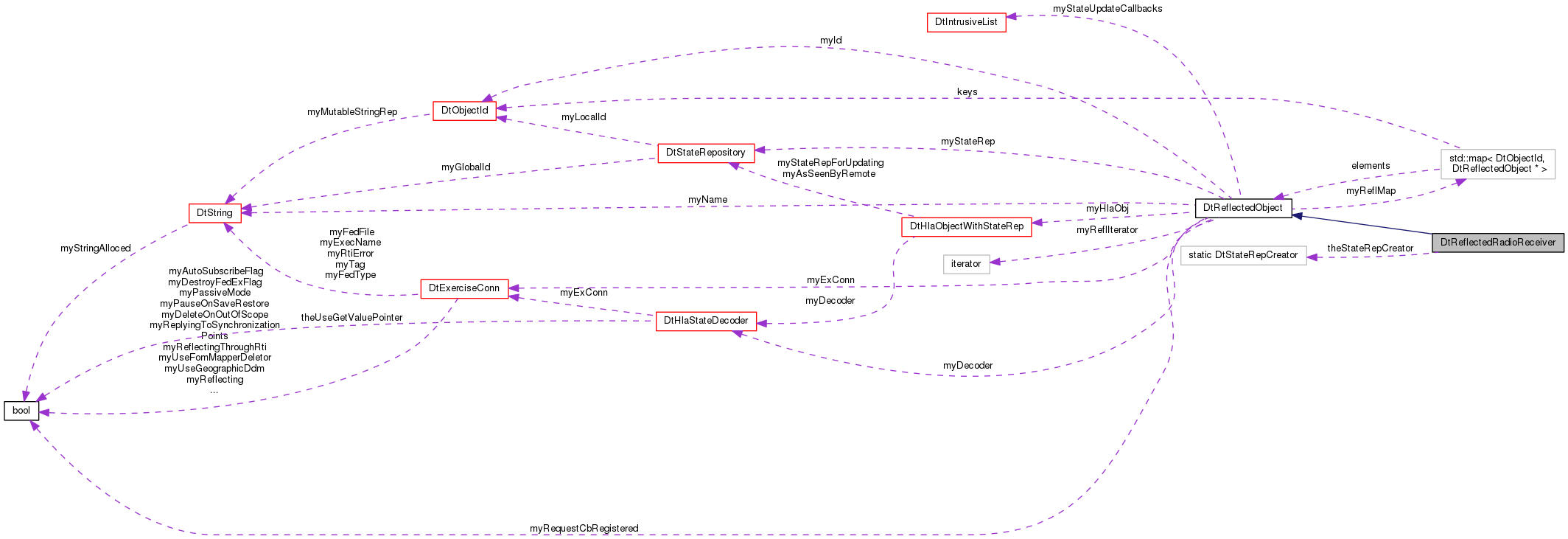

Collaboration diagram for DtReflectedRadioReceiver:

Public Types
typedef DtRadioReceiverRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtRadioReceiverRepositories. More...
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...

Public Member Functions
	DtReflectedRadioReceiver (DtHlaObject *obj, DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedRadioReceiver ()
	destructor More...
virtual DtRadioReceiverRepository *	receiverRep () const
	Get the receiver's state repository. More...
virtual DtRadioReceiverRepository *	rsr () const
	Synonym for receiverRep(). More...
virtual DtReflectedRadioReceiver *	next () const
	Get the next remote receiver. More...
virtual DtReflectedRadioReceiver *	prev () const
	Get the previous remote receiver. More...
virtual DtReflectedRadioReceiver *	wrapNext () const
	Get the next remote receiver. More...
virtual DtReflectedRadioReceiver *	wrapPrev () const
	Get the previous remote receiver. More...
virtual void	addPostUpdateCallback (DtRadioReceiverCallbackFunction cb, void *userData)
	Receiver state callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtRadioReceiverCallbackFunction cb, void *userData)
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor. More...
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...
virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...
virtual const DtString &	name () const
	Get the HLA object name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder. More...
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...
void	detachHlaObject ()
	Ends managing of current HLA object. More...
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Protected Member Functions
	DtReflectedRadioReceiver (const DtReflectedRadioReceiver &orig)
	copy constructor – not implemented More...
DtReflectedRadioReceiver &	operator= (const DtReflectedRadioReceiver &orig)
	assignment operator – not implemented More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	requestUpdatePostDrainCb (void *usr)
	Calls requestUpdate. More...
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks. More...
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
bool	myRequestCbRegistered
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Detailed Description

class DtReflectedRadioReceiver:

Instances of DtReflectedRadioReceiver represent RadioReceiver objects simulated by remote applications. State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtRadioReceiverRepository*(* DtReflectedRadioReceiver::DtStateRepCreator)()

Function prototype for functions that create DtRadioReceiverRepositories.

Constructor & Destructor Documentation

DtReflectedRadioReceiver::DtReflectedRadioReceiver	(	DtHlaObject *	obj,
		DtExerciseConn *	conn
	)

constructor

virtual DtReflectedRadioReceiver::~DtReflectedRadioReceiver ( )

virtual

destructor

DtReflectedRadioReceiver::DtReflectedRadioReceiver ( const DtReflectedRadioReceiver &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedRadioReceiver::addPostUpdateCallback ( DtRadioReceiverCallbackFunction  cb, void *  userData  )

virtual

Receiver state callback registration/deregistration.

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::next ( ) const

virtual

Get the next remote receiver.

DtReflectedRadioReceiver& DtReflectedRadioReceiver::operator= ( const DtReflectedRadioReceiver &  orig )

protected

assignment operator – not implemented

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::prev ( ) const

virtual

Get the previous remote receiver.

DtRadioReceiverRepository * DtReflectedRadioReceiver::receiverRep ( ) const

inlinevirtual

Get the receiver's state repository.

References DtReflectedObject::myStateRep.

virtual void DtReflectedRadioReceiver::removePostUpdateCallback ( DtRadioReceiverCallbackFunction  cb, void *  userData  )

virtual

DtRadioReceiverRepository * DtReflectedRadioReceiver::rsr ( ) const

inlinevirtual

Synonym for receiverRep().

References DtReflectedObject::myStateRep.

static DtStateRepCreator DtReflectedRadioReceiver::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::wrapNext ( ) const

virtual

Get the next remote receiver.

Will cycle back to the first remote receiver.

virtual DtReflectedRadioReceiver* DtReflectedRadioReceiver::wrapPrev ( ) const

virtual

Get the previous remote receiver.

Will cycle back to the last remote receiver.

Member Data Documentation

DtStateRepCreator DtReflectedRadioReceiver::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedRadioReceiverHLA.h
