DtTransferControlDecoder Class Reference

class DtTransferControlDecoder: More...

Inheritance diagram for DtTransferControlDecoder:

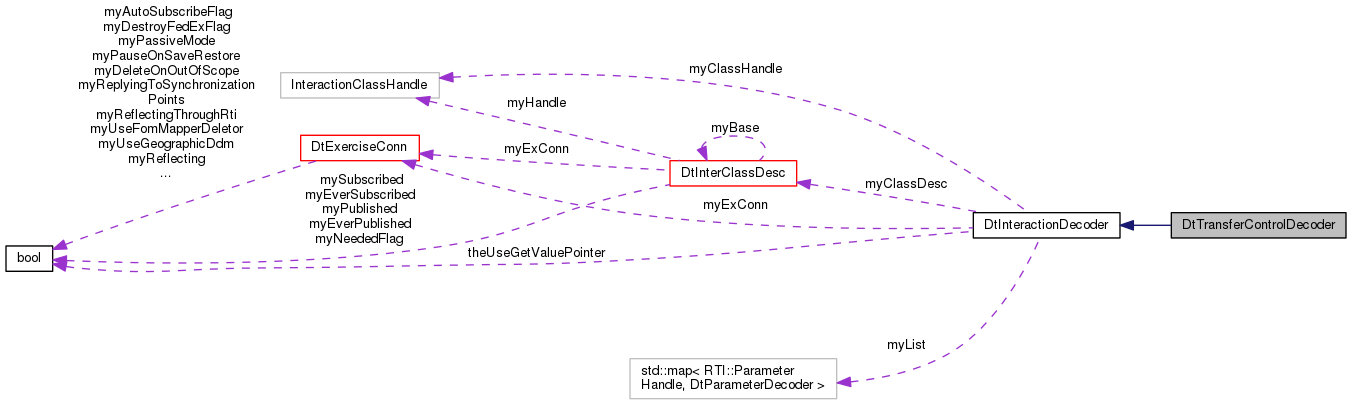

Collaboration diagram for DtTransferControlDecoder:

Public Member Functions
	DtTransferControlDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	DtTransferControlDecoder (const DtTransferControlDecoder &orig)
virtual	~DtTransferControlDecoder ()
DtTransferControlDecoder &	operator= (const DtTransferControlDecoder &orig)
Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtInteractionDecoder ()
	destructor More...
DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle. More...
DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name. More...
virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle. More...
virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValuePairSet &pvList)
	Decode the interaction. More...
virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle. More...
virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_TRANSCTRL_PARAM_DECODER (OriginatingEntity)
	Individual parameter decoders. More...
	DtDECLARE_TRANSCTRL_PARAM_DECODER (ReceivingEntity)
	DtDECLARE_TRANSCTRL_PARAM_DECODER (RequestIdentifier)
	DtDECLARE_TRANSCTRL_PARAM_DECODER (TransferType)
	DtDECLARE_TRANSCTRL_PARAM_DECODER (TransferEntity)
	DtDECLARE_TRANSCTRL_PARAM_DECODER (RecordSetData)
Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented. More...
DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented. More...
virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter. More...

Additional Inherited Members
Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature. More...
Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, char *paramName)
	Gets the parameter data and checks the expected size. More...
static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data. More...
static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class. More...
Static Public Attributes inherited from DtInteractionDecoder
static bool	theUseGetValuePointer
Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::InteractionClassHandle	myClassHandle
std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

class DtTransferControlDecoder:

Instances of DtTransferControlDecoder are used to decode TransferControl Interactions from the network.

Constructor & Destructor Documentation

DtTransferControlDecoder::DtTransferControlDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

DtTransferControlDecoder::DtTransferControlDecoder

(

const DtTransferControlDecoder &

orig

)

virtual DtTransferControlDecoder::~DtTransferControlDecoder ( )

virtual

Member Function Documentation

DtTransferControlDecoder::DtDECLARE_TRANSCTRL_PARAM_DECODER ( OriginatingEntity  )

protected

Individual parameter decoders.

DtTransferControlDecoder::DtDECLARE_TRANSCTRL_PARAM_DECODER ( ReceivingEntity  )

protected

DtTransferControlDecoder::DtDECLARE_TRANSCTRL_PARAM_DECODER ( RequestIdentifier  )

protected

DtTransferControlDecoder::DtDECLARE_TRANSCTRL_PARAM_DECODER ( TransferType  )

protected

DtTransferControlDecoder::DtDECLARE_TRANSCTRL_PARAM_DECODER ( TransferEntity  )

protected

DtTransferControlDecoder::DtDECLARE_TRANSCTRL_PARAM_DECODER ( RecordSetData  )

protected

DtTransferControlDecoder& DtTransferControlDecoder::operator=

(

const DtTransferControlDecoder &

orig

)

---

The documentation for this class was generated from the following file:

• transferControlDecoder.h
