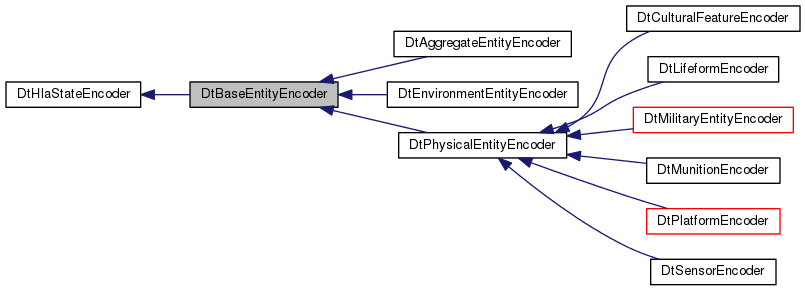

Inheritance diagram for DtBaseEntityEncoder:

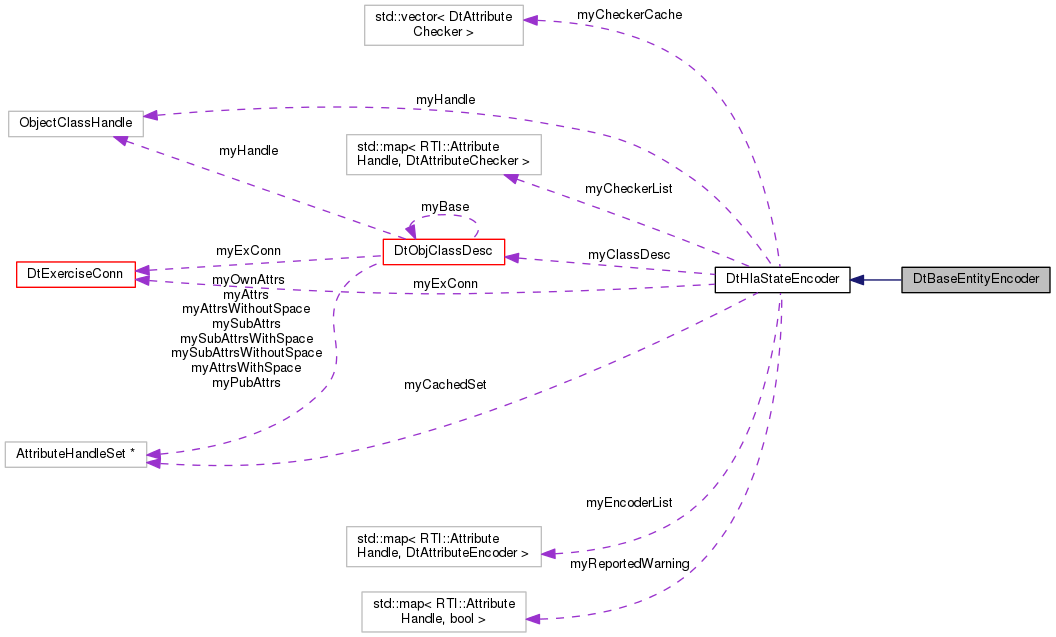

Collaboration diagram for DtBaseEntityEncoder:

Public Member Functions
	DtBaseEntityEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtBaseEntityEncoder ()
	destructor More...

	DtBaseEntityEncoder (const DtBaseEntityEncoder &orig)
	copy constructor More...

DtBaseEntityEncoder &	operator= (const DtBaseEntityEncoder &orig)
	assignment operator More...

Public Member Functions inherited from DtHlaStateEncoder
	DtHlaStateEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtHlaStateEncoder ()
	destructor More...

	DtHlaStateEncoder (const DtHlaStateEncoder &orig)
	copy constructor More...

DtHlaStateEncoder &	operator= (const DtHlaStateEncoder &orig)
	assignment operator More...

DtAttributeEncoder	addEncoder (RTI::AttributeHandle hand, DtAttributeEncoder func)
	Add/Remove an encoding function for the attribute specified by handle. More...

DtAttributeEncoder	removeEncoder (RTI::AttributeHandle hand)

DtAttributeEncoder	addEncoder (char *name, DtAttributeEncoder func, bool complain=true)
	Add/Remove an encoding function for the attribute specified by name. More...

DtAttributeEncoder	removeEncoder (char *name, bool complain=true)

DtAttributeChecker	addChecker (RTI::AttributeHandle hand, DtAttributeChecker func)
	Add/Remove a checker function for the attribute specified by handle. More...

DtAttributeChecker	removeChecker (RTI::AttributeHandle hand)

DtAttributeChecker	addChecker (char *name, DtAttributeChecker func, bool complain=true)
	Add/Remove a checker function for the attribute specified by name. More...

DtAttributeChecker	removeChecker (char *name, bool complain=true)

DtAttributeEncoder	encoder (const RTI::AttributeHandle &handle)
	Get the attribute encoder for the specified handle. More...

DtAttributeChecker	checker (const RTI::AttributeHandle &handle)
	Get the attribute checker for the specified handle. More...

virtual void	encode (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, const RTI::AttributeHandleSet &neededAttrs, const RTI::AttributeHandleSet &includeThese, DtStateMsg *msg)
	Encode necessary values from the state repository. More...

virtual RTI::ObjectClassHandle	objectClassHandle ()
	Get the object's class handle. More...

virtual DtHlaStateEncoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

virtual DtHlaStateEncoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual void	preCalculateEligible (const RTI::AttributeHandleSet &neededAttrs)

Static Public Member Functions
static DtHlaStateEncoder *	create (DtExerciseConn exConn, DtObjClassDesc classDesc)
	Create a DtBaseEntityEncoder. Caller is responsible for deletion. More...

static bool	tpsiChanged (const DtBaseEntityStateRepository &stateRep, const DtBaseEntityStateRepository &asSeenByRemote)
	Get whether or not rotational or translational thresholds have been exceeded. More...

Static Public Member Functions inherited from DtHlaStateEncoder
static bool	trueChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 1, meaning that the attribute for which it is being used will be deemed necessary to send on every tick. More...

static bool	falseChecker (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	A checker function that always returns 0, meaning that the attribute for which it is being used will never be deemed necessary to send. More...

Protected Member Functions
	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (Spatial)
	Static need<Attribute> member functions. More...

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (RelativeSpatial)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (IsPartOf)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (AccelerationVector)
	For versions > 1.0. More...

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (AngularVelocityVector)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (EntityType)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (IsFrozen)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (Orientation)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (VelocityVector)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (DeadReckoningAlgorithm)
	For versions > 0.8. More...

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (Position)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (EntityIdentifier)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (DRAlgorithm)
	For versions <= 0.8. More...

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (WorldLocation)

	DtDECLARE_BASE_ENTITY_ATTR_CHECKER (EntityID)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (Spatial)
	Static encode<Attribute> member functions. More...

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (RelativeSpatial)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (IsPartOf)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (IsPartOf_RPR_20014)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (AccelerationVector)
	For versions > 1.0. More...

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (AngularVelocityVector)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (EntityType)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (IsFrozen)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (Orientation)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (VelocityVector)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (DeadReckoningAlgorithm)
	For versions > 0.8. More...

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (Position)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (EntityIdentifier)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (DRAlgorithm)
	For versions <= 0.8. More...

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (WorldLocation)

	DtDECLARE_BASE_ENTITY_ATTR_ENCODER (EntityID)

Additional Inherited Members
Public Types inherited from DtHlaStateEncoder
typedef void(*	DtAttributeEncoder )(const DtStateRepository &stateRep, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle handle)
	Attribute encoding function declaration. More...

typedef bool(*	DtAttributeChecker )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	Attribute checking function declaration. More...

typedef bool(*	DtAttributeCheckerWithHandle )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, RTI::AttributeHandle handle)
	Attribute checking function declaration that takes a handle and checks the specific attribute pointed to by that handle. More...

Protected Attributes inherited from DtHlaStateEncoder
DtExerciseConn *	myExConn

DtObjClassDesc *	myClassDesc

RTI::ObjectClassHandle	myHandle

std::map< RTI::AttributeHandle, DtAttributeEncoder >	myEncoderList
	myEncoderList and myCheckerList are arrays of classDesc->maxAttrHandle() items. More...

std::map< RTI::AttributeHandle, DtAttributeChecker >	myCheckerList

std::vector< DtAttributeChecker >	myCheckerCache
	This is a helper varaible that pre-lookups decoder functions in order to avoid making map calls on every update. More...

const RTI::AttributeHandleSet *	myCachedSet

std::map< RTI::AttributeHandle, bool >	myReportedWarning
	myReportedWarning is an array for keeping track of which warnings have already been reported More...

Detailed Description

class DtBaseEntityEncoder:

Instances of DtBaseEntityEncoder are used to encode a base entity state repository into a state message in an HLA (as opposed to DIS) environment.

Constructor & Destructor Documentation

DtBaseEntityEncoder::DtBaseEntityEncoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

constructor

virtual DtBaseEntityEncoder::~DtBaseEntityEncoder ( )

virtual

destructor

DtBaseEntityEncoder::DtBaseEntityEncoder ( const DtBaseEntityEncoder & orig )

copy constructor

Member Function Documentation

static DtHlaStateEncoder* DtBaseEntityEncoder::create	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

static

Create a DtBaseEntityEncoder. Caller is responsible for deletion.

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( Spatial )

protected

Static need<Attribute> member functions.

For versions greater than 2.0006

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( RelativeSpatial )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( IsPartOf )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( AccelerationVector )

protected

For versions > 1.0.

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( AngularVelocityVector )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( EntityType )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( IsFrozen )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( Orientation )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( VelocityVector )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( DeadReckoningAlgorithm )

protected

For versions > 0.8.

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( Position )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( EntityIdentifier )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( DRAlgorithm )

protected

For versions <= 0.8.

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( WorldLocation )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_CHECKER ( EntityID )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( Spatial )

protected

Static encode<Attribute> member functions.

For versions greater than 2.0006

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( RelativeSpatial )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( IsPartOf )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( IsPartOf_RPR_20014 )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( AccelerationVector )

protected

For versions > 1.0.

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( AngularVelocityVector )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( EntityType )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( IsFrozen )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( Orientation )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( VelocityVector )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( DeadReckoningAlgorithm )

protected

For versions > 0.8.

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( Position )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( EntityIdentifier )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( DRAlgorithm )

protected

For versions <= 0.8.

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( WorldLocation )

protected

DtBaseEntityEncoder::DtDECLARE_BASE_ENTITY_ATTR_ENCODER ( EntityID )

protected

DtBaseEntityEncoder& DtBaseEntityEncoder::operator= ( const DtBaseEntityEncoder & orig )

assignment operator

static bool DtBaseEntityEncoder::tpsiChanged	(	const DtBaseEntityStateRepository &	stateRep,
		const DtBaseEntityStateRepository &	asSeenByRemote
	)

static

Get whether or not rotational or translational thresholds have been exceeded.

The documentation for this class was generated from the following file:

baseEntityEncoder.h
