The DtDisSocket class provides an address family independent datagram socket. More...

Inheritance diagram for DtDisSocket:

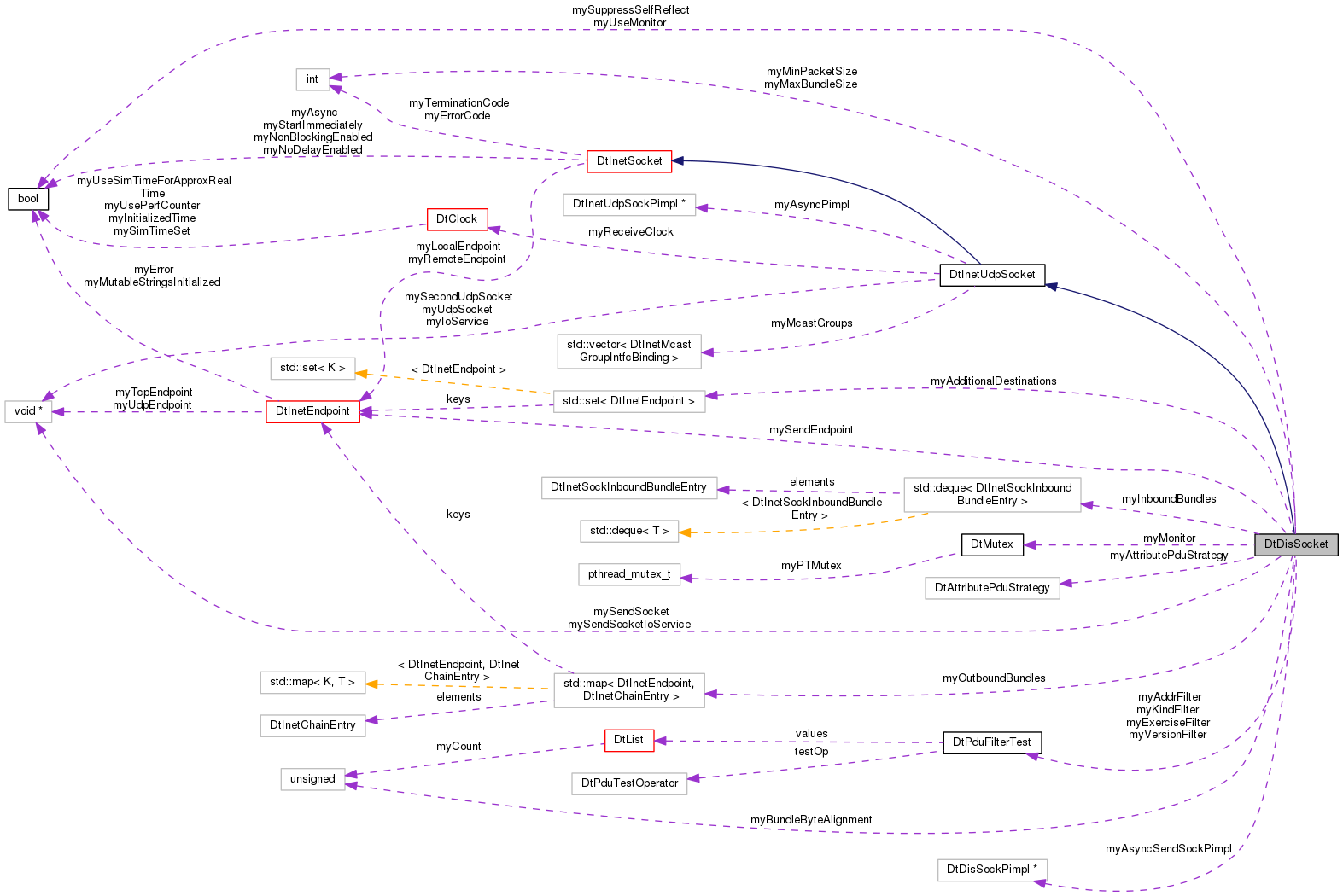

Collaboration diagram for DtDisSocket:

Classes
struct	DtDisSocketPduHeader

Public Member Functions
	DtDisSocket (const DtInetEndpoint &dest, DtU16 localPort=0, DtInetDevice *hostIf=NULL, DtU32 flags=DtDefaultSockOpts, bool immediateOpen=true, bool suppressSelfReflectEnabled=false)
	DIS Socket Constructor. More...

virtual	~DtDisSocket ()
	Destructor. More...

virtual bool	openSocket ()
	Enable sending and receiving of packets. More...

virtual bool	closeSocket ()
	Close a socket. More...

virtual DtInetSockRcvStatus	recvFrom (caddr_t buff, size_t buffSize, DtInetEndpoint &src, DtU32 flags=0)
	Receive method override The DtInetUdpSocket base class revcFrom() method does not perform unbundling, PDU filtering, or self-reflect suppression. More...

virtual bool	addDestination (const DtInetEndpoint &destination)
	Add an additional destination. More...

virtual void	removeDestination (const DtInetEndpoint &destination)
	Remove a destination. More...

virtual DtPduFilterTest *	exerciseId ()
	DIS PDU filtering extension interface. More...

virtual DtPduFilterTest *	protocolVersion ()

virtual DtPduFilterTest *	pduKind ()

virtual DtPduFilterTest *	ipAddr ()

virtual DtInetEndpoint &	localSenderEndpoint () const
	Return the endpoint of the sender. More...

virtual DtInetSockFlushStatus	flush ()
	Flush bundles. This method is called to flush all queued bundles. More...

virtual int	suppressSelfReflect (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)
	Supress self-reflection method. More...

virtual int	filterExercisePdus (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)
	Filter out PDUs which match the parameters configured in the DtPduFilterTests. More...

virtual int	minSizeFilter (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)
	Filter PDUs that are smaller than size of DIS PDU header. More...

virtual void	setAttributePduStrategy (DtAttributePduStrategy strat)
	Sets/Gets whether to parse for coupled attribute PDU. More...

virtual DtAttributePduStrategy	attributePduStrategy () const

Send methods.
The base class send methods are overridden to provide the optional capability to bundle/unbundle and to filter self-reflects by sending PDUs from a different socket on an ephemeral port
virtual int	send (caddr_t packet, size_t size, DtU32 flags=0)
	Sends only to the given destination. More...

virtual int	sendTo (caddr_t packet, size_t size, DtInetEndpoint &dest, DtU32 flags=0)
	Sends only to the given destination. More...

virtual int	sendChain (DtInetBufferChain &packets, DtU32 flags=0)
	Sends only to the given destination. More...

virtual int	sendChainTo (DtInetBufferChain &packets, DtInetEndpoint &dest, DtU32 flags=0)
	Sends only to the given destination. More...

Overridden socket options setters.
These methods are overridden to set the option on the send socket in addition to setting it on the main socket.
virtual bool	setNonBlockingOption (bool onOrOff)

virtual bool	setSendBufferSize (DtU32 size)

virtual bool	setReceiveBufferSize (DtU32 size)

virtual bool	setBroadcastOption (bool onOrOff)

virtual bool	setReuseAddressOption (bool onOrOff)

virtual bool	setDoNotRouteOption (bool onOrOff)

virtual bool	setSendLowWatermark (DtU32 size)

virtual bool	setReceiveLowWatermark (DtU32 size)

virtual bool	setSendMcastDevice (const DtInetAddr &devAddr)

virtual bool	setMcastTtlOption (DtU32 ttl)
	Change the default time-to-live on outbound multicast packets sent from this socket. More...

Multicast specific methods.
Join / drop subscription to multicast group. Socket will join group identified by the multicast address in grpAddr or grpEndpoint. If an object is passed in the port value of the endpoint will be ignored and the socket will join from the same port the socket's local endpoint uses. If no interface is specified in the join it will join on the host's default multicast interface.
virtual bool	sendSockJoinMulticastGroup (DtInetAddr grpAddr, DtInetDevice *device=NULL)

virtual bool	sendSockJoinMulticastGroup (DtInetEndpoint grpEndpoint, DtInetDevice *device=NULL)

virtual bool	sendSockDropMulticastGroup (DtInetAddr grpAddr, DtInetDevice *device=NULL)

virtual bool	sendSockDropMulticastGroup (DtInetEndpoint grpEndpoint, DtInetDevice *device=NULL)

DIS PDU bundling extension functions.
virtual void	setBundling (int maxBundleSize, int sizeOffset, int sizeLength, bool testDisHeader)
	Bundling is only performed when using the sendChain(), sendChainTo(), recvToChain(), and recvToChainFrom() methods. More...

Set / get bundle maximum bundle size.
Setting maximum bundle size > 0 enables bundling. Setting max bundle size to 0 disables bundling. For optimal network performance max bundle sizes should be slightly less than the MTU of the network.
virtual bool	setMaxBundleSize (int size)

virtual int	getMaxBundleSize ()

virtual bool	isBundling ()

Set / get minimum valid packet size.
The minimum sized packet that can be received. By default, size of DtDisSocketPduHeader
virtual void	setMinPacketSize (int size)

virtual int	minPacketSize ()

Set / get inter PDU byte alignment in bytes
virtual void	setBundleByteAlignment (DtU32 size)

virtual DtU32	sendBundleByteAlignment ()

virtual DtU32	receiveBundleByteAlignment (int protocolVersion)

Bundling methods.
These methods are called from the bundling callback functions to perform the actual work.
virtual int	addToBundle (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep)

virtual int	unbundle (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)

virtual int	getNextBundle (int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, int *status)

virtual DtInetSockFlushStatus	flushBundle (DtInetEndpoint &ep)

Public Member Functions inherited from DtInetUdpSocket
	DtInetUdpSocket ()
	Default Constructor. More...

	DtInetUdpSocket (const DtInetEndpoint &dest, DtU16 localPort=0, DtInetDevice *hostIf=NULL, DtU32 flags=DtDefaultSockOpts, bool immediateOpen=true)
	Client Socket Constructor. More...

virtual	~DtInetUdpSocket ()
	Destructor. More...

virtual bool	setDestination (const DtInetEndpoint &dest)
	Set / get the destination endpoint for the socket. More...

virtual bool	bindToDevice (const DtInetDevice *hostIf=NULL)
	Set the network interface device the socket will attempt to bind to on the local host. More...

virtual bool	connectToDestination ()
	Initiate a connection to a single unicast destination endpoint. More...

virtual bool	disconnect ()
	Dissolve any unicast connection and return to normal 'connectionless' operation. More...

virtual bool	isOk ()
	Deprecated. More...

virtual unsigned	descriptor () const
	Get the socket's descriptor. More...

virtual bool	setSocket (const DtInetEndpoint &dest, DtU16 localPort=0, DtInetDevice *hostIf=NULL, DtU32 flags=DtDefaultSockOpts)
	Set all socket parameters at once. More...

virtual void *	udpSocket ()
	Return the underlying socket object. More...

virtual void *	secondUdpSocket ()
	Return the second underlying socket object. More...

virtual DtInetSockRcvStatus	recv (caddr_t buff, size_t buffSize, DtU32 flags=0)
	Simple receive method. More...

virtual DtInetSockRcvStatus	recvToChain (DtInetBufferChain &packets, DtU32 flags=0)
	Receives into a buffer chain. More...

virtual DtInetSockRcvStatus	recvToChainFrom (DtInetBufferChain &packets, DtInetEndpoint &src, DtU32 flags=0)
	Simple receive method. More...

virtual bool	setMcastDevice (const DtInetAddr &devAddr)

virtual bool	setMcastDevice (DtInetDevice *hostIf)

virtual DtU32	getSendBufferSize ()

virtual DtU32	getReceiveBufferSize ()

virtual DtU32	getBytesAvailable ()

virtual bool	getBroadcastOption ()

virtual bool	getReuseAddressOption ()

virtual bool	getDoNotRouteOption ()

virtual DtU32	getSendLowWatermark ()

virtual DtU32	getReceiveLowWatermark ()

virtual bool	joinMulticastGroup (const DtInetAddr &grpAddr, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket. More...

virtual bool	joinMulticastGroup (const DtInetEndpoint &grpEndpoint, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket. More...

virtual bool	dropMulticastGroup (const DtInetAddr &grpAddr, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket. More...

virtual bool	dropMulticastGroup (const DtInetEndpoint &grpEndpoint, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket. More...

Public Member Functions inherited from DtInetSocket
	DtInetSocket ()
	Default Constructor. More...

virtual	~DtInetSocket ()
	Destructor. More...

virtual const DtInetEndpoint &	destination () const

virtual const DtInetEndpoint &	localEndpoint () const
	Get the local endpoint for the socket. More...

virtual bool	setLocalPort (DtU16 port)
	Set / get the local port number of the socket. More...

virtual DtU16	localPort () const

virtual const DtInetDevice *	hostIf () const
	Get the host network interface device the socket is bound to. More...

virtual DtInetSockState	state ()
	Return the present state of the socket. More...

virtual DtU32	protocol () const
	Get the protocol (DtInetProtocol_TCP or DtInetProtocol_UDP) More...

virtual DtInetUtils::DtInetAddrFamily	family () const
	Get the address family, IPv4 or IPv6. More...

virtual DtU32	flags ()
	Get the flags for this socket. More...

virtual int	getLastError ()
	Return code or string describing last error. More...

virtual DtString	getLastErrorString ()

virtual bool	isErrorWouldBlockOrTryAgain ()

virtual void	clearError ()

virtual int	getTerminationCode ()
	Return code or string describing termination cause. More...

virtual DtString	getTerminationString ()

virtual DtU64	totalBytesSent () const
	Get traffic statistics. More...

virtual DtU64	totalPacketsSent () const

virtual DtU64	totalBytesReceived () const

virtual DtU64	totalPacketsReceived () const

virtual void	clearStats ()
	Reset all statistics. More...

virtual bool	addProcessingCallback (DtInetSockProcessingType kind, DtInetSocketProcessingCallback cb, void *usr, int callSequence=-1)
	Add / remove pre- and post- processing callbacks. More...

virtual bool	removeProcessingCallback (DtInetSockProcessingType kind, DtInetSocketProcessingCallback cb)

virtual DtTime	receiveTime ()

virtual bool	isNonBlocking () const

virtual bool	isNoDelay () const

virtual bool	isIPv4 () const
	Return true if the socket matches the queried family or protocol. More...

virtual bool	isIPv6 () const
	Return true if the socket matches the queried family or protocol. More...

virtual bool	isTcp () const
	Return true if the socket matches the queried family or protocol. More...

virtual bool	isUdp () const
	Return true if the socket matches the queried family or protocol. More...

Protected Member Functions
virtual void *	disSendSocket ()
	Return the underlying Boost class socket objects. More...

virtual DtU16	getPduSize (DtDisSocketPduHeader hdr, int hdrOffset, DtInetBufferChain::iterator current, DtInetBufferChain::iterator end, int status, bool &isCoupling, bool expectAttributePdu=false)

virtual DtU16	getCoupledAttributePduSize (DtDisSocketPduHeader hdr, int hdrOffset, DtInetBufferChain::iterator current, DtInetBufferChain::iterator end, int status, int pduLengthAndPadding, unsigned int size)

virtual DtInetBufferChain::iterator	advanceToOffset (DtU16 &offset, DtInetBufferChain::iterator chainIter, DtInetBufferChain::iterator chainEnd)

Protected Member Functions inherited from DtInetSocket
virtual bool	findAndRemoveCallback (DtInetSockCallbackList &cbList, DtInetSocketProcessingCallback cb)

Static Protected Member Functions
static int	suppressSelfReflect (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
	Suppress self-reflection callback. More...

static int	filterExercisePdus (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
	PDU filtering callback. More...

static int	minSizeFilter (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)
	Filter PDUs that are smaller than size of DIS PDU header. More...

Bundling callbacks.
All pre- and post- processing callbacks must return the total number of bytes in buffChain after processing or a negative value if an error occurs. The static methods are registered as callbacks, but the actual work takes place in the bundling methods.
static int	addToBundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)

static int	flushBundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)

static int	unbundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)

static int	getNextBundle (DtInetSocket sock, int size, DtInetBufferChain &buffChain, DtInetEndpoint &ep, void usr)

Protected Attributes
void *	mySendSocketIoService
	Using Void pointer to abstract a boost type actual type: boost::asio::io_service*. More...

void *	mySendSocket
	Using Void pointer to abstract a boost type actual type: boost::asio::ip::udp::socket*. More...

DtInetEndpoint	mySendEndpoint

std::set< DtInetEndpoint >	myAdditionalDestinations

bool	mySuppressSelfReflect

DtInetUtils::DtInetSockOutboundBundleMap	myOutboundBundles

DtInetUtils::DtInetSockInboundBundleQueue	myInboundBundles

int	myMaxBundleSize

DtU32	myBundleByteAlignment

int	myMinPacketSize

DtPduFilterTest	myVersionFilter

DtPduFilterTest	myExerciseFilter

DtPduFilterTest	myKindFilter

DtPduFilterTest	myAddrFilter

DtMutex	myMonitor

bool &	myUseMonitor

DtAttributePduStrategy	myAttributePduStrategy

Protected Attributes inherited from DtInetUdpSocket
void *	myIoService

void *	myUdpSocket

void *	mySecondUdpSocket

DtInetMcastGroupBindings	myMcastGroups

DtClock	myReceiveClock

Protected Attributes inherited from DtInetSocket
DtInetEndpoint	myLocalEndpoint

DtInetEndpoint	myRemoteEndpoint

DtInetDevice *	myHostIf

DtInetSockState	myState

DtU32	myFlags

bool	myAsync

bool	myNonBlockingEnabled

bool	myNoDelayEnabled

bool	myStartImmediately

int	myErrorCode

DtString	myErrorString

int	myTerminationCode

DtString	myTerminationString

DtInetSockCallbackList	myPreRecvCallbacks

DtInetSockCallbackList	myPostRecvCallbacks

DtInetSockCallbackList	myPreSendCallbacks

DtInetSockCallbackList	myPostSendCallbacks

DtU64	mySentByteCount

DtU64	mySentPacketCount

DtU64	myReceivedByteCount

DtU64	myReceivedPacketCount

DtTime	myReceiveTime

Private Member Functions
	DtDisSocket (const DtDisSocket &orig)
	Copy constructor not implemented. More...

DtDisSocket &	operator= (const DtDisSocket &orig)
	Assignment not implemented. More...

Private Attributes
DtDisSockPimpl *	myAsyncSendSockPimpl

Friends
class	DtDisSockPimpl
	For async operations. More...

Additional Inherited Members
Protected Types inherited from DtInetUdpSocket
typedef std::pair< DtInetAddr, DtInetAddr >	DtInetMcastGroupIntfcBinding
	Associate the multicast group address with the host interface address the group is joined from. More...

typedef std::vector < DtInetMcastGroupIntfcBinding >	DtInetMcastGroupBindings

Detailed Description

The DtDisSocket class provides an address family independent datagram socket.

Constructor & Destructor Documentation

DtDisSocket::DtDisSocket	(	const DtInetEndpoint &	dest,
		DtU16	localPort = `0`,
		DtInetDevice *	hostIf = `NULL`,
		DtU32	flags = `DtDefaultSockOpts`,
		bool	immediateOpen = `true`,
		bool	suppressSelfReflectEnabled = `false`
	)

DIS Socket Constructor.

Takes a destination endpoint, a source port to use, a pointer to the local network interface device the socket will be bound to, socket option flags, an 'immediateOpen' indicator dictating how the socket should behave upon creation, and a flag to enable self- reflect suppression. If the destination endpoint port is 0 the default DIS port (3000) will be used. The address family (IPv4 or IPv6) is assumed from the destination endpoint object. If suppressSelfReflect is true all packets will be sent from the specified local port or an automatically chosen ephemeral if the localPort parameter is 0. If no host interface is specified the most appropriate interface will be chosen based on the destination. If the destination endpoint specifies a multicast address the multicast group is joined automatically when the socket is opened and the group membership is dropped when the socket is closed. If the 'immediateOpen' parameter is true the socket will immediately try to bind to an interface and allow datagrams to be sent and received. To use custom packet handlers for the send and receive functions the handlers must be set before any call to any of the send and receive methods. To ensure the handlers are configured it is recommended that 'immediateOpen' be set to false so the packet handler callbacks can be configured, then call openSocket(). This ctor will not throw exceptions on failure. Check the socket status by calling state() (or isOk()) to determine if the socket is ready.

virtual DtDisSocket::~DtDisSocket ( )

virtual

Destructor.

DtDisSocket::DtDisSocket ( const DtDisSocket & orig )

private

Copy constructor not implemented.

Member Function Documentation

virtual bool DtDisSocket::addDestination ( const DtInetEndpoint & destination )

virtual

Add an additional destination.

Packets will be sent to these destinations in addition to the sockets destination. Return indicates if destination was added successfully (true) or not (false).

virtual int DtDisSocket::addToBundle	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep
	)

virtual

static int DtDisSocket::addToBundle	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)

staticprotected

virtual DtInetBufferChain::iterator DtDisSocket::advanceToOffset	(	DtU16 &	offset,
		DtInetBufferChain::iterator	chainIter,
		DtInetBufferChain::iterator	chainEnd
	)

protectedvirtual

virtual DtAttributePduStrategy DtDisSocket::attributePduStrategy ( ) const

virtual

virtual bool DtDisSocket::closeSocket ( )

virtual

Close a socket.

Returns true on successful close or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure. The base class method is overridden to provide the optional capability to filter self-reflects by sending PDUs from a different socket on an ephemeral port

Reimplemented from DtInetUdpSocket.

virtual void* DtDisSocket::disSendSocket ( )

protectedvirtual

Return the underlying Boost class socket objects.

DtPduFilterTest * DtDisSocket::exerciseId ( )

inlinevirtual

DIS PDU filtering extension interface.

virtual int DtDisSocket::filterExercisePdus	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)

virtual

Filter out PDUs which match the parameters configured in the DtPduFilterTests.

static int DtDisSocket::filterExercisePdus	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)

staticprotected

PDU filtering callback.

This should always be added to the callbacks. The individual filtering tests can be enabled / disabled on the fly.

virtual DtInetSockFlushStatus DtDisSocket::flush ( )

virtual

Flush bundles. This method is called to flush all queued bundles.

virtual DtInetSockFlushStatus DtDisSocket::flushBundle ( DtInetEndpoint & ep )

virtual

static int DtDisSocket::flushBundle	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)

staticprotected

virtual DtU16 DtDisSocket::getCoupledAttributePduSize	(	DtDisSocketPduHeader *	hdr,
		int	hdrOffset,
		DtInetBufferChain::iterator	current,
		DtInetBufferChain::iterator	end,
		int *	status,
		int	pduLengthAndPadding,
		unsigned int	size
	)

protectedvirtual

virtual int DtDisSocket::getMaxBundleSize ( )

virtual

virtual int DtDisSocket::getNextBundle	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)

virtual

static int DtDisSocket::getNextBundle	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)

staticprotected

virtual DtU16 DtDisSocket::getPduSize	(	DtDisSocketPduHeader *	hdr,
		int	hdrOffset,
		DtInetBufferChain::iterator	current,
		DtInetBufferChain::iterator	end,
		int *	status,
		bool &	isCoupling,
		bool	expectAttributePdu = `false`
	)

protectedvirtual

DtPduFilterTest * DtDisSocket::ipAddr ( )

inlinevirtual

virtual bool DtDisSocket::isBundling ( )

virtual

virtual DtInetEndpoint& DtDisSocket::localSenderEndpoint ( ) const

virtual

Return the endpoint of the sender.

This will differ from the receiving endpoint when self-reflect suppression is enabled.

virtual int DtDisSocket::minPacketSize ( )

virtual

virtual int DtDisSocket::minSizeFilter	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)

virtual

Filter PDUs that are smaller than size of DIS PDU header.

static int DtDisSocket::minSizeFilter	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)

staticprotected

Filter PDUs that are smaller than size of DIS PDU header.

virtual bool DtDisSocket::openSocket ( )

virtual

Enable sending and receiving of packets.

Returns true on success or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure. The base class method is overridden to provide the optional capability to filter self-reflects by sending PDUs from a different socket on an ephemeral port

Reimplemented from DtInetUdpSocket.

DtDisSocket& DtDisSocket::operator= ( const DtDisSocket & orig )

private

Assignment not implemented.

DtPduFilterTest * DtDisSocket::pduKind ( )

inlinevirtual

DtPduFilterTest * DtDisSocket::protocolVersion ( )

inlinevirtual

virtual DtU32 DtDisSocket::receiveBundleByteAlignment ( int protocolVersion )

virtual

virtual DtInetSockRcvStatus DtDisSocket::recvFrom	(	caddr_t	buff,
		size_t	buffSize,
		DtInetEndpoint &	src,
		DtU32	flags = `0`
	)

virtual

Receive method override The DtInetUdpSocket base class revcFrom() method does not perform unbundling, PDU filtering, or self-reflect suppression.

For backward compatibility those additional tasks are supported in all DIS socket receive methods.

Reimplemented from DtInetUdpSocket.

virtual void DtDisSocket::removeDestination ( const DtInetEndpoint & destination )

virtual

Remove a destination.

Address will be removed from the list of additional destinations for sending packets.

virtual int DtDisSocket::send	(	caddr_t	packet,
		size_t	size,
		DtU32	flags = `0`
	)

virtual

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual DtU32 DtDisSocket::sendBundleByteAlignment ( )

virtual

virtual int DtDisSocket::sendChain	(	DtInetBufferChain &	packets,
		DtU32	flags = `0`
	)

virtual

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual int DtDisSocket::sendChainTo	(	DtInetBufferChain &	packets,
		DtInetEndpoint &	dest,
		DtU32	flags = `0`
	)

virtual

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::sendSockDropMulticastGroup	(	DtInetAddr	grpAddr,
		DtInetDevice *	device = `NULL`
	)

virtual

virtual bool DtDisSocket::sendSockDropMulticastGroup	(	DtInetEndpoint	grpEndpoint,
		DtInetDevice *	device = `NULL`
	)

virtual

virtual bool DtDisSocket::sendSockJoinMulticastGroup	(	DtInetAddr	grpAddr,
		DtInetDevice *	device = `NULL`
	)

virtual

virtual bool DtDisSocket::sendSockJoinMulticastGroup	(	DtInetEndpoint	grpEndpoint,
		DtInetDevice *	device = `NULL`
	)

virtual

virtual int DtDisSocket::sendTo	(	caddr_t	packet,
		size_t	size,
		DtInetEndpoint &	dest,
		DtU32	flags = `0`
	)

virtual

Sends only to the given destination.

Reimplemented from DtInetUdpSocket.

virtual void DtDisSocket::setAttributePduStrategy ( DtAttributePduStrategy strat )

virtual

Sets/Gets whether to parse for coupled attribute PDU.

virtual bool DtDisSocket::setBroadcastOption ( bool onOrOff )

virtual

Reimplemented from DtInetUdpSocket.

virtual void DtDisSocket::setBundleByteAlignment ( DtU32 size )

virtual

virtual void DtDisSocket::setBundling	(	int	maxBundleSize,
		int	sizeOffset,
		int	sizeLength,
		bool	testDisHeader
	)

virtual

Bundling is only performed when using the sendChain(), sendChainTo(), recvToChain(), and recvToChainFrom() methods.

If maxBundleSize == 0 bundling is disabled. Unbundling is always enabled. Deprecated. Provided for backwards compatibility.

Set all bundling parameters at once. The sizeOffset, sizeLength, and testDisHeader arguments are ignored.

virtual bool DtDisSocket::setDoNotRouteOption ( bool onOrOff )

virtual

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::setMaxBundleSize ( int size )

virtual

virtual bool DtDisSocket::setMcastTtlOption ( DtU32 ttl )

virtual

Change the default time-to-live on outbound multicast packets sent from this socket.

Reimplemented from DtInetUdpSocket.

virtual void DtDisSocket::setMinPacketSize ( int size )

virtual

virtual bool DtDisSocket::setNonBlockingOption ( bool onOrOff )

virtual

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::setReceiveBufferSize ( DtU32 size )

virtual

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::setReceiveLowWatermark ( DtU32 size )

virtual

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::setReuseAddressOption ( bool onOrOff )

virtual

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::setSendBufferSize ( DtU32 size )

virtual

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::setSendLowWatermark ( DtU32 size )

virtual

Reimplemented from DtInetUdpSocket.

virtual bool DtDisSocket::setSendMcastDevice ( const DtInetAddr & devAddr )

virtual

virtual int DtDisSocket::suppressSelfReflect	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)

virtual

Supress self-reflection method.

Filters out PDUs which originated from this socket's send port.

static int DtDisSocket::suppressSelfReflect	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)

staticprotected

Suppress self-reflection callback.

The real work is done by the public suppressSelfReflect method

virtual int DtDisSocket::unbundle	(	int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		int *	status
	)

virtual

static int DtDisSocket::unbundle	(	DtInetSocket *	sock,
		int	size,
		DtInetBufferChain &	buffChain,
		DtInetEndpoint &	ep,
		void *	usr
	)

staticprotected

Friends And Related Function Documentation

friend class DtDisSockPimpl

friend

For async operations.

Member Data Documentation

std::set<DtInetEndpoint> DtDisSocket::myAdditionalDestinations

protected

DtPduFilterTest DtDisSocket::myAddrFilter

protected

DtDisSockPimpl* DtDisSocket::myAsyncSendSockPimpl

private

DtAttributePduStrategy DtDisSocket::myAttributePduStrategy

protected

DtU32 DtDisSocket::myBundleByteAlignment

protected

DtPduFilterTest DtDisSocket::myExerciseFilter

protected

DtInetUtils::DtInetSockInboundBundleQueue DtDisSocket::myInboundBundles

protected

DtPduFilterTest DtDisSocket::myKindFilter

protected

int DtDisSocket::myMaxBundleSize

protected

int DtDisSocket::myMinPacketSize

protected

DtMutex DtDisSocket::myMonitor

protected

DtInetUtils::DtInetSockOutboundBundleMap DtDisSocket::myOutboundBundles

protected

DtInetEndpoint DtDisSocket::mySendEndpoint

protected

void* DtDisSocket::mySendSocket

protected

Using Void pointer to abstract a boost type actual type: boost::asio::ip::udp::socket*.

void* DtDisSocket::mySendSocketIoService

protected

Using Void pointer to abstract a boost type actual type: boost::asio::io_service*.

bool DtDisSocket::mySuppressSelfReflect

protected

bool& DtDisSocket::myUseMonitor

protected

DtPduFilterTest DtDisSocket::myVersionFilter

protected

The documentation for this class was generated from the following file:

vlDisSocket.h

Classes

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
