DtEmptyFomMapper Class Reference

An instance of DtEmptyFomMapper is a DtFomMapper that has no mappings registered between FOM classes and VR-Link classes. More...

Inheritance diagram for DtEmptyFomMapper:

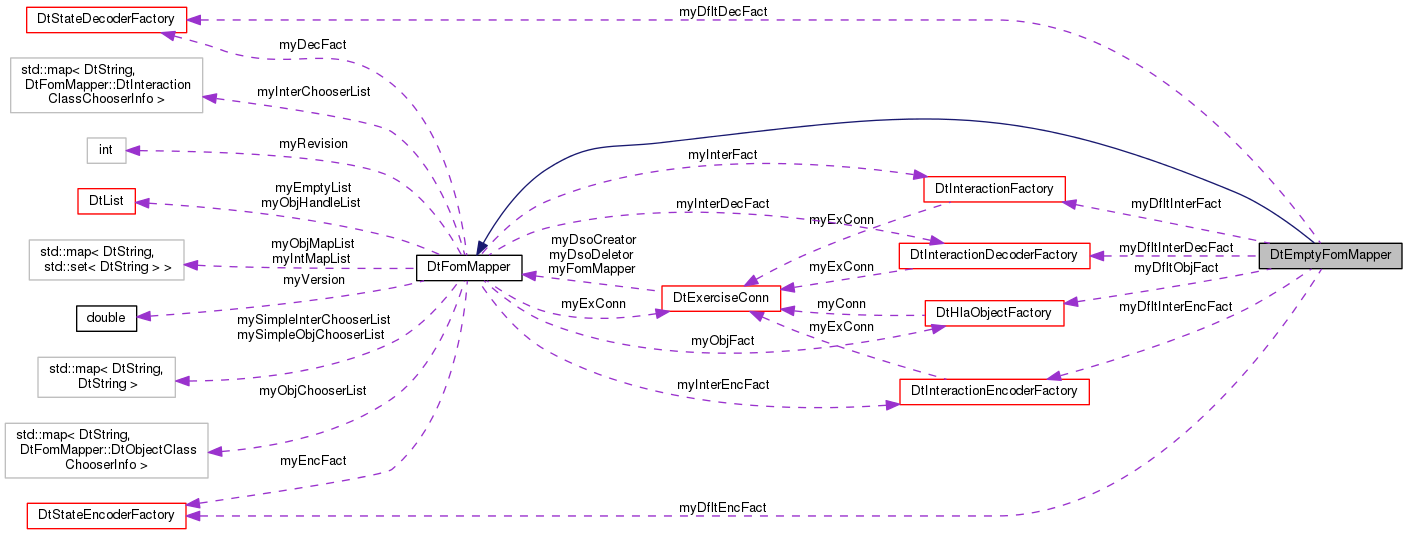

Collaboration diagram for DtEmptyFomMapper:

Public Member Functions
	DtEmptyFomMapper ()
	Default constructor. More...
virtual	~DtEmptyFomMapper ()
	destructor More...
virtual void	init (DtExerciseConn *conn)
	Initialize the instance, once an exercise connection is available. More...
DtStateDecoderFactory *	dfltStateDecoderFactory ()
	Returns the default state decoder factory. More...
DtStateEncoderFactory *	dfltStateEncoderFactory ()
	Returns the default state encoder factory. More...
DtInteractionDecoderFactory *	dfltInteractionDecoderFactory ()
	Returns the default interaction decoder factory. More...
DtInteractionEncoderFactory *	dfltInteractionEncoderFactory ()
	Returns the default state interaction factory. More...
DtHlaObjectFactory *	dfltHlaObjectFactory ()
	Returns the default HlaObject factory. More...
DtInteractionFactory *	dfltInteractionFactory ()
	Returns the default Interaction factory. More...
Public Member Functions inherited from DtFomMapper
	DtFomMapper ()
	Default constructor. More...
virtual	~DtFomMapper ()
	destructor More...
virtual DtStateDecoderFactory *	setStateDecoderFactory (DtStateDecoderFactory *fact)
	Set/Get the current factory that can be used to create DtHlaStateDecoders. More...
virtual DtStateDecoderFactory *	stateDecoderFactory ()
virtual DtStateEncoderFactory *	setStateEncoderFactory (DtStateEncoderFactory *fact)
	Set/Get the current factory that can be used to create DtHlaStateEncoders. More...
virtual DtStateEncoderFactory *	stateEncoderFactory ()
virtual DtInteractionDecoderFactory *	setInteractionDecoderFactory (DtInteractionDecoderFactory *fact)
	Set/Get the current factory that can be used to create DtInteractionDecoders. More...
virtual DtInteractionDecoderFactory *	interactionDecoderFactory ()
virtual DtInteractionEncoderFactory *	setInteractionEncoderFactory (DtInteractionEncoderFactory *fact)
	Set/Get the current factory that can be used to create DtInteractionEncoders. More...
virtual DtInteractionEncoderFactory *	interactionEncoderFactory ()
virtual DtHlaObjectFactory *	setHlaObjectFactory (DtHlaObjectFactory *fact)
	Set/Get the current factory that can be used to create DtHlaObjects. More...
virtual DtHlaObjectFactory *	hlaObjectFactory ()
virtual DtInteractionFactory *	setInteractionFactory (DtInteractionFactory *fact)
	Set/Get the current factory that can be used to create DtInteractions. More...
virtual DtInteractionFactory *	interactionFactory ()
virtual void	setObjectClassToChoose (const char *vrlinkClassName, const char *fomClassName)
	Tell the FOM Mapper how to choose a FOM object class to use for objects being published by a particular kind of object publisher. More...
virtual void	setObjectClassChooser (const char *vrlinkClassName, DtObjectClassChooser chooser)
virtual void	setObjectClassChooser (const char *vrlinkClassName, DtObjectClassChooserWithUsrData chooser, void *usr)
virtual const char *	chooseObjectClass (const char *vrlinkClassName, void *fomClassSpecific=NULL) const
	Chooses an object class to represent an object managed by the C++ class named vrlinkClassName (which should be a class derived from DtObjectPublisher). More...
virtual void	setInteractionClassToChoose (const char *vrlinkClassName, const char *fomClassName)
	Tell the FOM Mapper how to choose a FOM interaction class to use for a particular kind of derived DtInteraction. More...
virtual void	setInteractionClassChooser (const char *vrlinkClassName, DtInteractionClassChooser chooser)
virtual void	setInteractionClassChooser (const char *vrlinkClassName, DtInteractionClassChooserWithUsrData chooser, void *usr)
virtual const char *	chooseInteractionClass (const DtInteraction &inter) const
	Chooses a FOM interaction class to be by a particular derived DtInteraction class named vrlinkClassName. More...
virtual void	setInteractionClasses (const char *vrlinkClassName, const std::set< DtString > &classes)
	Set/Get a list of names (char*) of FOM classes that can be decoded into the derived DtInteraction class whose name is name. More...
virtual const std::set < DtString > *	interactionClasses (const char *vrlinkClassName)
virtual void	setInteractionClass (const char *vrlinkClassName, const char *fomClassName)
	When there is only a single FOM class to be associated with a VR-Link interaction class, then there is no need to create a DtList. More...
virtual void	addInteractionClassName (const char *vrlinkClassName, const char *objClassName, bool includeSubclasses)
	Modify the list of names of FOM interactions that should be subscribed to by a particular subclass of VR-Link. More...
virtual void	removeInteractionClassName (const char *vrlinkClassName, const char *objClassName, bool includeSubclasses)
virtual void	setObjectClassNames (const char *vrlinkClassName, const std::set< DtString > &classes)
	Set/Get a list of names (char*) of FOM object classes that should be subscribed to by a particular subclass of VR-Link's DtReflectedObjectList. More...
virtual const std::set < DtString > *	objectClassNames (const char *vrlinkClassName)
virtual DtList *	objectClassHandles (const char *vrlinkClassName)
	Similar to objectClassNames, but returns a DtList of ObjectClassHandles instead. More...
virtual void	setObjectClass (const char *vrlinkClassName, const char *fomClassName)
	When there is only a single FOM class to be associated with a VR-Link DtReflectedObjectList class, then there is no need to create a DtList. More...
virtual void	addObjectClassName (const char *vrlinkClassName, const char *objClassName, bool includeSubclasses)
	Modify the list of names of FOM objects that should be subscribed to by a particular subclass of VR-Link. More...
virtual void	removeObjectClassName (const char *vrlinkClassName, const char *objClassName, bool includeSubclasses)
virtual void	setVersion (double vers)
	Returns the version number of the FOM, as passed to setVersion. More...
virtual double	version () const
virtual void	setRevision (int val)
	Sets the revision number of the FOM. More...
virtual int	revision () const
	Returns the revision number of the FOM. More...
virtual const DtObjectClassChooserInfo *	objectClassChooser (const char *vrlinkClassName) const
	Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtObjectPublisher using setObjectClassChooser. More...
virtual const DtInteractionClassChooserInfo *	interactionClassChooser (const char *vrlinkClassName) const
	Return the FOM-class-chooser function, if any, that has been associated with the name of a C++ class derived from DtInteraction using setInteractionClassChooser. More...

Static Public Member Functions
static DtFomMapper *	create (void *usr=NULL)
	A Creator function that returns a DtEmptyFomMapper configured with no mappings at all. More...

Protected Member Functions
	DtEmptyFomMapper (const DtEmptyFomMapper &orig)
	copy constructor - not implemented. More...
DtEmptyFomMapper &	operator= (const DtEmptyFomMapper &orig)
	assignment operator - not implemented. More...
Protected Member Functions inherited from DtFomMapper
	DtFomMapper (const DtFomMapper &orig)
	copy constructor - not implemented. More...
DtFomMapper &	operator= (const DtFomMapper &orig)
	assignment operator - not implemented. More...

Protected Attributes
DtStateDecoderFactory *	myDfltDecFact
	Default factories and other objects. More...
DtStateEncoderFactory *	myDfltEncFact
DtInteractionDecoderFactory *	myDfltInterDecFact
DtInteractionEncoderFactory *	myDfltInterEncFact
DtHlaObjectFactory *	myDfltObjFact
DtInteractionFactory *	myDfltInterFact
Protected Attributes inherited from DtFomMapper
DtExerciseConn *	myExConn
DtStateDecoderFactory *	myDecFact
	Current factories and other objects. More...
DtStateEncoderFactory *	myEncFact
DtInteractionDecoderFactory *	myInterDecFact
DtInteractionEncoderFactory *	myInterEncFact
DtHlaObjectFactory *	myObjFact
DtInteractionFactory *	myInterFact
DtStringSetMap	myIntMapList
	Maps of the names of C++ classes derived from DtInteraction to sets of names of FOM classes. More...
DtStringSetMap	myObjMapList
	Maps of the names of C++ classes derived from DtReflectedObjectList to sets of names of FOM classes. More...
std::map< DtString, DtObjectClassChooserInfo >	myObjChooserList
	Maps names of C++ classes derived from DtObjectPublisher to DtObjectClassChoosers - functions that can choose an object class name from the FOM to use for the object. More...
std::map< DtString, DtString >	mySimpleObjChooserList
	Maps names of C++ classes derived from DtObjectPublisher to single FOM object class names. More...
std::map< DtString, DtInteractionClassChooserInfo >	myInterChooserList
	Maps names of C++ classes derived from DtInteraction to DtInteractionClassChoosers - functions that can choose an interaction class name from the FOM to use for the interaction. More...
std::map< DtString, DtString >	mySimpleInterChooserList
	Maps names of C++ classes derived from DtInteraction to single FOM object class names. More...
DtList	myObjHandleList
	The object returned by objectClassHandles. More...
DtList	myEmptyList
	Just an empty list to return when no class list has been registered for a particular VR-Link class. More...
double	myVersion
int	myRevision

Additional Inherited Members
Public Types inherited from DtFomMapper
typedef char *(*	DtInteractionClassChooser )(DtExerciseConn *exConn, const DtInteraction &inter)
	A function that chooses an interaction class from the FOM based on the contents of a derived DtInteraction object. More...
typedef char *(*	DtInteractionClassChooserWithUsrData )(DtExerciseConn *exConn, const DtInteraction &inter, void *usr)
	Same as DtInteractionClassChooser but allows a user to specify a void* to be passed as user data. More...
typedef char *(*	DtObjectClassChooser )(const char *vrlinkClassName, DtExerciseConn *conn, void *fomClassSpecific)
	A function that chooses an object class from the FOM based based on the name of a C++ class derived from DtObjectPublisher and FOM class specific data deemed relevant by the publisher class (e.g. More...
typedef char *(*	DtObjectClassChooserWithUsrData )(const char *vrlinkClassName, DtExerciseConn *conn, void *fomClassSpecific, void *usr)
	Same as DtObjectClassChooser but allows a user to specify a void* to be passed as user data. More...
typedef std::map< DtString, std::set< DtString > >	DtStringSetMap

Detailed Description

An instance of DtEmptyFomMapper is a DtFomMapper that has no mappings registered between FOM classes and VR-Link classes.

Mappings can be added later.

Constructor & Destructor Documentation

DtEmptyFomMapper::DtEmptyFomMapper

(

)

Default constructor.

Typically, most initialization takes place within init(), which is called by DtExerciseConn's constructor.

virtual DtEmptyFomMapper::~DtEmptyFomMapper ( )

virtual

destructor

DtEmptyFomMapper::DtEmptyFomMapper ( const DtEmptyFomMapper &  orig )

protected

copy constructor - not implemented.

Member Function Documentation

static DtFomMapper* DtEmptyFomMapper::create ( void *  usr = NULL )

static

A Creator function that returns a DtEmptyFomMapper configured with no mappings at all.

DtHlaObjectFactory* DtEmptyFomMapper::dfltHlaObjectFactory

(

)

Returns the default HlaObject factory.

DtInteractionDecoderFactory* DtEmptyFomMapper::dfltInteractionDecoderFactory

(

)

Returns the default interaction decoder factory.

DtInteractionEncoderFactory* DtEmptyFomMapper::dfltInteractionEncoderFactory

(

)

Returns the default state interaction factory.

DtInteractionFactory* DtEmptyFomMapper::dfltInteractionFactory

(

)

Returns the default Interaction factory.

DtStateDecoderFactory* DtEmptyFomMapper::dfltStateDecoderFactory

(

)

Returns the default state decoder factory.

DtStateEncoderFactory* DtEmptyFomMapper::dfltStateEncoderFactory

(

)

Returns the default state encoder factory.

virtual void DtEmptyFomMapper::init ( DtExerciseConn *  conn )

virtual

Initialize the instance, once an exercise connection is available.

Called by DtExerciseConn constructor.

Implements DtFomMapper.

Reimplemented in DtRprFomMapper, and MyFomMapper.

DtEmptyFomMapper& DtEmptyFomMapper::operator= ( const DtEmptyFomMapper &  orig )

protected

assignment operator - not implemented.

Member Data Documentation

DtStateDecoderFactory* DtEmptyFomMapper::myDfltDecFact

protected

Default factories and other objects.

DtStateEncoderFactory* DtEmptyFomMapper::myDfltEncFact

protected

DtInteractionDecoderFactory* DtEmptyFomMapper::myDfltInterDecFact

protected

DtInteractionEncoderFactory* DtEmptyFomMapper::myDfltInterEncFact

protected

DtInteractionFactory* DtEmptyFomMapper::myDfltInterFact

protected

DtHlaObjectFactory* DtEmptyFomMapper::myDfltObjFact

protected

---

The documentation for this class was generated from the following file:

• emptyFomMapper.h
