DtEncodedAudioRadioSignalDecoder Class Reference

class DtEncodedAudioRadioSignalDecoder: More...

Inheritance diagram for DtEncodedAudioRadioSignalDecoder:

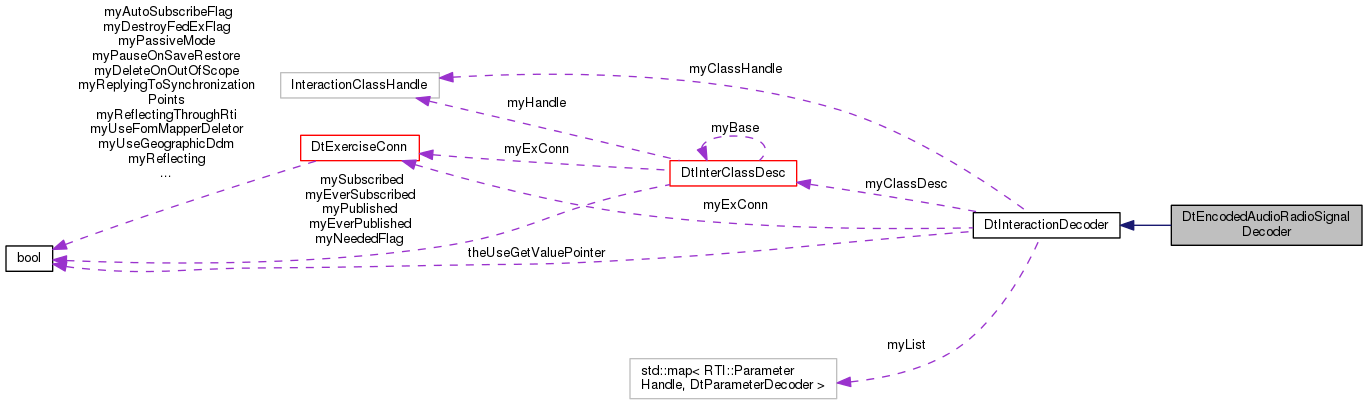

Collaboration diagram for DtEncodedAudioRadioSignalDecoder:

Public Member Functions
	DtEncodedAudioRadioSignalDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	default constructor More...
virtual	~DtEncodedAudioRadioSignalDecoder ()
	destructor More...
	DtEncodedAudioRadioSignalDecoder (const DtEncodedAudioRadioSignalDecoder &orig)
	copy constructor More...
DtEncodedAudioRadioSignalDecoder &	operator= (const DtEncodedAudioRadioSignalDecoder &orig)
	assignment operator More...
Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtInteractionDecoder ()
	destructor More...
DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle. More...
DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name. More...
virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle. More...
virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValueMap &pvMap)
	Decode the interaction. More...
virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle. More...
virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (HostRadioIndex)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (TransmitterSignalEncodingType)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (SignalSampleRate)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (SampleCount)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (SignalDataLength)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (SignalData)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (HostRadioID)
	RPR FOM <=0.8 compatibility. More...
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (EncodingType)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (SampleRate)
	DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER (AudioData)
	RPR FOM 2.0007 (really in 6) More...
Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented. More...
DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented. More...
virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter. More...

Additional Inherited Members
Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature. More...
Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data. More...
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, char *paramName)
	Gets the parameter data and checks the expected size. More...
static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data. More...
static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class. More...
Static Public Attributes inherited from DtInteractionDecoder
static bool	theUseGetValuePointer
Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::InteractionClassHandle	myClassHandle
std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

class DtEncodedAudioRadioSignalDecoder:

Instances of DtEncodedAudioRadioSignalDecoder are used to decode Encoded audio radio signal state messages to a state repository in an HLA environment.

Constructor & Destructor Documentation

DtEncodedAudioRadioSignalDecoder::DtEncodedAudioRadioSignalDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

default constructor

virtual DtEncodedAudioRadioSignalDecoder::~DtEncodedAudioRadioSignalDecoder ( )

virtual

destructor

DtEncodedAudioRadioSignalDecoder::DtEncodedAudioRadioSignalDecoder

(

const DtEncodedAudioRadioSignalDecoder &

orig

)

copy constructor

Member Function Documentation

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( HostRadioIndex  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( TransmitterSignalEncodingType  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( SignalSampleRate  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( SampleCount  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( SignalDataLength  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( SignalData  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( HostRadioID  )

protected

RPR FOM <=0.8 compatibility.

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( EncodingType  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( SampleRate  )

protected

DtEncodedAudioRadioSignalDecoder::DtDECLARE_ENC_AUDIO_RADIO_SIGNAL_PARAM_DECODER ( AudioData  )

protected

RPR FOM 2.0007 (really in 6)

DtEncodedAudioRadioSignalDecoder& DtEncodedAudioRadioSignalDecoder::operator=

(

const DtEncodedAudioRadioSignalDecoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• encodedAudioRadioSignalDecoder.h
