DtUniversalHlaIntrStrategy Class Reference

Inheritance diagram for DtUniversalHlaIntrStrategy:

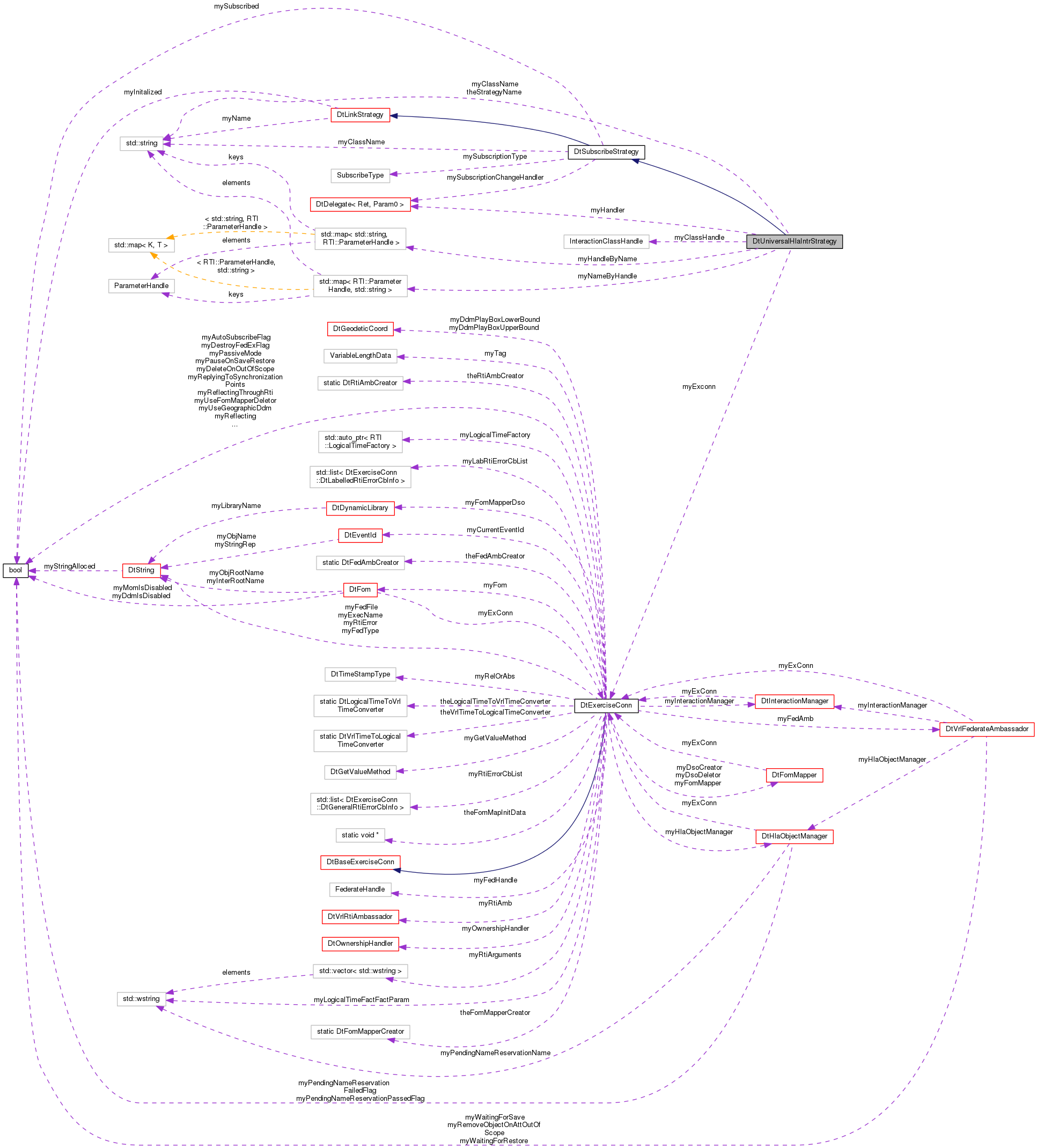

Collaboration diagram for DtUniversalHlaIntrStrategy:

Public Member Functions
virtual	~DtUniversalHlaIntrStrategy ()
std::string	name ()
virtual bool	init ()
	Initialize the strategy. More...
virtual void	tick ()
	Tick the strategy to give it some CPU time. More...
virtual void	shutdown ()
	Shutdown the strategy. More...
Public Member Functions inherited from DtSubscribeStrategy
	DtSubscribeStrategy (std::string name, DtManagedInterface *link, std::string subscribeClassName, SubscribeMessage::SubscribeType subscribeType)
	constructor takes name More...
virtual	~DtSubscribeStrategy ()
	destructor More...
void	handleSubscriptionChange (DtMessage *msg)
Public Member Functions inherited from DtLinkStrategy
	DtLinkStrategy (std::string name, DtManagedInterface *link)
	constructor takes name More...
virtual	~DtLinkStrategy ()
	destructor More...
std::string	name ()
	Get the name of the strategy. More...
virtual void	addChildStrategy (DtLinkStrategy *strategy)
	Functions for adding, removing or finding any child strategies This is typically used for the initialization strategy that "owns" all the other strategies. More...
virtual bool	removeChildStrategy (std::string name)
virtual DtLinkStrategy *	findStrategy (std::string name)

Static Public Member Functions
static std::string	theName ()
static DtLinkStrategy *	create (DtManagedInterface *gl, const std::string &className)
static char *	getBuffer (const std::vector< unsigned char > &buffer)
static const std::vector < unsigned char >	getVector (const char *buffer, unsigned long size)
static RTI::VariableLengthData	getVLD (const std::vector< unsigned char > &buffer)
static const std::vector < unsigned char >	getVector (const RTI::VariableLengthData &buffer)

Protected Member Functions
	DtUniversalHlaIntrStrategy (DtManagedInterface *link, const std::string &className)
void	handleCSharpUniIntrMessage (DtMessage *msg)
void	handleVrlUniIntr (DtInteraction *intr)
virtual void	addVrlCallback (DtExerciseConn *exConn)
	Add/Remove VR-Link C++ Interaction Callback. More...
virtual void	removeVrlCallback (DtExerciseConn *exConn)

Static Protected Member Functions
static void	vrlUniIntrCb (DtInteraction *intr, void *usr)

Protected Attributes
DtMessageDelegate *	myHandler
DtExerciseConn *	myExconn
std::string	myClassName
RTI::InteractionClassHandle	myClassHandle
std::map< std::string, RTI::ParameterHandle >	myHandleByName
std::map< RTI::ParameterHandle, std::string >	myNameByHandle
Protected Attributes inherited from DtSubscribeStrategy
DtMessageDelegate *	mySubscriptionChangeHandler
bool	mySubscribed
std::string	myClassName
SubscribeMessage::SubscribeType	mySubscriptionType
Protected Attributes inherited from DtLinkStrategy
DtManagedInterface *	myManagedInterface
std::string	myName
bool	myInitalized
std::list< DtLinkStrategy * >	myChildStrategies

Static Protected Attributes
static std::string	theStrategyName

Constructor & Destructor Documentation

virtual DtUniversalHlaIntrStrategy::~DtUniversalHlaIntrStrategy ( )

virtual

DtUniversalHlaIntrStrategy::DtUniversalHlaIntrStrategy ( DtManagedInterface *  link, const std::string &  className  )

protected

Member Function Documentation

virtual void DtUniversalHlaIntrStrategy::addVrlCallback ( DtExerciseConn *  exConn )

protectedvirtual

Add/Remove VR-Link C++ Interaction Callback.

Implements DtSubscribeStrategy.

static DtLinkStrategy* DtUniversalHlaIntrStrategy::create ( DtManagedInterface *  gl, const std::string &  className  )

static

static char* DtUniversalHlaIntrStrategy::getBuffer ( const std::vector< unsigned char > &  buffer )

static

static const std::vector<unsigned char> DtUniversalHlaIntrStrategy::getVector ( const char *  buffer, unsigned long  size  )

static

static const std::vector<unsigned char> DtUniversalHlaIntrStrategy::getVector ( const RTI::VariableLengthData &  buffer )

static

static RTI::VariableLengthData DtUniversalHlaIntrStrategy::getVLD ( const std::vector< unsigned char > &  buffer )

static

void DtUniversalHlaIntrStrategy::handleCSharpUniIntrMessage ( DtMessage *  msg )

protected

void DtUniversalHlaIntrStrategy::handleVrlUniIntr ( DtInteraction *  intr )

protected

virtual bool DtUniversalHlaIntrStrategy::init ( )

virtual

Initialize the strategy.

This function will be called multiple times to allow for dependent strategies to startup properly This function should return false if the strategy cannot get a resource it needs due to a dependency not being initialized yet.

Implements DtLinkStrategy.

std::string DtUniversalHlaIntrStrategy::name

(

)

virtual void DtUniversalHlaIntrStrategy::removeVrlCallback ( DtExerciseConn *  exConn )

protectedvirtual

Implements DtSubscribeStrategy.

virtual void DtUniversalHlaIntrStrategy::shutdown ( )

virtual

Shutdown the strategy.

Reimplemented from DtSubscribeStrategy.

static std::string DtUniversalHlaIntrStrategy::theName ( )

static

virtual void DtUniversalHlaIntrStrategy::tick ( )

virtual

Tick the strategy to give it some CPU time.

Reimplemented from DtLinkStrategy.

static void DtUniversalHlaIntrStrategy::vrlUniIntrCb ( DtInteraction *  intr, void *  usr  )

staticprotected

Member Data Documentation

RTI::InteractionClassHandle DtUniversalHlaIntrStrategy::myClassHandle

protected

std::string DtUniversalHlaIntrStrategy::myClassName

protected

DtExerciseConn* DtUniversalHlaIntrStrategy::myExconn

protected

std::map<std::string, RTI::ParameterHandle> DtUniversalHlaIntrStrategy::myHandleByName

protected

DtMessageDelegate* DtUniversalHlaIntrStrategy::myHandler

protected

std::map<RTI::ParameterHandle, std::string> DtUniversalHlaIntrStrategy::myNameByHandle

protected

std::string DtUniversalHlaIntrStrategy::theStrategyName

staticprotected

---

The documentation for this class was generated from the following file:

• universalHlaIntr.h
