DtReflectedMode2Transponder Class Reference

Instances of DtReflectedMode2Transponder are used to represent a simulated HLAobjectRoot.IFFData.Mode2.Mode2Transponder object reflected across a network. More...

Inheritance diagram for DtReflectedMode2Transponder:

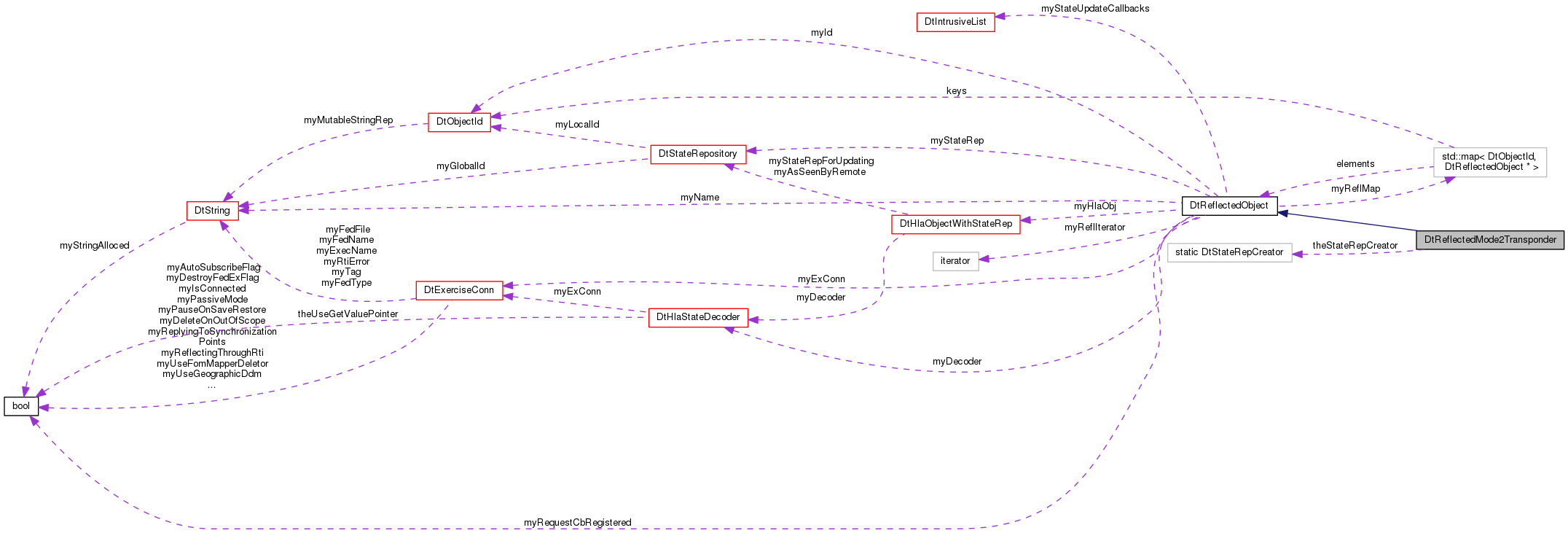

Collaboration diagram for DtReflectedMode2Transponder:

Public Types
typedef DtMode2TransponderStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create a DtMode2TransponderStateRepository. More...
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...

Public Member Functions
	DtReflectedMode2Transponder (DtHlaObject *obj, DtExerciseConn *exConn)
	Constructor. More...
virtual	~DtReflectedMode2Transponder ()
	Destructor. More...
virtual DtMode2TransponderStateRepository *	mode2TransponderStateRep () const
	Returns the Mode2Transponder's state repository. More...
virtual DtMode2TransponderStateRepository *	msr () const
	Shorter version of lifeformRep. More...
virtual DtReflectedMode2Transponder *	next () const
	Returns the next reflected Mode2Transponder in the DtReflectedMode2TransponderList. More...
virtual DtReflectedMode2Transponder *	prev () const
	Returns the previous reflected Mode2Transponder in the DtReflectedMode2TransponderList. More...
virtual DtReflectedMode2Transponder *	wrapNext () const
	Returns the next reflected Mode2Transponder. More...
virtual DtReflectedMode2Transponder *	wrapPrev () const
	Returns the previous reflected Mode2Transponder. More...
virtual void	addPostUpdateCallback (DtMode2TransponderCallbackFunction cb, void *userData)
	Add a callback that is called when the DtReflectedMode2Transponder is updated. More...
virtual void	removePostUpdateCallback (DtMode2TransponderCallbackFunction cb, void *userData)
	Remove the callback that is called when the DtReflectedMode2Transponder is updated. More...
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor. More...
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...
virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...
virtual const DtString &	name () const
	Get the HLA object name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...
virtual const DtString &	lastProducingFederate () const
	Get the name of the last federate that produced a reflected update. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder. More...
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...
void	detachHlaObject ()
	Ends managing of current HLA object. More...
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Set the function to be called for creating state repositories. More...

Protected Member Functions
	DtReflectedMode2Transponder (const DtReflectedMode2Transponder &orig)
	Copy Constructor not implemented. More...
DtReflectedMode2Transponder &	operator= (const DtReflectedMode2Transponder &orig)
	Assignment operator not implemented. More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
	The function called to create state repositories. More...

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	requestUpdatePostDrainCb (void *usr)
	Calls requestUpdate. More...
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks. More...
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
bool	myRequestCbRegistered
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Detailed Description

Instances of DtReflectedMode2Transponder are used to represent a simulated HLAobjectRoot.IFFData.Mode2.Mode2Transponder object reflected across a network.

Member Typedef Documentation

typedef DtMode2TransponderStateRepository*(* DtReflectedMode2Transponder::DtStateRepCreator)()

Function prototype for functions that create a DtMode2TransponderStateRepository.

Constructor & Destructor Documentation

DtReflectedMode2Transponder::DtReflectedMode2Transponder	(	DtHlaObject *	obj,
		DtExerciseConn *	exConn
	)

Constructor.

virtual DtReflectedMode2Transponder::~DtReflectedMode2Transponder ( )

virtual

Destructor.

DtReflectedMode2Transponder::DtReflectedMode2Transponder ( const DtReflectedMode2Transponder &  orig )

protected

Copy Constructor not implemented.

Member Function Documentation

virtual void DtReflectedMode2Transponder::addPostUpdateCallback ( DtMode2TransponderCallbackFunction  cb, void *  userData  )

virtual

Add a callback that is called when the DtReflectedMode2Transponder is updated.

DtMode2TransponderStateRepository * DtReflectedMode2Transponder::mode2TransponderStateRep ( ) const

inlinevirtual

Returns the Mode2Transponder's state repository.

References DtReflectedObject::myStateRep.

DtMode2TransponderStateRepository * DtReflectedMode2Transponder::msr ( ) const

inlinevirtual

Shorter version of lifeformRep.

References DtReflectedObject::myStateRep.

virtual DtReflectedMode2Transponder* DtReflectedMode2Transponder::next ( ) const

virtual

Returns the next reflected Mode2Transponder in the DtReflectedMode2TransponderList.

DtReflectedMode2Transponder& DtReflectedMode2Transponder::operator= ( const DtReflectedMode2Transponder &  orig )

protected

Assignment operator not implemented.

virtual DtReflectedMode2Transponder* DtReflectedMode2Transponder::prev ( ) const

virtual

Returns the previous reflected Mode2Transponder in the DtReflectedMode2TransponderList.

virtual void DtReflectedMode2Transponder::removePostUpdateCallback ( DtMode2TransponderCallbackFunction  cb, void *  userData  )

virtual

Remove the callback that is called when the DtReflectedMode2Transponder is updated.

static DtStateRepCreator DtReflectedMode2Transponder::setStateRepCreator ( DtStateRepCreator  creator )

static

Set the function to be called for creating state repositories.

virtual DtReflectedMode2Transponder* DtReflectedMode2Transponder::wrapNext ( ) const

virtual

Returns the next reflected Mode2Transponder.

Will cycle back to the first remote Mode2Transponder in the DtReflectedMode2TransponderList.

virtual DtReflectedMode2Transponder* DtReflectedMode2Transponder::wrapPrev ( ) const

virtual

Returns the previous reflected Mode2Transponder.

Will cycle back to the first remote Mode2Transponder in the DtReflectedMode2TransponderList.

Member Data Documentation

DtStateRepCreator DtReflectedMode2Transponder::theStateRepCreator

staticprotected

The function called to create state repositories.

---

The documentation for this class was generated from the following file:

• iffDataReflected.h
