DtRoutingSpaceDesc Class Reference

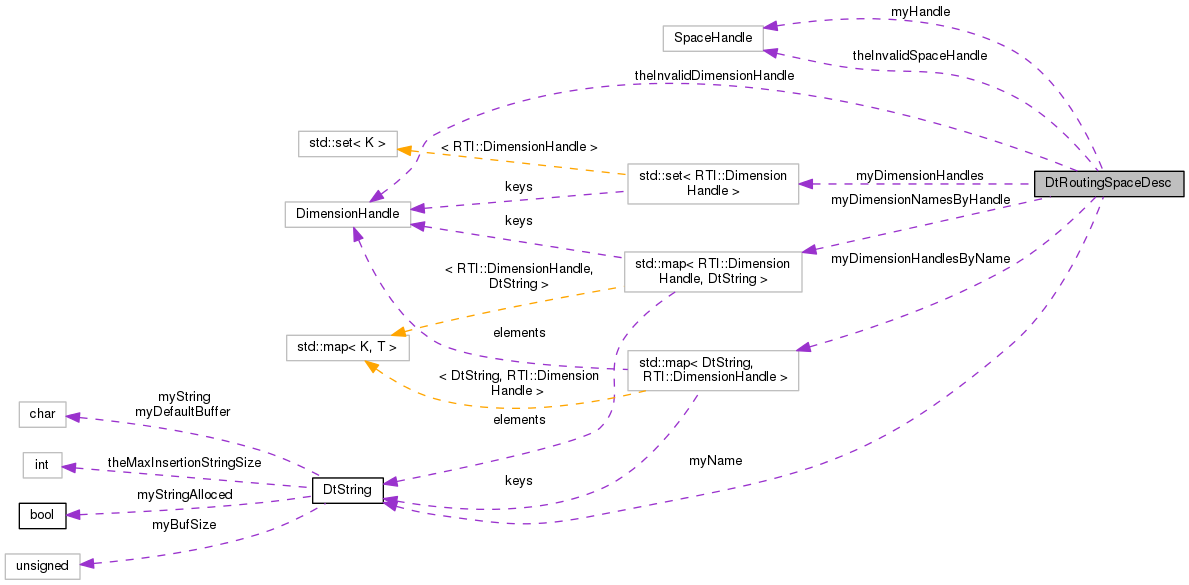

Collaboration diagram for DtRoutingSpaceDesc:

Public Member Functions
	DtRoutingSpaceDesc (const char *spaceName, RTI::SpaceHandle handle)
	Constructor. More...
	DtRoutingSpaceDesc (const DtRoutingSpaceDesc &orig)
	Copy Constructor. More...
virtual	~DtRoutingSpaceDesc ()
	Destructor. More...
DtRoutingSpaceDesc &	operator= (const DtRoutingSpaceDesc &orig)
	Operators. More...
bool	operator!= (const DtRoutingSpaceDesc &orig)
bool	operator== (const DtRoutingSpaceDesc &orig)
virtual const DtString &	name () const
	Get name. More...
virtual RTI::SpaceHandle	handle () const
	Get handle. More...
virtual void	addDimension (const char *dimName, RTI::DimensionHandle handle)
	Adds an dimension to the space. Used when reading Fed file. More...
virtual bool	isName (const char *spaceName) const
	Return boolean: name matches (1516(e) case sensitive; 1.3 not)? More...
virtual RTI::DimensionHandle	dimensionHandle (const char *dimName) const
	Get dimension handle from name. More...
virtual const DtString &	dimensionName (RTI::DimensionHandle dimHandle) const
	Get dimension name from handle. More...
virtual const DtDimensionHandleSet &	dimensions () const
	Get the set of dimensions. More...
virtual void	print () const
	Print the contents. More...

Static Public Attributes
static RTI::SpaceHandle	theInvalidSpaceHandle
static RTI::DimensionHandle	theInvalidDimensionHandle

Protected Attributes
DtString	myName
RTI::SpaceHandle	myHandle
DtDimensionHandleNameMap	myDimensionNamesByHandle
DtDimensionNameHandleMap	myDimensionHandlesByName
DtDimensionHandleSet	myDimensionHandles

Constructor & Destructor Documentation

DtRoutingSpaceDesc::DtRoutingSpaceDesc	(	const char *	spaceName,
		RTI::SpaceHandle	handle
	)

Constructor.

DtRoutingSpaceDesc::DtRoutingSpaceDesc

(

const DtRoutingSpaceDesc &

orig

)

Copy Constructor.

virtual DtRoutingSpaceDesc::~DtRoutingSpaceDesc ( )

virtual

Destructor.

Member Function Documentation

virtual void DtRoutingSpaceDesc::addDimension ( const char *  dimName, RTI::DimensionHandle  handle  )

virtual

Adds an dimension to the space. Used when reading Fed file.

virtual RTI::DimensionHandle DtRoutingSpaceDesc::dimensionHandle ( const char *  dimName ) const

virtual

Get dimension handle from name.

virtual const DtString& DtRoutingSpaceDesc::dimensionName ( RTI::DimensionHandle  dimHandle ) const

virtual

Get dimension name from handle.

virtual const DtDimensionHandleSet& DtRoutingSpaceDesc::dimensions ( ) const

virtual

Get the set of dimensions.

virtual RTI::SpaceHandle DtRoutingSpaceDesc::handle ( ) const

virtual

Get handle.

virtual bool DtRoutingSpaceDesc::isName ( const char *  spaceName ) const

virtual

Return boolean: name matches (1516(e) case sensitive; 1.3 not)?

virtual const DtString& DtRoutingSpaceDesc::name ( ) const

virtual

Get name.

bool DtRoutingSpaceDesc::operator!=

(

const DtRoutingSpaceDesc &

orig

)

DtRoutingSpaceDesc& DtRoutingSpaceDesc::operator=

(

const DtRoutingSpaceDesc &

orig

)

Operators.

bool DtRoutingSpaceDesc::operator==

(

const DtRoutingSpaceDesc &

orig

)

virtual void DtRoutingSpaceDesc::print ( ) const

virtual

Print the contents.

Member Data Documentation

DtDimensionHandleSet DtRoutingSpaceDesc::myDimensionHandles

protected

DtDimensionNameHandleMap DtRoutingSpaceDesc::myDimensionHandlesByName

protected

DtDimensionHandleNameMap DtRoutingSpaceDesc::myDimensionNamesByHandle

protected

RTI::SpaceHandle DtRoutingSpaceDesc::myHandle

protected

DtString DtRoutingSpaceDesc::myName

protected

RTI::DimensionHandle DtRoutingSpaceDesc::theInvalidDimensionHandle

static

RTI::SpaceHandle DtRoutingSpaceDesc::theInvalidSpaceHandle

static

---

The documentation for this class was generated from the following file:

• routingSpaceDesc.h
