Inheritance diagram for TransmitterStateMessage:

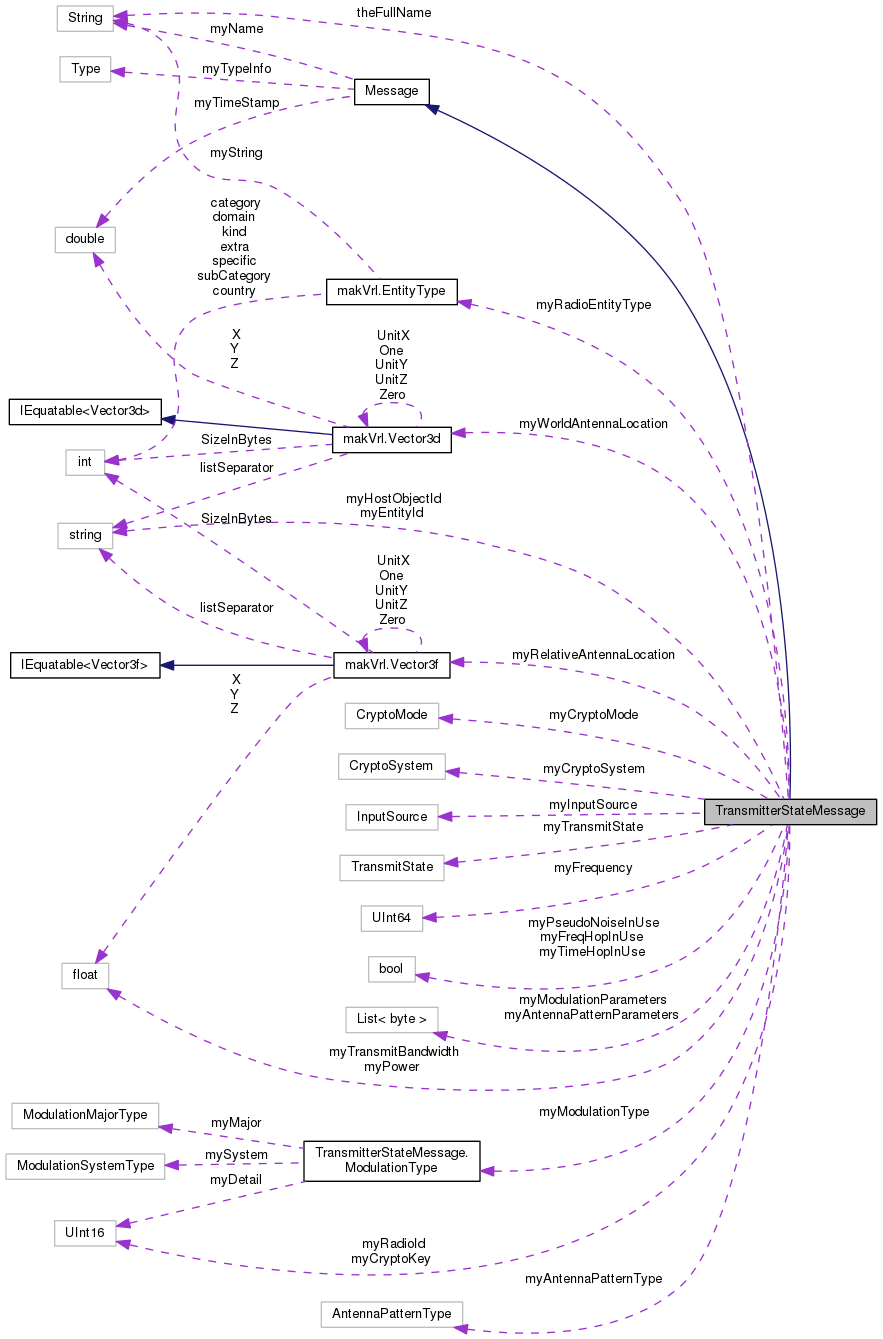

Collaboration diagram for TransmitterStateMessage:

Classes
class	BeamAntennaPattern

class	ModulationType

class	OmniAntennaPattern

class	SphericalAntennaPattern

Public Types
enum	ModulationSystemType { ModulationSystemType.OTHER, ModulationSystemType.GENERIC, ModulationSystemType.HQ, ModulationSystemType.HQII, ModulationSystemType.HQIIA, ModulationSystemType.SINCGARS, ModulationSystemType.CCTT_SINCGARS, ModulationSystemType.EPLRS, ModulationSystemType.JTIDS }

enum	ModulationDetailAplitudeAngleType { ModulationDetailAplitudeAngleType.OTHER, ModulationDetailAplitudeAngleType.APLITUDE_ANGLE }

enum	ClearChannel { ClearChannel.NOT_CLEAR, ClearChannel.CLEAR }

enum	CryptoSystem { CryptoSystem.OTHER, CryptoSystem.KY_28, CryptoSystem.VINSON, CryptoSystem.NSVE, CryptoSystem.WSVE, CryptoSystem.SINGARS_ICOM, CryptoSystem.KY_75, CryptoSystem.KY_100 }

enum	ModulationDetailPulseType { ModulationDetailPulseType.OTHER, ModulationDetailPulseType.PULSE, ModulationDetailPulseType.X_BAND, ModulationDetailPulseType.Y_BAND }

enum	InputSource { InputSource.OTHER, InputSource.PILOT, InputSource.COPILOT, InputSource.FIRST_OFFICER, InputSource.DRIVER, InputSource.LOADER, InputSource.GUNNER, InputSource.COMMANDER, InputSource.DIGITAL_DATA_DEVICE, InputSource.INTERCOM }

enum	ReferenceSystem { ReferenceSystem.WORLDCOORD =1, ReferenceSystem.ENTITYCOORD =2 }

enum	ModulationDetailCombinationType { ModulationDetailCombinationType.OTHER, ModulationDetailCombinationType.AMPLITUDE_ANGLE_PULSE }

enum	ModulationMajorType { ModulationMajorType.OTHER, ModulationMajorType.AMPLITUDE, ModulationMajorType.AMPLITUDE_ANGLE, ModulationMajorType.ANGLE =3, ModulationMajorType.COMBINATION =4, ModulationMajorType.PULSE =5, ModulationMajorType.UNMODULATED =6, ModulationMajorType.CARRIER_PHASE_SHIFT =7 }

enum	TransmitTerminalSecondaryMode { TransmitTerminalSecondaryMode.NONE, TransmitTerminalSecondaryMode.NET_POSITION_REFERENCE, TransmitTerminalSecondaryMode.PRIMARY_NAVIGATION_CONTROLLER, TransmitTerminalSecondaryMode.SECONDARY_NAVIGATION_CONTROLLER }

enum	TransmitState { TransmitState.OFF, TransmitState.RADIO_ON_NOT_TRANSMITTING, TransmitState.ON }

enum	CryptoMode { CryptoMode.BASEBAND, CryptoMode.DIPHASE }

enum	StartOfMessage { StartOfMessage.NOT_START, StartOfMessage.START }

enum	TransmitTerminalPrimaryMode { TransmitTerminalPrimaryMode.NTR, TransmitTerminalPrimaryMode.JTIDS }

enum	SyncState { SyncState.COURSE =1, SyncState.FINE =2 }

enum	ModulationDetailCarrierPhaseShiftType { ModulationDetailCarrierPhaseShiftType.OTHER }

enum	ModulationDetailUnmodulatedType { ModulationDetailUnmodulatedType.OTHER, ModulationDetailUnmodulatedType.CONTINOUS_WAVE }

enum	ModulationDetailAngleType { ModulationDetailAngleType.OTHER, ModulationDetailAngleType.FM, ModulationDetailAngleType.FSK, ModulationDetailAngleType.PM }

enum	ModulationDetailAplitudeType { ModulationDetailAplitudeType.OTHER, ModulationDetailAplitudeType.AFSK, ModulationDetailAplitudeType.AM, ModulationDetailAplitudeType.CW, ModulationDetailAplitudeType.DSB, ModulationDetailAplitudeType.ISB, ModulationDetailAplitudeType.LSB, ModulationDetailAplitudeType.SSB_FULL, ModulationDetailAplitudeType.SSB_REDUC, ModulationDetailAplitudeType.USB, ModulationDetailAplitudeType.VSB }

enum	AntennaPatternType { AntennaPatternType.OMNIDIRECTIONAL =0, AntennaPatternType.BEAM =1, AntennaPatternType.SPHERICALHARMONIC =2 }

Public Member Functions
	TransmitterStateMessage ()

Public Member Functions inherited from Message
	Message ()

virtual Byte[]	encode ()

Public Attributes
const String	theFullName ="TransmitterStateMessage"

Protected Member Functions
override int	messageSize ()

override void	serialize (ref BinaryWriter writer)

override void	deserialize (ref BinaryReader reader)

Properties
static string	theName `[get]`

string	entityId `[get, set]`

UInt16	radioId `[get, set]`

string	hostObjectId `[get, set]`

EntityType	radioEntityType `[get, set]`

TransmitState	transmitState `[get, set]`

InputSource	inputSource `[get, set]`

Vector3d	worldAntennaLocation `[get, set]`

Vector3f	relativeAntennaLocation `[get, set]`

AntennaPatternType	antennaPatternType `[get, set]`

UInt64	Frequency `[get, set]`

float	transmitBandwidth `[get, set]`

float	power `[get, set]`

ModulationType	modulationType `[get, set]`

CryptoMode	cryptoMode `[get, set]`

CryptoSystem	cryptoSystem `[get, set]`

UInt16	cryptoKey `[get, set]`

List< byte >	modulationParameters `[get, set]`

List< byte >	antennaPatternParameters `[get, set]`

bool	freqHopInUse `[get, set]`

bool	pseudoNoiseInUse `[get, set]`

bool	timeHopInUse `[get, set]`

Properties inherited from Message
String	name `[get]`

double	timeStamp `[get, set]`

Static Private Member Functions
static	TransmitterStateMessage ()

Private Attributes
string	myEntityId = ""

UInt16	myRadioId

string	myHostObjectId = ""

EntityType	myRadioEntityType =new EntityType()

TransmitState	myTransmitState

InputSource	myInputSource

Vector3d	myWorldAntennaLocation

Vector3f	myRelativeAntennaLocation

AntennaPatternType	myAntennaPatternType

UInt64	myFrequency

float	myTransmitBandwidth

float	myPower

ModulationType	myModulationType =new ModulationType()

CryptoMode	myCryptoMode

CryptoSystem	myCryptoSystem

UInt16	myCryptoKey

List< byte >	myModulationParameters =new List<byte>()

List< byte >	myAntennaPatternParameters =new List<byte>()

bool	myFreqHopInUse

bool	myPseudoNoiseInUse

bool	myTimeHopInUse

Additional Inherited Members
Static Public Member Functions inherited from Message
static Message	decode (ref Byte[] bytes)

Static Protected Member Functions inherited from Message
static Message	createMessage (ref byte[] b)

Protected Attributes inherited from Message
String	myName

double	myTimeStamp = -1.0

Type	myTypeInfo
