Instances of DtAggregateStatePdu are used to communicate information about aggregating entities. More...

Inheritance diagram for DtAggregateStatePdu:

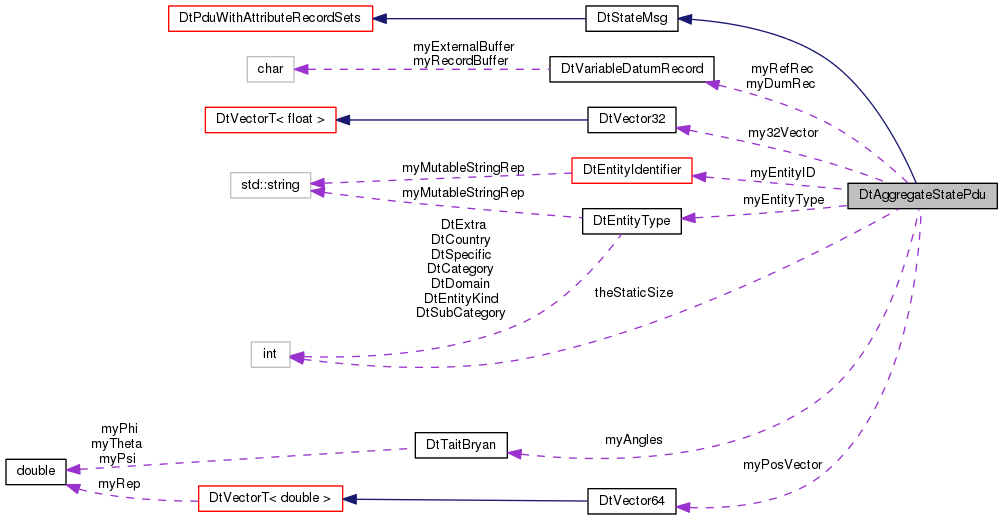

Collaboration diagram for DtAggregateStatePdu:

Public Member Functions
	DtAggregateStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...

	DtAggregateStatePdu (const DtNetAggregateStatePdu initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)

	DtAggregateStatePdu (const DtAggregateStatePdu &orig)

virtual	~DtAggregateStatePdu ()
	destructor More...

DtAggregateStatePdu &	operator= (const DtAggregateStatePdu &orig)
	Assignment operator. More...

virtual void	setAggregateID (const DtEntityIdentifier &entity)
	Set/Get aggregate entity identifier. More...

virtual const DtEntityIdentifier &	aggregateID () const

virtual void	setForceID (DtForceType force)
	Set/Get the force ID. More...

virtual DtForceType	forceID () const

virtual void	setAggregateState (DtAggregateState value)
	Set/Get the aggregate state. More...

virtual DtAggregateState	aggregateState () const

virtual void	setAggregateType (const DtEntityType &type)
	Set/Get the aggregate type. More...

virtual const DtEntityType &	aggregateType () const

virtual void	setFormation (DtAggregateFormation value)
	Set/Get the formation. More...

virtual DtAggregateFormation	formation () const

virtual void	setMarkingCharacterSet (DtCharacterSet value)
	Set/Get marking character set. More...

virtual DtCharacterSet	markingCharacterSet () const

virtual void	setMarkingText (DtU8 *copyFrom)
	Set/Get marking text (copies 31 bytes). More...

virtual void	getMarkingText (DtU8 *copyTo) const

virtual void	setDimensions (const DtVector32 &dims)
	Set/Get the dimensions. More...

virtual const DtVector32 &	dimensions () const

virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/Get orientation. More...

virtual const DtTaitBryan &	orientation () const

virtual void	setLocation (const DtVector &coords)
	Set/Get the location of center of mass. More...

virtual const DtVector &	location () const

virtual void	setVelocity (const DtVector32 &coords)
	Set/Get the velocity. More...

virtual const DtVector32 &	velocity () const

virtual bool	setNumberOfDIS_Subaggregates (DtU16 newNumberOfAggregates)
	Set/Get the number of DIS sub-aggregates. More...

virtual DtU16	numberOfDIS_Subaggregates () const

virtual bool	setNumberOfDIS_Entities (DtU16 newNumberOfEntities)
	Set/Get the number of DIS entities. More...

virtual DtU16	numberOfDIS_Entities () const

virtual bool	setNumberOfSilentSubaggregates (DtU16 newNumberOfAggregates)
	Set/Get the number of silent aggregates. More...

virtual DtU16	numberOfSilentSubaggregates () const

virtual bool	setNumberOfSilentEntities (DtU16 newNumberOfEntities)
	Set/Get the number of silent entities. More...

virtual DtU16	numberOfSilentEntities () const

virtual bool	setSubaggregateID (int index, const DtEntityIdentifier &aggID)
	Set/Get a DIS sub-aggregate ID. More...

virtual bool	getSubaggregateID (int index, DtEntityIdentifier &aggID) const

virtual bool	setEntityID (int index, const DtEntityIdentifier &entID)
	Set/Get a DIS entity ID. Returns false if the index is invalid. More...

virtual bool	getEntityID (int index, DtEntityIdentifier &entID) const

virtual bool	setSilentAggregateList (int index, const DtSilentAggregateList &aggList)
	Set/Get a silent aggregate list. More...

virtual bool	getSilentAggregateList (int index, DtSilentAggregateList &aggList) const

virtual bool	setSilentEntityList (int index, const DtSilentEntityList &entList)
	Set/Get a silent entity list. More...

virtual bool	getSilentEntityList (int index, DtSilentEntityList &entList) const

virtual bool	setNumberOfDatumRecords (DtU32 newNumberOfRecords)
	Set/Get the number of datum records. More...

virtual DtU32	numberOfDatumRecords () const

virtual bool	setVariableDatumRecord (int index, const DtVariableDatumRecord &rec)
	Set/Get a variable datum record. More...

virtual bool	getVariableDatumRecord (int index, DtVariableDatumRecord &rec) const

virtual const DtVariableDatumRecord &	variableDatumRecordConstRef (int index) const
	Get a constant reference to a variable datum record. More...

virtual void	printData () const
	Print the data contained by this PDU. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream. More...

virtual bool	setDatumBitLength (int index, DtU32 newRecordBitLength)
	WARNING: These methods are obsolete but have been retained for backward compatibility. More...

virtual bool	getDatumBitLength (int index, DtU32 &length) const

virtual bool	setDatumID (int index, DtDatumParam value)
	Set/Get the variable datum ID. More...

virtual bool	getDatumID (int index, DtDatumParam &value) const

virtual bool	setDatumValFloat64 (int index, DtFloat64 value)
	Set/Get datum value as a DtFloat64. More...

virtual bool	getDatumValFloat64 (int index, DtFloat64 &value) const

virtual bool	setDatumValFloat32 (int index, DtFloat32 value)
	Set/Get datum value as a DtFloat32. More...

virtual bool	getDatumValFloat32 (int index, DtFloat32 &value) const

virtual bool	setDatumValInt32 (int index, DtInt32 value)
	Set/Get datum value as a DtInt32. More...

virtual bool	getDatumValInt32 (int index, DtInt32 &value) const

virtual bool	setDatumValU32 (int index, DtU32 value)
	Set/Get datum value as a DtU32. More...

virtual bool	getDatumValU32 (int index, DtU32 &value) const

virtual bool	setDatumValInt16 (int index, DtInt16 value)
	Set/Get datum value as a DtInt16. More...

virtual bool	getDatumValInt16 (int index, DtInt16 &value) const

virtual bool	setDatumValU16 (int index, DtU16 value)
	Set/Get datum value as a DtU16. More...

virtual bool	getDatumValU16 (int index, DtU16 &value) const

virtual bool	setDatumValU8 (int index, DtU8 value)
	Set/Get datum value as a DtU8. More...

virtual bool	getDatumValU8 (int index, DtU8 &value) const

virtual bool	setDatumValByteArray (int index, const DtU8 *setFrom)
	Set/Get datum value as a byte array. More...

virtual bool	getDatumValByteArray (int index, DtU8 *copyTo) const

virtual bool	getDatumValPtr (int index, DtNetU8 *&datumPtr)
	Get a pointer to datum value. Returns false if the index is invalid. More...

Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor More...

virtual	~DtStateMsg ()
	destructor More...

	DtStateMsg (const DtStateMsg &orig)
	copy constructor More...

DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator More...

Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...

	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...

DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...

virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...

virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...

virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...

virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...

virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...

virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...

virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...

virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...

virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...

virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...

virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...

virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...

virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...

virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...

virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...

virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...

virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	encode ()
	Encode method. More...

virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...

virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...

virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...

virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...

virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const

virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...

virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...

virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...

virtual void	setAttributeStrategy (DtAttributePduStrategy strat)

virtual DtAttributePduStrategy	attributePduStrategy () const

virtual bool	shouldAttributePduBeCoupled () const

Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...

	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...

virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...

virtual int	status () const
	Get PDU status. More...

virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...

virtual int	protocolVersion () const

virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...

virtual int	exerciseId () const

virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...

virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...

virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...

virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...

virtual DtTime	receivedTime () const

virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...

virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...

virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...

virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...

virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...

virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...

virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...

virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...

virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...

virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...

virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...

virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...

virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...

virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...

virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...

virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...

virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...

virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...

virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...

virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...

virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...

virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...

virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...

virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...

virtual void	printDataToString (DtString &str) const

virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...

virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...

Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...

	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...

virtual const char *	netRep () const
	Get network representation. More...

virtual int	length () const
	Get size of message. More...

	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...

void	initMsg (int size, DtBufferPtr bufferPtr)

void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)

virtual void	changeSize (int size)
	Changes the size of the message. More...

virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...

virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...

virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...

virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...

virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...

virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...

virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)
	Create a DtAggregateStatePdu. More...

static void	addCallback (DtExerciseConn conn, DtAggregateStatePduCb cb, void usr)
	Add (register)/Remove (deregister) function to be called when pdu is received. More...

static void	removeCallback (DtExerciseConn conn, DtAggregateStatePduCb cb, void usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind. More...

virtual DtNetAggregateStatePdu *	netPduStruct () const
	Casts the netPdu element to our network struct. More...

DtAggregateStatePdu *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

virtual char *	var () const
	Returns a pointer to the first byte of variable length data. More...

virtual int	subaggregateID_Offset (int index) const
	Returns an offset from the beginning of variable length data to a particular subaggregate ID. More...

virtual int	entityID_Offset (int index) const
	Returns an offset from the beginning of variable length data to a particular entity ID. More...

virtual int	paddingOffset () const
	Returns an offset from the beginning of variable length data to the padding following the entity ID records. More...

virtual int	paddingBytes () const
	Returns the number of padding bytes which must follow the entity ID records. More...

virtual int	silentAggregateOffset (int index) const
	Returns an offset from the beginning of variable length data to a particular silent aggregate list. More...

virtual int	silentEntityOffset (int index) const
	Returns an offset from the beginning of variable length data to a particular silent entity system list. More...

virtual int	numberOfDatumRecordsOffset () const
	Returns an offset from the beginning of variable length data to the number of variable datum records field. More...

virtual int	datumRecordOffset (int index) const
	Returns an offset from the beginning of variable length data to a particular variable datum record. More...

Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...

virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const

Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...

virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...

virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...

virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...

virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...

virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...

virtual void	clearData ()
	zeros out all bytes after the PDU header. More...

virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...

virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...

virtual bool	isLVCApplicable () const

virtual bool	isCEIApplicable () const

virtual bool	isFTIApplicable () const

virtual bool	isDTIApplicable () const

virtual bool	isRAIApplicable () const

virtual bool	isIAIApplicable () const

virtual bool	isISMApplicable () const

virtual bool	isAIIApplicable () const

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns. More...

DtEntityType	myEntityType

DtVector	myPosVector

DtVector32	my32Vector

DtTaitBryan	myAngles

DtVariableDatumRecord	myRefRec

DtVariableDatumRecord	myDumRec

Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...

bool	isRecordSetOwned

bool	isPduExtending

DtStandardVariableRecordFactory *	mySVRFactory

DtPduDecoder *	myAttributeDecoder

DtPduEncoder *	myAttributeEncoder

DtSimulationAddress	myAttributePduOriginatingSimulationAddress

DtAttributePduStrategy	myAttributePduStrategy

Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder

DtPduDecoder *	myDecoder

int	myOKStatus

DtTime	myReceivedTime

Protected Attributes inherited from DtBaseMsg
void *	myNetMsg

void *	myInternalBuff

int	myIntBuffSize

int	myMsgSize

int	myNetworkMsgSize

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero data bytes. More...

Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtAggregateStatePdu are used to communicate information about aggregating entities.

Constructor & Destructor Documentation

DtAggregateStatePdu::DtAggregateStatePdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

DtAggregateStatePdu::DtAggregateStatePdu	(	const DtNetAggregateStatePdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

DtAggregateStatePdu::DtAggregateStatePdu ( const DtAggregateStatePdu & orig )

virtual DtAggregateStatePdu::~DtAggregateStatePdu ( )

virtual

destructor

Member Function Documentation

static void DtAggregateStatePdu::addCallback	(	DtExerciseConn *	conn,
		DtAggregateStatePduCb	cb,
		void *	usr
	)

static

Add (register)/Remove (deregister) function to be called when pdu is received.

virtual const DtEntityIdentifier& DtAggregateStatePdu::aggregateID ( ) const

virtual

virtual DtAggregateState DtAggregateStatePdu::aggregateState ( ) const

virtual

virtual const DtEntityType& DtAggregateStatePdu::aggregateType ( ) const

virtual

static DtPdu* DtAggregateStatePdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

static

Create a DtAggregateStatePdu.

Caller is reponsible for deletion.

virtual int DtAggregateStatePdu::datumRecordOffset ( int index ) const

protectedvirtual

Returns an offset from the beginning of variable length data to a particular variable datum record.

virtual const DtVector32& DtAggregateStatePdu::dimensions ( ) const

virtual

virtual int DtAggregateStatePdu::entityID_Offset ( int index ) const

protectedvirtual

Returns an offset from the beginning of variable length data to a particular entity ID.

virtual DtForceType DtAggregateStatePdu::forceID ( ) const

virtual

virtual DtAggregateFormation DtAggregateStatePdu::formation ( ) const

virtual

virtual bool DtAggregateStatePdu::getDatumBitLength	(	int	index,
		DtU32 &	length
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumID	(	int	index,
		DtDatumParam &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValByteArray	(	int	index,
		DtU8 *	copyTo
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValFloat32	(	int	index,
		DtFloat32 &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValFloat64	(	int	index,
		DtFloat64 &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValInt16	(	int	index,
		DtInt16 &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValInt32	(	int	index,
		DtInt32 &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValPtr	(	int	index,
		DtNetU8 *&	datumPtr
	)

virtual

Get a pointer to datum value. Returns false if the index is invalid.

virtual bool DtAggregateStatePdu::getDatumValU16	(	int	index,
		DtU16 &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValU32	(	int	index,
		DtU32 &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getDatumValU8	(	int	index,
		DtU8 &	value
	)		const

virtual

virtual bool DtAggregateStatePdu::getEntityID	(	int	index,
		DtEntityIdentifier &	entID
	)		const

virtual

virtual void DtAggregateStatePdu::getMarkingText ( DtU8 * copyTo ) const

virtual

virtual bool DtAggregateStatePdu::getSilentAggregateList	(	int	index,
		DtSilentAggregateList &	aggList
	)		const

virtual

virtual bool DtAggregateStatePdu::getSilentEntityList	(	int	index,
		DtSilentEntityList &	entList
	)		const

virtual

virtual bool DtAggregateStatePdu::getSubaggregateID	(	int	index,
		DtEntityIdentifier &	aggID
	)		const

virtual

virtual bool DtAggregateStatePdu::getVariableDatumRecord	(	int	index,
		DtVariableDatumRecord &	rec
	)		const

virtual

virtual DtPduKind DtAggregateStatePdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual const DtVector& DtAggregateStatePdu::location ( ) const

virtual

virtual DtCharacterSet DtAggregateStatePdu::markingCharacterSet ( ) const

virtual

virtual DtNetAggregateStatePdu* DtAggregateStatePdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

Non-virtual since you can't override based on return type.

virtual DtU32 DtAggregateStatePdu::numberOfDatumRecords ( ) const

virtual

virtual int DtAggregateStatePdu::numberOfDatumRecordsOffset ( ) const

protectedvirtual

Returns an offset from the beginning of variable length data to the number of variable datum records field.

virtual DtU16 DtAggregateStatePdu::numberOfDIS_Entities ( ) const

virtual

virtual DtU16 DtAggregateStatePdu::numberOfDIS_Subaggregates ( ) const

virtual

virtual DtU16 DtAggregateStatePdu::numberOfSilentEntities ( ) const

virtual

virtual DtU16 DtAggregateStatePdu::numberOfSilentSubaggregates ( ) const

virtual

DtAggregateStatePdu& DtAggregateStatePdu::operator= ( const DtAggregateStatePdu & orig )

Assignment operator.

virtual const DtTaitBryan& DtAggregateStatePdu::orientation ( ) const

virtual

virtual int DtAggregateStatePdu::paddingBytes ( ) const

protectedvirtual

Returns the number of padding bytes which must follow the entity ID records.

virtual int DtAggregateStatePdu::paddingOffset ( ) const

protectedvirtual

Returns an offset from the beginning of variable length data to the padding following the entity ID records.

virtual void DtAggregateStatePdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtAggregateStatePdu::printDataToStream ( std::ostream & stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

static void DtAggregateStatePdu::removeCallback	(	DtExerciseConn *	conn,
		DtAggregateStatePduCb	cb,
		void *	usr
	)

static

DtAggregateStatePdu* DtAggregateStatePdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non virtual since you can't override based on return type.

virtual void DtAggregateStatePdu::setAggregateID ( const DtEntityIdentifier & entity )

virtual

Set/Get aggregate entity identifier.

virtual void DtAggregateStatePdu::setAggregateState ( DtAggregateState value )

virtual

Set/Get the aggregate state.

virtual void DtAggregateStatePdu::setAggregateType ( const DtEntityType & type )

virtual

Set/Get the aggregate type.

virtual bool DtAggregateStatePdu::setDatumBitLength	(	int	index,
		DtU32	newRecordBitLength
	)

virtual

WARNING: These methods are obsolete but have been retained for backward compatibility.

These methods may be removed in a future release. Instead, the methods setVariableDatumRecord, getVariableDatumRecord, and variableDatumRecordConstRef should be used. Set/Get the datum length (in bits). Returns false if the index is invalid. Set may destroy data in the record.

virtual bool DtAggregateStatePdu::setDatumID	(	int	index,
		DtDatumParam	value
	)

virtual

Set/Get the variable datum ID.

Returns false if the index is invalid.

virtual bool DtAggregateStatePdu::setDatumValByteArray	(	int	index,
		const DtU8 *	setFrom
	)

virtual

Set/Get datum value as a byte array.

Returns false if the index is invalid. Data is copied to and from the network PDU structure according to the datum length of the record.

virtual bool DtAggregateStatePdu::setDatumValFloat32	(	int	index,
		DtFloat32	value
	)

virtual

Set/Get datum value as a DtFloat32.

Returns false if the index is invalid or if the field length is not 32 bits.

virtual bool DtAggregateStatePdu::setDatumValFloat64	(	int	index,
		DtFloat64	value
	)

virtual

Set/Get datum value as a DtFloat64.

Returns false if the index is invalid or if the field length is not 64 bits.

virtual bool DtAggregateStatePdu::setDatumValInt16	(	int	index,
		DtInt16	value
	)

virtual

Set/Get datum value as a DtInt16.

Returns false if the index is invalid or if the field length is not 16 bits.

virtual bool DtAggregateStatePdu::setDatumValInt32	(	int	index,
		DtInt32	value
	)

virtual

Set/Get datum value as a DtInt32.

Returns false if the index is invalid or if the field length is not 32 bits.

virtual bool DtAggregateStatePdu::setDatumValU16	(	int	index,
		DtU16	value
	)

virtual

Set/Get datum value as a DtU16.

Returns false if the index is invalid or if the field length is not 16 bits.

virtual bool DtAggregateStatePdu::setDatumValU32	(	int	index,
		DtU32	value
	)

virtual

Set/Get datum value as a DtU32.

Returns false if the index is invalid or if the field length is not 32 bits.

virtual bool DtAggregateStatePdu::setDatumValU8	(	int	index,
		DtU8	value
	)

virtual

Set/Get datum value as a DtU8.

Returns false if the index is invalid or if the field length is not 8 bits.

virtual void DtAggregateStatePdu::setDimensions ( const DtVector32 & dims )

virtual

Set/Get the dimensions.

virtual bool DtAggregateStatePdu::setEntityID	(	int	index,
		const DtEntityIdentifier &	entID
	)

virtual

Set/Get a DIS entity ID. Returns false if the index is invalid.

virtual void DtAggregateStatePdu::setForceID ( DtForceType force )

virtual

Set/Get the force ID.

virtual void DtAggregateStatePdu::setFormation ( DtAggregateFormation value )

virtual

Set/Get the formation.

virtual void DtAggregateStatePdu::setLocation ( const DtVector & coords )

virtual

Set/Get the location of center of mass.

virtual void DtAggregateStatePdu::setMarkingCharacterSet ( DtCharacterSet value )

virtual

Set/Get marking character set.

virtual void DtAggregateStatePdu::setMarkingText ( DtU8 * copyFrom )

virtual

Set/Get marking text (copies 31 bytes).

virtual bool DtAggregateStatePdu::setNumberOfDatumRecords ( DtU32 newNumberOfRecords )

virtual

Set/Get the number of datum records.
