DtBaseConfigVariable Class Reference

Bar Var class, used to access variables in a type neutral manner. More...

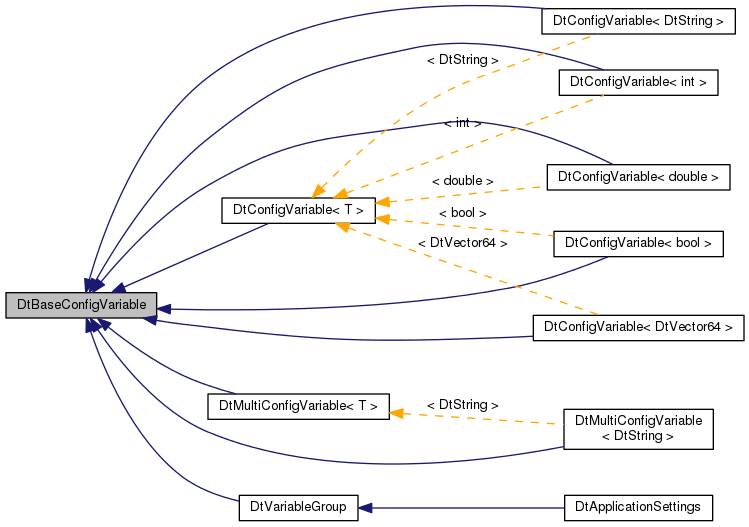

Inheritance diagram for DtBaseConfigVariable:

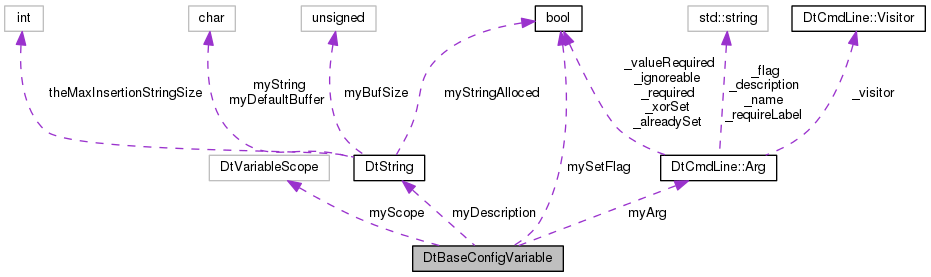

Collaboration diagram for DtBaseConfigVariable:

Public Types
enum	DtVariableScope { DtScopeInternal, DtScopeConfigFile, DtScopeCommandLine, DtScopeBoth }
typedef std::set< DtString >	TypeSet

Public Member Functions
	DtBaseConfigVariable (DtVariableGroup *settings, DtVariableScope aScope, const DtString &aDescription)
	CTOR. More...
virtual	~DtBaseConfigVariable ()
	DTOR. More...
DtBaseConfigVariable &	operator= (const DtBaseConfigVariable &other)
	Assignment operator. More...
DtVariableScope	scope () const
	Get the scope of this variable. More...
const DtString &	description () const
bool	inConfigFile () const
	Is this var used in the config line. More...
bool	inCommandLine () const
	Is this var used in the command line. More...
bool	isSet () const
	Check to see if the value has been set. More...
virtual const DtString &	name () const =0
	Get the Var's name. More...
virtual bool	isRequired () const =0
	Check to see if the value is required. More...
virtual void	getCommandLineArg (DtCmdLine::CmdLine &cmdLine)=0
	Get an arg. More...
virtual void	updateFromCommandLineArg ()=0
	Update the value by its argument. More...
virtual void	getEnvironmentSchemaType (DtEnvironment env, TypeSet &usedTypes) const =0
	Get an environment value which represents the XML scheme type. More...
virtual DtEnvValueSP	getEnvironmentValue (DtEnvironment env)=0
	Get an environment value which represent the value of the var. More...
virtual void	updateFromEnvironment (DtEnvironment env)=0
	Synchronize the var with an environment. More...
virtual DtString	type () const =0
	Get the Var's type. More...

Static Public Member Functions
static DtEnvValueSP	createSchemaDeclaration (DtEnvironment env, const DtString &name, const DtString &type)
static DtEnvValueSP	createSimpleSchemaType (DtEnvironment env, const DtString &typeName, const DtString &xsType)
	Help function for simple types. More...
static DtEnvValueSP	createComplexSchemaType (DtEnvironment env, const DtString &typeName, bool ordered, const std::list< DtBaseConfigVariable * > &members)
	Create a complex schema type. More...

Protected Member Functions
	DtBaseConfigVariable (const DtBaseConfigVariable &other)
	Copy CTOR (not implemented). More...

Protected Attributes
DtVariableScope	myScope
	My scope. More...
bool	mySetFlag
	Stores a flag to determine if this var has been set yet. More...
DtCmdLine::Arg *	myArg
	Stores the argument relating with this var. More...
DtString	myDescription
	Stores a description of the variable. More...

Detailed Description

Bar Var class, used to access variables in a type neutral manner.

Member Typedef Documentation

typedef std::set<DtString> DtBaseConfigVariable::TypeSet

Member Enumeration Documentation

enum DtBaseConfigVariable::DtVariableScope

Enumerator
DtScopeInternal
DtScopeConfigFile
DtScopeCommandLine
DtScopeBoth

Constructor & Destructor Documentation

DtBaseConfigVariable::DtBaseConfigVariable	(	DtVariableGroup *	settings,
		DtVariableScope	aScope,
		const DtString &	aDescription
	)

CTOR.

virtual DtBaseConfigVariable::~DtBaseConfigVariable ( )

virtual

DTOR.

DtBaseConfigVariable::DtBaseConfigVariable ( const DtBaseConfigVariable &  other )

protected

Copy CTOR (not implemented).

Member Function Documentation

static DtEnvValueSP DtBaseConfigVariable::createComplexSchemaType ( DtEnvironment  env, const DtString &  typeName, bool  ordered, const std::list< DtBaseConfigVariable * > &  members  )

static

Create a complex schema type.

static DtEnvValueSP DtBaseConfigVariable::createSchemaDeclaration ( DtEnvironment  env, const DtString &  name, const DtString &  type  )

static

static DtEnvValueSP DtBaseConfigVariable::createSimpleSchemaType ( DtEnvironment  env, const DtString &  typeName, const DtString &  xsType  )

static

Help function for simple types.

const DtString& DtBaseConfigVariable::description ( ) const

inline

virtual void DtBaseConfigVariable::getCommandLineArg ( DtCmdLine::CmdLine &  cmdLine )

pure virtual

Get an arg.

This this var doesn't support Arguments return a NULL pointer.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

virtual void DtBaseConfigVariable::getEnvironmentSchemaType ( DtEnvironment  env, TypeSet &  usedTypes  ) const

pure virtual

Get an environment value which represents the XML scheme type.

The var should check the type set before created type to eliminate duplicates.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

virtual DtEnvValueSP DtBaseConfigVariable::getEnvironmentValue ( DtEnvironment  env )

pure virtual

Get an environment value which represent the value of the var.

If the var type does not support environment representation a NULL smart pointer should be returned.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

bool DtBaseConfigVariable::inCommandLine ( ) const

inline

Is this var used in the command line.

bool DtBaseConfigVariable::inConfigFile ( ) const

inline

Is this var used in the config line.

virtual bool DtBaseConfigVariable::isRequired ( ) const

pure virtual

Check to see if the value is required.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

bool DtBaseConfigVariable::isSet ( ) const

inline

Check to see if the value has been set.

virtual const DtString& DtBaseConfigVariable::name ( ) const

pure virtual

Get the Var's name.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

DtBaseConfigVariable& DtBaseConfigVariable::operator=

(

const DtBaseConfigVariable &

other

)

Assignment operator.

Assigns all defining attributes of the variable. The variable's group that it belongs to remains unchanged.

DtVariableScope DtBaseConfigVariable::scope ( ) const

inline

Get the scope of this variable.

virtual DtString DtBaseConfigVariable::type ( ) const

pure virtual

Get the Var's type.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

virtual void DtBaseConfigVariable::updateFromCommandLineArg ( )

pure virtual

Update the value by its argument.

This function will not be called if getArg returns NULL.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

virtual void DtBaseConfigVariable::updateFromEnvironment ( DtEnvironment  env )

pure virtual

Synchronize the var with an environment.

This function will not be called if getEnvironmentValue() returns NULL.

Implemented in DtConfigVariable< T >, DtConfigVariable< double >, DtConfigVariable< DtString >, DtConfigVariable< int >, DtConfigVariable< bool >, DtConfigVariable< DtVector64 >, DtMultiConfigVariable< T >, DtMultiConfigVariable< DtString >, and DtVariableGroup.

Member Data Documentation

DtCmdLine::Arg* DtBaseConfigVariable::myArg

protected

Stores the argument relating with this var.

DtString DtBaseConfigVariable::myDescription

protected

Stores a description of the variable.

DtVariableScope DtBaseConfigVariable::myScope

protected

My scope.

bool DtBaseConfigVariable::mySetFlag

protected

Stores a flag to determine if this var has been set yet.

---

The documentation for this class was generated from the following file:

• baseConfigVariable.h
