DtEnvironmentalGeometryRecord Class Reference

DtEnvironmentalGeometryRecord provides a common base class for all environmental geometry (as opposed to state) records used in the Environmental Process object. More...

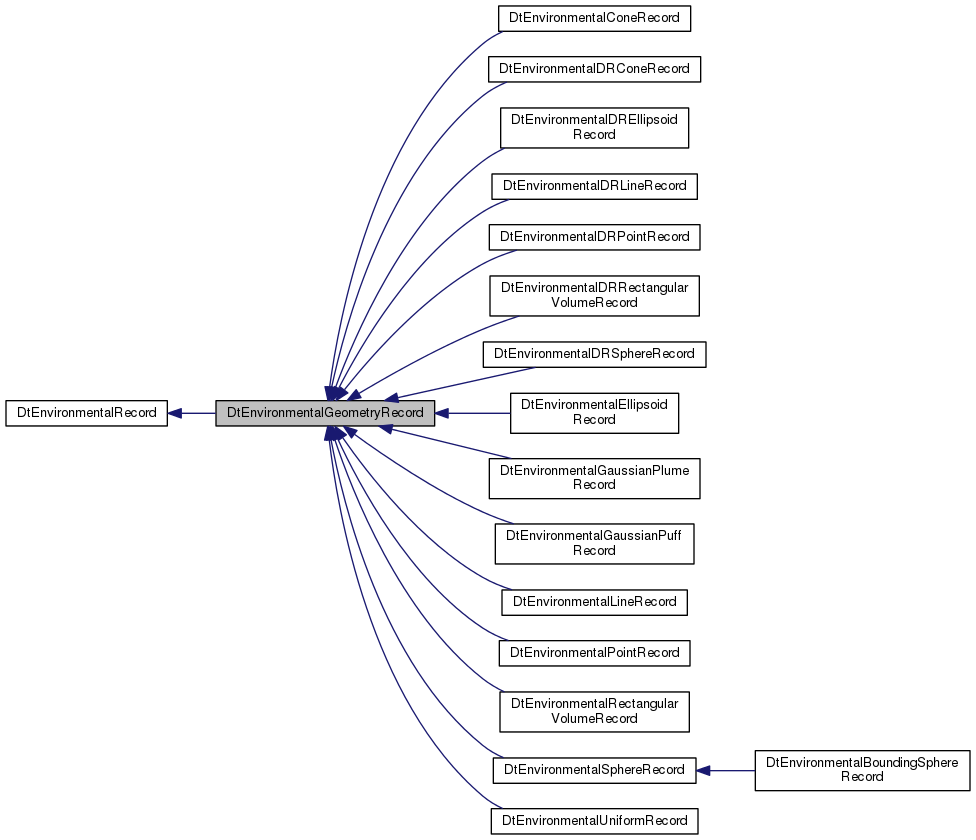

Inheritance diagram for DtEnvironmentalGeometryRecord:

Collaboration diagram for DtEnvironmentalGeometryRecord:

Public Member Functions
	DtEnvironmentalGeometryRecord ()
	Constructor. More...
	DtEnvironmentalGeometryRecord (const DtEnvironmentalGeometryRecord &orig)
	Copy constructor. More...
const DtEnvironmentalGeometryRecord &	operator= (const DtEnvironmentalGeometryRecord &orig)
	Assignment Operator. More...
virtual	~DtEnvironmentalGeometryRecord ()
	Destructor. More...
virtual DtEnvironmentalRecord *	clone () const
	Clone. More...
virtual void	setHasState (bool hasState)
	Set/get a flag to indicate whether or not a state record is associated with this geometry record. More...
virtual bool	hasState () const
Public Member Functions inherited from DtEnvironmentalRecord
	DtEnvironmentalRecord ()
	Constructor. More...
	DtEnvironmentalRecord (const DtEnvironmentalRecord &orig)
	Copy constructor. More...
const DtEnvironmentalRecord &	operator= (const DtEnvironmentalRecord &orig)
	Assignment operator. More...
virtual	~DtEnvironmentalRecord ()
	Destructor. More...
virtual bool	createNetworkRepresentation ()
	This doesn't need to be called explicitly. More...
virtual void	setType (DtU32 type)
virtual DtU32	type () const
virtual void	setLength (DtU16 length)
virtual DtU16	length () const
virtual void	setIndex (DtU8 index)
virtual DtU8	index () const
const DtNetEnvironmentalRecord *	netRep () const
	returns the network representation of the environmental record More...
DtNetEnvironmentalRecord *	netRep ()
virtual int	netRepSize () const
	Returns the size of the network representation. More...
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer, int protocolVersion)
	used by the PDU class to fill in the network representation More...

Protected Attributes
bool	myHasState
Protected Attributes inherited from DtEnvironmentalRecord
DtNetEnvironmentalRecord *	myNetRep

Additional Inherited Members
Protected Member Functions inherited from DtEnvironmentalRecord
virtual bool	checkAndCreate ()
	Checks to see if we need a representation, and creates it if we do Returns false, if the create fails, true otherwise. More...
virtual bool	resizeNetRep (int newSize)
	Resizes the network representation. More...
DtEnvironmentalRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

Detailed Description

DtEnvironmentalGeometryRecord provides a common base class for all environmental geometry (as opposed to state) records used in the Environmental Process object.

It contains the standard environmental record header, plus a bool flag to indicate whether or not there is a state record corresponding to the geometry record represented.

Constructor & Destructor Documentation

DtEnvironmentalGeometryRecord::DtEnvironmentalGeometryRecord

(

)

Constructor.

DtEnvironmentalGeometryRecord::DtEnvironmentalGeometryRecord

(

const DtEnvironmentalGeometryRecord &

orig

)

Copy constructor.

virtual DtEnvironmentalGeometryRecord::~DtEnvironmentalGeometryRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtEnvironmentalRecord* DtEnvironmentalGeometryRecord::clone ( ) const

virtual

Clone.

Reimplemented from DtEnvironmentalRecord.

Reimplemented in DtEnvironmentalBoundingSphereRecord, DtEnvironmentalConeRecord, DtEnvironmentalDRPointRecord, DtEnvironmentalDREllipsoidRecord, DtEnvironmentalDRRectangularVolumeRecord, DtEnvironmentalEllipsoidRecord, DtEnvironmentalGaussianPlumeRecord, DtEnvironmentalGaussianPuffRecord, DtEnvironmentalPointRecord, DtEnvironmentalUniformRecord, DtEnvironmentalDRConeRecord, DtEnvironmentalDRSphereRecord, DtEnvironmentalLineRecord, DtEnvironmentalDRLineRecord, DtEnvironmentalRectangularVolumeRecord, and DtEnvironmentalSphereRecord.

virtual bool DtEnvironmentalGeometryRecord::hasState ( ) const

virtual

const DtEnvironmentalGeometryRecord& DtEnvironmentalGeometryRecord::operator=

(

const DtEnvironmentalGeometryRecord &

orig

)

Assignment Operator.

virtual void DtEnvironmentalGeometryRecord::setHasState ( bool  hasState )

virtual

Set/get a flag to indicate whether or not a state record is associated with this geometry record.

Member Data Documentation

bool DtEnvironmentalGeometryRecord::myHasState

protected

---

The documentation for this class was generated from the following file:

• environmentalGeometryRecord.h
