The DtLink16Signal class is a helper class that is used to assist the user in setting Link16 data as defined by the SISO-STD-002-2006 document. More...

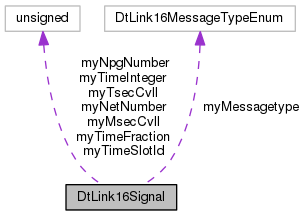

Collaboration diagram for DtLink16Signal:

Classes
struct	DtNetLink16SignalFields
	This is the net structure that's used to encode the Link16 fields in the data section of the signal PDU/interaction. More...

Public Member Functions
	DtLink16Signal ()
	Default constructor. More...

	DtLink16Signal (const DtSignalInteraction *signal)
	Constructor that takes a signal interaction. More...

virtual	~DtLink16Signal ()
	Destructor. More...

virtual void	printData () const
	Print the data contained by this PDU. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream. More...

virtual void	encodeHeader (DtSignalInteraction inter, int numJWords, const void data, int sizeOfData)
	Encodes the Link 16 data contained in this class into the interaction passed in. More...

virtual void *	decodeHeader (const DtSignalInteraction *inter)
	Decodes the interaction passed in, into this class. More...


virtual void	setNpgNumber (DtU16 npg)
	Set/Get the NPG Number. More...

virtual DtU16	npgNumber () const
	Set/Get the NPG Number. More...


virtual void	setNetNumber (DtU8 net)
	Set/Get the Net Number. More...

virtual DtU8	netNumber () const
	Set/Get the Net Number. More...


virtual void	setTsecCvll (DtU8 val)
	Set/Get the TSEC CVLL. More...

virtual DtU8	tsecCvll () const
	Set/Get the TSEC CVLL. More...


virtual void	setMsecCvll (DtU8 val)
	Set/Get the MSEC CVLL. More...

virtual DtU8	msecCvll () const
	Set/Get the MSEC CVLL. More...


virtual void	setLink16MessageType (DtLink16MessageTypeEnum val)
	Set/Get the Message Type. More...

virtual DtLink16MessageTypeEnum	link16MessageType () const
	Set/Get the Message Type. More...


virtual void	setTimeIdSlotNumber (DtU32 val)
	Set/Get the Time Slot ID Slot Number. More...

virtual DtU32	timeIdSlotNumber () const
	Set/Get the Time Slot ID Slot Number. More...


virtual void	setTimeIdEpochNumber (DtU8 val)
	Set/Get the Time Slot ID Epoch Number. More...

virtual DtU8	timeIdEpochNumber () const
	Set/Get the Time Slot ID Epoch Number. More...


virtual void	setPerceivedTransmitTimeInteger (DtU32 val)
	Set/Get the perceived transmit time (integer portion). More...

virtual DtU32	perceivedTransmitTimeInteger () const
	Set/Get the perceived transmit time (integer portion). More...


virtual void	setPerceivedTransmitTimeFraction (DtU32 val)
	Set/Get the perceived transmit time (fraction portion). More...

virtual DtU32	perceivedTransmitTimeFraction () const
	Set/Get the perceived transmit time (fraction portion). More...

Protected Attributes
DtU16	myNpgNumber

DtU8	myNetNumber

DtU8	myTsecCvll

DtU8	myMsecCvll

DtLink16MessageTypeEnum	myMessagetype

DtU32	myTimeSlotId

DtU32	myTimeInteger

DtU32	myTimeFraction

Detailed Description

The DtLink16Signal class is a helper class that is used to assist the user in setting Link16 data as defined by the SISO-STD-002-2006 document.

The user is responsible for setting the data for the actual Link16 message, and passes the message data into the encode method, which will place it after the Link 16 fields in the data section of the interaction/PDU.

Constructor & Destructor Documentation

DtLink16Signal::DtLink16Signal ( )

Default constructor.

DtLink16Signal::DtLink16Signal ( const DtSignalInteraction * signal )

Constructor that takes a signal interaction.

Calls decode, passing in the signal.

virtual DtLink16Signal::~DtLink16Signal ( )

virtual

Destructor.

Member Function Documentation

virtual void* DtLink16Signal::decodeHeader ( const DtSignalInteraction * inter )

virtual

Decodes the interaction passed in, into this class.

Returns the data section of the interaction, after the Link-16 fields. The size of this data can be determined by the DtSignalInteraction's numDataBytes() method minus 20 (the size of the Link 16 data).

virtual void DtLink16Signal::encodeHeader	(	DtSignalInteraction *	inter,
		int	numJWords,
		const void *	data,
		int	sizeOfData
	)

virtual

Encodes the Link 16 data contained in this class into the interaction passed in.

The number of J-Words needs to be specified, along with the data (Link-16 message), and the size of that data, in bytes.

virtual DtLink16MessageTypeEnum DtLink16Signal::link16MessageType ( ) const

virtual

Set/Get the Message Type.

In HLA, this is used to determine what type of Link 16 Signal interaction is sent.

virtual DtU8 DtLink16Signal::msecCvll ( ) const

virtual

Set/Get the MSEC CVLL.

virtual DtU8 DtLink16Signal::netNumber ( ) const

virtual

Set/Get the Net Number.

virtual DtU16 DtLink16Signal::npgNumber ( ) const

virtual

Set/Get the NPG Number.

virtual DtU32 DtLink16Signal::perceivedTransmitTimeFraction ( ) const

virtual

Set/Get the perceived transmit time (fraction portion).

virtual DtU32 DtLink16Signal::perceivedTransmitTimeInteger ( ) const

virtual

Set/Get the perceived transmit time (integer portion).

virtual void DtLink16Signal::printData ( ) const

virtual

Print the data contained by this PDU.

virtual void DtLink16Signal::printDataToStream ( std::ostream & stream ) const

virtual

Print the data to a stream.

virtual void DtLink16Signal::setLink16MessageType ( DtLink16MessageTypeEnum val )

virtual

Set/Get the Message Type.

In HLA, this is used to determine what type of Link 16 Signal interaction is sent.

virtual void DtLink16Signal::setMsecCvll ( DtU8 val )

virtual

Set/Get the MSEC CVLL.

virtual void DtLink16Signal::setNetNumber ( DtU8 net )

virtual

Set/Get the Net Number.

virtual void DtLink16Signal::setNpgNumber ( DtU16 npg )

virtual

Set/Get the NPG Number.

virtual void DtLink16Signal::setPerceivedTransmitTimeFraction ( DtU32 val )

virtual

Set/Get the perceived transmit time (fraction portion).

virtual void DtLink16Signal::setPerceivedTransmitTimeInteger ( DtU32 val )

virtual

Set/Get the perceived transmit time (integer portion).

virtual void DtLink16Signal::setTimeIdEpochNumber ( DtU8 val )

virtual

Set/Get the Time Slot ID Epoch Number.

virtual void DtLink16Signal::setTimeIdSlotNumber ( DtU32 val )

virtual

Set/Get the Time Slot ID Slot Number.

virtual void DtLink16Signal::setTsecCvll ( DtU8 val )

virtual

Set/Get the TSEC CVLL.

virtual DtU8 DtLink16Signal::timeIdEpochNumber ( ) const

virtual

Set/Get the Time Slot ID Epoch Number.

virtual DtU32 DtLink16Signal::timeIdSlotNumber ( ) const

virtual

Set/Get the Time Slot ID Slot Number.

virtual DtU8 DtLink16Signal::tsecCvll ( ) const

virtual

Set/Get the TSEC CVLL.

Member Data Documentation

DtLink16MessageTypeEnum DtLink16Signal::myMessagetype

protected

DtU8 DtLink16Signal::myMsecCvll

protected

DtU8 DtLink16Signal::myNetNumber

protected

DtU16 DtLink16Signal::myNpgNumber

protected

DtU32 DtLink16Signal::myTimeFraction

protected

DtU32 DtLink16Signal::myTimeInteger

protected

DtU32 DtLink16Signal::myTimeSlotId

protected

DtU8 DtLink16Signal::myTsecCvll

protected

The documentation for this class was generated from the following file:

link16Signal.h
