DtRelativeLocationPdu Class Reference

Instances of DtRelativeLocationPdu are used to convey the fact that one unit is located at a position relative to another unit's world location. More...

Inheritance diagram for DtRelativeLocationPdu:

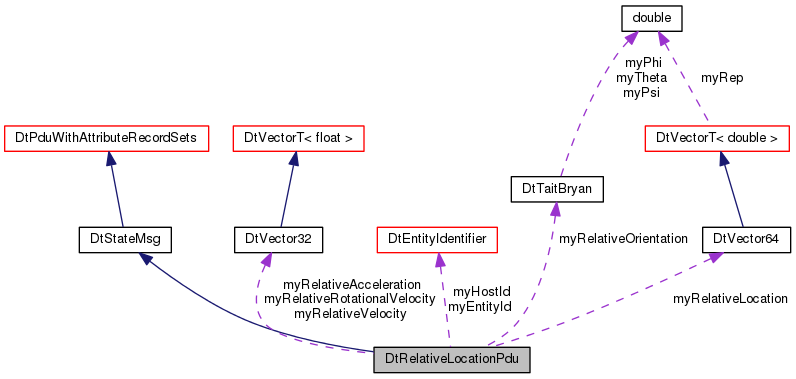

Collaboration diagram for DtRelativeLocationPdu:

Public Member Functions
	DtRelativeLocationPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	The blank constructor creates a blank DtRelativeLocationPdu ready to be filled out and sent by application code. More...
	DtRelativeLocationPdu (const DtNetRelativeLocationPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	The from-network-representation constructor makes a PDU from an already filled out buffer containing the exact bytes that represent this type of PDU. More...
virtual	~DtRelativeLocationPdu ()
	Destructor. More...
	DtRelativeLocationPdu (const DtRelativeLocationPdu &orig)
	Copy Constructor. More...
DtRelativeLocationPdu &	operator= (const DtRelativeLocationPdu &orig)
	Assignment operator. More...
bool	operator== (const DtRelativeLocationPdu &orig)
	Comparison operator. More...
virtual void	printData () const
	Print data function override prints out readable text representing the PDU instead of the raw hex. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream. More...
virtual DtNetRelativeLocationPdu *	networkRepresentation ()
	To make writing inspector/mutator functions easier these next two functions return a pointer to the PDU's network representation by casting the value returned by the base class' packet() function into a DtNetRelativeLocationPdu. More...
virtual const DtNetRelativeLocationPdu *	networkRepresentation () const
virtual void	setId (const DtEntityIdentifier &id)
	Set/Get Object Identifier of issuing unit. More...
virtual const DtEntityIdentifier &	id () const
virtual void	setHostId (const DtEntityIdentifier &id)
	Set/Get Object Identifier of host unit. More...
virtual const DtEntityIdentifier &	hostId () const
virtual void	setRelativeAlgorithm (DtDeadReckonTypes alg)
	Set/Get dead reckoning algorithm. More...
virtual DtDeadReckonTypes	relativeAlgorithm () const
virtual void	setRelativeLocation (const DtVector &loc)
	Set/Get the unit's world location. More...
virtual const DtVector &	relativeLocation () const
virtual void	setRelativeVelocity (const DtVector32 &vel)
	Set/Get the unit's velocity. More...
virtual const DtVector32 &	relativeVelocity () const
virtual void	setRelativeAcceleration (const DtVector32 &accel)
	Set/Get the unit's acceleration. More...
virtual const DtVector32 &	relativeAcceleration () const
virtual void	setRelativeOrientation (const DtTaitBryan &orient)
	Set/Get the unit's orientation. More...
virtual const DtTaitBryan &	relativeOrientation () const
virtual void	setRelativeRotationalVelocity (const DtVector32 &vel)
	Set/Get the unit's average acceleration. More...
virtual const DtVector32 &	relativeRotationalVelocity () const
virtual void	setNature (DtNature value)
	Set/Get the units nature. More...
virtual DtNature	nature () const
virtual void	setPartPosition (DtPosition value)
	Set/Get the unit's position. More...
virtual DtPosition	partPosition () const
virtual void	setStationName (DtStationName value)
	Set/Get the unit's station name. More...
virtual DtStationName	stationName () const
virtual void	setStationNumber (DtU16 value)
	Set/Get the unit's station number. More...
virtual DtU16	stationNumber () const
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor More...
virtual	~DtStateMsg ()
	destructor More...
	DtStateMsg (const DtStateMsg &orig)
	copy constructor More...
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator More...
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...
virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...
virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...
virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...
virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...
virtual void	encode ()
	Encode method. More...
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...
virtual void	setAttributeStrategy (DtAttributePduStrategy strat)
virtual DtAttributePduStrategy	attributePduStrategy () const
virtual bool	shouldAttributePduBeCoupled () const
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...
virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...
virtual int	status () const
	Get PDU status. More...
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...
virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...
virtual DtTime	receivedTime () const
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...
virtual const char *	netRep () const
	Get network representation. More...
virtual int	length () const
	Get size of message. More...
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size)
	Changes the size of the message. More...
virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...
virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...
virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...
virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...
virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...
virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buiffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create and return a new DtRelativeLocationPdu. More...
static void	addCallback (DtExerciseConn *conn, DtRelativeLocationPduCb cb, void *usr)
	Wrappers around DtExerciseConn's add/removeCallback functions. More...
static void	removeCallback (DtExerciseConn *conn, DtRelativeLocationPduCb cb, void *usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the PDU class. More...
DtRelativeLocationPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...
Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...
virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const
Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...
virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...
virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...
virtual void	initPdu (const void *initial, DtBufferPtr buffer, DtPduFactory *pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...
virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...
virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...
virtual void	clearData ()
	zeros out all bytes after the PDU header. More...
virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...
virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...
virtual bool	isLVCApplicable () const
virtual bool	isCEIApplicable () const
virtual bool	isFTIApplicable () const
virtual bool	isDTIApplicable () const
virtual bool	isRAIApplicable () const
virtual bool	isIAIApplicable () const
virtual bool	isISMApplicable () const
virtual bool	isAIIApplicable () const

Protected Attributes
DtEntityIdentifier	myEntityId
	These objects are for "reference returns". More...
DtEntityIdentifier	myHostId
DtVector	myRelativeLocation
DtVector32	myRelativeVelocity
DtVector32	myRelativeAcceleration
DtTaitBryan	myRelativeOrientation
DtVector32	myRelativeRotationalVelocity
Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...
bool	isRecordSetOwned
bool	isPduExtending
DtStandardVariableRecordFactory *	mySVRFactory
DtPduDecoder *	myAttributeDecoder
DtPduEncoder *	myAttributeEncoder
DtSimulationAddress	myAttributePduOriginatingSimulationAddress
DtAttributePduStrategy	myAttributePduStrategy
Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder
DtPduDecoder *	myDecoder
int	myOKStatus
DtTime	myReceivedTime
Protected Attributes inherited from DtBaseMsg
void *	myNetMsg
void *	myInternalBuff
int	myIntBuffSize
int	myMsgSize
int	myNetworkMsgSize

Additional Inherited Members
Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtRelativeLocationPdu are used to convey the fact that one unit is located at a position relative to another unit's world location.

Useful for having units mounted on other units etc.

Constructor & Destructor Documentation

DtRelativeLocationPdu::DtRelativeLocationPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

The blank constructor creates a blank DtRelativeLocationPdu ready to be filled out and sent by application code.

DtRelativeLocationPdu::DtRelativeLocationPdu	(	const DtNetRelativeLocationPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

The from-network-representation constructor makes a PDU from an already filled out buffer containing the exact bytes that represent this type of PDU.

This constructor is used by VR-Link to create an instance of this class from PDU data received from the network.

virtual DtRelativeLocationPdu::~DtRelativeLocationPdu ( )

virtual

Destructor.

DtRelativeLocationPdu::DtRelativeLocationPdu

(

const DtRelativeLocationPdu &

orig

)

Copy Constructor.

Member Function Documentation

static void DtRelativeLocationPdu::addCallback ( DtExerciseConn *  conn, DtRelativeLocationPduCb  cb, void *  usr  )

static

Wrappers around DtExerciseConn's add/removeCallback functions.

The DtExerciseConn functions could be used instead but this keeps the non-typesafe cast limited to this one place. In addition within addCallback, this class' create function is registered with VR-Link, letting VR-Link know to create one of these to represent the right kind of PDU.

static DtPdu* DtRelativeLocationPdu::create ( const DtNetPacket *  initial, DtBufferPtr  buiffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Create and return a new DtRelativeLocationPdu.

Basically a wrapper around a constructor. Necessary because pointers to static functions like this can be registered with a DtPduFactory (which tells VR-Link how to construct an instance of a particular kind of PDU) but constructors can not.

virtual const DtEntityIdentifier& DtRelativeLocationPdu::hostId ( ) const

virtual

virtual const DtEntityIdentifier& DtRelativeLocationPdu::id ( ) const

virtual

virtual DtPduKind DtRelativeLocationPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the PDU kind associated with the PDU class.

This value goes in the header of all instances of this PDU class.

Implements DtPdu.

virtual DtNature DtRelativeLocationPdu::nature ( ) const

virtual

virtual DtNetRelativeLocationPdu* DtRelativeLocationPdu::networkRepresentation ( )

virtual

To make writing inspector/mutator functions easier these next two functions return a pointer to the PDU's network representation by casting the value returned by the base class' packet() function into a DtNetRelativeLocationPdu.

virtual const DtNetRelativeLocationPdu* DtRelativeLocationPdu::networkRepresentation ( ) const

virtual

DtRelativeLocationPdu& DtRelativeLocationPdu::operator=

(

const DtRelativeLocationPdu &

orig

)

Assignment operator.

bool DtRelativeLocationPdu::operator==

(

const DtRelativeLocationPdu &

orig

)

Comparison operator.

virtual DtPosition DtRelativeLocationPdu::partPosition ( ) const

virtual

virtual void DtRelativeLocationPdu::printData ( ) const

virtual

Print data function override prints out readable text representing the PDU instead of the raw hex.

Reimplemented from DtPdu.

virtual void DtRelativeLocationPdu::printDataToStream ( std::ostream &  stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

virtual const DtVector32& DtRelativeLocationPdu::relativeAcceleration ( ) const

virtual

virtual DtDeadReckonTypes DtRelativeLocationPdu::relativeAlgorithm ( ) const

virtual

virtual const DtVector& DtRelativeLocationPdu::relativeLocation ( ) const

virtual

virtual const DtTaitBryan& DtRelativeLocationPdu::relativeOrientation ( ) const

virtual

virtual const DtVector32& DtRelativeLocationPdu::relativeRotationalVelocity ( ) const

virtual

virtual const DtVector32& DtRelativeLocationPdu::relativeVelocity ( ) const

virtual

static void DtRelativeLocationPdu::removeCallback ( DtExerciseConn *  conn, DtRelativeLocationPduCb  cb, void *  usr  )

static

DtRelativeLocationPdu* DtRelativeLocationPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non virtual, since you can't override based on return type.

virtual void DtRelativeLocationPdu::setHostId ( const DtEntityIdentifier &  id )

virtual

Set/Get Object Identifier of host unit.

virtual void DtRelativeLocationPdu::setId ( const DtEntityIdentifier &  id )

virtual

Set/Get Object Identifier of issuing unit.

virtual void DtRelativeLocationPdu::setNature ( DtNature  value )

virtual

Set/Get the units nature.

virtual void DtRelativeLocationPdu::setPartPosition ( DtPosition  value )

virtual

Set/Get the unit's position.

virtual void DtRelativeLocationPdu::setRelativeAcceleration ( const DtVector32 &  accel )

virtual

Set/Get the unit's acceleration.

virtual void DtRelativeLocationPdu::setRelativeAlgorithm ( DtDeadReckonTypes  alg )

virtual

Set/Get dead reckoning algorithm.

virtual void DtRelativeLocationPdu::setRelativeLocation ( const DtVector &  loc )

virtual

Set/Get the unit's world location.

virtual void DtRelativeLocationPdu::setRelativeOrientation ( const DtTaitBryan &  orient )

virtual

Set/Get the unit's orientation.

virtual void DtRelativeLocationPdu::setRelativeRotationalVelocity ( const DtVector32 &  vel )

virtual

Set/Get the unit's average acceleration.

virtual void DtRelativeLocationPdu::setRelativeVelocity ( const DtVector32 &  vel )

virtual

Set/Get the unit's velocity.

virtual void DtRelativeLocationPdu::setStationName ( DtStationName  value )

virtual

Set/Get the unit's station name.

virtual void DtRelativeLocationPdu::setStationNumber ( DtU16  value )

virtual

Set/Get the unit's station number.

virtual DtStationName DtRelativeLocationPdu::stationName ( ) const

virtual

virtual DtU16 DtRelativeLocationPdu::stationNumber ( ) const

virtual

Member Data Documentation

DtEntityIdentifier DtRelativeLocationPdu::myEntityId

protected

These objects are for "reference returns".

DtEntityIdentifier DtRelativeLocationPdu::myHostId

protected

DtVector32 DtRelativeLocationPdu::myRelativeAcceleration

protected

DtVector DtRelativeLocationPdu::myRelativeLocation

protected

DtTaitBryan DtRelativeLocationPdu::myRelativeOrientation

protected

DtVector32 DtRelativeLocationPdu::myRelativeRotationalVelocity

protected

DtVector32 DtRelativeLocationPdu::myRelativeVelocity

protected

---

The documentation for this class was generated from the following file:

• relativeLocationPdu.h
