DtStateRepository Class Reference

DtStateRepository is an abstract base class for maintaining state for an object. More...

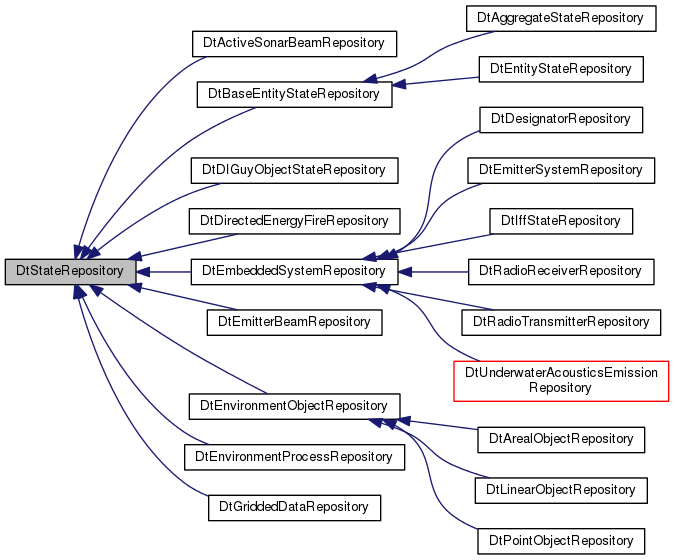

Inheritance diagram for DtStateRepository:

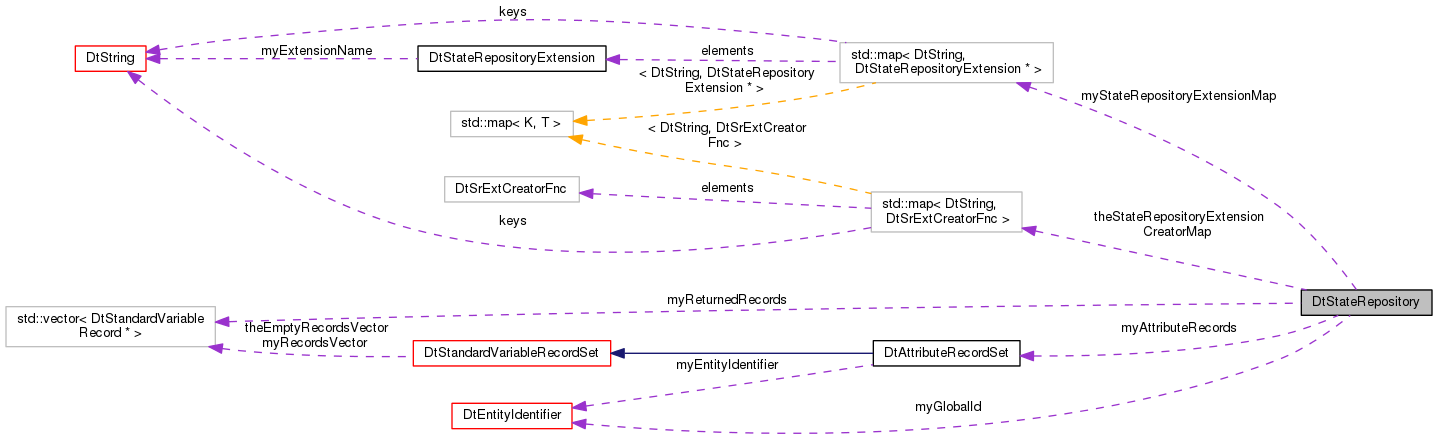

Collaboration diagram for DtStateRepository:

Public Types
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Public Member Functions
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print State Data to the DtInfo Stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the State Data to the stream specified. More...
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...
virtual void	addAttributeRecord (std::auto_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...
virtual void	clearAttributeRecords ()
	Clear all records. More...

Public Attributes
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap

Static Public Attributes
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Detailed Description

DtStateRepository is an abstract base class for maintaining state for an object.

Instances of DtStateRepository subclasses are used to store state for specific object types, such as vehicles or lifeforms.

Member Typedef Documentation

typedef std::map<DtString, DtStateRepositoryExtension*> DtStateRepository::DtStateRepositoryExtensionMap

Constructor & Destructor Documentation

DtStateRepository::DtStateRepository

(

)

default constructor

DtStateRepository::DtStateRepository

(

const DtStateRepository &

orig

)

copy constructor

virtual DtStateRepository::~DtStateRepository ( )

virtual

destructor

Member Function Documentation

virtual void DtStateRepository::addAttributeRecord ( DtStandardVariableRecord *  record )

virtual

Add a clone of given record to the attribute record set.

Reimplemented in DtEmitterSystemRepository.

virtual void DtStateRepository::addAttributeRecord ( std::auto_ptr< DtStandardVariableRecord >  record )

virtual

Add the given record to the attribute record set.

static bool DtStateRepository::addStateRepositoryExtension ( DtString  srExtName, DtSrExtCreatorFnc  fnc  )

static

The following functions are for extending state repositories through State Repository Extension classes.

Adds the State Repository Creator function to the creator function list return value indicates whether the add was successful or not

virtual DtStandardVariableRecord* DtStateRepository::attributeRecord ( unsigned int  recordType ) const

virtual

Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet.

virtual const DtStandardVariableRecordPtrVector& DtStateRepository::attributeRecords ( ) const

virtual

Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet.

Reimplemented in DtEmitterSystemRepository.

virtual const DtStandardVariableRecordPtrVector& DtStateRepository::attributeRecords ( unsigned int  recordType ) const

virtual

Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet.

Reimplemented in DtEmitterSystemRepository.

virtual const DtAttributeRecordSet& DtStateRepository::attributeRecordSet ( ) const

virtual

Return the attribute record set.

virtual DtAttributeRecordSet& DtStateRepository::attributeRecordSet ( )

virtual

Return the attribute record set.

virtual void DtStateRepository::clearAttributeRecords ( )

virtual

Clear all records.

Reimplemented in DtEmitterSystemRepository.

virtual DtStateRepository* DtStateRepository::clone ( bool  copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented in DtIffStateRepository, DtLinearObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterBeamRepository, DtEntityStateRepository, DtActiveSonarStateRepository, DtBaseEntityStateRepository, DtPointObjectRepository, DtEmitterSystemRepository, DtAggregateStateRepository, DtArealObjectRepository, DtRadioTransmitterRepository, DtEnvironmentProcessRepository, DtEnvironmentObjectRepository, DtActiveSonarBeamRepository, DtDIGuyObjectStateRepository, DtDirectedEnergyFireRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtEmbeddedSystemRepository, DtGriddedDataRepository, DtDesignatorRepository, DtUnderwaterAcousticsEmissionRepository, and DtRadioReceiverRepository.

virtual DtStandardVariableRecordPtrVector& DtStateRepository::getAttributeRecords ( unsigned int  recordType, DtStandardVariableRecordPtrVector &  vec  ) const

virtual

Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet.

Reimplemented in DtEmitterSystemRepository.

virtual DtStandardVariableRecordPtrVector& DtStateRepository::getAttributeRecords ( DtStandardVariableRecordPtrVector &  vec ) const

virtual

Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet.

virtual const DtGlobalObjectDesignator& DtStateRepository::globalId ( ) const

virtual

virtual unsigned int DtStateRepository::numberOfAttributeRecords ( ) const

virtual

DtStateRepository& DtStateRepository::operator=

(

const DtStateRepository &

orig

)

assignment operator

virtual void DtStateRepository::printData ( ) const

virtual

Print State Data to the DtInfo Stream.

Reimplemented in DtBaseEntityStateRepository, DtEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtPointObjectRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtArealObjectRepository, DtDirectedEnergyFireRepository, DtIffStateRepository, DtLinearObjectRepository, DtRadioReceiverRepository, DtEnvironmentObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtEnvironmentProcessRepository, DtDIGuyObjectStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual void DtStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the State Data to the stream specified.

Reimplemented in DtBaseEntityStateRepository, DtEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtPointObjectRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtArealObjectRepository, DtDirectedEnergyFireRepository, DtIffStateRepository, DtRadioReceiverRepository, DtLinearObjectRepository, DtEnvironmentObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtDIGuyObjectStateRepository, DtEnvironmentProcessRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual int DtStateRepository::removeAttributeRecord ( unsigned int  recordType, bool  removeAll = true  )

virtual

Remove and discard the first record of the given record type (if there is one) or all them.

Return the number of records removed

virtual void DtStateRepository::setAttributeRecords ( const DtAttributeRecordSet &  records )

virtual

The following functions are related to the extendability part of DIS 7.

Manager attribute records Replace the attribute record set with the given one

virtual void DtStateRepository::setAttributeRecords ( const DtStandardVariableRecordPtrVector &  records )

virtual

Replace the attribute record set with the records in the given vector.

Reimplemented in DtEmitterSystemRepository.

virtual void DtStateRepository::setGlobalId ( const DtGlobalObjectDesignator &  id )

virtual

Get/Set global identifier, or name.

Set by VR-Link for reflected objects. Not necessary to set for local objects.

virtual void DtStateRepository::setStateRepositoryExtensions ( std::map< DtString, DtStateRepositoryExtension * >  extensions )

virtual

Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

virtual DtStateRepositoryExtension* DtStateRepository::stateRepositoryExtension ( DtString  srExtName ) const

virtual

Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

virtual std::vector<DtString> DtStateRepository::stateRepositoryExtensionNames ( ) const

virtual

Returns a set of the registered state repository extension names.

virtual const std::map<DtString, DtStateRepositoryExtension*> DtStateRepository::stateRepositoryExtensions ( ) const

virtual

Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found.

Member Data Documentation

DtAttributeRecordSet DtStateRepository::myAttributeRecords

DtGlobalObjectDesignator DtStateRepository::myGlobalId

DtStandardVariableRecordPtrVector DtStateRepository::myReturnedRecords

mutable

DtStateRepositoryExtensionMap DtStateRepository::myStateRepositoryExtensionMap

std::map<DtString, DtSrExtCreatorFnc> DtStateRepository::theStateRepositoryExtensionCreatorMap

static

---

The documentation for this class was generated from the following file:

• stateRepository.h
