DtAsyncNetSocket Class Reference

A Socket which starts a thread which is continuously reading and writing from packet queues. More...

Inheritance diagram for DtAsyncNetSocket:

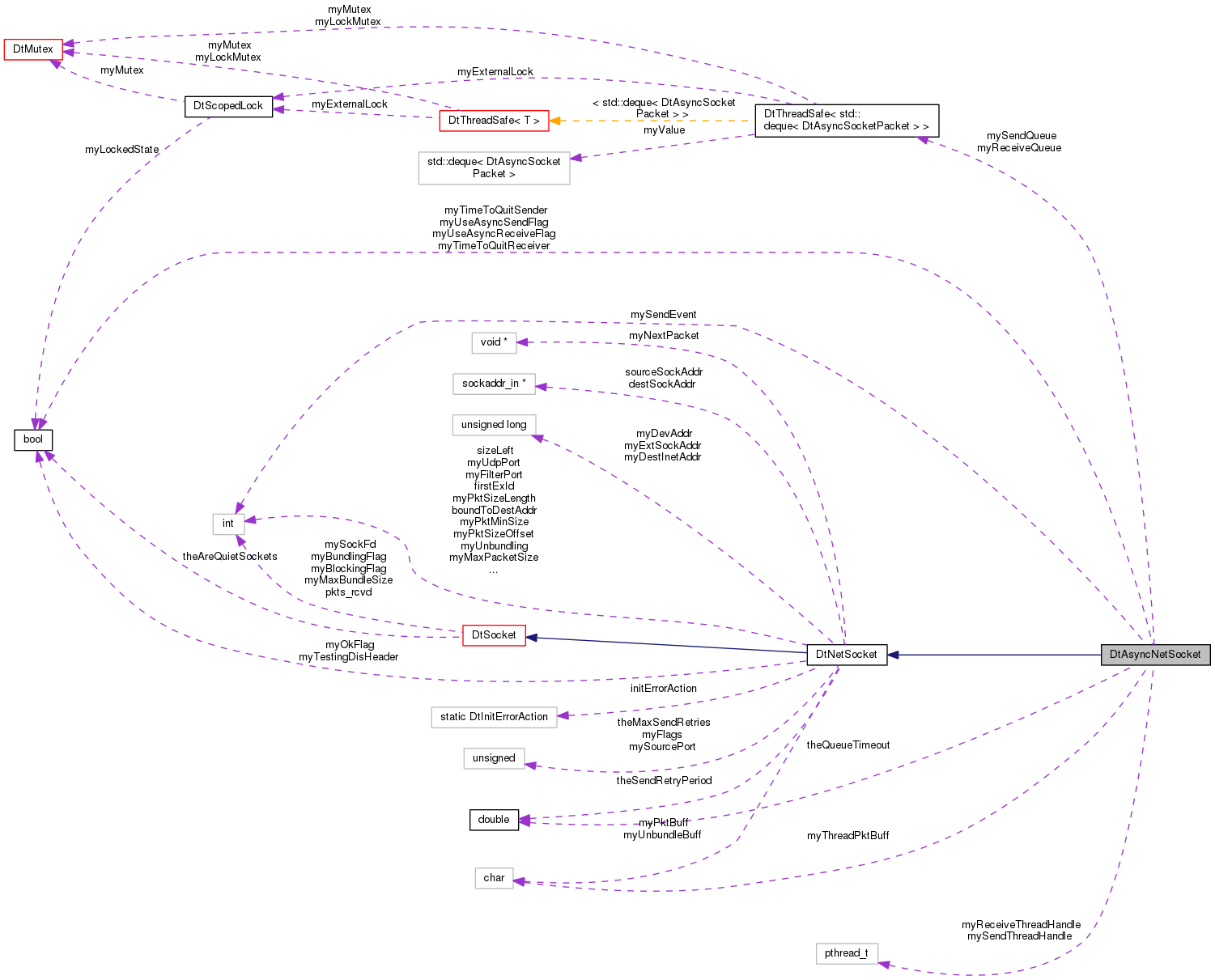

Collaboration diagram for DtAsyncNetSocket:

Public Member Functions
	DtAsyncNetSocket (int port=DtDEFAULT_PORT, DtU8 flags=DtReadWrite, DtIpv4Addr devAddr=0)
	DtAsyncNetSocket (int port, DtIpv4Addr destAddr, DtU8 flags, DtIpv4Addr devAddr=0)
	DtAsyncNetSocket (char *dummy, int sockfd, DtU8 flags=DtReadWrite)
virtual	~DtAsyncNetSocket ()
	Destructor. More...
virtual int	sendTo (caddr_t packet, size_t size, DtIpv4Addr addr)
	Virtual function override. More...
virtual int	directSendTo (caddr_t packet, size_t size, DtIpv4Addr addr)
	sends the packet directly to the network and bypasses the message queue and sender thread. More...
virtual bool	usingAsyncSend () const
	Get/Set functions to configure AsyncOutput (True by default) More...
virtual void	setUsingAsyncSend (bool b)
virtual bool	usingAsyncReceive () const
	Get/Set function for configuring AsyncInput. (True by default) More...
virtual void	setUsingAsyncReceive (bool b)
Public Member Functions inherited from DtNetSocket
	DtNetSocket (int port=DtDEFAULT_PORT, DtU8 flags=DtReadWrite, DtIpv4Addr devAddr=0)
	Constructor. More...
	DtNetSocket (int port, DtIpv4Addr destAddr, DtU8 flags, DtIpv4Addr devAddr=0)
	Constructor. More...
	DtNetSocket (char *dummy, int sockfd, DtU8 flags=DtReadWrite)
	Allows you to create a DtNetSocket that uses a pre-existing socket. More...
virtual	~DtNetSocket ()
	Destructor. More...
virtual int	DtRecv (caddr_t *buffptr, int *status=NULL)
	DtNetSocket implements DtRecv by calling a system call to recvfrom on its UDP socket. More...
virtual int	DtRecv (caddr_t buff, size_t)
	DtNetSocket implements DtRecv by calling a system call to recvfrom on its UDP socket. More...
virtual DtIpv4Addr	lastSourceInetAddr ()
	Return the IP address of the sender of the last packet we've received. More...
virtual void	DtBecomeNonBlocking (void)
	Make the socket non-blocking. More...
virtual int	readFd ()
	Return read/write file descriptor of the UDP socket being used for sending and receiving. More...
virtual int	writeFd ()
virtual bool	isOk () const
	Returns 1 if the socket's constructor initialization was successful, 0 otherwise. More...
virtual int	setMcastTtl (int ttl)
	Set the TTL (time to live) value for multicast packets. More...
virtual void	setFilterPort (const int &port)
virtual void	setSendPort (const int &port)
virtual void	setBundling (int maxBundleSize, bool enableUnbundling, int minPacketSize, int sizeOffset, int sizeLength, bool testDisHeader)
	Set all bundling parameters Disables bundling if max. More...
virtual void	setBundling (int maxBundleSize)
	Call through to DtSocket::setBundling to prevent compiler warnings. More...
virtual void	setUnbundling (int onOff)
	Pass 0 to setUnbundling to turn unbundling off, 1 to turn it on. More...
virtual int	isUnbundling ()
	Set all bundling parameters Disables bundling if max. More...
virtual int	minPacketSize ()
virtual void	setMinPacketSize (int size)
virtual int	sizeOffset ()
virtual void	setSizeOffset (int offset)
virtual int	sizeLength ()
virtual void	setSizeLength (int length)
virtual bool	testDisHeader ()
virtual void	enableDisHeaderTest (bool shouldTest)
virtual int	listenToMulticastGroup (DtIpv4Addr multicastAddr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	dropMulticastGroup (DtIpv4Addr multicastAddr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual void	setMcastDevice (DtIpv4Addr devAddr)
virtual DtIpv4Addr	mcastDevice () const
Public Member Functions inherited from DtSocket
	DtSocket ()
	Default constructor. More...
virtual	~DtSocket ()
	Default Destructor. More...
virtual int	DtSend (caddr_t packet, size_t size, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)
	DtSend is called when someone wants to send a packet to this "Socket", in other words, all outgoing messages are passed to this socket via DtSend(). More...
caddr_t	DtRecv ()
virtual DtFlushStatus	flush ()
	Send buffered messages. More...
virtual DtFlushStatus	flush (long &byteCount)
	Send buffered messages. More...
virtual void	setReceiveBufferSize (int newsize)
	Change the socket's receive buffer size that the OS uses to collect incoming data from the network. More...
virtual void	setSendBufferSize (int newsize)
	Change the socket's send buffer size that the OS uses when writing data to the network. More...
virtual int	isBundling ()
virtual int	DtReportPktsRcvd (void)
virtual void	notifyMe ()
virtual DtFilterTest *	exerciseId ()
virtual DtFilterTest *	protocolVersion ()
virtual DtFilterTest *	pduKind ()
virtual DtFilterTest *	ipAddr ()

Protected Types
typedef DtThreadSafe < std::deque < DtAsyncSocketPacket > >	ThreadSafePacketQueue
Protected Types inherited from DtSocket
typedef std::vector< char >	Buffer
typedef std::map< DtIpv4Addr, Buffer >	BufferMap

Protected Member Functions
virtual int	recvFromNet (caddr_t *buffptr)
	Virtual Function override, this function instead of reading from the socket, reads from the message queue. More...
void	initThread ()
	Non virtual, called from the constructor. More...
virtual void	workerSendThread ()
	Work function which is the main function in the Send Thread. More...
virtual void	workerReceiveThread ()
	Work function which is the main function in the Receive Thread. More...
virtual void	processSendQueue ()
	Called from the Send thread to process all messages in the list. More...
virtual void	processReceiveQueue ()
	called from the Receive thread to receive ONE packet. More...
Protected Member Functions inherited from DtNetSocket
void	init (int port, DtIpv4Addr dest_addr, DtU8 flags, DtIpv4Addr devAddr=0)
	Called from all constructors. More...
virtual int	dataLeftInCurrentBundle ()
	Is there still data left in the last received packet? More...
virtual int	retrySendTo (caddr_t packet, size_t size, sockaddr_in &dest)
	If retry is enabled, retry failed packet send theMaxSendRetries times. More...
virtual int	recvWithStatus (caddr_t *buffptr, int *status)
	Sets buffptr to point to the next packet (might be next in bundle, might require a read from net) and returns size. More...
virtual int	recvWithUnbundling (caddr_t *buffptr)
	Used by recvWithStatus if unbundling is on. More...
int	initSocket ()
	Initialize the socket. More...
int	initWrite (DtIpv4Addr dest)
	Initialize for writing. More...
int	initRead (DtIpv4Addr dest)
	Initialize for reading, including performing bind. More...
virtual int	privateListenToMulticastGroup (DtIpv4Addr multicastAddr, int on_init=0, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
	Helper function for listenToMulticastGroup. More...
virtual void	findNextPacket ()
	Sets myNextPacket to point to the next packet. More...
virtual unsigned int	getNextPacketSize ()
	Gets the size of the next packet pointed to by myNextPacket. More...
virtual unsigned int	currentHeaderMatchesFirstInBundle ()
	DIS-specific function to help decide if unbundling is successful. More...
	DtNetSocket (const DtNetSocket &)
	Not Implemented. More...
DtNetSocket &	operator= (const DtNetSocket &)
	Not Implemented. More...
Protected Member Functions inherited from DtSocket
virtual bool	accept (char *buf, DtIpv4Addr iaddr)

Static Protected Member Functions
static void *	runReceive (void *usr_data)
	These functions just call the WorkerSendThread and the WorkerReceiveThread. More...
static void *	runSend (void *usr_data)
static void	setQueueTimeout (double new_time_out)
static double	queueTimeout ()
Static Protected Member Functions inherited from DtNetSocket
static ifreq *	findIfr (const char *device, int sock, ifconf *ifc)
	Find a device. More...
static DtIpv4Addr	netMaskOfIfr (ifreq *ifr, int sock)
	Obtain information about a device. Dummy socket needed for ioctls. More...
static DtIpv4Addr	inetAddrOfIfr (ifreq *ifr, int sock)
static DtIpv4Addr	inetBroadcastOfIfr (ifreq *ifr, int sock)
static bool	capableOfIpBroadcast (ifreq *ifr, int sock)
Static Protected Member Functions inherited from DtSocket
static int	getConfig (const char *device, int sock, ifconf *ifc)
	Get ifconfig information by filling in ifc. More...

Protected Attributes
bool	myUseAsyncSendFlag
bool	myUseAsyncReceiveFlag
ThreadSafePacketQueue	mySendQueue
	A type save queue for sending messages to the network writer. More...
ThreadSafePacketQueue	myReceiveQueue
	A type safe queue for getting messages from the network reader. More...
volatile bool	myTimeToQuitSender
volatile bool	myTimeToQuitReceiver
char *	myThreadPktBuff
pthread_t	mySendThreadHandle
pthread_t	myReceiveThreadHandle
int	mySendEvent [2]
Protected Attributes inherited from DtNetSocket
int	myUdpPort
int	myFilterPort
int	mySendPort
unsigned int	mySourcePort
char *	myPktBuff
char *	myUnbundleBuff
void *	myNextPacket
int	myUsingExternalSocket
DtIpv4Addr	myExtSockAddr
DtIpv4Addr	myDestInetAddr
DtIpv4Addr	myDevAddr
int	myUnbundling
int	sizeLeft
int	myPktMinSize
int	myPktSizeOffset
int	myPktSizeLength
int	myMaxPacketSize
bool	myTestingDisHeader
int	boundToDestAddr
int	firstInBundle
int	firstExId
int	firstProtocol
bool	myOkFlag
sockaddr_in *	destSockAddr
sockaddr_in *	sourceSockAddr
DtU8	myFlags
Protected Attributes inherited from DtSocket
BufferMap	myBufferMap
int	myBundlingFlag
int	myMaxBundleSize
int	mySockFd

Static Protected Attributes
static double	theQueueTimeout
	The TimeOut in the send Thread, in seconds. More...
Static Protected Attributes inherited from DtNetSocket
static unsigned int	theMaxSendRetries
static double	theSendRetryPeriod
Static Protected Attributes inherited from DtSocket
static bool	theAreQuietSockets
	Should a socket print messages, informative or error. More...

Private Member Functions
	DtAsyncNetSocket (const DtAsyncNetSocket &)
	Copy CTOR Not Implemented. More...
DtAsyncNetSocket &	operator= (const DtAsyncNetSocket &)
	Assignment Operator Not Implemented. More...

Additional Inherited Members
Static Public Member Functions inherited from DtNetSocket
static int	isMulticastAddr (DtIpv4Addr addr)
	Returns 1 if addr is a multicast address, 0 otherwise. More...
static int	enableBroadcast (int sockfd)
	Make sockfd capable of broadcasting. More...
static void	makeNonBlocking (int sockfd)
	Make sockfd non-blocking. More...
static int	makeReusable (int sockfd)
	Make port/address reusable by other sockets. More...
static void	setRetryOnSend (unsigned int numRetries, double waitPeriod)
	Make socket retry numRetries times ( waiting for waitPeriod between ) when sendto fails ( numRetries = 0 means message will be dropped ) More...
static DtIpv4Addr	inetBroadcastOfDevice (const char *device=NULL)
	Obtain information about a device. More...
static DtIpv4Addr	inetAddrOfDevice (const char *device=NULL)
static DtIpv4Addr	netMaskOfDevice (const char *device=NULL)
static DtIpv4Addr	firstHostInetAddr ()
static void	setInetAddr (sockaddr_in &s, u_long addr, int port)
	Fill out a sockaddr_in structure. More...
Static Public Member Functions inherited from DtSocket
static void	initializeNetwork ()
static void	setQuietSockets (bool quietVal)
	These functions determine whether a socket will print messages, informative or error. More...
static bool	areQuietSockets ()
Public Attributes inherited from DtSocket
int	myBlockingFlag
int	pkts_rcvd
Static Public Attributes inherited from DtNetSocket
static DtInitErrorAction	initErrorAction

Detailed Description

A Socket which starts a thread which is continuously reading and writing from packet queues.

All messages sent out into the world go onto a Send Queue. Messages read off the network come from a Receive Queue

Deprecated:

This class is replaced by DtInetSocket as of VR-Link 3.13

Member Typedef Documentation

typedef DtThreadSafe<std::deque<DtAsyncSocketPacket> > DtAsyncNetSocket::ThreadSafePacketQueue

protected

Constructor & Destructor Documentation

DtAsyncNetSocket::DtAsyncNetSocket	(	int	port = DtDEFAULT_PORT,
		DtU8	flags = DtReadWrite,
		DtIpv4Addr	devAddr = 0
	)

DtAsyncNetSocket::DtAsyncNetSocket	(	int	port,
		DtIpv4Addr	destAddr,
		DtU8	flags,
		DtIpv4Addr	devAddr = 0
	)

DtAsyncNetSocket::DtAsyncNetSocket	(	char *	dummy,
		int	sockfd,
		DtU8	flags = DtReadWrite
	)

virtual DtAsyncNetSocket::~DtAsyncNetSocket ( )

virtual

Destructor.

DtAsyncNetSocket::DtAsyncNetSocket ( const DtAsyncNetSocket &  )

private

Copy CTOR Not Implemented.

Member Function Documentation

virtual int DtAsyncNetSocket::directSendTo ( caddr_t  packet, size_t  size, DtIpv4Addr  addr  )

virtual

sends the packet directly to the network and bypasses the message queue and sender thread.

void DtAsyncNetSocket::initThread ( )

protected

Non virtual, called from the constructor.

DtAsyncNetSocket& DtAsyncNetSocket::operator= ( const DtAsyncNetSocket &  )

private

Assignment Operator Not Implemented.

virtual void DtAsyncNetSocket::processReceiveQueue ( )

protectedvirtual

called from the Receive thread to receive ONE packet.

virtual void DtAsyncNetSocket::processSendQueue ( )

protectedvirtual

Called from the Send thread to process all messages in the list.

It will not return until the list is empty.

double DtAsyncNetSocket::queueTimeout ( )

inlinestaticprotected

virtual int DtAsyncNetSocket::recvFromNet ( caddr_t *  buffptr )

protectedvirtual

Virtual Function override, this function instead of reading from the socket, reads from the message queue.

Reimplemented from DtNetSocket.

static void* DtAsyncNetSocket::runReceive ( void *  usr_data )

staticprotected

These functions just call the WorkerSendThread and the WorkerReceiveThread.

static void* DtAsyncNetSocket::runSend ( void *  usr_data )

staticprotected

virtual int DtAsyncNetSocket::sendTo ( caddr_t  packet, size_t  size, DtIpv4Addr  addr  )

virtual

Virtual function override.

DtAsyncNetSocket implements sendTo by placing the packet on the send queue. The worker thread will read it off the queue and send it out to the world using DtNetSocket::sendTo(...). The only difference is that this function queues it first.

Reimplemented from DtNetSocket.

void DtAsyncNetSocket::setQueueTimeout ( double  new_time_out )

inlinestaticprotected

void DtAsyncNetSocket::setUsingAsyncReceive ( bool  b )

inlinevirtual

void DtAsyncNetSocket::setUsingAsyncSend ( bool  b )

inlinevirtual

bool DtAsyncNetSocket::usingAsyncReceive ( ) const

inlinevirtual

Get/Set function for configuring AsyncInput. (True by default)

bool DtAsyncNetSocket::usingAsyncSend ( ) const

inlinevirtual

Get/Set functions to configure AsyncOutput (True by default)

virtual void DtAsyncNetSocket::workerReceiveThread ( )

protectedvirtual

Work function which is the main function in the Receive Thread.

virtual void DtAsyncNetSocket::workerSendThread ( )

protectedvirtual

Work function which is the main function in the Send Thread.

Member Data Documentation

ThreadSafePacketQueue DtAsyncNetSocket::myReceiveQueue

protected

A type safe queue for getting messages from the network reader.

pthread_t DtAsyncNetSocket::myReceiveThreadHandle

protected

int DtAsyncNetSocket::mySendEvent[2]

protected

ThreadSafePacketQueue DtAsyncNetSocket::mySendQueue

protected

A type save queue for sending messages to the network writer.

pthread_t DtAsyncNetSocket::mySendThreadHandle

protected

char* DtAsyncNetSocket::myThreadPktBuff

protected

volatile bool DtAsyncNetSocket::myTimeToQuitReceiver

protected

volatile bool DtAsyncNetSocket::myTimeToQuitSender

protected

bool DtAsyncNetSocket::myUseAsyncReceiveFlag

protected

bool DtAsyncNetSocket::myUseAsyncSendFlag

protected

double DtAsyncNetSocket::theQueueTimeout

staticprotected

The TimeOut in the send Thread, in seconds.

---

The documentation for this class was generated from the following file:

• vlAsyncSocket.h
