Inheritance diagram for DtJtidsLetRadioSignalInteraction:

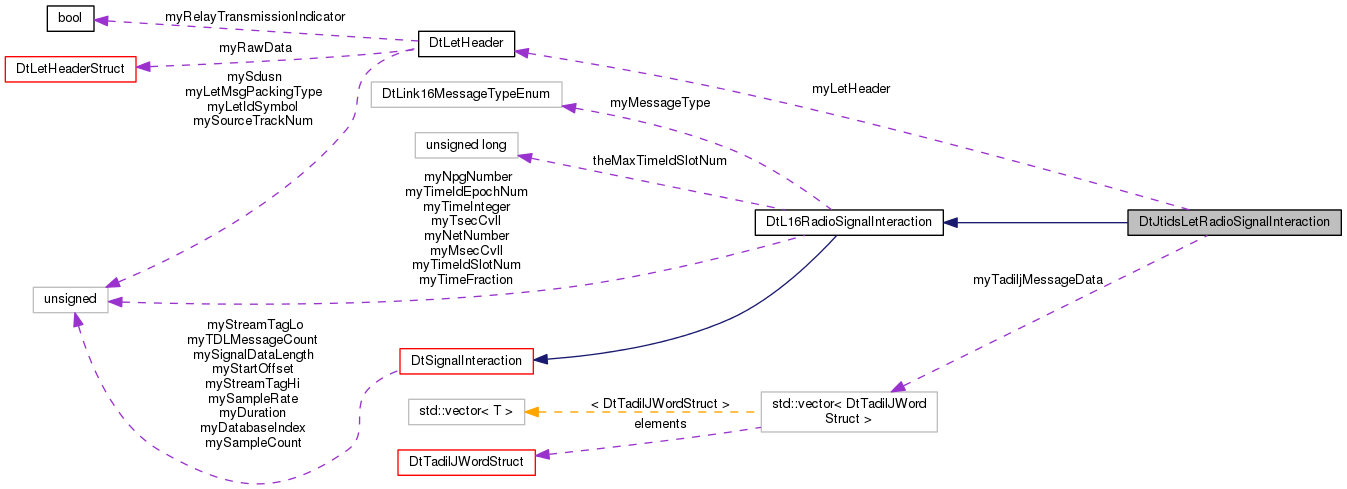

Collaboration diagram for DtJtidsLetRadioSignalInteraction:

Public Member Functions
	DtJtidsLetRadioSignalInteraction ()
	Default constructor. More...

virtual	~DtJtidsLetRadioSignalInteraction ()
	Destructor. More...

	DtJtidsLetRadioSignalInteraction (const DtJtidsLetRadioSignalInteraction &orig)
	Copy constructor. More...

DtJtidsLetRadioSignalInteraction &	operator= (const DtJtidsLetRadioSignalInteraction &orig)
	Assignment operator. More...

virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.) More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to a stream. More...

virtual DtU32	numTadilJWords () const
	Return the number of J-Words in the message. More...


virtual const DtLetHeader &	letHeader () const
	Set/Get the LET header. More...

virtual void	setLetHeader (const DtLetHeader &data)
	Set/Get the LET header. More...

virtual const DtLetHeaderStruct &	letHeaderRawData () const
	Set/Get the LET header. More...

virtual void	setLetHeaderRawData (const DtLetHeaderStruct &data)
	Set/Get the LET header. More...


virtual const DtTadilJWordStruct *	tadilJWord (DtU32 index) const
	Set/Get a J-Word in the TADIL-J message. More...

virtual void	setTadilJWord (DtU32 index, const DtTadilJWordStruct &data)
	Set/Get a J-Word in the TADIL-J message. More...

Public Member Functions inherited from DtL16RadioSignalInteraction
	DtL16RadioSignalInteraction ()
	Default constructor. More...

virtual	~DtL16RadioSignalInteraction ()
	Destructor. More...

	DtL16RadioSignalInteraction (const DtL16RadioSignalInteraction &orig)
	Copy constructor. More...

DtL16RadioSignalInteraction &	operator= (const DtL16RadioSignalInteraction &orig)
	Assignment operator. More...

virtual void	setPerceivedTransmitTimeFraction (DtU32 val)
	Set/Get the perceived transmit time (integer portion). More...

virtual DtU32	perceivedTransmitTimeFraction () const

virtual void	setNpgNumber (DtU16 npg)
	Set/Get the NPG Number. More...

virtual DtU16	npgNumber () const
	Set/Get the NPG Number. More...

virtual void	setNetNumber (DtU8 net)
	Set/Get the Net Number. More...

virtual DtU8	netNumber () const
	Set/Get the Net Number. More...

virtual void	setTsecCvll (DtU8 val)
	Set/Get the TSEC CVLL. More...

virtual DtU8	tsecCvll () const
	Set/Get the TSEC CVLL. More...

virtual void	setMsecCvll (DtU8 val)
	Set/Get the MSEC CVLL. More...

virtual DtU8	msecCvll () const
	Set/Get the MSEC CVLL. More...

virtual void	setLink16MessageType (DtLink16MessageTypeEnum val)
	Set/Get the Message Type. More...

virtual DtLink16MessageTypeEnum	link16MessageType () const
	Set/Get the Message Type. More...

virtual void	setTimeIdSlotNumber (DtU32 val)
	Set/Get the Time Slot ID Slot Number. More...

virtual DtU32	timeIdSlotNumber () const
	Set/Get the Time Slot ID Slot Number. More...

virtual void	setTimeIdEpochNumber (DtU8 val)
	Set/Get the Time Slot ID Epoch Number. More...

virtual DtU8	timeIdEpochNumber () const
	Set/Get the Time Slot ID Epoch Number. More...

virtual void	setPerceivedTransmitTimeInteger (DtU32 val)
	Set/Get the perceived transmit time (integer portion). More...

virtual DtU32	perceivedTransmitTimeInteger () const
	Set/Get the perceived transmit time (integer portion). More...

Public Member Functions inherited from DtSignalInteraction
	DtSignalInteraction ()
	Default constructor. More...

virtual	~DtSignalInteraction ()
	Destructor. More...

	DtSignalInteraction (const DtSignalInteraction &orig)
	Copy constructor. More...

DtSignalInteraction &	operator= (const DtSignalInteraction &orig)
	Assignment operator. More...

virtual void	printData () const
	Print the interaction's data. More...

virtual void	setNumSamples (DtU32 count)
	Set/Get sample count. More...

virtual DtU32	numSamples () const

virtual void	setTdlType (DtTacticalDataLinkType link)
	Set/Get tactical data link. More...

virtual DtTacticalDataLinkType	tdlType () const

virtual unsigned long	streamTag (DtLongWordPortion upperLower=DtLowerWord) const
	Get either the upper or lower word of the 64 bit StreamTag. More...

virtual void	setRadioId (const DtGlobalObjectDesignator &id)
	Set/Get Host radio id. More...

virtual const DtGlobalObjectDesignator &	radioId () const
	Set/Get Host radio id. More...

virtual void	setSampleRate (DtU32 rate)
	Set/Get sample rate. More...

virtual DtU32	sampleRate () const
	Set/Get sample rate. More...

virtual void	setNumDataBytes (DtU16 len)
	Set/Get signal data length in bytes. More...

virtual DtU16	numDataBytes () const
	Set/Get signal data length in bytes. More...

virtual void	setNumDataBits (DtU16 len)
	Set/Get signal data length in bits. More...

virtual DtU16	numDataBits () const
	Set/Get signal data length in bits. More...

virtual void	setData (const void *data, int numBytes)
	Set/Get signal data. More...

virtual const void *	data () const
	Set/Get signal data. More...

virtual DtU8	dataByte (int byteNum) const
	Set/Get the byteNum'th data byte. More...

virtual void	setDataByte (int byteNum, DtU8 data)
	Set/Get the byteNum'th data byte. More...

virtual void	setEncodingType (DtEncodingType encoding)
	Set/Get encoding type. More...

virtual DtEncodingType	encodingType () const
	Set/Get encoding type. More...

virtual DtEncodingClass	encodingClass () const
	Set/Get encoding class. More...

virtual void	setEncodingClass (DtEncodingClass encodingClass)
	Set/Get encoding class. More...

virtual void	setTdlMessageCount (DtU16 count)
	Set/Get TDL message count. More...

virtual DtU16	tdlMessageCount () const
	Set/Get TDL message count. More...

virtual void	setProtocolId (DtUserProtocol id)
	Set/Get user protocol id. More...

virtual DtUserProtocol	protocolId () const
	Set/Get user protocol id. More...

virtual void	setDatabaseIndex (DtU32 index)
	Set/Get database index. More...

virtual DtU32	databaseIndex () const
	Set/Get database index. More...

virtual void	setDuration (DtU32 duration)
	Set/Get duration. More...

virtual DtU32	duration () const
	Set/Get duration. More...

virtual void	setStartOffset (DtU32 offset)
	Set/Get start offset. More...

virtual DtU32	startOffset () const
	Set/Get start offset. More...

virtual void	setStreamTag (unsigned long upper, unsigned long lower)
	Set the Stream Tag, either as upper and lower word, or as full 64 bit integer. More...

virtual void	setStreamTag (unsigned long st)
	Set the Stream Tag, either as upper and lower word, or as full 64 bit integer. More...

Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor More...

virtual	~DtInteractionWithEncDec ()
	destructor More...

	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor More...

DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator More...

virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor. More...

virtual const RTI::ParameterHandleValueMap &	phvm () const
	Get the parameter handle value pair set for the interaction. More...

virtual void	setFromPhvm (const RTI::ParameterHandleValueMap &pvList)
	Set contents from a parameter handle value pair set. More...

virtual void	useThese (DtInteractionEncoder enc, DtInteractionDecoder dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding. More...

virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using. More...

virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using. More...

virtual void	setParameterByHandle (const RTI::ParameterHandle &attrHdl, const char *attrValue, unsigned size)
	Set the Parameter with the given handle. More...

virtual const char *	getParameterByHandle (const RTI::ParameterHandle &attrHdl, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given handle. More...

virtual void	setParameterByName (const DtString &name, const char *attrValue, unsigned size)
	Set the Parameter with the given name. More...

virtual const char *	getParameterByName (const DtString &name, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given name. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc. More...

virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc. More...

virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc. More...

virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise. More...

virtual void	print () const
	Print the interaction's host rep data, including header. More...

virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream. More...

virtual void	printHeader () const
	Print the header info. More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream. More...

virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided. More...

virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters. More...

virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream. More...

virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection. More...

virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction. More...

virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not. More...

virtual void	setCustomTag (const RTI::VariableLengthData &a_tag)
	Set the user-defined tag. More...

virtual void	setTag (const RTI::VariableLengthData &tag)
	Set the user-defined tag. More...

virtual const RTI::VariableLengthData &	tag () const
	Get the user-defined tag. More...

virtual const RTI::RegionHandleSet *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message. More...

virtual void	setConveyedRegion (const RTI::RegionHandleSet *sentRegionHandleSet)

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time. More...

virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual void	setFedTime (const RTI::LogicalTime &ft)
	This is used for TSO interactions. More...

virtual const RTI::LogicalTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set. More...

virtual void	setMessageRetractionHandle (const RTI::MessageRetractionHandle &handle)
	Get/Set the MessageRetractionHandle. More...

virtual RTI::MessageRetractionHandle	messageRetractionHandle () const
	Get the message retraction handle. For more info see setMessageRetractionHandle. More...

Static Public Member Functions
static DtInteraction *	create ()

static void	addCallback (DtExerciseConn conn, DtJtidsLetRadioSignalInteractionCb cb, void usr)

static void	removeCallback (DtExerciseConn conn, DtJtidsLetRadioSignalInteractionCb cb, void usr)

Static Public Member Functions inherited from DtL16RadioSignalInteraction
static DtInteraction *	create ()

static void	addCallback (DtExerciseConn conn, DtL16RadioSignalInteractionCb cb, void usr)

static void	removeCallback (DtExerciseConn conn, DtL16RadioSignalInteractionCb cb, void usr)

Static Public Member Functions inherited from DtSignalInteraction
static DtInteraction *	create ()
	Create a DtSignalInteraction. More...

static void	addCallback (DtExerciseConn conn, DtSignalInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs. More...

static void	removeCallback (DtExerciseConn conn, DtSignalInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())

Static Public Member Functions inherited from DtInteraction
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp. More...

static bool	tagIsAsciiTime ()

static void	addCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes. More...

static void	removeCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

static void	addCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class. More...

static void	removeCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Member Functions
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const
	Virtual function override. More...

virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Virtual function override. More...

virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Virtual function override. More...

Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction. More...

virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction. More...

Protected Member Functions inherited from DtInteraction
virtual RTI::ParameterHandleValueMap &	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps. More...

DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors). More...

Protected Attributes
DtLetHeader	myLetHeader
	The LET header. More...

std::vector< DtTadilJWordStruct >	myTadiljMessageData
	The TADILJ message. More...

Protected Attributes inherited from DtL16RadioSignalInteraction
DtU16	myNpgNumber

DtU8	myNetNumber

DtU8	myTsecCvll

DtU8	myMsecCvll

DtLink16MessageTypeEnum	myMessageType

DtU32	myTimeIdSlotNum

DtU8	myTimeIdEpochNum

DtU32	myTimeInteger

DtU32	myTimeFraction

Protected Attributes inherited from DtSignalInteraction
DtGlobalObjectDesignator	myHostRadioId

DtU16	mySignalDataLength

DtU8 *	mySignalData
	bits More...

DtTacticalDataLinkType	myTacticalDataLink

DtU16	myTDLMessageCount

DtUserProtocol	myUserProtocolId

DtU32	myDatabaseIndex

DtU32	myDuration

DtU32	myStartOffset

DtEncodingType	myEncodingType

DtEncodingClass	myEncodingClass

DtU32	mySampleRate

DtU32	mySampleCount

DtU32	myStreamTagHi
	Stream tag unsigned long long. More...

DtU32	myStreamTagLo

Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder

DtInteractionEncoder *	myEncoder

DtInteractionRep *	myData

std::map< RTI::ParameterHandle, DtGenericParameterInfo * >	myParametersByHandle
	parameters by handle. More...

Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc

DtExerciseConn *	myExConn

DtTime	myTime

DtTimeStampType	myTimeType

RTI::LogicalTime *	myFedTime

RTI::ParameterHandleValueMap	myPvList

RTI::MessageRetractionHandle	myRetractionHandle

RTI::VariableLengthData	myTag

const RTI::RegionHandleSet *	myConveyedRegion

bool	myCustomTagSet

Additional Inherited Members
Static Protected Attributes inherited from DtL16RadioSignalInteraction
static const DtU32	theMaxTimeIdSlotNum

Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Constructor & Destructor Documentation

DtJtidsLetRadioSignalInteraction::DtJtidsLetRadioSignalInteraction ( )

Default constructor.

virtual DtJtidsLetRadioSignalInteraction::~DtJtidsLetRadioSignalInteraction ( )

virtual

Destructor.

DtJtidsLetRadioSignalInteraction::DtJtidsLetRadioSignalInteraction ( const DtJtidsLetRadioSignalInteraction & orig )

Copy constructor.

Member Function Documentation

static void DtJtidsLetRadioSignalInteraction::addCallback	(	DtExerciseConn *	conn,
		DtJtidsLetRadioSignalInteractionCb	cb,
		void *	usr
	)

static

static DtInteraction* DtJtidsLetRadioSignalInteraction::create ( )

static

virtual DtInteractionDecoder* DtJtidsLetRadioSignalInteraction::createDecoder ( DtExerciseConn * exConn ) const

protectedvirtual

Virtual function override.

Creates and returns a decoder to be used by setFromPhvps to decode a ParameterHandleValuePairSet into this interaction. Implementing this function is required, unless you would like to rely on the default behavior - which is to obtain a new instance of the right decoder from the FOM Mapper. If you choose this option, you must configure the FOM Mapper so that it can correctly provide this object.

Reimplemented from DtL16RadioSignalInteraction.

virtual DtInteractionEncoder* DtJtidsLetRadioSignalInteraction::createEncoder ( DtExerciseConn * exConn ) const

protectedvirtual

Virtual function override.

Creates and returns an encoder to be used by phvps to encode the data in this interaction into a ParameterHandleValuePairSet. Implementing this function is required, unless you would like to rely on the default behavior - which is to obtain a new instance of the right encoder from the FOM Mapper. If you choose this option, you must configure the FOM Mapper so that it can correctly provide this object.

Reimplemented from DtL16RadioSignalInteraction.

virtual const char* DtJtidsLetRadioSignalInteraction::interactionClassToUse ( DtExerciseConn * exConn ) const

protectedvirtual

Virtual function override.

Returns the name of the FOM class to use to represent this interaction when sending. It is called from within setExConn, when that function is called by DtExerciseConn::send. Implementing this function is required unless you would like to rely on the default behavior - which is to obtain the class to use from the FOM Mapper. If you choose this option, you must configure the FomMapper so that it can correctly provide this information.

Reimplemented from DtL16RadioSignalInteraction.

virtual const DtLetHeader& DtJtidsLetRadioSignalInteraction::letHeader ( ) const

virtual

Set/Get the LET header.

virtual const DtLetHeaderStruct& DtJtidsLetRadioSignalInteraction::letHeaderRawData ( ) const

virtual

Set/Get the LET header.

virtual const char* DtJtidsLetRadioSignalInteraction::name ( ) const

virtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Reimplemented from DtL16RadioSignalInteraction.

virtual DtU32 DtJtidsLetRadioSignalInteraction::numTadilJWords ( ) const

virtual

Return the number of J-Words in the message.

DtJtidsLetRadioSignalInteraction& DtJtidsLetRadioSignalInteraction::operator= ( const DtJtidsLetRadioSignalInteraction & orig )

Assignment operator.

virtual void DtJtidsLetRadioSignalInteraction::printDataToStream ( std::ostream & stream ) const

virtual

Print the interaction's data to a stream.

Reimplemented from DtL16RadioSignalInteraction.

static void DtJtidsLetRadioSignalInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtJtidsLetRadioSignalInteractionCb	cb,
		void *	usr
	)

static

virtual void DtJtidsLetRadioSignalInteraction::setLetHeader ( const DtLetHeader & data )

virtual

Set/Get the LET header.

virtual void DtJtidsLetRadioSignalInteraction::setLetHeaderRawData ( const DtLetHeaderStruct & data )

virtual

Set/Get the LET header.

virtual void DtJtidsLetRadioSignalInteraction::setTadilJWord	(	DtU32	index,
		const DtTadilJWordStruct &	data
	)

virtual

Set/Get a J-Word in the TADIL-J message.

virtual const DtTadilJWordStruct* DtJtidsLetRadioSignalInteraction::tadilJWord ( DtU32 index ) const

virtual

Set/Get a J-Word in the TADIL-J message.

Member Data Documentation

DtLetHeader DtJtidsLetRadioSignalInteraction::myLetHeader

protected

The LET header.

std::vector<DtTadilJWordStruct> DtJtidsLetRadioSignalInteraction::myTadiljMessageData

protected

The TADILJ message.

The documentation for this class was generated from the following file:

jtidsLetRadioSignalInteraction.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
