Instances of DtMode5InterrogatorPublisher publish IFFData.Mode5.Mode5Interrogator objects to the network. More...

Inheritance diagram for DtMode5InterrogatorPublisher:

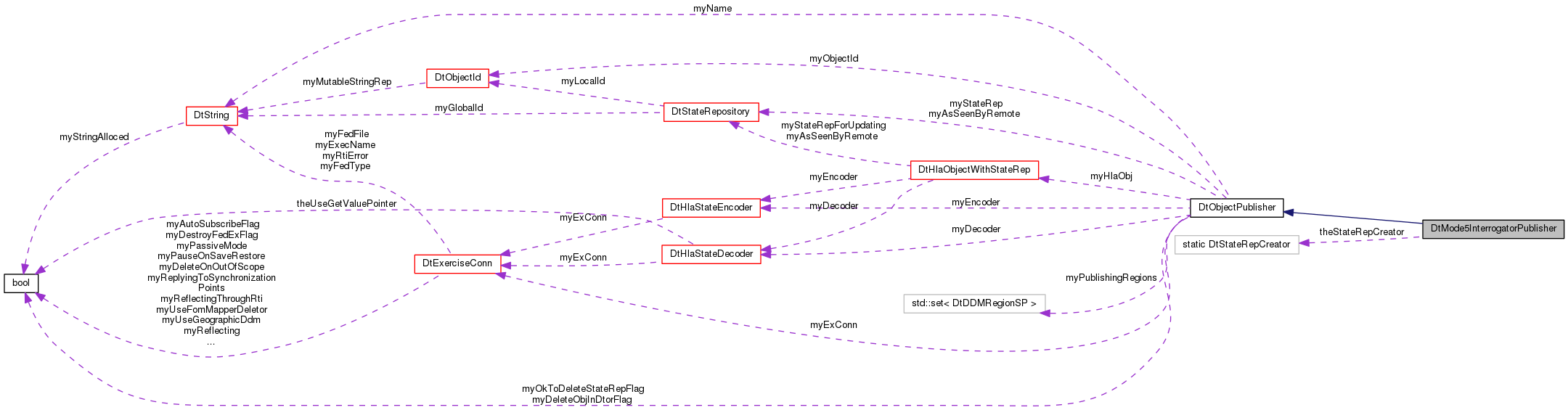

Collaboration diagram for DtMode5InterrogatorPublisher:

Public Types
typedef DtMode5InterrogatorStateRepository (	DtStateRepCreator )()
	Function prototype for a function that creates a DtMode5InterrogatorStateRepository. More...

Public Member Functions
	DtMode5InterrogatorPublisher (DtMode5InterrogatorStateRepository stateRepToUse, DtExerciseConn conn, const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor. More...

	DtMode5InterrogatorPublisher (RTI::ObjectClassHandle h, DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtMode5InterrogatorPublisher (DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtMode5InterrogatorPublisher (DtHlaObjectWithStateRep obj, DtExerciseConn conn)
	Constructor that creates a publisher for an existing DtHlaObject. More...

virtual	~DtMode5InterrogatorPublisher ()
	Destructor. More...

virtual DtMode5InterrogatorStateRepository *	mode5InterrogatorStateRep ()
	Returns a pointer to the DtMode5InterrogatorStateRepository - through which you can set or inspect current state information. More...

virtual DtMode5InterrogatorStateRepository *	msr ()
	Synonym for mode5InterrogatorStateRep(). More...

Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet regionSet=0)
	Constructor. More...

virtual	~DtObjectPublisher ()
	Destructor. More...

virtual void	setHlaObject (const char className, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called. More...

virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you. More...

virtual void	setHlaObject (DtHlaObjectWithStateRep obj, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it. More...

virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called. More...

virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtStateRepository *	sr ()
	Synonym for stateRep(). More...

virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...

virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR. More...

virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message. More...

virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject. More...

virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...

virtual const DtObjectId &	id () const
	Get the object's local identifier. More...

virtual const DtObjectId &	objectId () const
	Get the object's local identifier. More...

virtual const DtObjectId &	localId () const
	Get the object's local identifier. More...

virtual const DtString &	name () const
	Get the object's name. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3. More...

virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent. More...

virtual void	forceUpdate (const RTI::AttributeHandleSet &set)

virtual void	tick ()
	Tick (update) this object. More...

virtual void	parallelTick ()
	Tick (update) this object in parallel threads. More...

virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher. More...

virtual bool	deleteObjInDtorFlag () const

virtual const DtDDMRegionSet &	publishingRegions () const

virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador. More...

virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador. More...

	DtObjectPublisher (DtExerciseConn conn, const char name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases. More...

void	init (RTI::ObjectClassHandle hand, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0)

void	init (const char className, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static const char *	objectClassName ()
	The Object class DT_DLL_VL name (IFFData.Mode5.Mode5Interrogator) More...

static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Static Public Member Functions inherited from DtObjectPublisher
static void	removeObjectCb (DtHlaObject obj, void pub)
	Callback to be called when our underlying DtHlaObject goes away. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Private Member Functions
	DtMode5InterrogatorPublisher (const DtMode5InterrogatorPublisher &orig)
	Copy Constructor – not implemented. More...

DtMode5InterrogatorPublisher &	operator= (const DtMode5InterrogatorPublisher &orig)
	Assignment operator – not implemented. More...

Additional Inherited Members
Protected Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor which does not include the DtExerciseConn. More...

virtual void	setExerciseConn (DtExerciseConn *conn)
	Allows the DtExerciseConn to be set after initial publisher creation. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away. More...

Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn

DtHlaObjectWithStateRep *	myHlaObj

DtStateRepository *	myStateRep

DtStateRepository *	myAsSeenByRemote

DtHlaStateEncoder *	myEncoder

DtHlaStateDecoder *	myDecoder

DtObjectId	myObjectId

bool	myOkToDeleteStateRepFlag

DtString	myName

bool	myDeleteObjInDtorFlag

DtDDMRegionSet	myPublishingRegions

Detailed Description

Instances of DtMode5InterrogatorPublisher publish IFFData.Mode5.Mode5Interrogator objects to the network.

Member Typedef Documentation

typedef DtMode5InterrogatorStateRepository*(* DtMode5InterrogatorPublisher::DtStateRepCreator)()

Function prototype for a function that creates a DtMode5InterrogatorStateRepository.

Constructor & Destructor Documentation

DtMode5InterrogatorPublisher::DtMode5InterrogatorPublisher	(	DtMode5InterrogatorStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtMode5InterrogatorPublisher::DtMode5InterrogatorPublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtMode5InterrogatorPublisher::DtMode5InterrogatorPublisher	(	DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtMode5InterrogatorPublisher::DtMode5InterrogatorPublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtMode5InterrogatorPublisher::~DtMode5InterrogatorPublisher ( )

virtual

Destructor.

DtMode5InterrogatorPublisher::DtMode5InterrogatorPublisher ( const DtMode5InterrogatorPublisher & orig )

private

Copy Constructor – not implemented.

Member Function Documentation

DtMode5InterrogatorStateRepository * DtMode5InterrogatorPublisher::mode5InterrogatorStateRep ( )

inlinevirtual

Returns a pointer to the DtMode5InterrogatorStateRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtMode5InterrogatorStateRepository * DtMode5InterrogatorPublisher::msr ( )

inlinevirtual

Synonym for mode5InterrogatorStateRep().

References DtObjectPublisher::myStateRep.

static const char* DtMode5InterrogatorPublisher::objectClassName ( )

static

The Object class DT_DLL_VL name (IFFData.Mode5.Mode5Interrogator)

DtMode5InterrogatorPublisher& DtMode5InterrogatorPublisher::operator= ( const DtMode5InterrogatorPublisher & orig )

private

Assignment operator – not implemented.

static DtStateRepCreator DtMode5InterrogatorPublisher::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

Member Data Documentation

DtStateRepCreator DtMode5InterrogatorPublisher::theStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

iffDataPublishers.h
