An instance of DtObjClassDesc is a "class descriptor" for an HLA Object class. More...

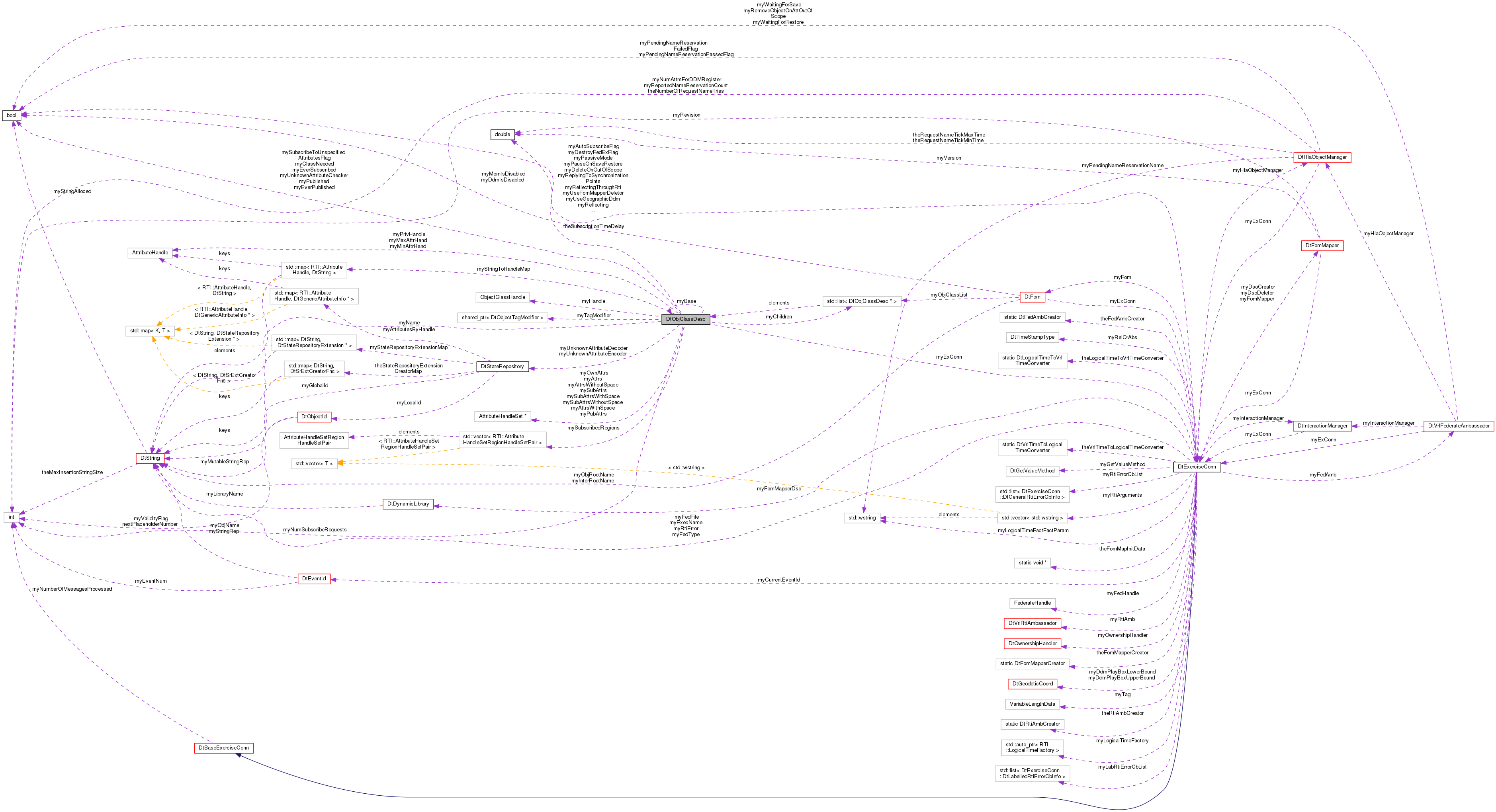

Collaboration diagram for DtObjClassDesc:

Public Member Functions
	DtObjClassDesc (const char className, DtObjClassDesc base, RTI::ObjectClassHandle handle, DtExerciseConn *exConn)
	Constructor. More...

virtual	~DtObjClassDesc ()
	destructor More...

virtual void	addAttr (const char *attrName, bool withSpace=false)
	Add an attribute (Used when reading FED file). More...

virtual RTI::ObjectClassHandle	handle () const
	Get the object's class handle. More...

virtual RTI::AttributeHandle	attributeHandleByName (const char *attrName) const
	Returns the attribute handle for this attribute name. More...

virtual DtString	attributeNameByHandle (const RTI::AttributeHandle &hand) const
	Returns a string holding the name of the attribute handle. More...

virtual const char *	name () const
	Get the object's class handle. More...

virtual const DtObjClassDesc *	baseClass () const
	Return a pointer to the base class's descriptor, NULL if none. More...

virtual DtObjClassDesc *	baseClass ()
	Return a pointer to the base class's descriptor, NULL if none. More...

virtual void	addChildClass (DtObjClassDesc *child)
	Informs base class that it has a new child class. More...

virtual int	isOfClass (RTI::ObjectClassHandle hand) const
	Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise. More...

virtual int	numAttributes () const
	Get the number of attributes associated with this object, including privilege to delete. More...

virtual bool	hasAttribute (const char *attrName) const
	Determine whether a particular object has the attribute name specified. More...

virtual const RTI::AttributeHandleSet &	attrHandleSet () const
	Get the set of valid attribute handles for this class. More...

virtual const RTI::AttributeHandleSet &	ownAttrHandles () const
	Get the set of non-inherited attribute handles for this class. More...

virtual bool	classNeededByFederation ()
	Returns true if the class is currently needed by the federation. More...

virtual void	publish ()
	Publishes the class, along with the attributes specified by hSet (or all attributes if no hSet is given). More...

virtual void	publish (const RTI::AttributeHandleSet &hSet)

virtual void	unpublish ()
	Unpublishes the class. Same as publish with an empty attribute set. More...

virtual void	subscribe (std::wstring const &updateRateDesignator, bool active)
	Subscribes to the class, along with the attributes specified by hSet (or all attributes is no hSet is given) and a boolean to indicate whether VR-Link should subscribe actively or passively. More...

virtual void	subscribe (const DtDDMRegionSet &region, std::wstring const &updateRateDesignator, bool active)

virtual void	subscribe (const RTI::AttributeHandleSet &hSet, std::wstring const &updateRateDesignator, bool active)

virtual void	subscribe (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region, std::wstring const &updateRateDesignator, bool active)

virtual void	subscribe (std::wstring const &updateRateDesignator=L"")
	subscribe using the Exercise connection's passive mode More...

virtual void	subscribe (const DtDDMRegionSet &region, std::wstring const &updateRateDesignator=L"")

virtual void	subscribe (const RTI::AttributeHandleSet &hSet, std::wstring const &updateRateDesignator=L"")

virtual void	subscribe (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region, std::wstring const &updateRateDesignator=L"")

virtual void	passiveSubscribe ()

virtual void	unsubscribe ()
	Unsubscribe to the class. More...

virtual void	unsubscribe (const DtDDMRegionSet &regionSet)

virtual void	requestUpdates ()
	Request updates of all objects of this class, include the attributes specified by hSet (or all subscribed attributes if no hSet is given). More...

virtual void	requestUpdates (const DtDDMRegionSet &region)

virtual void	requestUpdates (const RTI::AttributeHandleSet &hSet)

virtual void	requestUpdates (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region)

virtual const RTI::AttributeHandleSet &	publishedAttrs () const
	Returns the set of published attributes. More...

virtual bool	everPublished () const
	Return true if we have ever published the class using DtObjClassDesc::publish, false otherwise. More...

virtual const RTI::AttributeHandleSet &	subscribedAttrs () const
	Returns the set of subscribed attributes. More...

virtual const RTI::AttributeHandleSet &	attributesWithSpace () const

virtual const RTI::AttributeHandleSet &	attributesWithoutSpace () const

virtual const RTI::AttributeHandleSet &	subscribedAttrsWithSpace () const

virtual const RTI::AttributeHandleSet &	subscribedAttrsWithoutSpace () const

virtual DtObjClassDesc *	firstSubscribed ()
	Return the class descriptor for the first subscribed ancestor including this class. More...

virtual bool	everSubscribed () const
	Return true if we have ever subscribed to the class using DtObjClassDesc::subscribe, false otherwise. More...

virtual DtVrlRtiAmbassador *	rtiAmb ()
	Get my RTI ambassador. More...

virtual DtVrlFederateAmbassador *	fedAmb ()
	Get my federate ambassador. More...

virtual RTI::AttributeHandle	privilegeHandle () const
	Returns the attribute handle of the privilegeToDelete attribute. More...

virtual void	setUserTagModifier (DtObjectTagModifierSP modifier)

virtual DtObjectTagModifierSP	userTagModifier ()

virtual void	setSubscribeToUnspecifiedAttributesFlag (bool subscribe)
	Set/get whether subscriptions default unspecified attributes to subscription without region When true, subscriptions with regionset will subscribe without region to attributes not specified anywhere When false, subscriptions with regionset will only subscribe to specified attributes. More...

virtual bool	subscribeToUnspecifiedAttributesFlag ()

virtual void	enableUnknownAttributes ()
	allows all unknown attributes to be encoded or decoded in this class. More...

virtual void	setUnknownAttributeEncoder (DtHlaStateEncoder::DtAttributeEncoder encoder)
	Set an encoder to be called for this object class for any attribute that doesn't have an encoder set for it. More...

virtual void	setUnknownAttributeChecker (DtHlaStateEncoder::DtAttributeCheckerWithHandle checker)
	Set a checker to be called for this object class for any attribute that doesn't have an checker set for it. More...

virtual void	setUnknownAttributeDecoder (DtHlaStateDecoder::DtAttributeDecoder decoder)
	Set a decoder to be called for this object class for any attribute received in an update that doesn't have a decoder. More...

virtual DtHlaStateEncoder::DtAttributeEncoder	unknownAttributeEncoder ()
	Returns the unknown attribute encoder. Returns null if not set. More...

virtual DtHlaStateEncoder::DtAttributeCheckerWithHandle	unknownAttributeChecker ()
	Returns the unknown attribute encoder. Returns null if not set. More...

virtual DtHlaStateDecoder::DtAttributeDecoder	unknownAttributeDecoder ()
	Returns the unknown attribute decoder. Returns null if not set. More...

Static Public Member Functions
static void	setSubscriptionTimeDelay (double delay)
	Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98. More...

Protected Types
typedef std::map < RTI::AttributeHandle, DtString >	StringToAttributeHandleMap

typedef std::vector < RTI::AttributeHandleSetRegionHandleSetPair >	RegionHandleVector

Protected Member Functions
virtual void	processStartReg (RTI::ObjectClassHandle h)
	Callback for handling startRegistration RTI callback. More...

virtual void	processStopReg (RTI::ObjectClassHandle h)
	Callback for handling stopRegistration RTI callback. More...

virtual DtObjClassDesc *	self () const
	Casts away const-ness. Use with caution. More...

virtual void	synchSubscribedAttributes ()
	Updates subscribed attributes using values from subscribed attributes with/without space. More...

virtual void	fillInAttributeHandleSetRegionHandleSetPairVector (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region, RTI::AttributeHandleSetRegionHandleSetPairVector &pairVector)
	Utility function that fills in the pair vector for subscription with region in HLA 1516. More...

virtual void	addAttr (const char *attrName, RTI::AttributeHandle attrHandle, RTI::DimensionHandleSet &dimSet, bool isPrivilegeToDelete, bool withSpace=false)
	Add an attribute after handle is known. More...

virtual bool	isMomAttribute (const char *attrName)
	Returns true if the attribute is a MOM attribute. More...

Static Protected Member Functions
static void	startRegCb (RTI::ObjectClassHandle h, void *usr)
	Callback for handling startRegistration RTI callback. More...

static void	stopRegCb (RTI::ObjectClassHandle h, void *usr)
	Callback for handling stopRegistration RTI callback. More...

Protected Attributes
DtString	myName

RTI::ObjectClassHandle	myHandle

RTI::AttributeHandleSet *	myAttrs

RTI::AttributeHandleSet *	myOwnAttrs

RTI::AttributeHandleSet *	mySubAttrs

RTI::AttributeHandleSet *	myPubAttrs

RTI::AttributeHandleSet *	myAttrsWithSpace
	Attributes with a space (or dimensions in 1516) defined in the FOM. More...

RTI::AttributeHandleSet *	myAttrsWithoutSpace
	Attributes without a space (or dimensions in 1516) defined in the FOM. More...

RTI::AttributeHandleSet *	mySubAttrsWithSpace

RTI::AttributeHandleSet *	mySubAttrsWithoutSpace

bool	myClassNeeded

DtObjClassDesc *	myBase

std::list< DtObjClassDesc * >	myChildren

DtExerciseConn *	myExConn

bool	myPublished

bool	myEverPublished

bool	myEverSubscribed

int	myNumSubscribeRequests

bool	mySubscribeToUnspecifiedAttributesFlag

RTI::AttributeHandle	myPrivHandle
	Handle of the privilegeToDelete attribute. More...

RTI::AttributeHandle	myMinAttrHand

RTI::AttributeHandle	myMaxAttrHand

StringToAttributeHandleMap	myStringToHandleMap

DtObjectTagModifierSP	myTagModifier

RegionHandleVector	mySubscribedRegions

DtHlaStateEncoder::DtAttributeEncoder	myUnknownAttributeEncoder

DtHlaStateEncoder::DtAttributeCheckerWithHandle	myUnknownAttributeChecker

DtHlaStateDecoder::DtAttributeDecoder	myUnknownAttributeDecoder

Static Protected Attributes
static double	theSubscriptionTimeDelay

Detailed Description

An instance of DtObjClassDesc is a "class descriptor" for an HLA Object class.

A list of all DtObjClassDescs for the various classes in a FOM can be obtained from a DtFom. A DtObjClassDesc can tell you the set of attributes associated with the class, the class's handle, name, and base class. Publication, subscription and update requests are done through the DtObjClassDesc as well, and the DtObjClassDesc maintains information on which attributes of the class are subscribed to by remote federates. By registering callbacks on start/stopUpdates, a DtObjClassDesc can tell you which attributes of the class have been subscribed to by other federates.

Member Typedef Documentation

typedef std::vector<RTI::AttributeHandleSetRegionHandleSetPair> DtObjClassDesc::RegionHandleVector

protected

typedef std::map<RTI::AttributeHandle, DtString> DtObjClassDesc::StringToAttributeHandleMap

protected

Constructor & Destructor Documentation

DtObjClassDesc::DtObjClassDesc	(	const char *	className,
		DtObjClassDesc *	base,
		RTI::ObjectClassHandle	handle,
		DtExerciseConn *	exConn
	)

Constructor.

Adds the base class's attributes to our attribute set. Used when reading FED file.

virtual DtObjClassDesc::~DtObjClassDesc ( )

virtual

destructor

Member Function Documentation

virtual void DtObjClassDesc::addAttr	(	const char *	attrName,
		bool	withSpace = `false`
	)

virtual

Add an attribute (Used when reading FED file).

virtual void DtObjClassDesc::addAttr	(	const char *	attrName,
		RTI::AttributeHandle	attrHandle,
		RTI::DimensionHandleSet &	dimSet,
		bool	isPrivilegeToDelete,
		bool	withSpace = `false`
	)

protectedvirtual

Add an attribute after handle is known.

void DtObjClassDesc::addChildClass ( DtObjClassDesc * child )

inlinevirtual

Informs base class that it has a new child class.

References myChildren.

const RTI::AttributeHandleSet & DtObjClassDesc::attrHandleSet ( ) const

inlinevirtual

Get the set of valid attribute handles for this class.

Includes attributes inherited from base classes.

References myAttrs.

Referenced by DtHlaObject::attrHandleSet().

virtual RTI::AttributeHandle DtObjClassDesc::attributeHandleByName ( const char * attrName ) const

virtual

Returns the attribute handle for this attribute name.

virtual DtString DtObjClassDesc::attributeNameByHandle ( const RTI::AttributeHandle & hand ) const

virtual

Returns a string holding the name of the attribute handle.

virtual const RTI::AttributeHandleSet& DtObjClassDesc::attributesWithoutSpace ( ) const

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::attributesWithSpace ( ) const

virtual

const DtObjClassDesc * DtObjClassDesc::baseClass ( ) const

inlinevirtual

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

DtObjClassDesc * DtObjClassDesc::baseClass ( )

inlinevirtual

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

virtual bool DtObjClassDesc::classNeededByFederation ( )

virtual

Returns true if the class is currently needed by the federation.

If VR-Link is using advisories, this function will return true if we've either received a startRegistrationForObjectClass call for the class; otherwise this function will always return true. NOTE: We will only receive calls such as startRegistrationForObjectClass if the class has been published using DtObjClassDesc::publish.

virtual void DtObjClassDesc::enableUnknownAttributes ( )

virtual

allows all unknown attributes to be encoded or decoded in this class.

This is done by setting the unknown attribute encoder/checker/decoder to the default value if and only if they have not been set yet. The values are: "DtGenericAttributeEncoder::encodeGenericAttribute" "DtGenericAttributeEncoder::needGenericAttribute" "DtGenericAttributeDecoder::decodeGenericAttribute"

virtual bool DtObjClassDesc::everPublished ( ) const

virtual

Return true if we have ever published the class using DtObjClassDesc::publish, false otherwise.

virtual bool DtObjClassDesc::everSubscribed ( ) const

virtual

Return true if we have ever subscribed to the class using DtObjClassDesc::subscribe, false otherwise.

virtual DtVrlFederateAmbassador* DtObjClassDesc::fedAmb ( )

virtual

Get my federate ambassador.

virtual void DtObjClassDesc::fillInAttributeHandleSetRegionHandleSetPairVector	(	const RTI::AttributeHandleSet &	hSet,
		DtDDMRegionSP	region,
		RTI::AttributeHandleSetRegionHandleSetPairVector &	pairVector
	)

protectedvirtual

Utility function that fills in the pair vector for subscription with region in HLA 1516.

virtual DtObjClassDesc* DtObjClassDesc::firstSubscribed ( )

virtual

Return the class descriptor for the first subscribed ancestor including this class.

Null is returned if no ancestor is subscribed.

RTI::ObjectClassHandle DtObjClassDesc::handle ( ) const

inlinevirtual

Get the object's class handle.

References myHandle.

Referenced by DtHlaObject::objectClassHandle().

virtual bool DtObjClassDesc::hasAttribute ( const char * attrName ) const

virtual

Determine whether a particular object has the attribute name specified.

virtual bool DtObjClassDesc::isMomAttribute ( const char * attrName )

protectedvirtual

Returns true if the attribute is a MOM attribute.

virtual int DtObjClassDesc::isOfClass ( RTI::ObjectClassHandle hand ) const

virtual

Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise.

const char * DtObjClassDesc::name ( ) const

inlinevirtual

Get the object's class handle.

References DtString::c_str(), and myName.

int DtObjClassDesc::numAttributes ( ) const

inlinevirtual

Get the number of attributes associated with this object, including privilege to delete.

References myAttrs.

Referenced by DtHlaObject::numAttributes().

const RTI::AttributeHandleSet & DtObjClassDesc::ownAttrHandles ( ) const

inlinevirtual

Get the set of non-inherited attribute handles for this class.

References myOwnAttrs.

virtual void DtObjClassDesc::passiveSubscribe ( )

virtual

RTI::AttributeHandle DtObjClassDesc::privilegeHandle ( ) const

inlinevirtual

Returns the attribute handle of the privilegeToDelete attribute.

References myPrivHandle.

virtual void DtObjClassDesc::processStartReg ( RTI::ObjectClassHandle h )

protectedvirtual

Callback for handling startRegistration RTI callback.

virtual void DtObjClassDesc::processStopReg ( RTI::ObjectClassHandle h )

protectedvirtual

Callback for handling stopRegistration RTI callback.

virtual void DtObjClassDesc::publish ( )

virtual

Publishes the class, along with the attributes specified by hSet (or all attributes if no hSet is given).

Also, registers start and stopUpdates callbacks on the published classes. Can be called multiple times to change the set of published classes.

virtual void DtObjClassDesc::publish ( const RTI::AttributeHandleSet & hSet )

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::publishedAttrs ( ) const

virtual

Returns the set of published attributes.

For this to work correctly, do not publish directly through the RTI. Instead, use DtObjClassDesc::publish.

virtual void DtObjClassDesc::requestUpdates ( )

virtual

Request updates of all objects of this class, include the attributes specified by hSet (or all subscribed attributes if no hSet is given).

virtual void DtObjClassDesc::requestUpdates ( const DtDDMRegionSet & region )

virtual

virtual void DtObjClassDesc::requestUpdates ( const RTI::AttributeHandleSet & hSet )

virtual

virtual void DtObjClassDesc::requestUpdates	(	const RTI::AttributeHandleSet &	hSet,
		DtDDMRegionSP	region
	)

virtual

virtual DtVrlRtiAmbassador* DtObjClassDesc::rtiAmb ( )

virtual

Get my RTI ambassador.

DtObjClassDesc * DtObjClassDesc::self ( ) const

inlineprotectedvirtual

Casts away const-ness. Use with caution.

virtual void DtObjClassDesc::setSubscribeToUnspecifiedAttributesFlag ( bool subscribe )

virtual

Set/get whether subscriptions default unspecified attributes to subscription without region When true, subscriptions with regionset will subscribe without region to attributes not specified anywhere When false, subscriptions with regionset will only subscribe to specified attributes.

void DtObjClassDesc::setSubscriptionTimeDelay ( double delay )

inlinestatic

Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98.

If a delay is not used on Win98, DMSO RTI NG may miss subscribe messages and then fail to call discoverObjectInstance() when it's appropriate In most circumstances, you would never want to call this function.

References theSubscriptionTimeDelay.

virtual void DtObjClassDesc::setUnknownAttributeChecker ( DtHlaStateEncoder::DtAttributeCheckerWithHandle checker )

virtual

Set a checker to be called for this object class for any attribute that doesn't have an checker set for it.

virtual void DtObjClassDesc::setUnknownAttributeDecoder ( DtHlaStateDecoder::DtAttributeDecoder decoder )

virtual

Set a decoder to be called for this object class for any attribute received in an update that doesn't have a decoder.

virtual void DtObjClassDesc::setUnknownAttributeEncoder ( DtHlaStateEncoder::DtAttributeEncoder encoder )

virtual

Set an encoder to be called for this object class for any attribute that doesn't have an encoder set for it.

Note that this will be called every tick for each unknown attribute in the object class, as there is no checker. The user can simply not add the handle/value to the AttributeHandleValuePairSet if an update should not be made.

virtual void DtObjClassDesc::setUserTagModifier ( DtObjectTagModifierSP modifier )

virtual

static void DtObjClassDesc::startRegCb	(	RTI::ObjectClassHandle	h,
		void *	usr
	)

staticprotected

Callback for handling startRegistration RTI callback.

static void DtObjClassDesc::stopRegCb	(	RTI::ObjectClassHandle	h,
		void *	usr
	)

staticprotected

Callback for handling stopRegistration RTI callback.

virtual void DtObjClassDesc::subscribe	(	std::wstring const &	updateRateDesignator,
		bool	active
	)

virtual

Subscribes to the class, along with the attributes specified by hSet (or all attributes is no hSet is given) and a boolean to indicate whether VR-Link should subscribe actively or passively.

Additionally place the update rate restriction on the subscription The updateRateDesignator takes effect on HLA Evolved ONLY.

virtual void DtObjClassDesc::subscribe	(	const DtDDMRegionSet &	region,
		std::wstring const &	updateRateDesignator,
		bool	active
	)

virtual

virtual void DtObjClassDesc::subscribe	(	const RTI::AttributeHandleSet &	hSet,
		std::wstring const &	updateRateDesignator,
		bool	active
	)

virtual

virtual void DtObjClassDesc::subscribe	(	const RTI::AttributeHandleSet &	hSet,
		DtDDMRegionSP	region,
		std::wstring const &	updateRateDesignator,
		bool	active
	)

virtual

virtual void DtObjClassDesc::subscribe ( std::wstring const & updateRateDesignator = L"" )

virtual

subscribe using the Exercise connection's passive mode

virtual void DtObjClassDesc::subscribe	(	const DtDDMRegionSet &	region,
		std::wstring const &	updateRateDesignator = `L""`
	)

virtual

virtual void DtObjClassDesc::subscribe	(	const RTI::AttributeHandleSet &	hSet,
		std::wstring const &	updateRateDesignator = `L""`
	)

virtual

virtual void DtObjClassDesc::subscribe	(	const RTI::AttributeHandleSet &	hSet,
		DtDDMRegionSP	region,
		std::wstring const &	updateRateDesignator = `L""`
	)

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::subscribedAttrs ( ) const

virtual

Returns the set of subscribed attributes.

For this to work correctly, do not publish directly through the RTI. Instead, use DtObjClassDesc::subscribe.

virtual const RTI::AttributeHandleSet& DtObjClassDesc::subscribedAttrsWithoutSpace ( ) const

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::subscribedAttrsWithSpace ( ) const

virtual

virtual bool DtObjClassDesc::subscribeToUnspecifiedAttributesFlag ( )

virtual

virtual void DtObjClassDesc::synchSubscribedAttributes ( )

protectedvirtual

Updates subscribed attributes using values from subscribed attributes with/without space.

virtual DtHlaStateEncoder::DtAttributeCheckerWithHandle DtObjClassDesc::unknownAttributeChecker ( )

virtual

Returns the unknown attribute encoder. Returns null if not set.

virtual DtHlaStateDecoder::DtAttributeDecoder DtObjClassDesc::unknownAttributeDecoder ( )

virtual

Returns the unknown attribute decoder. Returns null if not set.

virtual DtHlaStateEncoder::DtAttributeEncoder DtObjClassDesc::unknownAttributeEncoder ( )

virtual

Returns the unknown attribute encoder. Returns null if not set.

virtual void DtObjClassDesc::unpublish ( )

virtual

Unpublishes the class. Same as publish with an empty attribute set.

virtual void DtObjClassDesc::unsubscribe ( )

virtual

Unsubscribe to the class.

virtual void DtObjClassDesc::unsubscribe ( const DtDDMRegionSet & regionSet )

virtual

virtual DtObjectTagModifierSP DtObjClassDesc::userTagModifier ( )

virtual

Member Data Documentation

RTI::AttributeHandleSet* DtObjClassDesc::myAttrs

protected

Referenced by attrHandleSet(), and numAttributes().

RTI::AttributeHandleSet* DtObjClassDesc::myAttrsWithoutSpace

protected

Attributes without a space (or dimensions in 1516) defined in the FOM.

RTI::AttributeHandleSet* DtObjClassDesc::myAttrsWithSpace

protected

Attributes with a space (or dimensions in 1516) defined in the FOM.

DtObjClassDesc* DtObjClassDesc::myBase

protected

Referenced by baseClass().

std::list<DtObjClassDesc*> DtObjClassDesc::myChildren

protected

Referenced by addChildClass().

bool DtObjClassDesc::myClassNeeded

protected

bool DtObjClassDesc::myEverPublished

protected

bool DtObjClassDesc::myEverSubscribed

protected

DtExerciseConn* DtObjClassDesc::myExConn

protected

RTI::ObjectClassHandle DtObjClassDesc::myHandle

protected

Referenced by handle().

RTI::AttributeHandle DtObjClassDesc::myMaxAttrHand

protected

RTI::AttributeHandle DtObjClassDesc::myMinAttrHand

protected

DtString DtObjClassDesc::myName

protected

Referenced by name().

int DtObjClassDesc::myNumSubscribeRequests

protected

RTI::AttributeHandleSet* DtObjClassDesc::myOwnAttrs

protected

Referenced by ownAttrHandles().

RTI::AttributeHandle DtObjClassDesc::myPrivHandle

protected

Handle of the privilegeToDelete attribute.

Referenced by privilegeHandle().

RTI::AttributeHandleSet* DtObjClassDesc::myPubAttrs

protected

bool DtObjClassDesc::myPublished

protected

StringToAttributeHandleMap DtObjClassDesc::myStringToHandleMap

protected

RTI::AttributeHandleSet* DtObjClassDesc::mySubAttrs

protected

RTI::AttributeHandleSet* DtObjClassDesc::mySubAttrsWithoutSpace

protected

RTI::AttributeHandleSet* DtObjClassDesc::mySubAttrsWithSpace

protected

RegionHandleVector DtObjClassDesc::mySubscribedRegions

protected

bool DtObjClassDesc::mySubscribeToUnspecifiedAttributesFlag

protected

DtObjectTagModifierSP DtObjClassDesc::myTagModifier

protected

DtHlaStateEncoder::DtAttributeCheckerWithHandle DtObjClassDesc::myUnknownAttributeChecker

protected

DtHlaStateDecoder::DtAttributeDecoder DtObjClassDesc::myUnknownAttributeDecoder

protected

DtHlaStateEncoder::DtAttributeEncoder DtObjClassDesc::myUnknownAttributeEncoder

protected

double DtObjClassDesc::theSubscriptionTimeDelay

staticprotected

Referenced by setSubscriptionTimeDelay().

The documentation for this class was generated from the following file:

objClassDesc1516.h

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
