DtReflectedEntityList Class Reference

Instances of DtReflectedEntityList are used to manage remote entities from the network. More...

Inheritance diagram for DtReflectedEntityList:

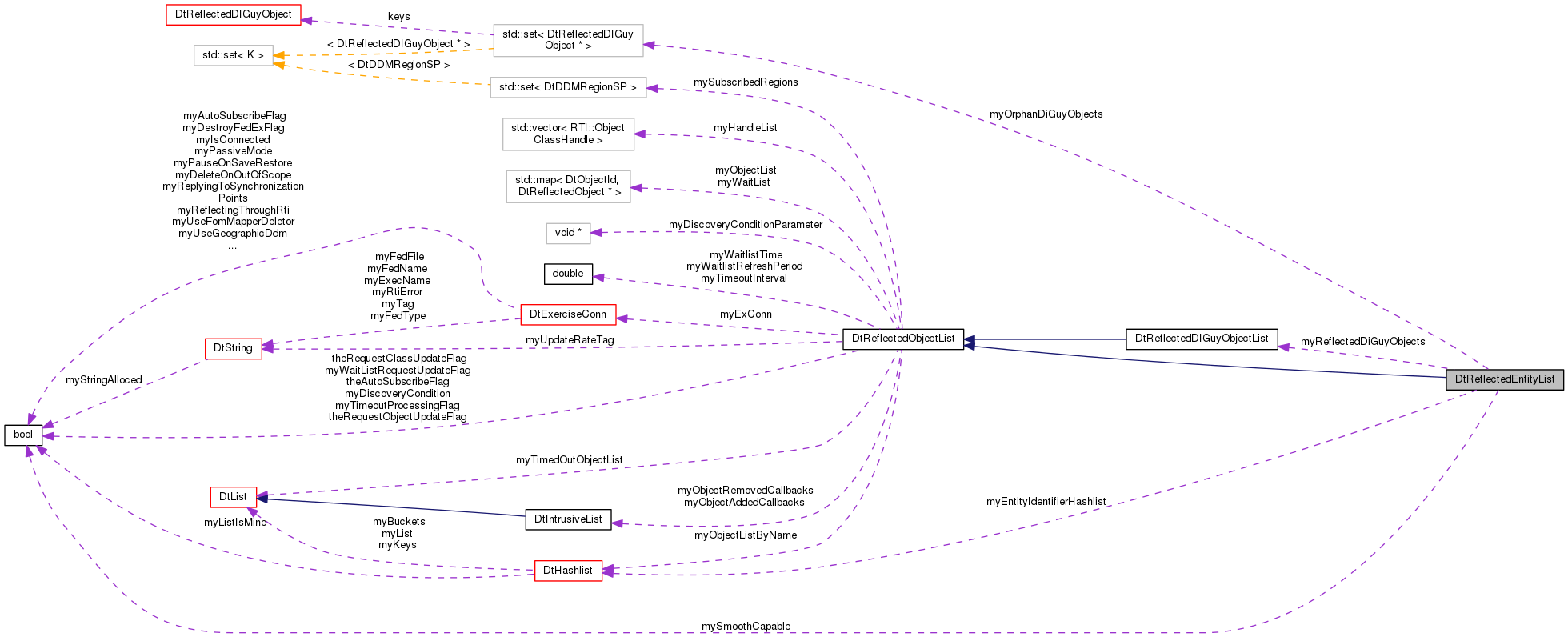

Collaboration diagram for DtReflectedEntityList:

Public Member Functions
	DtReflectedEntityList (DtExerciseConn *exConn, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0)
	Constructor that uses subscription criteria from the exConn's fomMapper. More...
	DtReflectedEntityList (DtExerciseConn *exConn, const DtString &updateRateTag, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0)
	DtReflectedEntityList (DtExerciseConn *exConn, const DtList *handleList, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0)
	Constructor that uses a handle list as subscription criteria. More...
	DtReflectedEntityList (DtExerciseConn *exConn, const DtList *handleList, const DtString &updateRateTag, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0)
virtual	~DtReflectedEntityList ()
	Destructor. More...
virtual DtReflectedEntity *	lookup (RTI::ObjectHandle id)
	Look up entity by object handle. More...
virtual DtReflectedEntity *	lookup (const DtGlobalObjectDesignator &objName)
	Look up entity by name. More...
virtual DtReflectedEntity *	lookup (const DtEntityIdentifier &entityId)
	Look up entity by entityId. More...
virtual DtReflectedEntity *	first () const
	Get the first entity in the list. More...
virtual DtReflectedEntity *	last () const
	Get the last entity in the list. More...
virtual void	addToObjectList (DtReflectedObject *refObj)
	Adds an object the the list. More...
virtual void	addToEntityIdentifierHashList (DtReflectedEntity *ent)
	Adds the entity id of ent to myEntityIdentifierHashlist. More...
virtual void	addEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
	Entity added callback registration. More...
virtual void	removeEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
	Entity added callback deregistration. More...
virtual void	addEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
	Entity removed callback registration. More...
virtual void	removeEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
	Entity removed callback deregistration. More...
virtual void	discoverOnlyWhenEntityTypeKnown (bool yesNo)
	Allows one to specify whether discover should delayed until the entity type is known before adding the entity to the list. More...
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor. More...
virtual	~DtReflectedObjectList ()
	destructor More...
virtual DtReflectedObject *	lookupObj (RTI::ObjectHandle id)
	Look up object by identifier. More...
virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3). More...
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects. More...
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...
virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered. More...
virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object. More...
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects. More...
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...
virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs. More...
virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed. More...
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...
virtual DtTime	timeoutInterval ()
virtual void	setWaitlistRefreshPeriod (DtTime time)
	Set/Get the wait list refresh period. More...
virtual DtTime	waitlistRefreshPeriod ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the reflected list. More...
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...
virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to. More...

Protected Member Functions
virtual const DtList *	dfltHandleList ()
	Returns the list of handles that the FOM Mapper associates with a DtReflectedEntityList. More...
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of the virtual function in DtReflectedObjectList. More...
virtual DtReflectedEntity *	newReflectedEntity (DtHlaObject *obj) const
	Create a remote entity object for the HLA object. More...
virtual void	removeAndDelete (DtReflectedObject *object, char *msg)
	Override of the virtual function in DtReflectedObjectList. More...
virtual void	removeAndDelete (DtReflectedEntity *entity, char *msg=NULL)
	Default calls down to base class version, but can be overridden. More...
virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote entity has been added to the list. More...
virtual void	entityAdded (DtReflectedEntity *ent)
	Called by objectAdded (which is called from processDiscoverObject()) after a remote entity has been added to the list. More...
virtual void	initializeDIGuy ()
	Initialize the DIGuyObject reflected list and callbacks Checks if "DIGuyObject" class is in FOM. More...
virtual void	processDiGuyObjectAddition (DtReflectedDIGuyObject *beam)
	Called by similar callback functions registered with reflected DIGuyObject list on additions/removals/updates. More...
virtual void	processDiGuyObjectUpdate (DtReflectedDIGuyObject *beam)
virtual void	processDiGuyObjectRemoval (DtReflectedDIGuyObject *beam)
virtual void	resolveOrphans ()
	Check if any orphanBeams have non-NULL emittingSystemId. More...
Protected Member Functions inherited from DtReflectedObjectList
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote object on the network. More...
virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote object from the network. More...
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out. More...
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...
virtual void	doRequestWaitListUpdates ()
	Request an update for any objects which have not met their discovery criteria yet. More...
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...
virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it. More...
virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out. More...
virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class. More...
virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className. More...
virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once. More...
void	emptyLists ()
	Empty the object list and the timeout list. More...
void	emptyCallbackLists ()
	Empty the callback lists. More...
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list. More...
virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within. More...
virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectHandle id)
	Find object in waitList by identifier. More...
virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name. More...
void	unsubscribeRegions ()
const DtString &	updateRateSubscriptionName () const
	Return the name of the update rate associated with our subscription, if any. More...

Static Protected Member Functions
static bool	checkEntityType (DtReflectedObject *obj, void *usr)
	Callback which checks whether the entity type has arrived yet. More...
static void	checkEntityId (DtReflectedEntity *ent, void *usr)
	Callback which checks whether the entity id of the entity has arrived yet. More...
static void	diGuyObjectAdditionCb (DtReflectedDIGuyObject *beam, void *usr)
	Callback functions registered with the reflected DIGuyObject list on DIGuyObject additions, updates, and removals. More...
static void	diGuyObjectUpdateCb (DtReflectedDIGuyObject *beam, void *usr)
static void	diGuyObjectRemovalCb (DtReflectedDIGuyObject *beam, void *usr)
static void	resolveOrphansPostDrainCb (void *usr)
	Callback that calls resolveOrphans. More...
static bool	delayDiGuyObjectDiscoveryCondition (DtReflectedObject *beam, void *usr)
	The following discovery condition function gets set for DiGuyObjects when users register a discovery condition for either DtReflectedEmitterSystemList or its beam list. More...
Static Protected Member Functions inherited from DtReflectedObjectList
static void	discoverObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject(). More...
static void	removeObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject(). More...
static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject *obj, void *usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect(). More...
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...
static void	doRequestWaitListUpdatesPostDrainCb (void *usr)
	Calls doRequestWaitListUpdates. More...
static void	postUpdateCb (DtReflectedObject *obj, void *usr)
	Calls checkDiscoveryCondition. More...

Protected Attributes
bool	mySmoothCapable
	Determines whether to use smoothing for reflected entities. More...
DtHashlist	myEntityIdentifierHashlist
	Hash list used for lookup of entity identifiers. More...
std::set < DtReflectedDIGuyObject * >	myOrphanDiGuyObjects
DtReflectedDIGuyObjectList *	myReflectedDiGuyObjects
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtRefHlaObjectMap	myObjectList
DtHashList	myObjectListByName
DtRefHlaObjectMap	myWaitList
DtList	myTimedOutObjectList
std::vector < RTI::ObjectClassHandle >	myHandleList
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
bool	myWaitListRequestUpdateFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
DtTime	myWaitlistTime
DtTime	myWaitlistRefreshPeriod
DtDDMRegionSet	mySubscribedRegions
DtString	myUpdateRateTag

Private Member Functions
	DtReflectedEntityList (const DtReflectedEntityList &orig)
	Copy constructor – not implemented. More...
DtReflectedEntityList &	operator= (const DtReflectedEntityList &orig)
	Assignment operator – not implemented. More...

Additional Inherited Members
Static Public Member Functions inherited from DtReflectedObjectList
static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...
static bool	autoSubscribeFlag ()
static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...
static bool	requestClassUpdateFlag ()
static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it. More...
static bool	requestObjectUpdateFlag ()
static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects(). More...
Static Protected Attributes inherited from DtReflectedObjectList
static bool	theAutoSubscribeFlag
static bool	theRequestClassUpdateFlag
static bool	theRequestObjectUpdateFlag

Detailed Description

Instances of DtReflectedEntityList are used to manage remote entities from the network.

DtReflectedEntityList, when instantiated, subscribes to all of the classes either specified by the FOM Mapper used by the DtExerciseConn or provided in the form of Object Class Handles. When an object of type handled by DtReflectedEntityList is discovered, a DtReflectedEntity is created and added to the list. DtReflectedEntityList provides a mechanism to maintain the list of remote entities and their data. In addition, DtReflectedEntityList provides callback mechanisms that the user may register for, so that the user may be notified and do certain processing when an entity is added/removed from the reflected entity list.

Examples

• Talk
• Listen
• F18

Constructor & Destructor Documentation

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor that uses subscription criteria from the exConn's fomMapper.

This constructor determines what entity classes to subscribe to by obtaining them from the exConn's fomMapper.

Parameters

smoothCapable

If smoothCapable is set to true, any reflected entity maintained by this list will use a smoother.

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		const DtString &	updateRateTag,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor that uses a handle list as subscription criteria.

This constructor determines what entity classes to subscribe to by obtaining them from the handle list.

Parameters

handleList	is a list of RTI::ObjectClassHandle's that specifies what classes to subscribe to.
smoothCapable	If smoothCapable is set to true, any reflected entity maintained by this list will use a smoother.

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtString &	updateRateTag,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

virtual DtReflectedEntityList::~DtReflectedEntityList ( )

virtual

Destructor.

DtReflectedEntityList::DtReflectedEntityList ( const DtReflectedEntityList &  orig )

private

Copy constructor – not implemented.

Member Function Documentation

virtual void DtReflectedEntityList::addEntityAdditionCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity added callback registration.

Allows the user to specify a function to be called when an entity is discovered and added to the list.

virtual void DtReflectedEntityList::addEntityRemovalCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity removed callback registration.

Allows the user to specify a function to be called when and entity is removed from the list.

virtual void DtReflectedEntityList::addToEntityIdentifierHashList ( DtReflectedEntity *  ent )

virtual

Adds the entity id of ent to myEntityIdentifierHashlist.

This is called by checkEntityId, and needs to be public so that it can be called by the callback.

virtual void DtReflectedEntityList::addToObjectList ( DtReflectedObject *  refObj )

virtual

Adds an object the the list.

Override DtReflectedObjectList::addToObjectList() (which it calls down to) to add entities to the entity identifier hash list

Reimplemented from DtReflectedObjectList.

static void DtReflectedEntityList::checkEntityId ( DtReflectedEntity *  ent, void *  usr  )

staticprotected

Callback which checks whether the entity id of the entity has arrived yet.

If it has, the entity id is added to myEntityIdentifierHashlist to be used for lookup purposes, and the callback is deregistered. Registered addToObjectList().

static bool DtReflectedEntityList::checkEntityType ( DtReflectedObject *  obj, void *  usr  )

staticprotected

Callback which checks whether the entity type has arrived yet.

This callback is registered/deregistered using the function: discoverOnlyWhenEntityTypeKnown()

static bool DtReflectedEntityList::delayDiGuyObjectDiscoveryCondition ( DtReflectedObject *  beam, void *  usr  )

staticprotected

The following discovery condition function gets set for DiGuyObjects when users register a discovery condition for either DtReflectedEmitterSystemList or its beam list.

Calls DtReflectedEmitterSystem::delayBeamDiscovery()

virtual const DtList* DtReflectedEntityList::dfltHandleList ( )

protectedvirtual

Returns the list of handles that the FOM Mapper associates with a DtReflectedEntityList.

Uses the FOM Mapper of the DtExerciseConn that is passed in through the constructor.

static void DtReflectedEntityList::diGuyObjectAdditionCb ( DtReflectedDIGuyObject *  beam, void *  usr  )

staticprotected

Callback functions registered with the reflected DIGuyObject list on DIGuyObject additions, updates, and removals.

Calls processDiGuyObjectAddition/Update/Removal.

static void DtReflectedEntityList::diGuyObjectRemovalCb ( DtReflectedDIGuyObject *  beam, void *  usr  )

staticprotected

static void DtReflectedEntityList::diGuyObjectUpdateCb ( DtReflectedDIGuyObject *  beam, void *  usr  )

staticprotected

virtual void DtReflectedEntityList::discoverOnlyWhenEntityTypeKnown ( bool  yesNo )

virtual

Allows one to specify whether discover should delayed until the entity type is known before adding the entity to the list.

The default value is no, meaning entities will get added to the list immediately – regardless of whether it has received any attr values or not.

virtual void DtReflectedEntityList::entityAdded ( DtReflectedEntity *  ent )

protectedvirtual

Called by objectAdded (which is called from processDiscoverObject()) after a remote entity has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on entity addition.

virtual DtReflectedEntity* DtReflectedEntityList::first ( ) const

virtual

Get the first entity in the list.

Returns

The first reflected entity in the list if there is one, and NULL otherwise.

virtual void DtReflectedEntityList::initializeDIGuy ( )

protectedvirtual

Initialize the DIGuyObject reflected list and callbacks Checks if "DIGuyObject" class is in FOM.

virtual DtReflectedEntity* DtReflectedEntityList::last ( ) const

virtual

Get the last entity in the list.

Returns

The last reflected entity in the list if there is one, and NULL otherwise.

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( RTI::ObjectHandle  id )

virtual

Look up entity by object handle.

Returns

The reflected entity if it is on the list, and NULL otherwise.

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( const DtGlobalObjectDesignator &  objName )

virtual

Look up entity by name.

Returns

The reflected entity if found, and NULL if not found.

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( const DtEntityIdentifier &  entityId )

virtual

Look up entity by entityId.

Returns

The reflected entity if found, and NULL if not found.

virtual DtReflectedEntity* DtReflectedEntityList::newReflectedEntity ( DtHlaObject *  obj ) const

protectedvirtual

Create a remote entity object for the HLA object.

Caller is responsible for deletion.

virtual DtReflectedObject* DtReflectedEntityList::newReflectedObject ( DtHlaObject *  obj ) const

protectedvirtual

Override of the virtual function in DtReflectedObjectList.

newReflectedObject calls newReflectedEntity.

Implements DtReflectedObjectList.

virtual void DtReflectedEntityList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called from processDiscoverObject() after a remote entity has been added to the list.

Calls entityAdded.

Reimplemented from DtReflectedObjectList.

DtReflectedEntityList& DtReflectedEntityList::operator= ( const DtReflectedEntityList &  orig )

private

Assignment operator – not implemented.

virtual void DtReflectedEntityList::processDiGuyObjectAddition ( DtReflectedDIGuyObject *  beam )

protectedvirtual

Called by similar callback functions registered with reflected DIGuyObject list on additions/removals/updates.

Addition function adds the object to the set of orphan objects (since we don't know what entity it's part of), the removal function removes the object's SR from his entity's SR. Update function calls the entity's update callbacks.

virtual void DtReflectedEntityList::processDiGuyObjectRemoval ( DtReflectedDIGuyObject *  beam )

protectedvirtual

virtual void DtReflectedEntityList::processDiGuyObjectUpdate ( DtReflectedDIGuyObject *  beam )

protectedvirtual

virtual void DtReflectedEntityList::removeAndDelete ( DtReflectedObject *  object, char *  msg  )

protectedvirtual

Override of the virtual function in DtReflectedObjectList.

Calls removeAndDelete(DtReflectedEntity*....)

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedEntityList::removeAndDelete ( DtReflectedEntity *  entity, char *  msg = NULL  )

protectedvirtual

Default calls down to base class version, but can be overridden.

Parameters

msg	If msg is specified, msg is printed to DtInfo with the object handle of the object deleted

virtual void DtReflectedEntityList::removeEntityAdditionCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity added callback deregistration.

Allows the user to remove the callback function that is called when an entity is discovered and added to the list.

virtual void DtReflectedEntityList::removeEntityRemovalCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity removed callback deregistration.

Allows the user to remove the callback function that is called when an entity is removed from the list.

virtual void DtReflectedEntityList::resolveOrphans ( )

protectedvirtual

Check if any orphanBeams have non-NULL emittingSystemId.

If so, add them to their appropriate system (creating one if it doesn't exist), and delete them from orphan list.

static void DtReflectedEntityList::resolveOrphansPostDrainCb ( void *  usr )

staticprotected

Callback that calls resolveOrphans.

Member Data Documentation

DtHashlist DtReflectedEntityList::myEntityIdentifierHashlist

protected

Hash list used for lookup of entity identifiers.

std::set<DtReflectedDIGuyObject*> DtReflectedEntityList::myOrphanDiGuyObjects

protected

DtReflectedDIGuyObjectList* DtReflectedEntityList::myReflectedDiGuyObjects

protected

bool DtReflectedEntityList::mySmoothCapable

protected

Determines whether to use smoothing for reflected entities.

---

The documentation for this class was generated from the following file:

• reflectedEntityListHLA.h
