Instances of DtAggregatePublisher are used to take care of the details associated with publishing the state of an aggregate. More...

Inheritance diagram for DtAggregatePublisher:

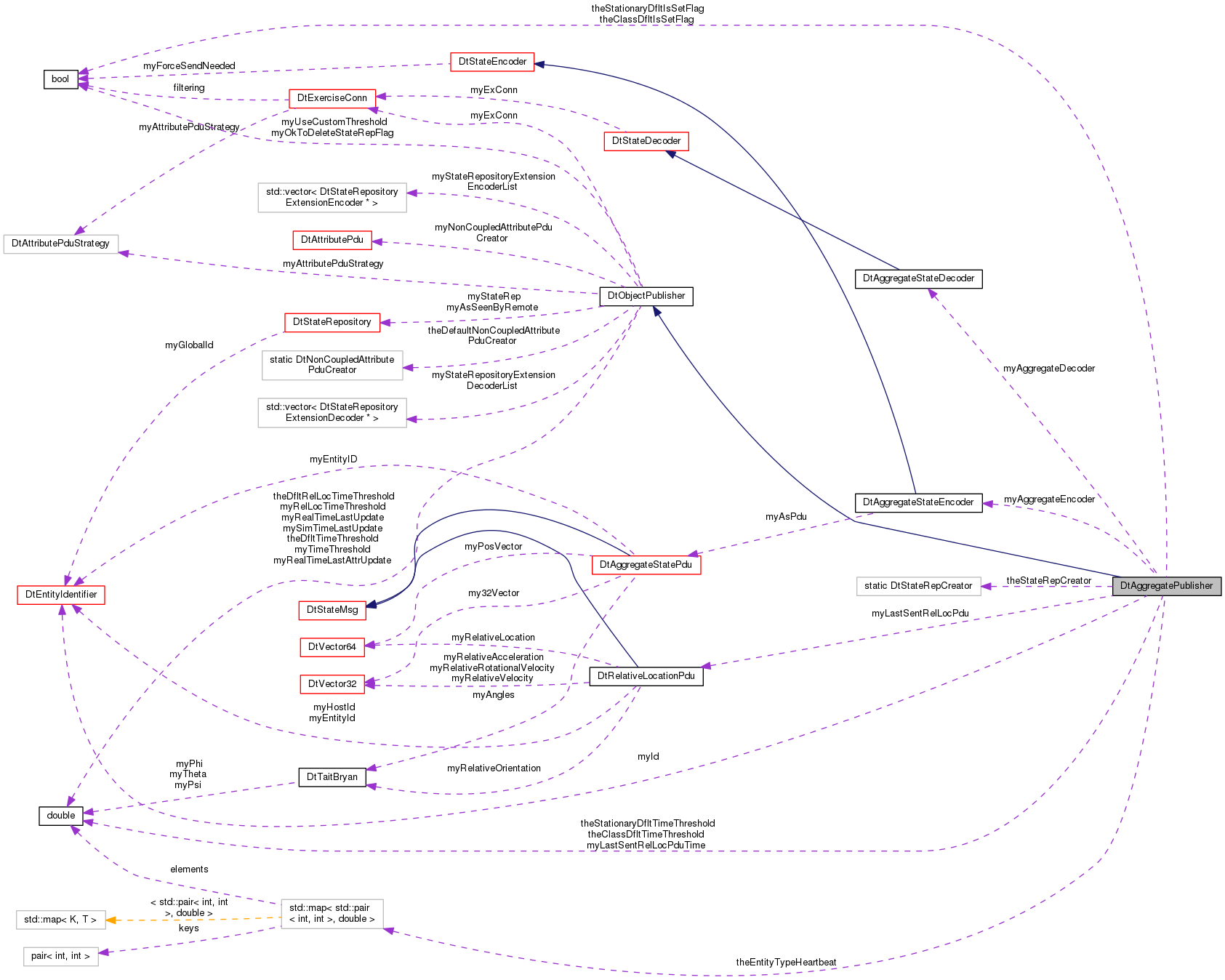

Collaboration diagram for DtAggregatePublisher:

Public Types
typedef DtAggregateStateRepository (	DtStateRepCreator )()
	Function prototype for functions that create DtAggregateStateRepositories. More...

Public Types inherited from DtObjectPublisher
typedef DtAttributePdu (	DtNonCoupledAttributePduCreator )(const DtPduWithAttributeRecordSets , void )
	Function prototype for functions that create DtAggregateStateRepositories. More...

Public Member Functions
	DtAggregatePublisher (DtAggregateStateRepository stateRepToUse, DtExerciseConn conn, const DtObjectId &id=DtObjectId::nullId())
	constructor More...

	DtAggregatePublisher (DtExerciseConn *conn, const DtObjectId &id=DtObjectId::nullId())
	constructor More...

	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, const DtObjectId &id=DtObjectId::defaultId())
	constructor The default is = (-1,-1,-1) More...

	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, DtDeadReckonTypes algorithm, DtForceType forceId, const DtObjectId &id=DtObjectId::defaultId())
	constructor The default is = (-1,-1,-1) More...

virtual	~DtAggregatePublisher ()
	destructor More...

virtual void	tick ()
	Tick the publisher. More...

virtual void	forceUpdate ()
	Cause the next tick call to send out the PDU even if its not needed. More...

virtual DtAggregateStateRepository *	aggregateStateRep ()
	Get the aggregate state repository for this aggregate publisher. More...

virtual DtAggregateStateRepository *	asr ()
	Get the aggregate state repository for this aggregate publisher. More...

virtual const DtObjectId &	id () const
	Get the entity's identifier. More...

virtual const DtObjectId &	localId () const
	Get the entity's localId - same as id for DIS. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the global object designator - same as id for DIS. More...

DtTime	entityTypeHeartbeat (int type, int domain)
	Return the heartbeat based on entity Type. More...

Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true)
	Constructor takes an DtExerciseConn which must have a lifetime greater than the ObjectPubliser. More...

virtual	~DtObjectPublisher ()
	Destructor. More...

virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtStateRepository *	sr ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...

virtual void	parallelTick ()
	Tick (update) this object in parallel threads. More...

virtual void	setTimeThreshold (DtTime time)
	Set the heartbeat rate for this object. More...

virtual DtTime	timeThreshold () const
	The heartbeat rate for this object. More...

virtual void	setRelLocTimeThreshold (DtTime time)
	Set the heartbeat rate of relative location updates for this object. More...

virtual DtTime	relLocTimeThreshold () const
	The relative location heartbeat rate for this object. More...

virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...

virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity. More...

virtual DtTime	lastTimeAttrUpdated () const

virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity. More...

virtual void	setUseCustomThreshold (bool useCustom)
	Sets whether or not this object will use a custom threshold value, or the default. More...

virtual bool	useCustomThreshold ()
	Returns whether or not this object will use a custom threshold value, or the default. More...

virtual void	setAttributePduStrategy (DtAttributePduStrategy strat)
	Sets/Gets whether to couple the attribute PDU. More...

virtual DtAttributePduStrategy	attributePduStrategy () const

virtual void	encodeExtensions (DtStateRepository *stateRep, const DtStateRepository &asSeenByRemote)
	Encode State Repository Extensions. Extensions should be added to stateRep attributeRecords. More...

virtual void	decodeExtensions (DtPdu *pdu, const DtStateRepository &stateRep)
	Decode State Repository Extensions. More...

DtNonCoupledAttributePduCreator	setNonCoupledAttributePduCreator (DtNonCoupledAttributePduCreator creator)
	Give us a function to be used for creating non-coupled Attribute PDUs. More...

DtNonCoupledAttributePduCreator	nonCoupledAttributePduCreator (void)

Static Public Member Functions
static void	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

static DtStateRepCreator	setStateRepCreator (void)

static void	setClassDfltTimeThreshold (DtTime threshold)

static void	setStationaryDfltTimeThreshold (DtTime threshold)

static void	setEntityTypeDfltTimeThreshold (int type, int domain, DtTime threshold)

Static Public Member Functions inherited from DtObjectPublisher
static void	setDfltTimeThreshold (DtTime time)
	Set the default heartbeat rate. More...

static DtTime	dfltTimeThreshold ()
	The default heartbeat rate, see setDfltTimeThreshold(). More...

static void	setDfltRelLocTimeThreshold (DtTime time)
	Set the default heartbeat rate for relative location updates. More...

static DtTime	dfltRelLocTimeThreshold ()
	The default heartbeat rate for relative location updates, see setDfltRelLocTimeThreshold() More...

static DtNonCoupledAttributePduCreator	setDefaultNonCoupledAttributePduCreator (DtNonCoupledAttributePduCreator creator)
	Give us a function to be used for creating non-coupled Attribute PDUs. More...

static DtNonCoupledAttributePduCreator	defaultNonCoupledAttributePduCreator (void)

Protected Member Functions
void	init (const DtEntityIdentifier &vehId)
	Not virtual since called from constructor. More...

	DtAggregatePublisher (const DtAggregatePublisher &orig)
	copy constructor – Not Implemented More...

DtAggregatePublisher &	operator= (const DtAggregatePublisher &orig)
	assignment operator – Not Implemented More...

Protected Member Functions inherited from DtObjectPublisher
virtual void	send (DtPdu *pdu) const
	Puts the PDU on the network and updates timestamps. More...

Protected Attributes
DtObjectId	myId

DtAggregateStateDecoder *	myAggregateDecoder

DtAggregateStateEncoder *	myAggregateEncoder

DtRelativeLocationPdu	myLastSentRelLocPdu

DtTime	myLastSentRelLocPduTime

Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn

DtStateRepository *	myStateRep

DtStateRepository *	myAsSeenByRemote

bool	myOkToDeleteStateRepFlag

bool	myUseCustomThreshold

DtTime	myTimeThreshold
	Time threshold for the heartbeat rate. More...

DtTime	myRelLocTimeThreshold
	Time threshold for heartbeat rate of relative location updates (only for embarked/attached entities) More...

DtTime	mySimTimeLastUpdate
	Set in const send() method. More...

DtTime	myRealTimeLastUpdate
	Set in const send() method. More...

DtTime	myRealTimeLastAttrUpdate

DtNonCoupledAttributePduCreator	myNonCoupledAttributePduCreator

DtAttributePduStrategy	myAttributePduStrategy

std::vector < DtStateRepositoryExtensionEncoder * >	myStateRepositoryExtensionEncoderList

std::vector < DtStateRepositoryExtensionDecoder * >	myStateRepositoryExtensionDecoderList

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

static DtTime	theClassDfltTimeThreshold

static bool	theClassDfltIsSetFlag

static DtTime	theStationaryDfltTimeThreshold

static bool	theStationaryDfltIsSetFlag

static std::map< std::pair < int, int >, DtTime >	theEntityTypeHeartbeat

Static Protected Attributes inherited from DtObjectPublisher
static DtNonCoupledAttributePduCreator	theDefaultNonCoupledAttributePduCreator

static DtTime	theDfltTimeThreshold

static DtTime	theDfltRelLocTimeThreshold

Detailed Description

Instances of DtAggregatePublisher are used to take care of the details associated with publishing the state of an aggregate.

Member Typedef Documentation

typedef DtAggregateStateRepository*(* DtAggregatePublisher::DtStateRepCreator)()

Function prototype for functions that create DtAggregateStateRepositories.

Constructor & Destructor Documentation

DtAggregatePublisher::DtAggregatePublisher	(	DtAggregateStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const DtObjectId &	id = `DtObjectId::nullId()`
	)

constructor

DtAggregatePublisher::DtAggregatePublisher	(	DtExerciseConn *	conn,
		const DtObjectId &	id = `DtObjectId::nullId()`
	)

constructor

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		const DtObjectId &	id = `DtObjectId::defaultId()`
	)

constructor The default is = (-1,-1,-1)

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		const DtObjectId &	id = `DtObjectId::defaultId()`
	)

constructor The default is = (-1,-1,-1)

virtual DtAggregatePublisher::~DtAggregatePublisher ( )

virtual

destructor

DtAggregatePublisher::DtAggregatePublisher ( const DtAggregatePublisher & orig )

protected

copy constructor – Not Implemented

Member Function Documentation

virtual DtAggregateStateRepository* DtAggregatePublisher::aggregateStateRep ( )

virtual

Get the aggregate state repository for this aggregate publisher.

DtAggregateStateRepository * DtAggregatePublisher::asr ( )

inlinevirtual

Get the aggregate state repository for this aggregate publisher.

References DtObjectPublisher::myStateRep.

DtTime DtAggregatePublisher::entityTypeHeartbeat	(	int	type,
		int	domain
	)

Return the heartbeat based on entity Type.

virtual void DtAggregatePublisher::forceUpdate ( )

virtual

Cause the next tick call to send out the PDU even if its not needed.

Implements DtObjectPublisher.

virtual const DtGlobalObjectDesignator& DtAggregatePublisher::globalId ( ) const

virtual

Get the global object designator - same as id for DIS.

Implements DtObjectPublisher.

virtual const DtObjectId& DtAggregatePublisher::id ( ) const

virtual

Get the entity's identifier.

Implements DtObjectPublisher.

Referenced by localId().

void DtAggregatePublisher::init ( const DtEntityIdentifier & vehId )

protected

Not virtual since called from constructor.

const DtObjectId & DtAggregatePublisher::localId ( ) const

inlinevirtual

Get the entity's localId - same as id for DIS.

Implements DtObjectPublisher.

References id().

DtAggregatePublisher& DtAggregatePublisher::operator= ( const DtAggregatePublisher & orig )

protected

assignment operator – Not Implemented

static void DtAggregatePublisher::setClassDfltTimeThreshold ( DtTime threshold )

static

static void DtAggregatePublisher::setEntityTypeDfltTimeThreshold	(	int	type,
		int	domain,
		DtTime	threshold
	)

static

static void DtAggregatePublisher::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

static DtStateRepCreator DtAggregatePublisher::setStateRepCreator ( void )

static

static void DtAggregatePublisher::setStationaryDfltTimeThreshold ( DtTime threshold )

static

virtual void DtAggregatePublisher::tick ( )

virtual

Tick the publisher.

Implements DtObjectPublisher.

Member Data Documentation

DtAggregateStateDecoder* DtAggregatePublisher::myAggregateDecoder

protected

DtAggregateStateEncoder* DtAggregatePublisher::myAggregateEncoder

protected

DtObjectId DtAggregatePublisher::myId

protected

DtRelativeLocationPdu DtAggregatePublisher::myLastSentRelLocPdu

protected

DtTime DtAggregatePublisher::myLastSentRelLocPduTime

protected

bool DtAggregatePublisher::theClassDfltIsSetFlag

staticprotected

DtTime DtAggregatePublisher::theClassDfltTimeThreshold

staticprotected

std::map<std::pair<int,int>,DtTime> DtAggregatePublisher::theEntityTypeHeartbeat

staticprotected

DtStateRepCreator DtAggregatePublisher::theStateRepCreator

staticprotected

bool DtAggregatePublisher::theStationaryDfltIsSetFlag

staticprotected

DtTime DtAggregatePublisher::theStationaryDfltTimeThreshold

staticprotected

The documentation for this class was generated from the following file:

aggregatePublisherDIS.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
