DtBaseReflectedAggregate Class Reference

DtBaseReflectedAggregate is an abstract base class. More...

Inheritance diagram for DtBaseReflectedAggregate:

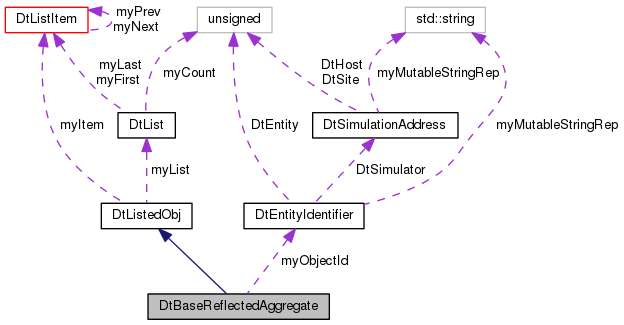

Collaboration diagram for DtBaseReflectedAggregate:

Public Member Functions
virtual	~DtBaseReflectedAggregate ()
	destructor More...
DtBaseReflectedAggregate &	operator= (const DtBaseReflectedAggregate &orig)
	assignment operator More...
virtual DtAggregateStateRepository *	aggregateStateRep () const =0
	Get the aggregate's state repository. More...
virtual const DtObjectId &	id () const
	Get the aggregate's identifier. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Protected Member Functions
	DtBaseReflectedAggregate (const DtObjectId &id)
	Constructors are protected since this is an abstract base class. More...
	DtBaseReflectedAggregate (const DtBaseReflectedAggregate &orig)
	copy constructor More...

Protected Attributes
DtObjectId	myObjectId
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Detailed Description

DtBaseReflectedAggregate is an abstract base class.

It is used to maintain the representation of a simulation aggregate reflected across a network (i.e. this is not a full simulation running on this machine).

Constructor & Destructor Documentation

virtual DtBaseReflectedAggregate::~DtBaseReflectedAggregate ( )

virtual

destructor

DtBaseReflectedAggregate::DtBaseReflectedAggregate ( const DtObjectId &  id )

protected

Constructors are protected since this is an abstract base class.

constructor

DtBaseReflectedAggregate::DtBaseReflectedAggregate ( const DtBaseReflectedAggregate &  orig )

protected

copy constructor

Member Function Documentation

virtual DtAggregateStateRepository* DtBaseReflectedAggregate::aggregateStateRep ( ) const

pure virtual

Get the aggregate's state repository.

virtual const DtObjectId& DtBaseReflectedAggregate::id ( ) const

virtual

Get the aggregate's identifier.

DtBaseReflectedAggregate& DtBaseReflectedAggregate::operator=

(

const DtBaseReflectedAggregate &

orig

)

assignment operator

Member Data Documentation

DtObjectId DtBaseReflectedAggregate::myObjectId

protected

---

The documentation for this class was generated from the following file:

• baseReflectedAggregate.h
