DtIffCryptoControlRecord Class Reference

Inheritance diagram for DtIffCryptoControlRecord:

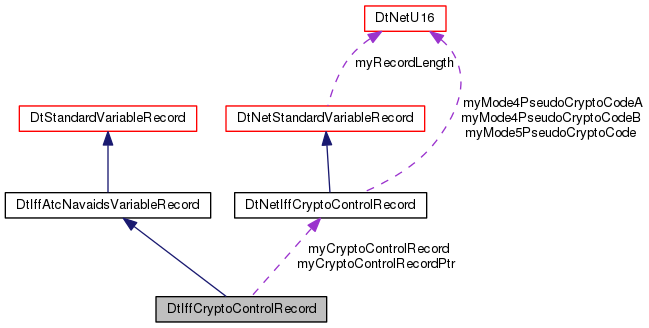

Collaboration diagram for DtIffCryptoControlRecord:

Public Member Functions
	DtIffCryptoControlRecord ()
	Constructor. More...
	DtIffCryptoControlRecord (const DtIffCryptoControlRecord &orig)
	Copy Constructor. More...
	DtIffCryptoControlRecord (void *ptr, unsigned int size)
	Net Constructor. More...
	DtIffCryptoControlRecord (DtNetIffCryptoControlRecord netRecord)
	NetType Constructor. More...
virtual DtIffCryptoControlRecord &	operator= (const DtIffCryptoControlRecord &record)
	Assignment Operator. More...
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &other)
	Assignment operator. More...
virtual bool	operator== (const DtIffCryptoControlRecord &record)
	Equals Operator. More...
virtual bool	operator== (const DtStandardVariableRecord &record)
	Equals Operator. More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual unsigned int	recordType () const
	Setters and Getters for Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Setters and Getters for Record Length. More...
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from Network Representation from the given location. More...
virtual unsigned	unpaddedNetsize () const
	This is the network size of the record without padding. More...
virtual void	setMode5PseudoCryptoCode (DtU16)
	Accessors. More...
virtual DtU16	mode5PseudoCryptoCode () const
virtual void	setMode4PseudoCryptoCodeA (DtU16)
virtual DtU16	mode4PseudoCryptoCodeA () const
virtual void	setMode4PseudoCryptoCodeB (DtU16)
virtual DtU16	mode4PseudoCryptoCodeB () const
Public Member Functions inherited from DtIffAtcNavaidsVariableRecord
	DtIffAtcNavaidsVariableRecord ()
	Constructor. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Create function used by Standard Variable Record Factory. More...

Protected Attributes
DtNetIffCryptoControlRecord	myCryptoControlRecord
DtNetIffCryptoControlRecord *	myCryptoControlRecordPtr
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Constructor & Destructor Documentation

DtIffCryptoControlRecord::DtIffCryptoControlRecord

(

)

Constructor.

DtIffCryptoControlRecord::DtIffCryptoControlRecord

(

const DtIffCryptoControlRecord &

orig

)

Copy Constructor.

DtIffCryptoControlRecord::DtIffCryptoControlRecord	(	void *	ptr,
		unsigned int	size
	)

Net Constructor.

DtIffCryptoControlRecord::DtIffCryptoControlRecord

(

DtNetIffCryptoControlRecord

netRecord

)

NetType Constructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtIffCryptoControlRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtIffCryptoControlRecord::create ( void *  addr, unsigned int  length  )

static

Create function used by Standard Variable Record Factory.

virtual DtU16 DtIffCryptoControlRecord::mode4PseudoCryptoCodeA ( ) const

virtual

virtual DtU16 DtIffCryptoControlRecord::mode4PseudoCryptoCodeB ( ) const

virtual

virtual DtU16 DtIffCryptoControlRecord::mode5PseudoCryptoCode ( ) const

virtual

virtual DtIffCryptoControlRecord& DtIffCryptoControlRecord::operator= ( const DtIffCryptoControlRecord &  record )

virtual

Assignment Operator.

virtual DtStandardVariableRecord& DtIffCryptoControlRecord::operator= ( const DtStandardVariableRecord &  other )

virtual

Assignment operator.

virtual bool DtIffCryptoControlRecord::operator== ( const DtIffCryptoControlRecord &  record )

virtual

Equals Operator.

virtual bool DtIffCryptoControlRecord::operator== ( const DtStandardVariableRecord &  record )

virtual

Equals Operator.

Implements DtStandardVariableRecord.

virtual void DtIffCryptoControlRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtIffCryptoControlRecord::recordLength ( ) const

virtual

Setters and Getters for Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtIffCryptoControlRecord::recordType ( ) const

virtual

Setters and Getters for Record Type.

Implements DtStandardVariableRecord.

virtual void DtIffCryptoControlRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from Network Representation from the given location.

Implements DtStandardVariableRecord.

virtual void DtIffCryptoControlRecord::setMode4PseudoCryptoCodeA ( DtU16  )

virtual

virtual void DtIffCryptoControlRecord::setMode4PseudoCryptoCodeB ( DtU16  )

virtual

virtual void DtIffCryptoControlRecord::setMode5PseudoCryptoCode ( DtU16  )

virtual

Accessors.

virtual void DtIffCryptoControlRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtIffCryptoControlRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

virtual unsigned DtIffCryptoControlRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Implements DtStandardVariableRecord.

virtual void DtIffCryptoControlRecord::writeRecord ( void *  addr ) const

virtual

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetIffCryptoControlRecord DtIffCryptoControlRecord::myCryptoControlRecord

protected

DtNetIffCryptoControlRecord* DtIffCryptoControlRecord::myCryptoControlRecordPtr

protected

---

The documentation for this class was generated from the following file:

• iffCryptoControlRecord.h
