DtIntercomGroupDestRec Class Reference

Instances of DtIntercomGroupDestRec are used to contain the information in the group destination parameter record used by the intercom control PDU class. More...

Inheritance diagram for DtIntercomGroupDestRec:

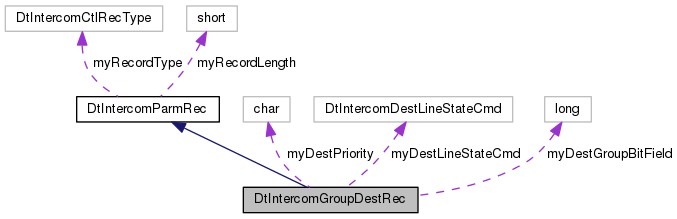

Collaboration diagram for DtIntercomGroupDestRec:

Public Member Functions
	DtIntercomGroupDestRec ()
	Constructors. More...
	DtIntercomGroupDestRec (const DtIntercomGroupDestRec &orig)
virtual	~DtIntercomGroupDestRec ()
	Destructor. More...
DtIntercomGroupDestRec &	operator= (const DtIntercomGroupDestRec &orig)
	Assignment operators. More...
DtIntercomGroupDestRec &	operator= (const DtNetIntercomGroupDestRec &orig)
virtual void	setDestGroupBitField (DtU32 bitField)
	Set/Get the group bit field. More...
virtual DtU32	destGroupBitField () const
virtual void	setDestPriority (DtU8 priority)
	Set/Get the destination priority. More...
virtual DtU8	destPriority () const
virtual void	setDestLineStateCmd (DtIntercomDestLineStateCmd cmd)
	Set/Get the destination line state command. More...
virtual DtIntercomDestLineStateCmd	destLineStateCmd () const
virtual void	print () const
	Print this record. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print this record to a stream. More...
virtual void	unloadNetRecord (const DtNetIntercomGroupDestRec &record)
	Load/Unload data from a packet record. More...
virtual void	loadNetRecord (DtNetIntercomGroupDestRec &record) const
Public Member Functions inherited from DtIntercomParmRec
virtual	~DtIntercomParmRec ()
	Destructor. More...
virtual DtIntercomCtlRecType	recordType () const
	Get the record type. More...
virtual DtU16	recordLength () const
	Get the record length. More...

Protected Attributes
DtU32	myDestGroupBitField
DtU8	myDestPriority
DtIntercomDestLineStateCmd	myDestLineStateCmd
Protected Attributes inherited from DtIntercomParmRec
DtIntercomCtlRecType	myRecordType
	Data members: More...
DtU16	myRecordLength

Additional Inherited Members
Protected Member Functions inherited from DtIntercomParmRec
	DtIntercomParmRec ()
	Constructors. More...
	DtIntercomParmRec (const DtIntercomParmRec &orig)
	DtIntercomParmRec (DtIntercomCtlRecType recordType, int recordLength)
DtIntercomParmRec &	operator= (const DtIntercomParmRec &orig)
	Assignment operator. More...

Detailed Description

Instances of DtIntercomGroupDestRec are used to contain the information in the group destination parameter record used by the intercom control PDU class.

Constructor & Destructor Documentation

DtIntercomGroupDestRec::DtIntercomGroupDestRec

(

)

Constructors.

DtIntercomGroupDestRec::DtIntercomGroupDestRec

(

const DtIntercomGroupDestRec &

orig

)

virtual DtIntercomGroupDestRec::~DtIntercomGroupDestRec ( )

virtual

Destructor.

Member Function Documentation

virtual DtU32 DtIntercomGroupDestRec::destGroupBitField ( ) const

virtual

virtual DtIntercomDestLineStateCmd DtIntercomGroupDestRec::destLineStateCmd ( ) const

virtual

virtual DtU8 DtIntercomGroupDestRec::destPriority ( ) const

virtual

virtual void DtIntercomGroupDestRec::loadNetRecord ( DtNetIntercomGroupDestRec &  record ) const

virtual

DtIntercomGroupDestRec& DtIntercomGroupDestRec::operator=

(

const DtIntercomGroupDestRec &

orig

)

Assignment operators.

DtIntercomGroupDestRec& DtIntercomGroupDestRec::operator=

(

const DtNetIntercomGroupDestRec &

orig

)

virtual void DtIntercomGroupDestRec::print ( ) const

virtual

Print this record.

Reimplemented from DtIntercomParmRec.

virtual void DtIntercomGroupDestRec::printDataToStream ( std::ostream &  stream ) const

virtual

Print this record to a stream.

Reimplemented from DtIntercomParmRec.

virtual void DtIntercomGroupDestRec::setDestGroupBitField ( DtU32  bitField )

virtual

Set/Get the group bit field.

virtual void DtIntercomGroupDestRec::setDestLineStateCmd ( DtIntercomDestLineStateCmd  cmd )

virtual

Set/Get the destination line state command.

virtual void DtIntercomGroupDestRec::setDestPriority ( DtU8  priority )

virtual

Set/Get the destination priority.

virtual void DtIntercomGroupDestRec::unloadNetRecord ( const DtNetIntercomGroupDestRec &  record )

virtual

Load/Unload data from a packet record.

Member Data Documentation

DtU32 DtIntercomGroupDestRec::myDestGroupBitField

protected

DtIntercomDestLineStateCmd DtIntercomGroupDestRec::myDestLineStateCmd

protected

DtU8 DtIntercomGroupDestRec::myDestPriority

protected

---

The documentation for this class was generated from the following file:

• intercomGroupDestRec.h
