Instances of this class provide a protocol independent interface to a list of underwater acoustics objects in a DIS environment. More...

Inheritance diagram for DtReflectedUnderwaterAcousticsList:

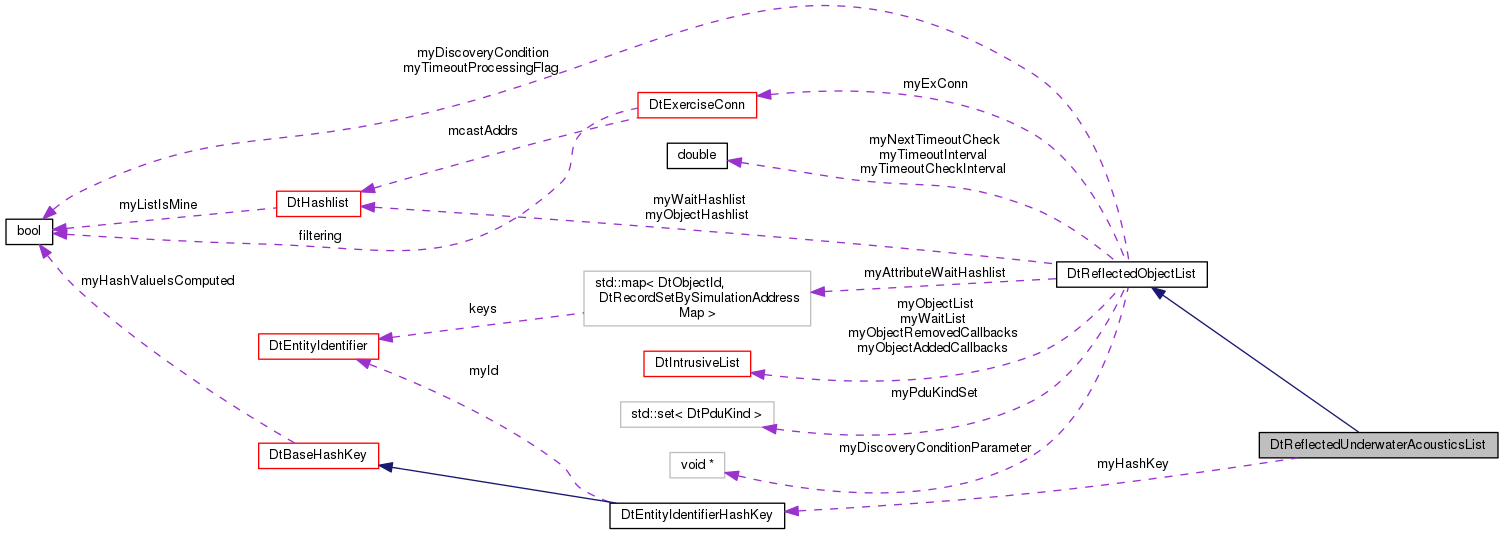

Collaboration diagram for DtReflectedUnderwaterAcousticsList:

Public Member Functions
	DtReflectedUnderwaterAcousticsList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...

virtual	~DtReflectedUnderwaterAcousticsList ()
	Destructor. More...

virtual DtReflectedUnderwaterAcoustics *	lookup (const DtGlobalObjectDesignator &hostEntity) const
	Lookup an underwater acoustics object from the object ID of its host entity and its acoustic identifier. More...

virtual DtReflectedUnderwaterAcoustics *	first () const
	Get the first and last elements of the reflected underwater acoustics list. More...

virtual DtReflectedUnderwaterAcoustics *	last () const

virtual void	addUnderwaterAcousticsAdditionCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)
	Underwater acoustics addition callback registration/deregistration. More...

virtual void	removeUnderwaterAcousticsAdditionCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)

virtual void	addUnderwaterAcousticsRemovalCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)
	Active Sonar remove callback registration/deregistration. More...

virtual void	removeUnderwaterAcousticsRemovalCallback (DtUnderwaterAcousticsCallbackFunction cb, void *userData)

virtual void	print () const
	Print the SRs of all reflected active sonar. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the SRs to a stream. More...

Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...

virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete More...

virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU. More...

virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...

virtual DtReflectedObject *	lastObj () const

virtual int	count () const
	Get number of objects. More...

virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object. More...

virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...

virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...

virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...

virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...

virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...

virtual DtTime	timeoutInterval ()

virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref. More...

virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...

virtual void	removeAndDelete (DtReflectedObject obj, char msg=NULL)
	Remove the remote object from the list if found and delete it. More...

virtual void	removeObject (DtReflectedObject *obj)
	This is the same as removeAndDelete, it exists to maintain equality with HLA objects. More...

virtual DtTime	timeoutCheckInterval () const

virtual void	setTimeoutCheckInterval (DtTime interval)

Protected Member Functions
virtual DtReflectedUnderwaterAcoustics *	newReflectedUnderwaterAcoustics (const DtEntityIdentifier &hostEntity)
	Creates a new reflected underwater acoustics object. More...

virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Creates a a new object. Calls newReflectedPropulsionNoise to do so. More...

virtual void	objectAdded (DtReflectedObject *obj)
	Called after a reflected underwater acoustics object is added to the list and before addition callbacks are processed. More...

const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *)
	Overrides the base class implementation. More...

	DtReflectedUnderwaterAcousticsList (const DtReflectedUnderwaterAcousticsList &)
	Copy constructor – Not Implemented. More...

DtReflectedUnderwaterAcousticsList &	operator= (const DtReflectedUnderwaterAcousticsList &)
	Assignment operator – Not Implemented. More...

Protected Member Functions inherited from DtReflectedObjectList
virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. More...

virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...

virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...

void	emptyLists ()
	Empty the object list and the timeout list. More...

void	emptyCallbackLists ()

virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...

virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)

virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set. More...

virtual int	acceptPdu (const DtStateMsg &) const
	Determines if a PDU should be processed or not. More...

virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within. More...

virtual void	processAttributePduCb (DtAttributeInteraction *inter)

virtual void	processAttributePduRecordSet (const DtAttributeRecordSet &recordSet, const DtSimulationAddress &simAddr, DtReflectedObject *obj=0)

virtual void	processAttributePduWaitListCb (DtReflectedObject *obj)

virtual void	deleteRecordSetBySimulationAddressMap (DtRecordSetBySimulationAddressMap &recordSetMap, const DtSimulationAddress &simAddr=DtSimulationAddress()) const

Static Protected Member Functions
static void	underwaterAcousticCb (DtUnderwaterAcousticPdu pdu, void usr)
	Callback for the exercise connection. More...

Static Protected Member Functions inherited from DtReflectedObjectList
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...

static void	processAttributePduCb (DtAttributeInteraction inter, void usr)

static void	processAttributePduWaitListCb (DtReflectedObject obj, void userData)

Protected Attributes
DtObjectIdHashKey	myHashKey

Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn

DtIntrusiveList	myObjectAddedCallbacks

DtIntrusiveList	myObjectRemovedCallbacks

DtIntrusiveList	myObjectList

DtIntrusiveList	myWaitList

DtHashlist	myObjectHashlist

DtHashlist	myWaitHashlist

DtAttributesByObjectIdMap	myAttributeWaitHashlist

DtTime	myTimeoutInterval

DtTime	myNextTimeoutCheck

DtTime	myTimeoutCheckInterval

bool	myTimeoutProcessingFlag

DtDiscoveryCondition	myDiscoveryCondition

void *	myDiscoveryConditionParameter

std::set< DtPduKind >	myPduKindSet

Detailed Description

Instances of this class provide a protocol independent interface to a list of underwater acoustics objects in a DIS environment.

Constructor & Destructor Documentation

DtReflectedUnderwaterAcousticsList::DtReflectedUnderwaterAcousticsList	(	DtExerciseConn *	exConn,
		int	numBucketsPrimeNumber = `503`
	)

Constructor.

virtual DtReflectedUnderwaterAcousticsList::~DtReflectedUnderwaterAcousticsList ( )

virtual

Destructor.

DtReflectedUnderwaterAcousticsList::DtReflectedUnderwaterAcousticsList ( const DtReflectedUnderwaterAcousticsList & )

protected

Copy constructor – Not Implemented.

Member Function Documentation

virtual void DtReflectedUnderwaterAcousticsList::addUnderwaterAcousticsAdditionCallback	(	DtUnderwaterAcousticsCallbackFunction	cb,
		void *	userData
	)

virtual

Underwater acoustics addition callback registration/deregistration.

virtual void DtReflectedUnderwaterAcousticsList::addUnderwaterAcousticsRemovalCallback	(	DtUnderwaterAcousticsCallbackFunction	cb,
		void *	userData
	)

virtual

Active Sonar remove callback registration/deregistration.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::first ( ) const

virtual

Get the first and last elements of the reflected underwater acoustics list.

const DtBaseHashKey& DtReflectedUnderwaterAcousticsList::hashKeyFromStateMessage ( const DtStateMsg * )

protectedvirtual

Overrides the base class implementation.

Generates a corresponding key from a Underwater Acoustic PDU. Returns an instance of 'DtSystemHashKey'. Note: the instance of the generated key is valid only until the next call to this method, or until the class instance itself goes out of scope (whichever is shorter).

Implements DtReflectedObjectList.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::last ( ) const

virtual

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::lookup ( const DtGlobalObjectDesignator & hostEntity ) const

virtual

Lookup an underwater acoustics object from the object ID of its host entity and its acoustic identifier.

virtual DtReflectedObject* DtReflectedUnderwaterAcousticsList::newReflectedObj ( const DtStateMsg & msg )

protectedvirtual

Creates a a new object. Calls newReflectedPropulsionNoise to do so.

Implements DtReflectedObjectList.

virtual DtReflectedUnderwaterAcoustics* DtReflectedUnderwaterAcousticsList::newReflectedUnderwaterAcoustics ( const DtEntityIdentifier & hostEntity )

protectedvirtual

Creates a new reflected underwater acoustics object.

Called by processStateMessage(). Override this to change the creation of new DtReflectedUnderwaterAcousticss.

virtual void DtReflectedUnderwaterAcousticsList::objectAdded ( DtReflectedObject * obj )

protectedvirtual

Called after a reflected underwater acoustics object is added to the list and before addition callbacks are processed.

Right now, it only calls DtInfo.

Reimplemented from DtReflectedObjectList.

DtReflectedUnderwaterAcousticsList& DtReflectedUnderwaterAcousticsList::operator= ( const DtReflectedUnderwaterAcousticsList & )

protected

Assignment operator – Not Implemented.

virtual void DtReflectedUnderwaterAcousticsList::print ( ) const

virtual

Print the SRs of all reflected active sonar.

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedUnderwaterAcousticsList::printDataToStream ( std::ostream & stream ) const

virtual

Print the SRs to a stream.

virtual void DtReflectedUnderwaterAcousticsList::removeUnderwaterAcousticsAdditionCallback	(	DtUnderwaterAcousticsCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedUnderwaterAcousticsList::removeUnderwaterAcousticsRemovalCallback	(	DtUnderwaterAcousticsCallbackFunction	cb,
		void *	userData
	)

virtual

static void DtReflectedUnderwaterAcousticsList::underwaterAcousticCb	(	DtUnderwaterAcousticPdu *	pdu,
		void *	usr
	)

staticprotected

Callback for the exercise connection.

Member Data Documentation

DtObjectIdHashKey DtReflectedUnderwaterAcousticsList::myHashKey

protected

The documentation for this class was generated from the following file:

reflectedUnderwaterAcousticsListDIS.h
