DtThresholder Class Reference

Instances of DtThresholder store thresholding information used to determine what attributes of an entity need to be updated. More...

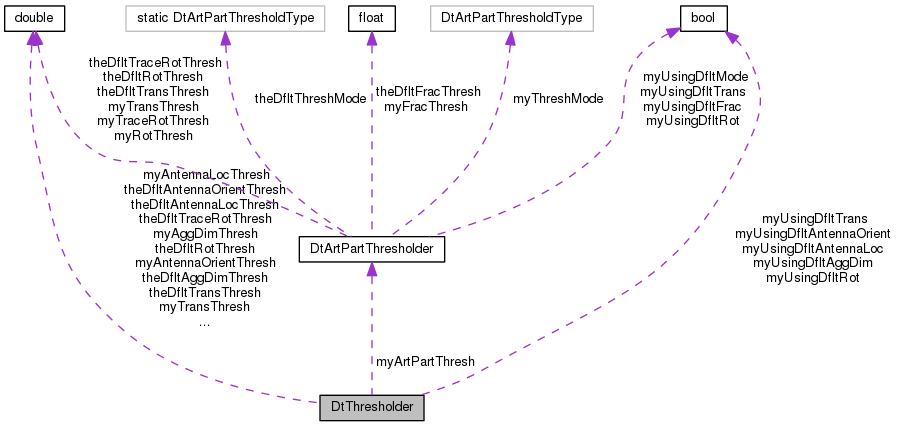

Collaboration diagram for DtThresholder:

Public Member Functions
	DtThresholder ()
	default constructor More...
virtual	~DtThresholder ()
	destructor More...
	DtThresholder (const DtThresholder &orig)
	copy constructor More...
DtThresholder &	operator= (const DtThresholder &orig)
	assignment operator More...
virtual void	setRotationThreshold (double thresh)
	Set/Get rotation threshold in radians. More...
virtual double	rotationThreshold () const
virtual double	rotationTraceThreshold () const
	Returns the "RotationTrace" threshold. More...
virtual void	setTranslationThreshold (double thresh)
	Set/Get translation threshold in meters. More...
virtual double	translationThreshold () const
virtual double	translationThresholdSquared () const
virtual void	setAggDimensionThreshold (double thresh)
	Set/Get aggregate dimension threshold. More...
virtual double	aggDimensionThreshold () const
virtual void	setAntennaLocationThreshold (double thresh)
	Set/Get the antenna location threshold for radio transmitters' world location. More...
virtual double	antennaLocationThreshold () const
virtual void	setAntennaOrientationThreshold (double thresh)
	Set/get the antenna orientation threshold for radio transmitters' orientation (as specified in the antenna pattern data). More...
virtual double	antennaOrientationThreshold () const
virtual DtArtPartThresholder *	artPartThresholder ()
	Returns a pointer to an object that maintains thresholds for articulated parts. More...
virtual const DtArtPartThresholder &	artPartThresholder () const

Static Public Member Functions
static void	setDfltTranslationThreshold (double thresh)
	Set/Get default translation threshold in radians. More...
static double	dfltTranslationThreshold ()
static void	setDfltRotationThreshold (double thresh)
	Set/Get default rotation threshold in radians. More...
static double	dfltRotationThreshold ()
static double	dfltRotationTraceThreshold ()
	Returns the "RotationTrace" threshold. More...
static void	setDfltAggDimensionThreshold (double thresh)
	Set/Get aggregate dimension threshold. More...
static double	dfltAggDimensionThreshold ()
static void	setDfltAntennaLocationThreshold (double thresh)
	Set/Get the default antenna location threshold for radio transmitters' world location. More...
static double	dfltAntennaLocationThreshold ()
static void	setDfltAntennaOrientationThreshold (double thresh)
	Set/get the antenna orientation threshold for radio transmitters' orientation (as specified in the antenna pattern data). More...
static double	dfltAntennaOrientationThreshold ()

Protected Attributes
double	myTransThresh
double	myTransThreshSquared
double	myRotThresh
double	myTraceRotThresh
double	myAggDimThresh
double	myAntennaLocThresh
double	myAntennaOrientThresh
bool	myUsingDfltTrans
bool	myUsingDfltRot
bool	myUsingDfltAggDim
bool	myUsingDfltAntennaLoc
bool	myUsingDfltAntennaOrient
DtArtPartThresholder	myArtPartThresh

Static Protected Attributes
static double	theDfltTransThresh
static double	theDfltRotThresh
static double	theDfltTraceRotThresh
static double	theDfltAggDimThresh
static double	theDfltAntennaLocThresh
static double	theDfltAntennaOrientThresh

Detailed Description

Instances of DtThresholder store thresholding information used to determine what attributes of an entity need to be updated.

Constructor & Destructor Documentation

DtThresholder::DtThresholder

(

)

default constructor

virtual DtThresholder::~DtThresholder ( )

virtual

destructor

DtThresholder::DtThresholder

(

const DtThresholder &

orig

)

copy constructor

Member Function Documentation

virtual double DtThresholder::aggDimensionThreshold ( ) const

virtual

virtual double DtThresholder::antennaLocationThreshold ( ) const

virtual

virtual double DtThresholder::antennaOrientationThreshold ( ) const

virtual

DtArtPartThresholder * DtThresholder::artPartThresholder ( )

inlinevirtual

Returns a pointer to an object that maintains thresholds for articulated parts.

References myArtPartThresh.

const DtArtPartThresholder & DtThresholder::artPartThresholder ( ) const

inlinevirtual

References myArtPartThresh.

double DtThresholder::dfltAggDimensionThreshold ( )

inlinestatic

References theDfltAggDimThresh.

static double DtThresholder::dfltAntennaLocationThreshold ( )

static

static double DtThresholder::dfltAntennaOrientationThreshold ( )

static

double DtThresholder::dfltRotationThreshold ( )

inlinestatic

References theDfltRotThresh.

Referenced by DtEntityPublisher::dfltRotationThreshold(), and setDfltRotationThreshold().

double DtThresholder::dfltRotationTraceThreshold ( )

inlinestatic

Returns the "RotationTrace" threshold.

References theDfltTraceRotThresh.

double DtThresholder::dfltTranslationThreshold ( )

inlinestatic

References theDfltTransThresh.

Referenced by DtEntityPublisher::dfltTranslationThreshold().

DtThresholder& DtThresholder::operator=

(

const DtThresholder &

orig

)

assignment operator

virtual double DtThresholder::rotationThreshold ( ) const

virtual

virtual double DtThresholder::rotationTraceThreshold ( ) const

virtual

Returns the "RotationTrace" threshold.

virtual void DtThresholder::setAggDimensionThreshold ( double  thresh )

virtual

Set/Get aggregate dimension threshold.

Thresh is a number between 0 and 1, indicating the percentage change that an aggregate dimension can undergo before causing an update to be generated. Negative number means use default. Applies only to aggregate entities.

virtual void DtThresholder::setAntennaLocationThreshold ( double  thresh )

virtual

Set/Get the antenna location threshold for radio transmitters' world location.

Thresh is a number that indicates the number of meters in distance that the location of the antenna may change by before another update is sent out. Defaults to 500 meters. A negative number means use default;

virtual void DtThresholder::setAntennaOrientationThreshold ( double  thresh )

virtual

Set/get the antenna orientation threshold for radio transmitters' orientation (as specified in the antenna pattern data).

Thresh is the number of radians by which the orientation may change before another update is sent out. Defaults to 180 degrees. Is only applicable to DIS, by default. A negative number means use default.

void DtThresholder::setDfltAggDimensionThreshold ( double  thresh )

inlinestatic

Set/Get aggregate dimension threshold.

Thresh is a number between 0 and 1, indicating the percentage change that an aggregate dimension can undergo before causing an update to be generated. Applies only to aggregate entities.

References theDfltAggDimThresh.

static void DtThresholder::setDfltAntennaLocationThreshold ( double  thresh )

static

Set/Get the default antenna location threshold for radio transmitters' world location.

Thresh is a number that indicates the number of meters in distance that the location of the antenna may change by before another update is sent out. Defaults to 500 meters.

static void DtThresholder::setDfltAntennaOrientationThreshold ( double  thresh )

static

Set/get the antenna orientation threshold for radio transmitters' orientation (as specified in the antenna pattern data).

Thresh is the number of radians by which the orientation may change before another update is sent out. Defaults to 180 degrees. Is only applicable to DIS, by default.

void DtThresholder::setDfltRotationThreshold ( double  thresh )

inlinestatic

Set/Get default rotation threshold in radians.

References dfltRotationThreshold(), DtLimit(), M_PI, theDfltRotThresh, and theDfltTraceRotThresh.

Referenced by DtEntityPublisher::setDfltRotationThreshold().

void DtThresholder::setDfltTranslationThreshold ( double  thresh )

inlinestatic

Set/Get default translation threshold in radians.

References theDfltTransThresh.

Referenced by DtEntityPublisher::setDfltTranslationThreshold().

virtual void DtThresholder::setRotationThreshold ( double  thresh )

virtual

Set/Get rotation threshold in radians.

Negative number means use default.

virtual void DtThresholder::setTranslationThreshold ( double  thresh )

virtual

Set/Get translation threshold in meters.

Negative number means use default.

virtual double DtThresholder::translationThreshold ( ) const

virtual

virtual double DtThresholder::translationThresholdSquared ( ) const

virtual

Member Data Documentation

double DtThresholder::myAggDimThresh

protected

double DtThresholder::myAntennaLocThresh

protected

double DtThresholder::myAntennaOrientThresh

protected

DtArtPartThresholder DtThresholder::myArtPartThresh

protected

Referenced by artPartThresholder().

double DtThresholder::myRotThresh

protected

double DtThresholder::myTraceRotThresh

protected

double DtThresholder::myTransThresh

protected

double DtThresholder::myTransThreshSquared

protected

bool DtThresholder::myUsingDfltAggDim

protected

bool DtThresholder::myUsingDfltAntennaLoc

protected

bool DtThresholder::myUsingDfltAntennaOrient

protected

bool DtThresholder::myUsingDfltRot

protected

bool DtThresholder::myUsingDfltTrans

protected

double DtThresholder::theDfltAggDimThresh

staticprotected

Referenced by dfltAggDimensionThreshold(), and setDfltAggDimensionThreshold().

double DtThresholder::theDfltAntennaLocThresh

staticprotected

double DtThresholder::theDfltAntennaOrientThresh

staticprotected

double DtThresholder::theDfltRotThresh

staticprotected

Referenced by dfltRotationThreshold(), and setDfltRotationThreshold().

double DtThresholder::theDfltTraceRotThresh

staticprotected

Referenced by dfltRotationTraceThreshold(), and setDfltRotationThreshold().

double DtThresholder::theDfltTransThresh

staticprotected

Referenced by dfltTranslationThreshold(), and setDfltTranslationThreshold().

---

The documentation for this class was generated from the following file:

• thresholder.h
