DtUnderwaterAcousticEmitterSystem Class Reference

DtUnderwaterAcousticEmitterSystem is a class which contains information describing the acoustic emitter systems in an underwater acoustics PDU. More...

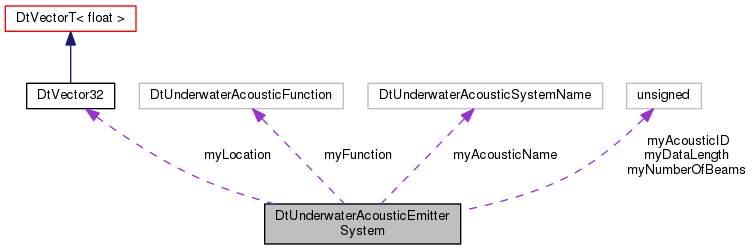

Collaboration diagram for DtUnderwaterAcousticEmitterSystem:

Public Member Functions
	DtUnderwaterAcousticEmitterSystem ()
	Default CTOR. More...
	DtUnderwaterAcousticEmitterSystem (const DtUnderwaterAcousticEmitterSystem &orig)
	Copy CTOR. More...
DtUnderwaterAcousticEmitterSystem &	operator= (const DtUnderwaterAcousticEmitterSystem &orig)
	Assignment operator. More...
DtUnderwaterAcousticEmitterSystem &	operator= (const DtNetUnderwaterAcousticEmitterSystem &orig)
	Assignment operator (from Net struct). More...
virtual	~DtUnderwaterAcousticEmitterSystem ()
	Virtual DTOR. More...
virtual void	setDataLength (DtU8 value)
	Set/Get the data length. More...
virtual DtU8	dataLength () const
virtual void	setNumberOfBeams (DtU8 value)
	Set/Get the number of beams. More...
virtual DtU8	numberOfBeams () const
virtual void	setAcousticName (DtUnderwaterAcousticSystemName name)
	Set/Get the system name. More...
virtual DtUnderwaterAcousticSystemName	acousticName () const
virtual void	setFunction (DtUnderwaterAcousticFunction function)
	Set/Get the function. More...
virtual DtUnderwaterAcousticFunction	function () const
virtual void	setAcousticID (DtU8 id)
	Set/Get the acoustic ID number. More...
virtual DtU8	acousticID () const
virtual void	setLocation (const DtVector32 &coords)
	Set/Get the location. More...
virtual const DtVector32 &	location () const
virtual void	print () const
	Print the information contained in the record. More...
virtual void	printDataToStream (std::ostream &stream) const
virtual void	unloadNetRecord (const DtNetUnderwaterAcousticEmitterSystem &record)
	Load/Unload data from a packet record. More...
virtual void	loadNetRecord (DtNetUnderwaterAcousticEmitterSystem &record) const

Protected Attributes
DtU8	myDataLength
	Data members: More...
DtU8	myNumberOfBeams
DtUnderwaterAcousticSystemName	myAcousticName
DtUnderwaterAcousticFunction	myFunction
DtU8	myAcousticID
DtVector32	myLocation

Detailed Description

DtUnderwaterAcousticEmitterSystem is a class which contains information describing the acoustic emitter systems in an underwater acoustics PDU.

Constructor & Destructor Documentation

DtUnderwaterAcousticEmitterSystem::DtUnderwaterAcousticEmitterSystem

(

)

Default CTOR.

DtUnderwaterAcousticEmitterSystem::DtUnderwaterAcousticEmitterSystem

(

const DtUnderwaterAcousticEmitterSystem &

orig

)

Copy CTOR.

virtual DtUnderwaterAcousticEmitterSystem::~DtUnderwaterAcousticEmitterSystem ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual DtU8 DtUnderwaterAcousticEmitterSystem::acousticID ( ) const

virtual

virtual DtUnderwaterAcousticSystemName DtUnderwaterAcousticEmitterSystem::acousticName ( ) const

virtual

virtual DtU8 DtUnderwaterAcousticEmitterSystem::dataLength ( ) const

virtual

virtual DtUnderwaterAcousticFunction DtUnderwaterAcousticEmitterSystem::function ( ) const

virtual

virtual void DtUnderwaterAcousticEmitterSystem::loadNetRecord ( DtNetUnderwaterAcousticEmitterSystem &  record ) const

virtual

virtual const DtVector32& DtUnderwaterAcousticEmitterSystem::location ( ) const

virtual

virtual DtU8 DtUnderwaterAcousticEmitterSystem::numberOfBeams ( ) const

virtual

DtUnderwaterAcousticEmitterSystem& DtUnderwaterAcousticEmitterSystem::operator=

(

const DtUnderwaterAcousticEmitterSystem &

orig

)

Assignment operator.

DtUnderwaterAcousticEmitterSystem& DtUnderwaterAcousticEmitterSystem::operator=

(

const DtNetUnderwaterAcousticEmitterSystem &

orig

)

Assignment operator (from Net struct).

virtual void DtUnderwaterAcousticEmitterSystem::print ( ) const

virtual

Print the information contained in the record.

virtual void DtUnderwaterAcousticEmitterSystem::printDataToStream ( std::ostream &  stream ) const

virtual

virtual void DtUnderwaterAcousticEmitterSystem::setAcousticID ( DtU8  id )

virtual

Set/Get the acoustic ID number.

virtual void DtUnderwaterAcousticEmitterSystem::setAcousticName ( DtUnderwaterAcousticSystemName  name )

virtual

Set/Get the system name.

virtual void DtUnderwaterAcousticEmitterSystem::setDataLength ( DtU8  value )

virtual

Set/Get the data length.

virtual void DtUnderwaterAcousticEmitterSystem::setFunction ( DtUnderwaterAcousticFunction  function )

virtual

Set/Get the function.

virtual void DtUnderwaterAcousticEmitterSystem::setLocation ( const DtVector32 &  coords )

virtual

Set/Get the location.

virtual void DtUnderwaterAcousticEmitterSystem::setNumberOfBeams ( DtU8  value )

virtual

Set/Get the number of beams.

virtual void DtUnderwaterAcousticEmitterSystem::unloadNetRecord ( const DtNetUnderwaterAcousticEmitterSystem &  record )

virtual

Load/Unload data from a packet record.

Member Data Documentation

DtU8 DtUnderwaterAcousticEmitterSystem::myAcousticID

protected

DtUnderwaterAcousticSystemName DtUnderwaterAcousticEmitterSystem::myAcousticName

protected

DtU8 DtUnderwaterAcousticEmitterSystem::myDataLength

protected

Data members:

DtUnderwaterAcousticFunction DtUnderwaterAcousticEmitterSystem::myFunction

protected

DtVector32 DtUnderwaterAcousticEmitterSystem::myLocation

protected

DtU8 DtUnderwaterAcousticEmitterSystem::myNumberOfBeams

protected

---

The documentation for this class was generated from the following file:

• underwaterAcousticEmitterSystem.h
