DtAcousticTransientInteraction Class Reference

Instances of DtAcousticTransientInteraction are used to represent AcousticTransient Interactions in the RPR FOM. More...

Inheritance diagram for DtAcousticTransientInteraction:

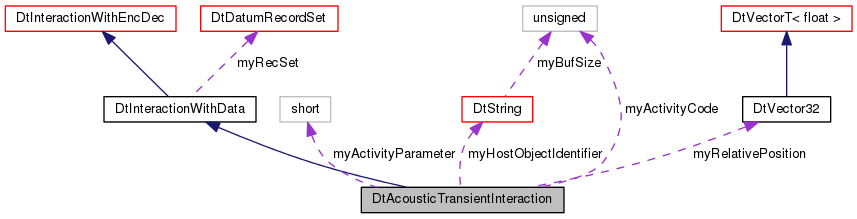

Collaboration diagram for DtAcousticTransientInteraction:

Public Member Functions
	DtAcousticTransientInteraction ()
	CTOR. More...
	DtAcousticTransientInteraction (const DtAcousticTransientInteraction &orig)
	Copy CTOR. More...
virtual	~DtAcousticTransientInteraction ()
	Virtual DTOR. More...
DtAcousticTransientInteraction &	operator= (const DtAcousticTransientInteraction &orig)
	Assignment operator. More...
virtual const char *	name () const
	Name of the interaction (Not necessarily the ClassName from the FOM). More...
virtual void	setActivityCode (DtU16 code)
	Set/Get Activity Code. More...
virtual DtU16	activityCode () const
virtual void	setActivityParameter (DtInt16 param)
	Set/Get Activity Parameter. More...
virtual DtInt16	activityParameter () const
virtual void	setHostObjectId (const DtGlobalObjectDesignator &id)
	Set/Get Host Object Identifier. More...
virtual const DtGlobalObjectDesignator &	hostObjectId () const
virtual void	setRelativePosition (const DtVector32 &pos)
	Set/Get Relative Position. More...
virtual const DtVector32 &	relativePosition () const
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream. More...
virtual void	printData () const
	Print the interaction's data to DtInfo. More...
Public Member Functions inherited from DtInteractionWithData
	DtInteractionWithData ()
	default constructor More...
virtual	~DtInteractionWithData ()
	destructor More...
	DtInteractionWithData (const DtInteractionWithData &orig)
	copy constructor More...
DtInteractionWithData &	operator= (const DtInteractionWithData &orig)
	assignment operator More...
virtual int	numFixedFields () const
virtual int	numVarFields () const
	Returns number of variable length fields. More...
virtual DtDatumParam	varDatumId (int index) const
	Returns the datum param found in the index'th variable datum record. More...
virtual void	setVarDatumId (int index, DtDatumParam id, DtDatumRetCode *retcode=0)
virtual DtDatumParam	fixedDatumId (int index) const
	Returns the datum param found in the index'th fixed datum record. More...
virtual void	setFixedDatumId (int index, DtDatumParam id, DtDatumRetCode *retcode=0)
virtual DtDatumParam	datumId (DtDatumRecordType fixedOrVar, int index) const
	Returns the datum param found in the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar. More...
virtual int	datumSizeBits (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bits of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar. More...
virtual int	datumSizeBytes (DtDatumRecordType fixedOrVar, int index) const
	Returns the number of bytes of data contained in the value fields of the index'th fixed or variable datum record, depending on whether fixedOrVar is DtFixed or DtVar. More...
virtual void	getIndex (DtDatumParam param, DtDatumRecordType *fixedOrVar, int *index, DtDatumRetCode *retcode=0) const
	Looks through all fixed and variable records for one containing param as the parameter ID. More...
virtual DtFloat32	datumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
	******* INSPECTING DATUM VALUES BY INDEX ********* If you know the data type of the value contained in a particular record, use one of the following to return it. More...
virtual DtFloat64	datumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
virtual unsigned long	datumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
virtual long	datumValInt32 (DtDatumRecordType fixedOrVar, int index, DtDatumRetCode *retcode=0) const
virtual const char *	datumValByteArray (DtDatumRecordType fixedOrVar, int index) const
virtual DtFloat32	datumValFloat32 (DtDatumParam param, DtDatumRetCode *retcode=0) const
	******* INSPECTING DATUM VALUES BY PARAM ID ********* If you know the data type of the value contained in a particular record, use one of the following to return it. More...
virtual DtFloat64	datumValFloat64 (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual unsigned long	datumValUnsigned32 (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual long	datumValInt32 (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual const char *	datumValByteArray (DtDatumParam param, DtDatumRetCode *retcode=0) const
virtual void	initDataSection (const DtDatumParam *fixedParams, const DtVarDatumSpec *specList)
	****************** MUTATOR FUNCTIONS ****************** More...
virtual void	setNumFixedFields (int newNum)
	Sets the number of fixed or variable fields to newNum. More...
virtual void	setNumVarFields (int newNum)
virtual void	setDatumParam (DtDatumRecordType fixedOrVar, int index, DtDatumParam param, DtDatumRetCode *retcode=0)
	Set the datum ID in the index'th fixed or variable datum record to param, depending on whether fixedOrVar is DtFixed or DtVar. More...
virtual void	setVarDataBytes (int index, int length, DtDatumRetCode *retcode=0)
	Allocates length bytes for the index'th variable datum record. More...
virtual void	setDatumValFloat64 (DtDatumRecordType fixedOrVar, int index, DtFloat64 val, DtDatumRetCode *retcode=0)
	******* SETTING DATA VALUES BY INDEX ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data. More...
virtual void	setDatumValFloat32 (DtDatumRecordType fixedOrVar, int index, DtFloat32 val, DtDatumRetCode *retcode=0)
virtual void	setDatumValInt32 (DtDatumRecordType fixedOrVar, int index, long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValUnsigned32 (DtDatumRecordType fixedOrVar, int index, unsigned long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValByteArray (DtDatumRecordType fixedOrVar, int index, const char *val, DtDatumRetCode *retcode=0)
virtual void	setDatumValFloat64 (DtDatumParam param, DtFloat64 val, DtDatumRetCode *retcode=0)
	****** SETTING DATA VALUES BY PARAM ID ********* Use one of the following to set the data value in a fixed or variable datum record, depending on the data type of your data. More...
virtual void	setDatumValFloat32 (DtDatumParam param, DtFloat32 val, DtDatumRetCode *retcode=0)
virtual void	setDatumValInt32 (DtDatumParam param, long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValUnsigned32 (DtDatumParam param, unsigned long val, DtDatumRetCode *retcode=0)
virtual void	setDatumValByteArray (DtDatumParam param, const char *val, DtDatumRetCode *retcode=0)
virtual DtDatumRecordSet *	datumRecSet ()
	Return the DtDatumRecordSet which an InteractionWithData uses to store its fixed and var records. More...
virtual const DtDatumRecordSet *	datumRecSet () const
Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor More...
virtual	~DtInteractionWithEncDec ()
	destructor More...
	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor More...
DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator More...
virtual void	setExConn (DtExerciseConn *exConn, DtInterClassDesc *classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor. More...
virtual const RTI::ParameterHandleValuePairSet &	phvps () const
	Get the parameter handle value pair set for the interaction. More...
virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Set contents from a parameter handle value pair set. More...
virtual void	useThese (DtInteractionEncoder *enc, DtInteractionDecoder *dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding. More...
virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using. More...
virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using. More...
virtual void	setParameterByHandle (const RTI::ParameterHandle &attrHdl, const char *attrValue, unsigned size)
	Set the Parameter with the given handle. More...
virtual const char *	getParameterByHandle (const RTI::ParameterHandle &attrHdl, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given handle. More...
virtual void	setParameterByName (const DtString &name, const char *attrValue, unsigned size)
	Set the Parameter with the given name. More...
virtual const char *	getParameterByName (const DtString &name, unsigned &size) const
	Get a pointer to Parameter value for the Parameter with the given name. More...
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...
virtual	~DtInteraction ()
	destructor More...
	DtInteraction (const DtInteraction &orig)
	copy constructor More...
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...
virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc. More...
virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc. More...
virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc. More...
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise. More...
virtual void	print () const
	Print the interaction's host rep data, including header. More...
virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream. More...
virtual void	printHeader () const
	Print the header info. More...
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream. More...
virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided. More...
virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters. More...
virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream. More...
virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection. More...
virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction. More...
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not. More...
virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag. More...
virtual void	setTag (const DtString &tag)
	Set the user-defined tag. More...
virtual const DtString &	tag () const
	Get the user-defined tag. More...
virtual const RTI::Region *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message. More...
virtual void	setConveyedRegion (const RTI::Region *region)
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time. More...
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp. More...
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp. More...
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...
virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions. More...
virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set. More...
virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle. More...
virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle. More...

Static Public Member Functions
static DtInteraction *	create ()
	Create method. More...
static void	addCallback (DtExerciseConn *conn, DtAcousticTransientInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register) function to be called when interaction occurs. More...
static void	removeCallback (DtExerciseConn *conn, DtAcousticTransientInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Remove (deregister) function to be called when interaction occurs. More...
Static Public Member Functions inherited from DtInteraction
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp. More...
static bool	tagIsAsciiTime ()
static void	addCallback (DtExerciseConn *conn, const std::vector< DtString > *classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes. More...
static void	removeCallback (DtExerciseConn *conn, const std::vector< DtString > *classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
static void	addCallback (DtExerciseConn *conn, const char *className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class. More...
static void	removeCallback (DtExerciseConn *conn, const char *className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Attributes
DtU16	myActivityCode
DtInt16	myActivityParameter
DtGlobalObjectDesignator	myHostObjectIdentifier
DtVector32	myRelativePosition
Protected Attributes inherited from DtInteractionWithData
DtDatumRecordSet	myRecSet
Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder
DtInteractionEncoder *	myEncoder
DtInteractionRep *	myData
std::map< RTI::ParameterHandle, DtGenericParameterInfo * >	myParametersByHandle
	parameters by handle. More...
Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc
DtExerciseConn *	myExConn
DtTime	myTime
DtTimeStampType	myTimeType
DtString	myTag
RTI::ParameterHandleValuePairSet *	myPvList
int	myPvListMaxSize
RTI::FedTime *	myFedTime
RTI::EventRetractionHandle	myRetractionHandle
const RTI::Region *	myConveyedRegion
bool	myCustomTagSet

Additional Inherited Members
Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder. More...
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder. More...
virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction. More...
virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction. More...
Protected Member Functions inherited from DtInteraction
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use. More...
virtual RTI::ParameterHandleValuePairSet *	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps. More...
DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors). More...
Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

Instances of DtAcousticTransientInteraction are used to represent AcousticTransient Interactions in the RPR FOM.

The variable and fixed datum records are accessed through DtInteractionWithData member functions.

Constructor & Destructor Documentation

DtAcousticTransientInteraction::DtAcousticTransientInteraction

(

)

CTOR.

DtAcousticTransientInteraction::DtAcousticTransientInteraction

(

const DtAcousticTransientInteraction &

orig

)

Copy CTOR.

virtual DtAcousticTransientInteraction::~DtAcousticTransientInteraction ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual DtU16 DtAcousticTransientInteraction::activityCode ( ) const

virtual

virtual DtInt16 DtAcousticTransientInteraction::activityParameter ( ) const

virtual

static void DtAcousticTransientInteraction::addCallback ( DtExerciseConn *  conn, DtAcousticTransientInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

Add (register) function to be called when interaction occurs.

static DtInteraction* DtAcousticTransientInteraction::create ( )

static

Create method.

Caller is responsible for deletion.

virtual const DtGlobalObjectDesignator& DtAcousticTransientInteraction::hostObjectId ( ) const

virtual

virtual const char* DtAcousticTransientInteraction::name ( ) const

virtual

Name of the interaction (Not necessarily the ClassName from the FOM).

Implements DtInteraction.

DtAcousticTransientInteraction& DtAcousticTransientInteraction::operator=

(

const DtAcousticTransientInteraction &

orig

)

Assignment operator.

virtual void DtAcousticTransientInteraction::printData ( ) const

virtual

Print the interaction's data to DtInfo.

Reimplemented from DtInteractionWithData.

virtual void DtAcousticTransientInteraction::printDataToStream ( std::ostream &  stream ) const

virtual

Print the interaction's data to the specified stream.

Reimplemented from DtInteractionWithData.

virtual const DtVector32& DtAcousticTransientInteraction::relativePosition ( ) const

virtual

static void DtAcousticTransientInteraction::removeCallback ( DtExerciseConn *  conn, DtAcousticTransientInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

Remove (deregister) function to be called when interaction occurs.

virtual void DtAcousticTransientInteraction::setActivityCode ( DtU16  code )

virtual

Set/Get Activity Code.

virtual void DtAcousticTransientInteraction::setActivityParameter ( DtInt16  param )

virtual

Set/Get Activity Parameter.

virtual void DtAcousticTransientInteraction::setHostObjectId ( const DtGlobalObjectDesignator &  id )

virtual

Set/Get Host Object Identifier.

virtual void DtAcousticTransientInteraction::setRelativePosition ( const DtVector32 &  pos )

virtual

Set/Get Relative Position.

Member Data Documentation

DtU16 DtAcousticTransientInteraction::myActivityCode

protected

DtInt16 DtAcousticTransientInteraction::myActivityParameter

protected

DtGlobalObjectDesignator DtAcousticTransientInteraction::myHostObjectIdentifier

protected

DtVector32 DtAcousticTransientInteraction::myRelativePosition

protected

---

The documentation for this class was generated from the following file:

• acousticTransientInteraction.h
