DtAggregatePublisher Class Reference

Instances of DtAggregatePublisher are used for local or source simulations of aggregate entities, (i.e. More...

Inheritance diagram for DtAggregatePublisher:

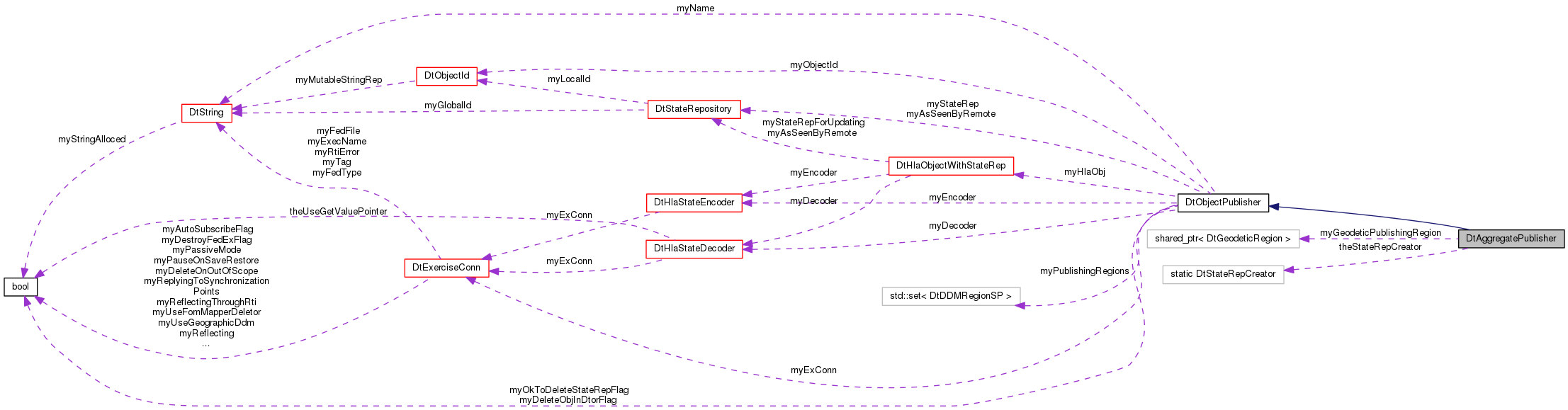

Collaboration diagram for DtAggregatePublisher:

Public Types
typedef DtAggregateStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtAggregateStateRepositories. More...

Public Member Functions
	DtAggregatePublisher (DtAggregateStateRepository *stateRepToUse, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor – stateRepToUse must have a valid entityType. More...
	DtAggregatePublisher (RTI::ObjectClassHandle h, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...
	DtAggregatePublisher (const DtEntityType &type, DtExerciseConn *conn, DtDeadReckonTypes algorithm, DtForceType forceId, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...
	DtAggregatePublisher (DtHlaObjectWithStateRep *obj, DtExerciseConn *conn)
	Constructor that creates a publisher for an existing DtHlaObject. More...
virtual	~DtAggregatePublisher ()
	destructor More...
virtual DtAggregateStateRepository *	aggregateStateRep ()
	Returns a pointer to the AggregateStateRepository - through which you can set or inspect current state information. More...
virtual DtAggregateStateRepository *	asr ()
	Synonym for aggregateStateRep(). More...
virtual void	tick ()
	Tick (update) this object. More...
Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn *conn, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor. More...
virtual	~DtObjectPublisher ()
	Destructor. More...
virtual void	setHlaObject (const char *className, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0, const char *objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called. More...
virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0, const char *objectName=0, const DtDDMRegionSet *regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you. More...
virtual void	setHlaObject (DtHlaObjectWithStateRep *obj, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it. More...
virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called. More...
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...
virtual DtStateRepository *	sr ()
	Synonym for stateRep(). More...
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR. More...
virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message. More...
virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject. More...
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...
virtual const DtObjectId &	id () const
	Get the object's local identifier. More...
virtual const DtObjectId &	objectId () const
	Get the object's local identifier. More...
virtual const DtObjectId &	localId () const
	Get the object's local identifier. More...
virtual const DtString &	name () const
	Get the object's name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3. More...
virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent. More...
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
virtual void	parallelTick ()
	Tick (update) this object in parallel threads. More...
virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher. More...
virtual bool	deleteObjInDtorFlag () const
virtual const DtDDMRegionSet &	publishingRegions () const
virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador. More...
virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador. More...
	DtObjectPublisher (DtExerciseConn *conn, const char *name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases. More...
void	init (RTI::ObjectClassHandle hand, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0)
void	init (const char *className, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...
Static Public Member Functions inherited from DtObjectPublisher
static void	removeObjectCb (DtHlaObject *obj, void *pub)
	Callback to be called when our underlying DtHlaObject goes away. More...

Protected Member Functions
	DtAggregatePublisher (const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor which does not include the DtExerciseConn and does not register the HLA object. More...
void	createGeographicRegion (DtExerciseConn *conn)
	Creates the publishers region. More...
	DtAggregatePublisher (const DtAggregatePublisher &orig)
	copy constructor - not implemented. More...
DtAggregatePublisher &	operator= (const DtAggregatePublisher &orig)
	assignment operator - not implemented. More...
const char *	objectClassNameFromType (const DtEntityType &type)
	Non-virtual, since called from constructor. More...
Protected Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor which does not include the DtExerciseConn. More...
virtual void	setExerciseConn (DtExerciseConn *conn)
	Allows the DtExerciseConn to be set after initial publisher creation. More...
virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away. More...

Protected Attributes
DtBoost::shared_ptr < DtGeodeticRegion >	myGeodeticPublishingRegion
Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
DtHlaStateEncoder *	myEncoder
DtHlaStateDecoder *	myDecoder
DtObjectId	myObjectId
bool	myOkToDeleteStateRepFlag
DtString	myName
bool	myDeleteObjInDtorFlag
DtDDMRegionSet	myPublishingRegions

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtAggregatePublisher are used for local or source simulations of aggregate entities, (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These entities send data to the network.

Member Typedef Documentation

typedef DtAggregateStateRepository*(* DtAggregatePublisher::DtStateRepCreator)()

Function prototype for functions that create DtAggregateStateRepositories.

Constructor & Destructor Documentation

DtAggregatePublisher::DtAggregatePublisher	(	DtAggregateStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor – stateRepToUse must have a valid entityType.

DtAggregatePublisher::DtAggregatePublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtAggregatePublisher::DtAggregatePublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtAggregatePublisher::DtAggregatePublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtAggregatePublisher::~DtAggregatePublisher ( )

virtual

destructor

DtAggregatePublisher::DtAggregatePublisher ( const char *  name = 0, const DtDDMRegionSet *  regionSetToUse = 0  )

protected

Constructor which does not include the DtExerciseConn and does not register the HLA object.

This is typically not desired, but may be useful in certain cases when a derived publisher wants to better control how the object is published.

DtAggregatePublisher::DtAggregatePublisher ( const DtAggregatePublisher &  orig )

protected

copy constructor - not implemented.

Member Function Documentation

DtAggregateStateRepository * DtAggregatePublisher::aggregateStateRep ( )

inlinevirtual

Returns a pointer to the AggregateStateRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtAggregateStateRepository * DtAggregatePublisher::asr ( )

inlinevirtual

Synonym for aggregateStateRep().

References DtObjectPublisher::myStateRep.

void DtAggregatePublisher::createGeographicRegion ( DtExerciseConn *  conn )

protected

Creates the publishers region.

Not virtual, since it is called from the constructor.

Exceptions

DtException

if the region cannot be created

const char* DtAggregatePublisher::objectClassNameFromType ( const DtEntityType &  type )

protected

Non-virtual, since called from constructor.

If you don't like the default mapping between entity type and object class, just pass the object class you want to the constructor.

DtAggregatePublisher& DtAggregatePublisher::operator= ( const DtAggregatePublisher &  orig )

protected

assignment operator - not implemented.

static DtStateRepCreator DtAggregatePublisher::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual void DtAggregatePublisher::tick ( )

virtual

Tick (update) this object.

Reimplemented from DtObjectPublisher.

Member Data Documentation

DtBoost::shared_ptr<DtGeodeticRegion> DtAggregatePublisher::myGeodeticPublishingRegion

protected

DtStateRepCreator DtAggregatePublisher::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• aggregatePublisherHLA.h
