Instances of DtBaseEntityDecoder are used to decode a base entity state message into a state repository in an HLA (as opposed to DIS) environment. More...

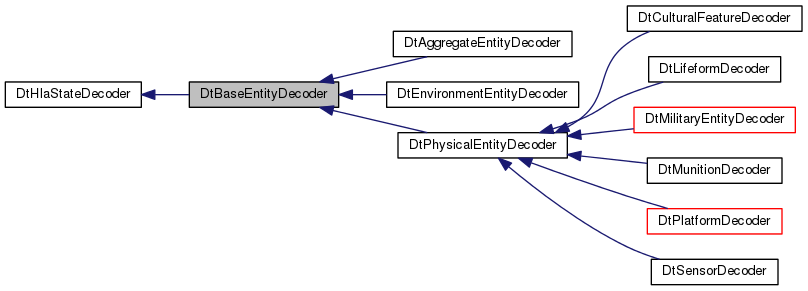

Inheritance diagram for DtBaseEntityDecoder:

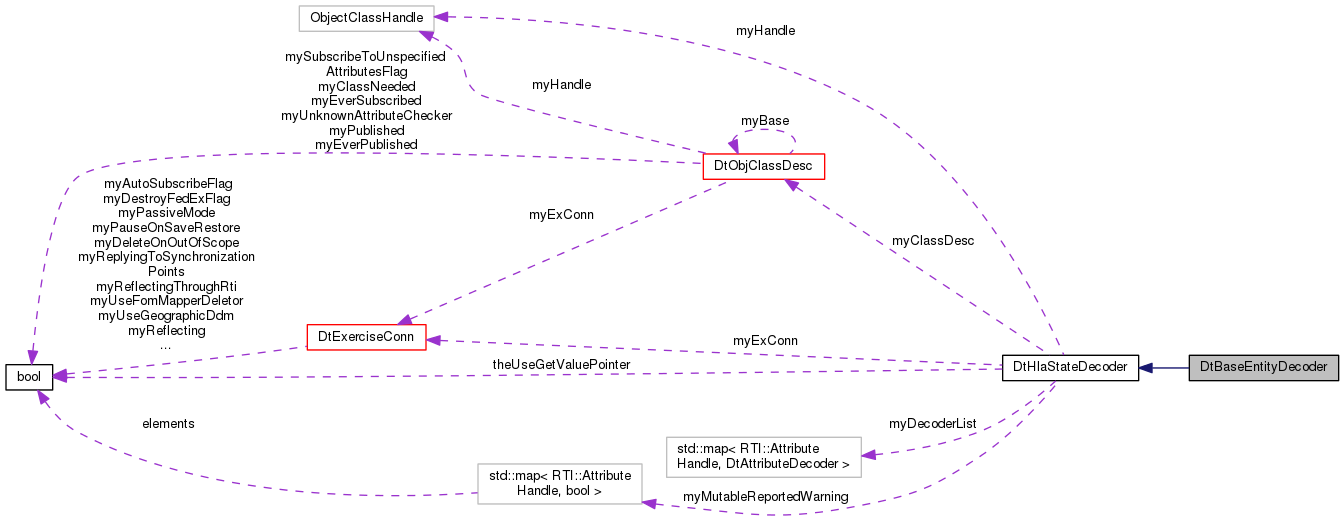

Collaboration diagram for DtBaseEntityDecoder:

Public Member Functions
	DtBaseEntityDecoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtBaseEntityDecoder ()
	destructor More...

	DtBaseEntityDecoder (const DtBaseEntityDecoder &orig)
	copy constructor More...

DtBaseEntityDecoder &	operator= (const DtBaseEntityDecoder &orig)
	assignment operator More...

virtual DtHlaStateDecoder *	clone () const
	Virtual function override. Return a new instance of this class. More...

virtual DtHlaStateDecoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

Public Member Functions inherited from DtHlaStateDecoder
	DtHlaStateDecoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtHlaStateDecoder ()
	destructor More...

	DtHlaStateDecoder (const DtHlaStateDecoder &orig)
	copy constructor More...

DtHlaStateDecoder &	operator= (const DtHlaStateDecoder &orig)
	assignment operator More...

DtAttributeDecoder	addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func)
	Add/Remove a decoding function for the attribute specified by handle. More...

DtAttributeDecoder	removeDecoder (RTI::AttributeHandle h)

DtAttributeDecoder	addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true)
	Add/Remove a decoding function for the attribute specified by name. More...

DtAttributeDecoder	removeDecoder (char *attrName, bool complain=true)

virtual DtAttributeDecoder	decoder (const RTI::AttributeHandle &handle) const
	Get the attribute decoder for the specified handle. More...

virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle. More...

Static Public Member Functions
static DtHlaStateDecoder *	create (DtExerciseConn exConn, DtObjClassDesc classDesc)
	Create a DtBaseEntityDecoder. Caller is responsible for deletion. More...

Static Public Member Functions inherited from DtHlaStateDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...

static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length)
	Returns a pointer to the attribute data. More...

static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName)
	Gets the attribute data and checks the expected size. More...

static DtNetEventId *	eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index)
	Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data. More...

Protected Member Functions
void	addMyDecoders ()
	Add decoding functions for the attributes. More...

virtual void	decode (const DtStateMsg &msg, DtStateRepository *stateRep) const
	Virtual function override that sets some timestamping info, then calls down to the base class to perform decoding of attributes. More...

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (Spatial)
	Static decode<AttributeName> member functions. More...

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (RelativeSpatial)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (IsPartOf)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (IsPartOf_RPR_20014)
	For RPR FOM Version > 2.0014. More...

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (AccelerationVector)
	For RPR FOM versions <= 1.0. More...

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (AngularVelocityVector)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (EntityType)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (IsFrozen)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (Orientation)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (VelocityVector)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (DRAlgorithm)
	For RPR FOM versions <= 0.8. More...

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (Position)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (EntityID)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (DeadReckoningAlgorithm)
	For RPR FOM versions > 0.8. More...

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (WorldLocation)

	DtDECLARE_BASE_ENTITY_ATTR_DECODER (EntityIdentifier)

Protected Member Functions inherited from DtHlaStateDecoder
virtual void	decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const
	Decode the attribute at the specified index in the attribute handle pair set. More...

virtual void	copyDecFuncs (const DtHlaStateDecoder &orig)

Additional Inherited Members
Public Types inherited from DtHlaStateDecoder
typedef void(*	DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex)
	Attribute decoding function declaration. More...

Static Public Attributes inherited from DtHlaStateDecoder
static bool	theUseGetValuePointer

Protected Types inherited from DtHlaStateDecoder
typedef std::map < RTI::AttributeHandle, DtAttributeDecoder >	AttributeHandleDecoderMap

typedef std::map < RTI::AttributeHandle, bool >	AttributeHandleBoolMap

Protected Attributes inherited from DtHlaStateDecoder
DtExerciseConn *	myExConn

DtObjClassDesc *	myClassDesc

RTI::ObjectClassHandle	myHandle

AttributeHandleDecoderMap	myDecoderList
	myDecoderList is a map of decoders for each attribute registered to this state. More...

Detailed Description

Instances of DtBaseEntityDecoder are used to decode a base entity state message into a state repository in an HLA (as opposed to DIS) environment.

Constructor & Destructor Documentation

DtBaseEntityDecoder::DtBaseEntityDecoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

constructor

virtual DtBaseEntityDecoder::~DtBaseEntityDecoder ( )

virtual

destructor

DtBaseEntityDecoder::DtBaseEntityDecoder ( const DtBaseEntityDecoder & orig )

copy constructor

Member Function Documentation

void DtBaseEntityDecoder::addMyDecoders ( )

protected

Add decoding functions for the attributes.

Note: Non-virtual since meant to be called from constructors to add decoders.

virtual DtHlaStateDecoder* DtBaseEntityDecoder::clone ( ) const

virtual

Virtual function override. Return a new instance of this class.

Reimplemented from DtHlaStateDecoder.

virtual DtHlaStateDecoder* DtBaseEntityDecoder::clone ( DtObjClassDesc * classDesc ) const

virtual

Returns a new-ed clone of this object which corresponds to the class description classDesc.

Use this function if you want a base entity subclass in the FOM to use the same decoder as its parent.

Reimplemented from DtHlaStateDecoder.

static DtHlaStateDecoder* DtBaseEntityDecoder::create	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

static

Create a DtBaseEntityDecoder. Caller is responsible for deletion.

virtual void DtBaseEntityDecoder::decode	(	const DtStateMsg &	msg,
		DtStateRepository *	stateRep
	)		const

protectedvirtual

Virtual function override that sets some timestamping info, then calls down to the base class to perform decoding of attributes.

Reimplemented from DtHlaStateDecoder.

Reimplemented in DtPhysicalEntityDecoder.

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( Spatial )

protected

Static decode<AttributeName> member functions.

For RPR FOM versions <= 2.0006

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( RelativeSpatial )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( IsPartOf )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( IsPartOf_RPR_20014 )

protected

For RPR FOM Version > 2.0014.

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( AccelerationVector )

protected

For RPR FOM versions <= 1.0.

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( AngularVelocityVector )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( EntityType )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( IsFrozen )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( Orientation )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( VelocityVector )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( DRAlgorithm )

protected

For RPR FOM versions <= 0.8.

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( Position )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( EntityID )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( DeadReckoningAlgorithm )

protected

For RPR FOM versions > 0.8.

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( WorldLocation )

protected

DtBaseEntityDecoder::DtDECLARE_BASE_ENTITY_ATTR_DECODER ( EntityIdentifier )

protected

DtBaseEntityDecoder& DtBaseEntityDecoder::operator= ( const DtBaseEntityDecoder & orig )

assignment operator

The documentation for this class was generated from the following file:

baseEntityDecoder.h
