DtEmbeddedSystemRepository Class Reference

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems. More...

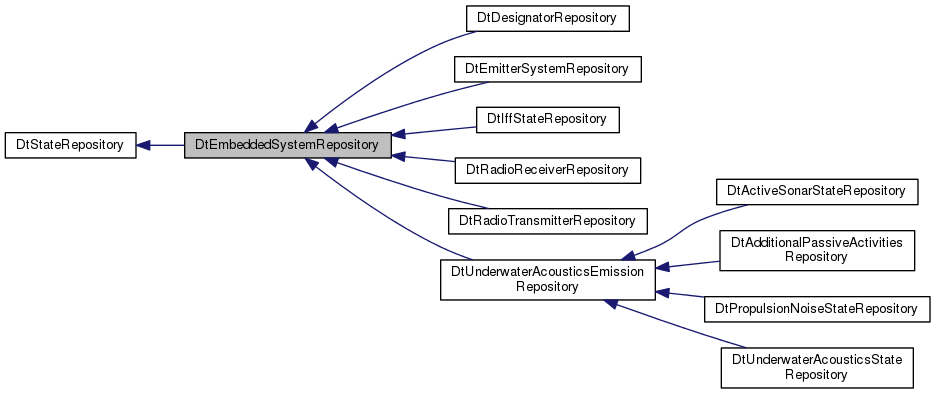

Inheritance diagram for DtEmbeddedSystemRepository:

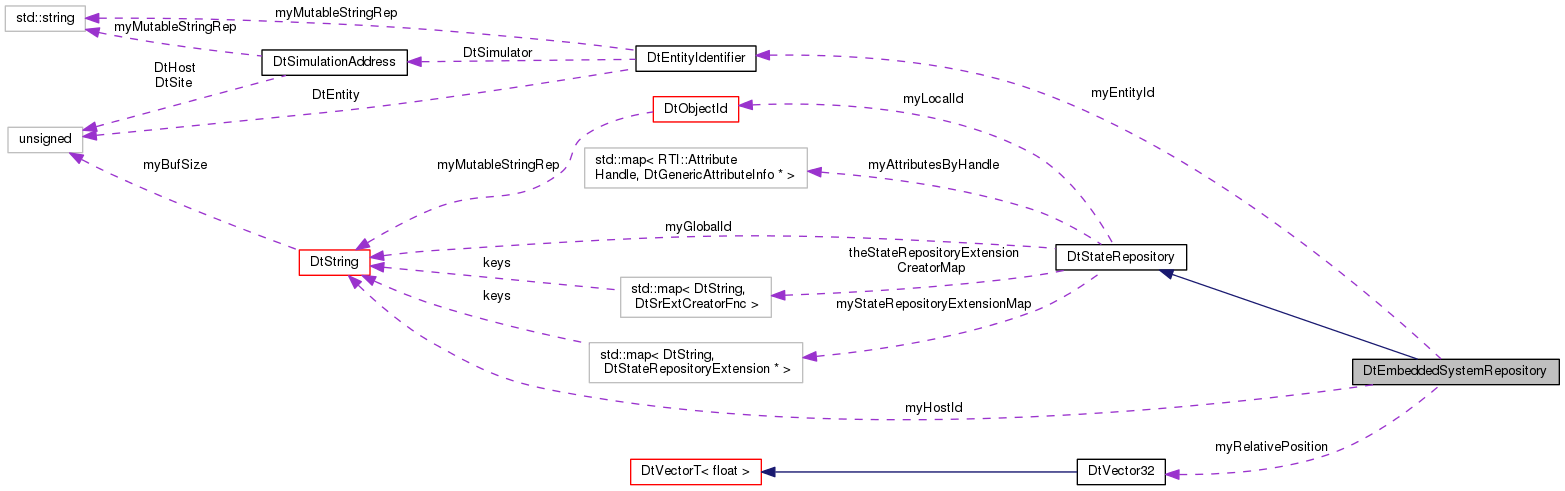

Collaboration diagram for DtEmbeddedSystemRepository:

Public Member Functions
	DtEmbeddedSystemRepository ()
	default constructor More...
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor More...
virtual	~DtEmbeddedSystemRepository ()
	destructor More...
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier. More...
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier. More...
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier. More...
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier. More...
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity. More...
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print state data to the specified stream. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtEmbeddedSystemRepository *	create ()
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtEntityIdentifier	myEntityId
DtGlobalObjectDesignator	myHostId
DtVector32	myRelativePosition

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtEmbeddedSystemRepository are used to store the state of embedded systems.

An embedded system is an object which is a component of an entity: for example, a radar unit on an aircraft.

Constructor & Destructor Documentation

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

)

default constructor

DtEmbeddedSystemRepository::DtEmbeddedSystemRepository

(

const DtEmbeddedSystemRepository &

orig

)

copy constructor

virtual DtEmbeddedSystemRepository::~DtEmbeddedSystemRepository ( )

virtual

destructor

Member Function Documentation

virtual DtStateRepository* DtEmbeddedSystemRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

Reimplemented in DtIffStateRepository, DtUnderwaterAcousticsStateRepository, DtActiveSonarStateRepository, DtEmitterSystemRepository, DtRadioTransmitterRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtDesignatorRepository, DtUnderwaterAcousticsEmissionRepository, and DtRadioReceiverRepository.

static DtEmbeddedSystemRepository* DtEmbeddedSystemRepository::create ( )

static

virtual const DtEntityIdentifier& DtEmbeddedSystemRepository::entityId ( ) const

virtual

Get the entity identifier.

In DIS this is the same as the HostID, but may not be used in HLA.

virtual const DtGlobalObjectDesignator& DtEmbeddedSystemRepository::hostId ( ) const

virtual

Get the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

DtEmbeddedSystemRepository& DtEmbeddedSystemRepository::operator=

(

const DtEmbeddedSystemRepository &

orig

)

assignment operator

virtual void DtEmbeddedSystemRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtIffStateRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, and DtDesignatorRepository.

virtual void DtEmbeddedSystemRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print state data to the specified stream.

Reimplemented from DtStateRepository.

Reimplemented in DtRadioTransmitterRepository, DtIffStateRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtActiveSonarStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, and DtDesignatorRepository.

virtual const DtVector32& DtEmbeddedSystemRepository::relativePosition ( ) const

virtual

Get the position of the object relative to the entity.

virtual void DtEmbeddedSystemRepository::setEntityId ( const DtEntityIdentifier &  id )

virtual

Set the entity identifier.

In DIS this is the same as the HostID, used by RPR FOM, but may not be present in all FOMS.

Reimplemented in DtUnderwaterAcousticsStateRepository.

virtual void DtEmbeddedSystemRepository::setHostId ( const DtGlobalObjectDesignator &  id )

virtual

Set the host identifier.

(corresponds to the emitting system ID) for DIS this is the SAME as EntityId

Reimplemented in DtUnderwaterAcousticsStateRepository.

virtual void DtEmbeddedSystemRepository::setRelativePosition ( const DtVector32 &  position )

virtual

Set the position of the object relative to the entity.

Member Data Documentation

DtEntityIdentifier DtEmbeddedSystemRepository::myEntityId

protected

DtGlobalObjectDesignator DtEmbeddedSystemRepository::myHostId

protected

DtVector32 DtEmbeddedSystemRepository::myRelativePosition

protected

---

The documentation for this class was generated from the following file:

• embeddedSystemRepository.h
