Instances of DtEntityPublisher are used for local or source simulations of entities (i.e. More...

Inheritance diagram for DtEntityPublisher:

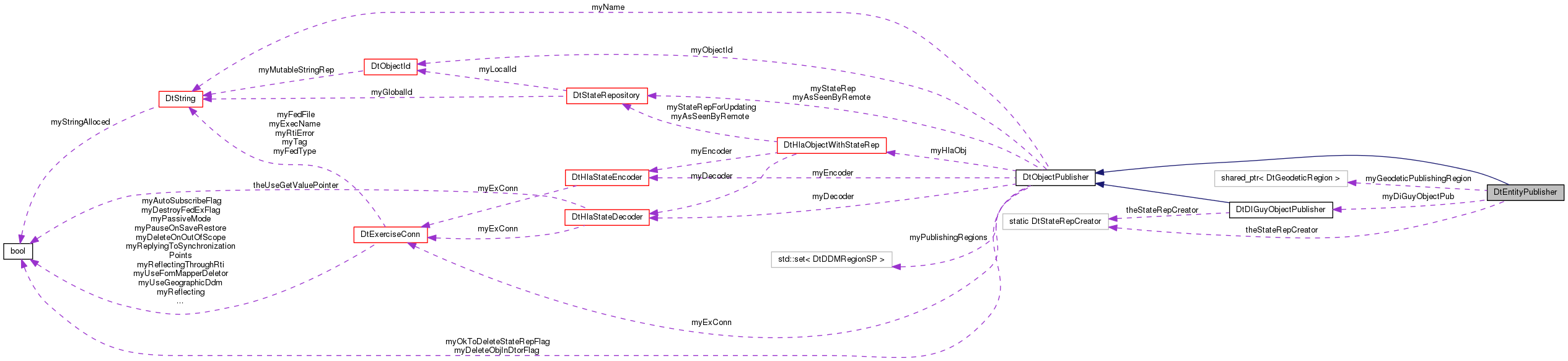

Collaboration diagram for DtEntityPublisher:

Public Types
typedef DtEntityStateRepository (	DtStateRepCreator )()
	Function prototype for functions that create DtEntityStateRepositories. More...

Public Member Functions
	DtEntityPublisher (DtEntityStateRepository stateRepToUse, DtExerciseConn conn, const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor – state rep must contain entityType. More...

	DtEntityPublisher (RTI::ObjectClassHandle h, DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtEntityPublisher (const DtEntityType &type, DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtEntityPublisher (const DtEntityType &type, DtExerciseConn conn, DtDeadReckonTypes algorithm, DtForceType forceId, const DtEntityType &guise=guiseSameAsType(), const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtEntityPublisher (DtHlaObjectWithStateRep obj, DtExerciseConn conn)
	Constructor that creates a publisher for an existing DtHlaObject. More...

virtual	~DtEntityPublisher ()
	destructor More...

virtual DtEntityStateRepository *	entityStateRep ()
	Returns a pointer to the EntityStateRepository - through which you can set or inspect current state information. More...

virtual DtEntityStateRepository *	esr ()
	Synonym for entityStateRep(). More...

virtual void	enableDiGuyInformation ()
	Signals that this object has DI Guy information. More...

virtual void	tick ()
	If there is a region, update it, and then call down to base tick. More...

virtual DtOwnershipHandler *	setOwnershipHandler (DtOwnershipHandler *handler)
	Sets the current ownership handler to handler. More...

virtual void	divestObject ()
	Pass through to ownership manager. More...

Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet regionSet=0)
	Constructor. More...

virtual	~DtObjectPublisher ()
	Destructor. More...

virtual void	setHlaObject (const char className, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called. More...

virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you. More...

virtual void	setHlaObject (DtHlaObjectWithStateRep obj, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it. More...

virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called. More...

virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtStateRepository *	sr ()
	Synonym for stateRep(). More...

virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...

virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR. More...

virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message. More...

virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject. More...

virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...

virtual const DtObjectId &	id () const
	Get the object's local identifier. More...

virtual const DtObjectId &	objectId () const
	Get the object's local identifier. More...

virtual const DtObjectId &	localId () const
	Get the object's local identifier. More...

virtual const DtString &	name () const
	Get the object's name. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3. More...

virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent. More...

virtual void	forceUpdate (const RTI::AttributeHandleSet &set)

virtual void	parallelTick ()
	Tick (update) this object in parallel threads. More...

virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher. More...

virtual bool	deleteObjInDtorFlag () const

virtual const DtDDMRegionSet &	publishingRegions () const

virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador. More...

virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador. More...

	DtObjectPublisher (DtExerciseConn conn, const char name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases. More...

void	init (RTI::ObjectClassHandle hand, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0)

void	init (const char className, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static const DtEntityType &	guiseSameAsType ()
	Returns a constant that can be passed to the constructor indicating that we should use the entity type as our guise. More...

static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...


static void	setDfltRotationThreshold (double r)

static double	dfltRotationThreshold ()

static void	setDfltTranslationThreshold (double t)

static double	dfltTranslationThreshold ()

Static Public Member Functions inherited from DtObjectPublisher
static void	removeObjectCb (DtHlaObject obj, void pub)
	Callback to be called when our underlying DtHlaObject goes away. More...

Protected Member Functions
	DtEntityPublisher (const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor which does not include the DtExerciseConn and does not register the HLA object. More...

void	init ()
	not virtual, called from the constructor More...

void	createGeographicRegion (DtExerciseConn *conn)
	Creates the publishers region. More...

	DtEntityPublisher (const DtEntityPublisher &orig)
	copy constructor - Not Implemented More...

DtEntityPublisher &	operator= (const DtEntityPublisher &orig)
	assignment operator - Not Implemented More...

const char *	objectClassNameFromType (const DtEntityType &type)
	Non-virtual, since called from constructor. More...

Protected Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor which does not include the DtExerciseConn. More...

virtual void	setExerciseConn (DtExerciseConn *conn)
	Allows the DtExerciseConn to be set after initial publisher creation. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away. More...

Protected Attributes
DtDIGuyObjectPublisher *	myDiGuyObjectPub

DtBoost::shared_ptr < DtGeodeticRegion >	myGeodeticPublishingRegion

Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn

DtHlaObjectWithStateRep *	myHlaObj

DtStateRepository *	myStateRep

DtStateRepository *	myAsSeenByRemote

DtHlaStateEncoder *	myEncoder

DtHlaStateDecoder *	myDecoder

DtObjectId	myObjectId

bool	myOkToDeleteStateRepFlag

DtString	myName

bool	myDeleteObjInDtorFlag

DtDDMRegionSet	myPublishingRegions

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Detailed Description

Instances of DtEntityPublisher are used for local or source simulations of entities (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These entities send data to the network.

Member Typedef Documentation

typedef DtEntityStateRepository*(* DtEntityPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEntityStateRepositories.

Constructor & Destructor Documentation

DtEntityPublisher::DtEntityPublisher	(	DtEntityStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor – state rep must contain entityType.

DtEntityPublisher::DtEntityPublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtEntityPublisher::DtEntityPublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtEntityPublisher::DtEntityPublisher	(	const DtEntityType &	type,
		DtExerciseConn *	conn,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		const DtEntityType &	guise = `guiseSameAsType()`,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtEntityPublisher::DtEntityPublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtEntityPublisher::~DtEntityPublisher ( )

virtual

destructor

DtEntityPublisher::DtEntityPublisher	(	const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

protected

Constructor which does not include the DtExerciseConn and does not register the HLA object.

This is typically not desired, but may be useful in certain cases when a derived publisher wants to better control how the object is published.

DtEntityPublisher::DtEntityPublisher ( const DtEntityPublisher & orig )

protected

copy constructor - Not Implemented

Member Function Documentation

void DtEntityPublisher::createGeographicRegion ( DtExerciseConn * conn )

protected

Creates the publishers region.

Not virtual, since it is called from the constructor.

Exceptions

DtException if the region cannot be created

static double DtEntityPublisher::dfltRotationThreshold ( )

static

Deprecated:: Please use the DtThresholder static member functions instead.

static double DtEntityPublisher::dfltTranslationThreshold ( )

static

Deprecated:: Please use the DtThresholder static member functions instead.

virtual void DtEntityPublisher::divestObject ( )

virtual

Pass through to ownership manager.

virtual void DtEntityPublisher::enableDiGuyInformation ( )

virtual

Signals that this object has DI Guy information.

Once this has been set, the state repositories will contain a DI Guy state repository that allows you to access this data.

DtEntityStateRepository * DtEntityPublisher::entityStateRep ( )

inlinevirtual

Returns a pointer to the EntityStateRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtEntityStateRepository * DtEntityPublisher::esr ( )

inlinevirtual

Synonym for entityStateRep().

References DtObjectPublisher::myStateRep.

static const DtEntityType& DtEntityPublisher::guiseSameAsType ( )

static

Returns a constant that can be passed to the constructor indicating that we should use the entity type as our guise.

(g++ forces us to define this function before we define our constructors)

void DtEntityPublisher::init ( )

protected

not virtual, called from the constructor

const char* DtEntityPublisher::objectClassNameFromType ( const DtEntityType & type )

protected

Non-virtual, since called from constructor.

If you don't like the default mapping between entity type and object class, just pass the object class handle you want to the constructor.

DtEntityPublisher& DtEntityPublisher::operator= ( const DtEntityPublisher & orig )

protected

assignment operator - Not Implemented

static void DtEntityPublisher::setDfltRotationThreshold ( double r )

static

Deprecated:: Please use the DtThresholder static member functions instead.

static void DtEntityPublisher::setDfltTranslationThreshold ( double t )

static

Deprecated:: Please use the DtThresholder static member functions instead.

virtual DtOwnershipHandler* DtEntityPublisher::setOwnershipHandler ( DtOwnershipHandler * handler )

virtual

Sets the current ownership handler to handler.

A DtOwnershipHandler is an object that encapsulates callback function for a variety of ownership-management-related functions. Returns previous handler.

static DtStateRepCreator DtEntityPublisher::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

virtual void DtEntityPublisher::tick ( )

virtual

If there is a region, update it, and then call down to base tick.

Reimplemented from DtObjectPublisher.

Member Data Documentation

DtDIGuyObjectPublisher* DtEntityPublisher::myDiGuyObjectPub

protected

DtBoost::shared_ptr<DtGeodeticRegion> DtEntityPublisher::myGeodeticPublishingRegion

protected

DtStateRepCreator DtEntityPublisher::theStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

entityPublisherHLA.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
