DtMode5StateRepository Class Reference

Instances of DtMode5StateRepository are used to store state data for IFFData.Mode5 objects. More...

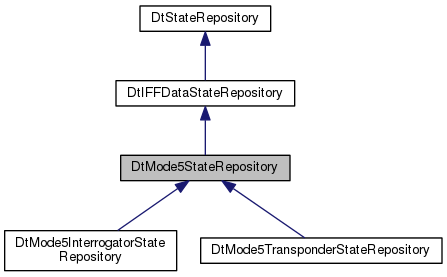

Inheritance diagram for DtMode5StateRepository:

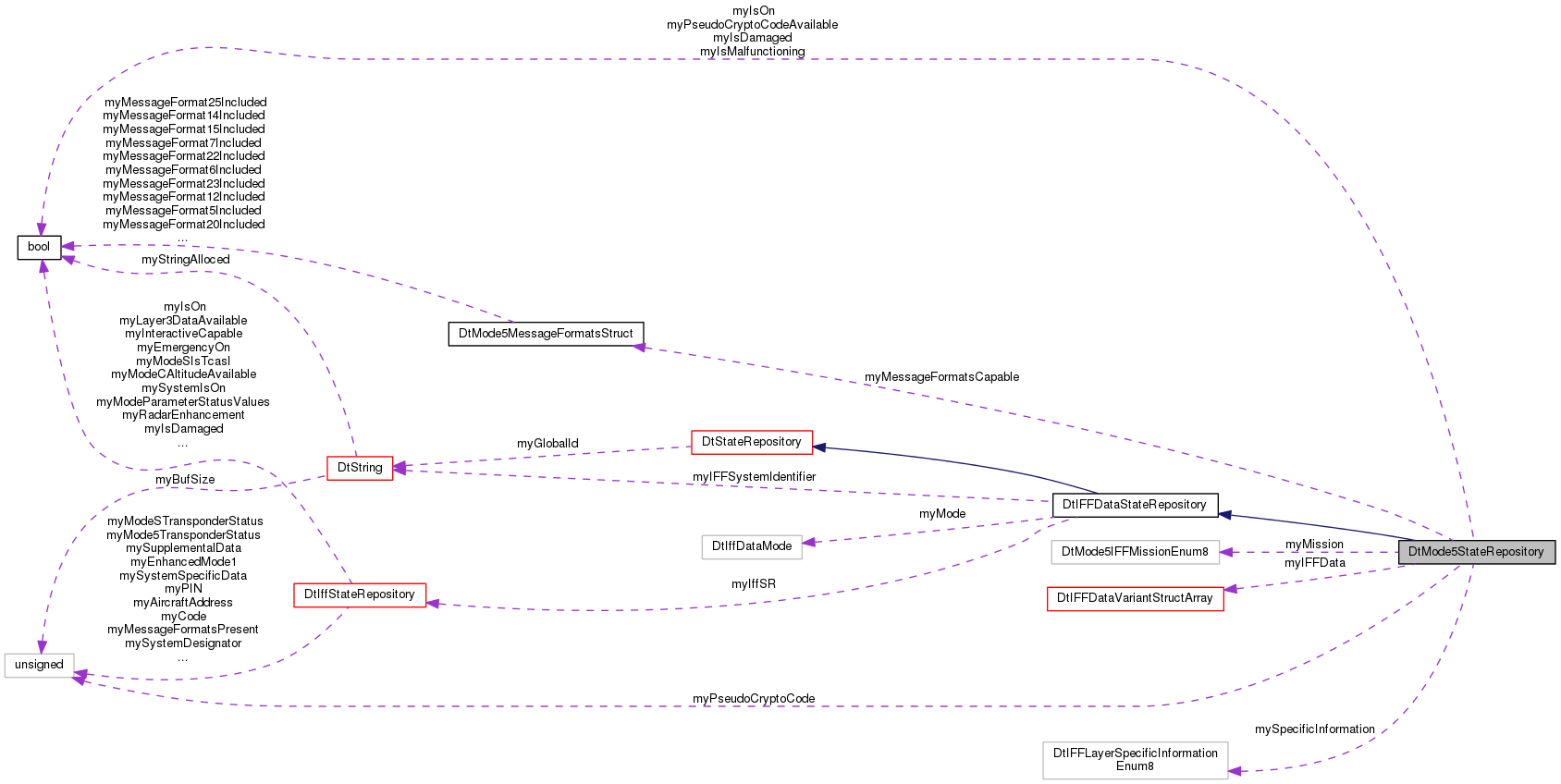

Collaboration diagram for DtMode5StateRepository:

Public Member Functions
	DtMode5StateRepository ()
	Constructor. More...
virtual	~DtMode5StateRepository ()
	Destructor. More...
	DtMode5StateRepository (const DtMode5StateRepository &orig)
	Copy Constructor. More...
DtMode5StateRepository &	operator= (const DtMode5StateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setIsOn (bool val)
	Set the IsOn. More...
virtual bool	isOn () const
	Get the IsOn.". More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged. More...
virtual bool	isDamaged () const
	Get the IsDamaged.". More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning.". More...
virtual void	setPseudoCryptoCodeAvailable (bool val)
	Set the PseudoCryptoCodeAvailable. More...
virtual bool	pseudoCryptoCodeAvailable () const
	Get the PseudoCryptoCodeAvailable.". More...
virtual void	setPseudoCryptoCode (DtU16 val)
	Set the PseudoCryptoCode. More...
virtual DtU16	pseudoCryptoCode () const
	Get the PseudoCryptoCode.". More...
virtual void	setSpecificInformation (const DtIFFLayerSpecificInformationEnum8 &val)
	Set the SpecificInformation. More...
virtual const DtIFFLayerSpecificInformationEnum8 &	specificInformation () const
	Get the SpecificInformation.". More...
virtual void	setMission (const DtMode5IFFMissionEnum8 &val)
	Set the Mission. More...
virtual const DtMode5IFFMissionEnum8 &	mission () const
	Get the Mission.". More...
virtual void	setMessageFormatsCapable (const DtMode5MessageFormatsStruct &val)
	Set the MessageFormatsCapable. More...
virtual const DtMode5MessageFormatsStruct &	messageFormatsCapable () const
	Get the MessageFormatsCapable.". More...
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the IFFData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFData.". More...
virtual void	copyToIffSR ()
	copy mode 5 interrogator status to IFF state repo. More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier.". More...
virtual void	setIffStateRepository (DtIffStateRepository *sr)
virtual DtIffStateRepository *	isr ()
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtMode5StateRepository *	create ()
	Create a DtMode5StateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Member Functions
void	_setMessageFormatsPresent (DtU32 value)

Protected Attributes
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning
bool	myPseudoCryptoCodeAvailable
DtU16	myPseudoCryptoCode
DtIFFLayerSpecificInformationEnum8	mySpecificInformation
DtMode5IFFMissionEnum8	myMission
DtMode5MessageFormatsStruct	myMessageFormatsCapable
DtIFFDataVariantStructArray	myIFFData
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIffDataMode	myMode
DtIffStateRepository *	myIffSR

Friends
class	DtIffStateRepository

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtMode5StateRepository are used to store state data for IFFData.Mode5 objects.

Constructor & Destructor Documentation

DtMode5StateRepository::DtMode5StateRepository

(

)

Constructor.

virtual DtMode5StateRepository::~DtMode5StateRepository ( )

virtual

Destructor.

DtMode5StateRepository::DtMode5StateRepository

(

const DtMode5StateRepository &

orig

)

Copy Constructor.

Member Function Documentation

void DtMode5StateRepository::_setMessageFormatsPresent ( DtU32  value )

protected

virtual DtStateRepository* DtMode5StateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtMode5TransponderStateRepository, and DtMode5InterrogatorStateRepository.

virtual void DtMode5StateRepository::copyToIffSR ( )

virtual

copy mode 5 interrogator status to IFF state repo.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtMode5TransponderStateRepository, and DtMode5InterrogatorStateRepository.

static DtMode5StateRepository* DtMode5StateRepository::create ( )

static

Create a DtMode5StateRepository.

virtual const DtIFFDataVariantStructArray& DtMode5StateRepository::IFFData ( ) const

virtual

Get the IFFData.".

virtual bool DtMode5StateRepository::isDamaged ( ) const

virtual

Get the IsDamaged.".

virtual bool DtMode5StateRepository::isMalfunctioning ( ) const

virtual

Get the IsMalfunctioning.".

virtual bool DtMode5StateRepository::isOn ( ) const

virtual

Get the IsOn.".

virtual const DtMode5MessageFormatsStruct& DtMode5StateRepository::messageFormatsCapable ( ) const

virtual

Get the MessageFormatsCapable.".

virtual const DtMode5IFFMissionEnum8& DtMode5StateRepository::mission ( ) const

virtual

Get the Mission.".

DtMode5StateRepository& DtMode5StateRepository::operator=

(

const DtMode5StateRepository &

orig

)

Assignment Operator.

virtual void DtMode5StateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtMode5TransponderStateRepository, and DtMode5InterrogatorStateRepository.

virtual void DtMode5StateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtMode5TransponderStateRepository, and DtMode5InterrogatorStateRepository.

virtual DtU16 DtMode5StateRepository::pseudoCryptoCode ( ) const

virtual

Get the PseudoCryptoCode.".

virtual bool DtMode5StateRepository::pseudoCryptoCodeAvailable ( ) const

virtual

Get the PseudoCryptoCodeAvailable.".

virtual void DtMode5StateRepository::setIFFData ( const DtIFFDataVariantStructArray &  val )

virtual

Set the IFFData.

virtual void DtMode5StateRepository::setIsDamaged ( bool  val )

virtual

Set the IsDamaged.

virtual void DtMode5StateRepository::setIsMalfunctioning ( bool  val )

virtual

Set the IsMalfunctioning.

virtual void DtMode5StateRepository::setIsOn ( bool  val )

virtual

Set the IsOn.

virtual void DtMode5StateRepository::setMessageFormatsCapable ( const DtMode5MessageFormatsStruct &  val )

virtual

Set the MessageFormatsCapable.

virtual void DtMode5StateRepository::setMission ( const DtMode5IFFMissionEnum8 &  val )

virtual

Set the Mission.

virtual void DtMode5StateRepository::setPseudoCryptoCode ( DtU16  val )

virtual

Set the PseudoCryptoCode.

virtual void DtMode5StateRepository::setPseudoCryptoCodeAvailable ( bool  val )

virtual

Set the PseudoCryptoCodeAvailable.

virtual void DtMode5StateRepository::setSpecificInformation ( const DtIFFLayerSpecificInformationEnum8 &  val )

virtual

Set the SpecificInformation.

virtual const DtIFFLayerSpecificInformationEnum8& DtMode5StateRepository::specificInformation ( ) const

virtual

Get the SpecificInformation.".

Friends And Related Function Documentation

friend class DtIffStateRepository

friend

Member Data Documentation

DtIFFDataVariantStructArray DtMode5StateRepository::myIFFData

protected

bool DtMode5StateRepository::myIsDamaged

protected

bool DtMode5StateRepository::myIsMalfunctioning

protected

bool DtMode5StateRepository::myIsOn

protected

DtMode5MessageFormatsStruct DtMode5StateRepository::myMessageFormatsCapable

protected

DtMode5IFFMissionEnum8 DtMode5StateRepository::myMission

protected

DtU16 DtMode5StateRepository::myPseudoCryptoCode

protected

bool DtMode5StateRepository::myPseudoCryptoCodeAvailable

protected

DtIFFLayerSpecificInformationEnum8 DtMode5StateRepository::mySpecificInformation

protected

---

The documentation for this class was generated from the following file:

• IFFDataStateRepository.h
