Instances of DtReflectedActiveSonarList manage a list of DtReflectedActiveSonar objects. More...

Inheritance diagram for DtReflectedActiveSonarList:

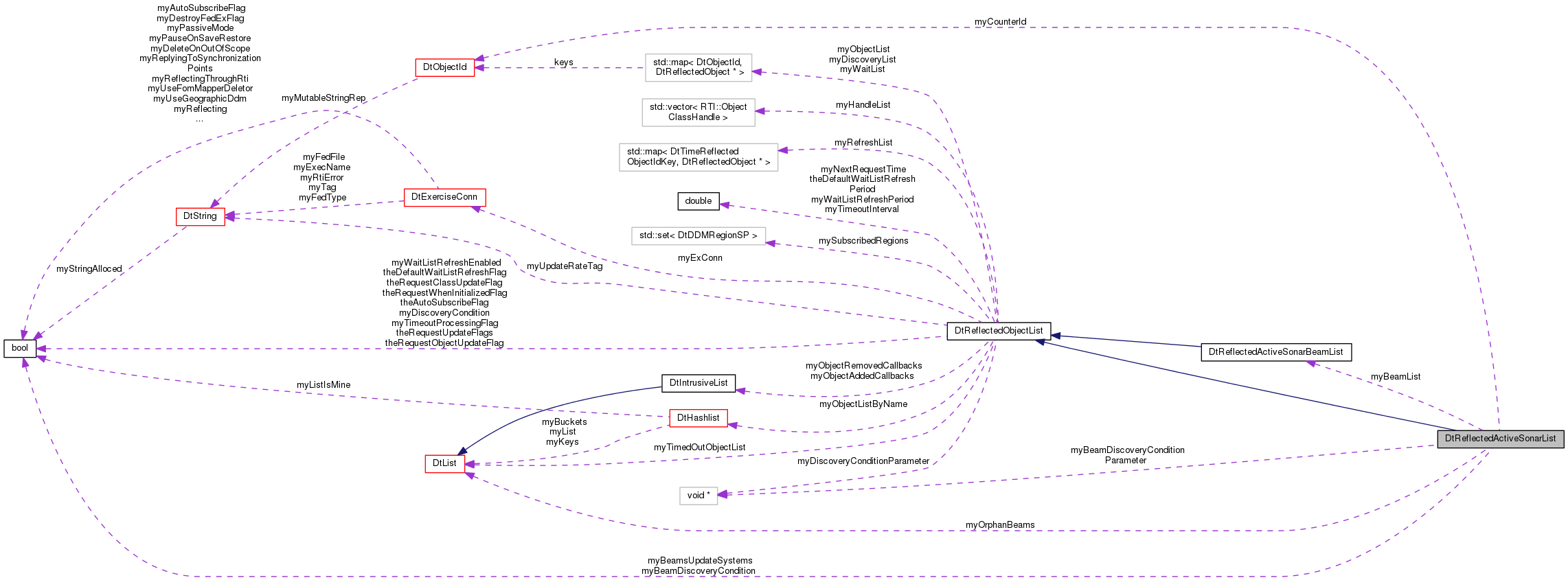

Collaboration diagram for DtReflectedActiveSonarList:

Public Member Functions
	DtReflectedActiveSonarList (DtExerciseConn exConn, const DtDDMRegionSet regionSetToUse=0, const DtString &updateRateTag="")
	Constructor. More...

	DtReflectedActiveSonarList (DtExerciseConn exConn, const DtList handleList, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag="")
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList. More...

virtual	~DtReflectedActiveSonarList ()
	Destructor. More...

virtual DtReflectedActiveSonar *	lookup (RTI::ObjectHandle id)
	Look up by identifier. More...

virtual DtReflectedActiveSonar *	lookup (const DtGlobalObjectDesignator &objName)
	Look up by name. More...

virtual DtReflectedActiveSonar *	lookup (const DtGlobalObjectDesignator &emittingEntity, int systemId) const
	Lookup an ActiveSonar from its object ID and system ID. More...

virtual DtReflectedActiveSonar *	first () const
	Get the first reflected object in the list. More...

virtual DtReflectedActiveSonar *	last () const
	Get the last reflected object in the list. More...

virtual void	addActiveSonarAdditionCallback (DtActiveSonarCallbackFunction cb, void *usr)
	ActiveSonar added callback registration. More...

virtual void	removeActiveSonarAdditionCallback (DtActiveSonarCallbackFunction cb, void *usr)
	ActiveSonar added callback de-registration. More...

virtual void	addActiveSonarRemovalCallback (DtActiveSonarCallbackFunction cb, void *usr)
	ActiveSonar removed callback registration. More...

virtual void	removeActiveSonarRemovalCallback (DtActiveSonarCallbackFunction cb, void *usr)
	ActiveSonar removed callback de-registration. More...

virtual DtReflectedActiveSonarBeamList *	refBeamList ()
	Returns a pointer to a reflected ActiveSonar beam list that we are using internally to track our constituent beams. More...

virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Over-rides DtReflectedObjectList::setDiscoveryCondition(). More...

virtual void	clearDiscoveryCondition ()
	Overrides the DtReflectedObjectList::clearDiscoveryCondition. More...

virtual void	setBeamDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Call this function to register a discovery condition on the beams of ActiveSonar Systems. More...

virtual void	clearBeamDiscoveryCondition ()
	Call this function to remove the previously registered discovery condition. More...

virtual bool	delayBeamDiscovery (DtReflectedObject beam, void usr)
	The following function checks whether a beam should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedActiveSonarSystemList::setDiscoveryCondition() or DtReflectedActiveSonarSystemList::setBeamDiscoveryCondition(). More...

Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn exConn, const DtDDMRegionSet regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor. More...

virtual	~DtReflectedObjectList ()
	destructor More...

virtual DtReflectedObject *	lookupObj (RTI::ObjectHandle id)
	Look up object by identifier. More...

virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3). More...

virtual int	count () const
	Get number of objects. More...

virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...

virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered. More...

virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object. More...

virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...

virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...

virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	print ()
	Print the SRs of all objects. More...

virtual void	printWaitList ()
	Print the SRs of all waiting objects (most likely will have mostly bad data). More...

virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...

virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs. More...

virtual bool	requestsEnabled () const
	Get whether or not to process requests for reflected objects that were just discovered or are waiting for updates (to meet discovery criteria). More...

virtual int	numberObjectsWaiting () const
	Return the number of objects in the wait list. More...

virtual DtTime	nextRequestTime () const
	Return the time when the next request will be made for entries in the wait refresh list. More...

virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to. More...

virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...

virtual DtReflectedObject *	lastObj () const
	Get the first/last object in the list. More...

virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...

virtual DtTime	timeoutInterval () const
	Set/Get the remote object timeout period. More...

virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will resend request updates for objects which remain on wait list because they have not met discovery criteria. More...

virtual bool	waitListRefreshEnabled () const
	Set whether or not we will resend request updates for objects which remain on wait list because they have not met discovery criteria. More...

virtual void	setWaitListRefreshPeriod (DtTime period)
	Set/Get the wait list refresh period. More...

virtual DtTime	waitListRefreshPeriod () const
	Set/Get the wait list refresh period. More...

virtual DtReflectedObject *	firstWaitingObj () const
	Get the first/last object in the wait list. More...

virtual DtReflectedObject *	lastWaitingObj () const
	Get the first/last object in the wait list. More...

Protected Member Functions
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote ActiveSonar system on the network. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote ActiveSonar system from the network. More...

virtual void	processActiveSonarBeamAddition (DtReflectedActiveSonarBeam *beam)
	Called by similar callback functions registered with myBeamList on beam additions/removals. More...

virtual void	processActiveSonarBeamUpdate (DtReflectedActiveSonarBeam *beam)

virtual void	processActiveSonarBeamRemoval (DtReflectedActiveSonarBeam *beam)

virtual void	resolveOrphans ()
	Check if any orphanBeams have non-NULL emittingSystemId. More...

virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of virtual function. Here, we create a DtReflectedActiveSonarSystem. More...

virtual DtReflectedActiveSonar *	newReflectedActiveSonar (const DtGlobalObjectDesignator &hostId) const
	Create a remote ActiveSonar system object for the HLA object. More...

virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote transmitter has been added to the list. More...

virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...

virtual const DtList *	dfltHandleList ()
	Returns a DtList of RTI::ObjectClassHandles that represent the list of object classes to which this list should subscribe. More...

Protected Member Functions inherited from DtReflectedObjectList
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out. More...

virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...

virtual void	doRequestUpdates ()
	Request an update for discovered objects. More...

virtual void	removeAndDelete (DtReflectedObject obj, char msg=nullptr)
	Remove the remote object from the list if found and delete it. More...

virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it. More...

virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out. More...

virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class. More...

virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className. More...

virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once. More...

void	emptyLists ()
	Empty the object list and the timeout list. More...

void	emptyCallbackLists ()
	Empty the callback lists. More...

virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...

virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)

virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list. More...

virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)

virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within. More...

virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks. More...

virtual void	addToWaitList (DtReflectedObject *refObj)
	Add refObj to wait list. More...

virtual void	removeFromWaitList (DtReflectedObject *refObj)
	Remove refObj from wait list. More...

virtual void	addToRefreshList (DtReflectedObject *refObj, DtTime timeToRefresh)
	Add refObj to refresh list. More...

virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectHandle id)
	Find object in waitList by identifier. More...

virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name. More...

void	unsubscribeRegions ()

Static Protected Member Functions
static void	activeSonarBeamAdditionCb (DtReflectedActiveSonarBeam beam, void usr)
	Callback functions registered with myBeamList on beam additions, updates, and removals. More...

static void	activeSonarBeamUpdateCb (DtReflectedActiveSonarBeam beam, void usr)

static void	activeSonarBeamRemovalCb (DtReflectedActiveSonarBeam beam, void usr)

static void	resolveOrphansPostDrainCb (void *usr)
	Callback that calls resolveOrphans. More...

static bool	delayBeamDiscoveryCondition (DtReflectedObject beam, void usr)
	The following discovery condition function gets set for ActiveSonarBeams when users register a discovery condition for either DtReflectedActiveSonarSystemList or its beam list. More...

Static Protected Member Functions inherited from DtReflectedObjectList
static void	discoverObjectCb (DtHlaObject hlaObj, void rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject(). More...

static void	removeObjectCb (DtHlaObject hlaObj, void rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject(). More...

static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject obj, void usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect(). More...

static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...

static void	doRequestUpdatesPostDrainCb (void *usr)
	Calls doRequestUpdates. More...

static void	postUpdateCb (DtReflectedObject obj, void usr)
	Calls checkDiscoveryCondition. More...

Protected Attributes
DtObjectId	myCounterId

DtList	myOrphanBeams
	used for generating dummy obj ids More...

DtReflectedActiveSonarBeamList	myBeamList

bool	myBeamsUpdateSystems

DtDiscoveryCondition	myBeamDiscoveryCondition

void *	myBeamDiscoveryConditionParameter

Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn

DtRefHlaObjectMap	myObjectList

DtHashList	myObjectListByName

DtRefHlaObjectMap	myWaitList

DtRefHlaObjectMap	myDiscoveryList

DtRefHlaObjectTimeMap	myRefreshList

bool	myWaitListRefreshEnabled

DtTime	myNextRequestTime

DtTime	myWaitListRefreshPeriod

DtList	myTimedOutObjectList

DtTime	myTimeoutInterval

bool	myTimeoutProcessingFlag

std::vector < RTI::ObjectClassHandle >	myHandleList

DtIntrusiveList	myObjectAddedCallbacks

DtIntrusiveList	myObjectRemovedCallbacks

DtDiscoveryCondition	myDiscoveryCondition

void *	myDiscoveryConditionParameter

DtDDMRegionSet	mySubscribedRegions

DtString	myUpdateRateTag

Private Member Functions
	DtReflectedActiveSonarList (const DtReflectedActiveSonarList &orig)
	Copy constructor not implemented - cannot be copied. More...

DtReflectedActiveSonarList &	operator= (const DtReflectedActiveSonarList &orig)
	Assignment operator not implemented - cannot be copied. More...

Additional Inherited Members
Static Public Member Functions inherited from DtReflectedObjectList
static bool	requestUpdateFlags ()
	Get flag that indicates if any requests are enabled (class, object, or initialized) More...

static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects(). More...

static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...

static bool	autoSubscribeFlag ()
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...

static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...

static bool	requestClassUpdateFlag ()
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...

static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it. More...

static bool	requestObjectUpdateFlag ()
	Set/Get flag that determines whether we request updates from an object as we discover it. More...

static void	setRequestWhenInitializedFlag (bool onOff)
	Set/Get flag that determines whether we request updates for wait listed objects only when all known VRLStateObject instances are initialized. More...

static bool	requestWhenInitializedFlag ()
	Set/Get flag that determines whether we request updates for wait listed objects only when all known VRLStateObject instances are initialized. More...

static void	setDefaultWaitListRefreshFlag (bool onOff)
	Set/Get the default wait list enabled flag value. More...

static bool	defaultWaitListRefreshFlag ()
	Set/Get the default wait list enabled flag value. More...

static void	setDefaultWaitListRefreshPeriod (DtTime period)
	Set/Get the default wait list refresh period. More...

static DtTime	defaultWaitListRefreshPeriod ()
	Set/Get the default wait list refresh period. More...

Static Protected Attributes inherited from DtReflectedObjectList
static bool	theAutoSubscribeFlag

static bool	theRequestClassUpdateFlag

static bool	theRequestObjectUpdateFlag

static bool	theRequestWhenInitializedFlag

static bool	theRequestUpdateFlags

static bool	theDefaultWaitListRefreshFlag

static DtTime	theDefaultWaitListRefreshPeriod

Detailed Description

Instances of DtReflectedActiveSonarList manage a list of DtReflectedActiveSonar objects.

Constructor & Destructor Documentation

DtReflectedActiveSonarList::DtReflectedActiveSonarList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse = `0`,
		const DtString &	updateRateTag = `""`
	)

Constructor.

DtReflectedActiveSonarList::DtReflectedActiveSonarList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		const DtDDMRegionSet *	regionSetToUse = `0`,
		const DtString &	updateRateTag = `""`
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedActiveSonarList::~DtReflectedActiveSonarList ( )

virtual

Destructor.

DtReflectedActiveSonarList::DtReflectedActiveSonarList ( const DtReflectedActiveSonarList & orig )

private

Copy constructor not implemented - cannot be copied.

Member Function Documentation

static void DtReflectedActiveSonarList::activeSonarBeamAdditionCb	(	DtReflectedActiveSonarBeam *	beam,
		void *	usr
	)

staticprotected

Callback functions registered with myBeamList on beam additions, updates, and removals.

Calls processActiveSonarBeamAddition/Update/Removal.

static void DtReflectedActiveSonarList::activeSonarBeamRemovalCb	(	DtReflectedActiveSonarBeam *	beam,
		void *	usr
	)

staticprotected

static void DtReflectedActiveSonarList::activeSonarBeamUpdateCb	(	DtReflectedActiveSonarBeam *	beam,
		void *	usr
	)

staticprotected

virtual void DtReflectedActiveSonarList::addActiveSonarAdditionCallback	(	DtActiveSonarCallbackFunction	cb,
		void *	usr
	)

virtual

ActiveSonar added callback registration.

virtual void DtReflectedActiveSonarList::addActiveSonarRemovalCallback	(	DtActiveSonarCallbackFunction	cb,
		void *	usr
	)

virtual

ActiveSonar removed callback registration.

virtual void DtReflectedActiveSonarList::clearBeamDiscoveryCondition ( )

virtual

Call this function to remove the previously registered discovery condition.

virtual void DtReflectedActiveSonarList::clearDiscoveryCondition ( )

virtual

Overrides the DtReflectedObjectList::clearDiscoveryCondition.

This function clears the discovery condition on the ActiveSonar systems and beams.

Reimplemented from DtReflectedObjectList.

virtual bool DtReflectedActiveSonarList::delayBeamDiscovery	(	DtReflectedObject *	beam,
		void *	usr
	)

virtual

The following function checks whether a beam should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedActiveSonarSystemList::setDiscoveryCondition() or DtReflectedActiveSonarSystemList::setBeamDiscoveryCondition().

static bool DtReflectedActiveSonarList::delayBeamDiscoveryCondition	(	DtReflectedObject *	beam,
		void *	usr
	)

staticprotected

The following discovery condition function gets set for ActiveSonarBeams when users register a discovery condition for either DtReflectedActiveSonarSystemList or its beam list.

Calls DtReflectedActiveSonarSystem::delayBeamDiscovery()

virtual const DtList* DtReflectedActiveSonarList::dfltHandleList ( )

protectedvirtual

Returns a DtList of RTI::ObjectClassHandles that represent the list of object classes to which this list should subscribe.

virtual DtReflectedActiveSonar* DtReflectedActiveSonarList::first ( ) const

virtual

Get the first reflected object in the list.

virtual DtReflectedActiveSonar* DtReflectedActiveSonarList::last ( ) const

virtual

Get the last reflected object in the list.

virtual DtReflectedActiveSonar* DtReflectedActiveSonarList::lookup ( RTI::ObjectHandle id )

virtual

Look up by identifier.

virtual DtReflectedActiveSonar* DtReflectedActiveSonarList::lookup ( const DtGlobalObjectDesignator & objName )

virtual

Look up by name.

virtual DtReflectedActiveSonar* DtReflectedActiveSonarList::lookup	(	const DtGlobalObjectDesignator &	emittingEntity,
		int	systemId
	)		const

virtual

Lookup an ActiveSonar from its object ID and system ID.

virtual DtReflectedActiveSonar* DtReflectedActiveSonarList::newReflectedActiveSonar ( const DtGlobalObjectDesignator & hostId ) const

protectedvirtual

Create a remote ActiveSonar system object for the HLA object.

Caller is responsible for deletion.

virtual DtReflectedObject* DtReflectedActiveSonarList::newReflectedObject ( DtHlaObject * obj ) const

protectedvirtual

Override of virtual function. Here, we create a DtReflectedActiveSonarSystem.

Implements DtReflectedObjectList.

virtual void DtReflectedActiveSonarList::objectAdded ( DtReflectedObject * obj )

protectedvirtual

Called from processDiscoverObject() after a remote transmitter has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on addition. obj will be an instance of a class derived from DtReflectedObj.

Reimplemented from DtReflectedObjectList.

DtReflectedActiveSonarList& DtReflectedActiveSonarList::operator= ( const DtReflectedActiveSonarList & orig )

private

Assignment operator not implemented - cannot be copied.

virtual void DtReflectedActiveSonarList::processActiveSonarBeamAddition ( DtReflectedActiveSonarBeam * beam )

protectedvirtual

Called by similar callback functions registered with myBeamList on beam additions/removals.

Addition function adds the beam to the set of orphan beams (since we don't know what system he's part of), the removal function removes the beam's beamSR from his system's systemSR. Update function calls the beam's system update callbacks if beamsUpdateSystems == true in the reflected system list constructor.

virtual void DtReflectedActiveSonarList::processActiveSonarBeamRemoval ( DtReflectedActiveSonarBeam * beam )

protectedvirtual

virtual void DtReflectedActiveSonarList::processActiveSonarBeamUpdate ( DtReflectedActiveSonarBeam * beam )

protectedvirtual

virtual void DtReflectedActiveSonarList::processDiscoverObject ( DtHlaObject * obj )

protectedvirtual

Process the discovery of a remote ActiveSonar system on the network.

Can't use base version, since we need to account for systems that are already in the list by virtue of discovered beams.

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedActiveSonarList::processRemoveObject ( DtHlaObject * obj )

protectedvirtual

Process the removal of a remote ActiveSonar system from the network.

Removes the remote ActiveSonar system from this list. Can't use base version, since we need to keep systems that still have live beams.

Reimplemented from DtReflectedObjectList.

virtual DtReflectedActiveSonarBeamList* DtReflectedActiveSonarList::refBeamList ( )

virtual

Returns a pointer to a reflected ActiveSonar beam list that we are using internally to track our constituent beams.

Normally, you do not need to access this beam list. Instead, you should find out the state of a beam by going through the parent DtReflectedActiveSonarSystem, and its DtActiveSonarSystemRepository (through which you can get a list of DtActiveSonarBeamRepositories). This function, however, may be used in conjunction with ownership management. If you want to take ownership of some attributes of a beam object, use this function to grab the beam list, find the appropriate beam's DtHlaObject, and pass it to the DtActiveSonarBeamPublisher's constructor.

virtual void DtReflectedActiveSonarList::removeActiveSonarAdditionCallback	(	DtActiveSonarCallbackFunction	cb,
		void *	usr
	)

virtual

ActiveSonar added callback de-registration.

virtual void DtReflectedActiveSonarList::removeActiveSonarRemovalCallback	(	DtActiveSonarCallbackFunction	cb,
		void *	usr
	)

virtual

ActiveSonar removed callback de-registration.

virtual void DtReflectedActiveSonarList::resolveOrphans ( )

protectedvirtual

Check if any orphanBeams have non-NULL emittingSystemId.

If so, add them to their appropriate system (creating one if it doesn't exist), and delete them from orphan list.

static void DtReflectedActiveSonarList::resolveOrphansPostDrainCb ( void * usr )

staticprotected

Callback that calls resolveOrphans.

virtual void DtReflectedActiveSonarList::setBeamDiscoveryCondition	(	DtDiscoveryCondition	fn,
		void *	usr
	)

virtual

Call this function to register a discovery condition on the beams of ActiveSonar Systems.

Generally, it will be preferable to call this function rather than calling setDiscoveryCondition() directly on the beamList. (Calling setDiscoveryCondition() directly will over-ride the mechanism by which beam discoveries are delayed when a user registers a discovery condition on DtReflectedActiveSonarSystem – See comment above).

virtual void DtReflectedActiveSonarList::setDiscoveryCondition	(	DtDiscoveryCondition	fn,
		void *	usr
	)

virtual

Over-rides DtReflectedObjectList::setDiscoveryCondition().

This function checks that ActiveSonar system objects satisfy the given criteria before getting discovered and added to the list (the discovery of beams belonging to the system will also be delayed until the after the system is discovered)

Reimplemented from DtReflectedObjectList.

virtual bool DtReflectedActiveSonarList::shouldBeTimedOut ( DtReflectedObject * object )

protectedvirtual

Returns whether or not the object should be timed out.

Assumes that timeout processing is enabled. Can't use base version since we don't want to time out systems with live beams.

Reimplemented from DtReflectedObjectList.

Member Data Documentation

DtDiscoveryCondition DtReflectedActiveSonarList::myBeamDiscoveryCondition

protected

void* DtReflectedActiveSonarList::myBeamDiscoveryConditionParameter

protected

DtReflectedActiveSonarBeamList DtReflectedActiveSonarList::myBeamList

protected

bool DtReflectedActiveSonarList::myBeamsUpdateSystems

protected

DtObjectId DtReflectedActiveSonarList::myCounterId

mutableprotected

DtList DtReflectedActiveSonarList::myOrphanBeams

protected

used for generating dummy obj ids

The documentation for this class was generated from the following file:

reflectedActiveSonarListHLA.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
