Inheritance diagram for DtUniversalHlaObjStrategy:

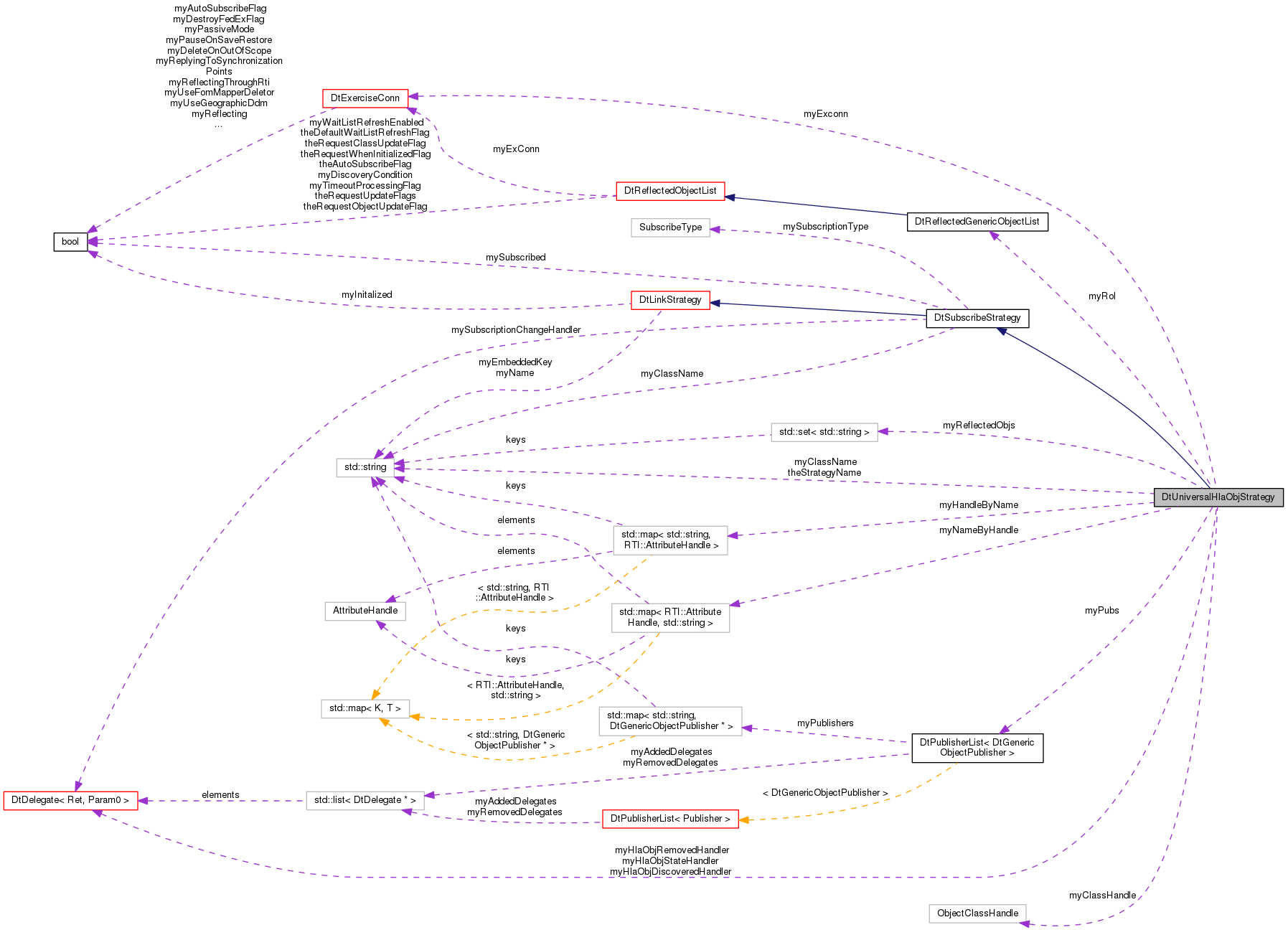

Collaboration diagram for DtUniversalHlaObjStrategy:

Public Member Functions
virtual	~DtUniversalHlaObjStrategy ()

std::string	name ()

virtual bool	init ()
	Initialize the strategy. More...

virtual void	tick ()
	Tick the strategy to give it some CPU time. More...

virtual void	shutdown ()
	Shutdown the strategy. More...

Public Member Functions inherited from DtSubscribeStrategy
	DtSubscribeStrategy (std::string name, DtManagedInterface *link, std::string subscribeClassName, SubscribeMessage::SubscribeType subscribeType)
	constructor takes name More...

virtual	~DtSubscribeStrategy ()
	destructor More...

void	handleSubscriptionChange (DtMessage *msg)

Public Member Functions inherited from DtLinkStrategy
	DtLinkStrategy (const std::string &name, DtManagedInterface *link)
	constructor takes name More...

virtual	~DtLinkStrategy ()
	destructor More...

std::string	name ()
	Get the name of the strategy. More...

virtual void	addChildStrategy (DtLinkStrategy *strategy)
	Functions for adding, removing or finding any child strategies This is typically used for the initialization strategy that "owns" all the other strategies. More...

virtual bool	removeChildStrategy (const std::string &name)

virtual DtLinkStrategy *	findStrategy (const std::string &name)

virtual std::string &	makeEmbeddedKey (std::string &embeddedKey, const std::string &hostGlobalId, unsigned embeddedIndex, const char *descriptor=nullptr)
	Combine the given host global/entity identifiers, embedded index, and optional descriptor to form the value of the given embedded key Return the embedded key. More...

Static Public Member Functions
static std::string	theName ()

static DtLinkStrategy *	create (DtManagedInterface *gl, const std::string &className)

Protected Member Functions
	DtUniversalHlaObjStrategy (DtManagedInterface *link, const std::string &className)

void	handleCSharpHlaObjDiscovered (DtMessage *msg)

void	handleVrlHlaObjDiscovered (DtReflectedGenericObject *tx)

void	handleCSharpHlaObjRemoved (DtMessage *msg)

void	handleVrlHlaObjRemoved (DtReflectedGenericObject *tx)

void	handleCSharpHlaObjState (DtMessage *msg)

void	handleVrlHlaObjState (DtReflectedGenericObject *obj)

virtual void	addVrlCallback (DtExerciseConn *exConn)
	Add/Remove VR-Link C++ Interaction Callback. More...

virtual void	removeVrlCallback (DtExerciseConn *exConn)

Static Protected Member Functions
static void	vrlHlaObjDiscovered (DtReflectedGenericObject tx, void usr)

static void	vrlHlaObjRemoved (DtReflectedGenericObject tx, void usr)

static void	vrlHlaObjState (DtReflectedGenericObject obj, void usr)

Protected Attributes
DtExerciseConn *	myExconn

std::string	myClassName

RTI::ObjectClassHandle	myClassHandle

std::map< std::string, RTI::AttributeHandle >	myHandleByName

std::map< RTI::AttributeHandle, std::string >	myNameByHandle

DtMessageDelegate *	myHlaObjDiscoveredHandler

DtMessageDelegate *	myHlaObjRemovedHandler

DtMessageDelegate *	myHlaObjStateHandler

DtPublisherList < DtGenericObjectPublisher >	myPubs

std::set< std::string >	myReflectedObjs

DtReflectedGenericObjectList *	myRol

Protected Attributes inherited from DtSubscribeStrategy
DtMessageDelegate *	mySubscriptionChangeHandler

bool	mySubscribed

std::string	myClassName

SubscribeMessage::SubscribeType	mySubscriptionType

Protected Attributes inherited from DtLinkStrategy
DtManagedInterface *	myManagedInterface

std::string	myName

std::string	myEmbeddedKey

bool	myInitalized

std::list< DtLinkStrategy * >	myChildStrategies

Static Protected Attributes
static std::string	theStrategyName

Constructor & Destructor Documentation

virtual DtUniversalHlaObjStrategy::~DtUniversalHlaObjStrategy ( )

virtual

DtUniversalHlaObjStrategy::DtUniversalHlaObjStrategy	(	DtManagedInterface *	link,
		const std::string &	className
	)

protected

Member Function Documentation

virtual void DtUniversalHlaObjStrategy::addVrlCallback ( DtExerciseConn * exConn )

protectedvirtual

Add/Remove VR-Link C++ Interaction Callback.

Implements DtSubscribeStrategy.

static DtLinkStrategy* DtUniversalHlaObjStrategy::create	(	DtManagedInterface *	gl,
		const std::string &	className
	)

static

void DtUniversalHlaObjStrategy::handleCSharpHlaObjDiscovered ( DtMessage * msg )

protected

void DtUniversalHlaObjStrategy::handleCSharpHlaObjRemoved ( DtMessage * msg )

protected

void DtUniversalHlaObjStrategy::handleCSharpHlaObjState ( DtMessage * msg )

protected

void DtUniversalHlaObjStrategy::handleVrlHlaObjDiscovered ( DtReflectedGenericObject * tx )

protected

void DtUniversalHlaObjStrategy::handleVrlHlaObjRemoved ( DtReflectedGenericObject * tx )

protected

void DtUniversalHlaObjStrategy::handleVrlHlaObjState ( DtReflectedGenericObject * obj )

protected

virtual bool DtUniversalHlaObjStrategy::init ( )

virtual

Initialize the strategy.

This function will be called multiple times to allow for dependent strategies to startup properly This function should return false if the strategy cannot get a resource it needs due to a dependency not being initialized yet.

Implements DtLinkStrategy.

std::string DtUniversalHlaObjStrategy::name ( )

virtual void DtUniversalHlaObjStrategy::removeVrlCallback ( DtExerciseConn * exConn )

protectedvirtual

Implements DtSubscribeStrategy.

virtual void DtUniversalHlaObjStrategy::shutdown ( )

virtual

Shutdown the strategy.

Reimplemented from DtSubscribeStrategy.

static std::string DtUniversalHlaObjStrategy::theName ( )

static

virtual void DtUniversalHlaObjStrategy::tick ( )

virtual

Tick the strategy to give it some CPU time.

Reimplemented from DtLinkStrategy.

static void DtUniversalHlaObjStrategy::vrlHlaObjDiscovered	(	DtReflectedGenericObject *	tx,
		void *	usr
	)

staticprotected

static void DtUniversalHlaObjStrategy::vrlHlaObjRemoved	(	DtReflectedGenericObject *	tx,
		void *	usr
	)

staticprotected

static void DtUniversalHlaObjStrategy::vrlHlaObjState	(	DtReflectedGenericObject *	obj,
		void *	usr
	)

staticprotected

Member Data Documentation

RTI::ObjectClassHandle DtUniversalHlaObjStrategy::myClassHandle

protected

std::string DtUniversalHlaObjStrategy::myClassName

protected

DtExerciseConn* DtUniversalHlaObjStrategy::myExconn

protected

std::map<std::string, RTI::AttributeHandle> DtUniversalHlaObjStrategy::myHandleByName

protected

DtMessageDelegate* DtUniversalHlaObjStrategy::myHlaObjDiscoveredHandler

protected

DtMessageDelegate* DtUniversalHlaObjStrategy::myHlaObjRemovedHandler

protected

DtMessageDelegate* DtUniversalHlaObjStrategy::myHlaObjStateHandler

protected

std::map<RTI::AttributeHandle, std::string> DtUniversalHlaObjStrategy::myNameByHandle

protected

DtPublisherList<DtGenericObjectPublisher> DtUniversalHlaObjStrategy::myPubs

protected

std::set<std::string> DtUniversalHlaObjStrategy::myReflectedObjs

protected

DtReflectedGenericObjectList* DtUniversalHlaObjStrategy::myRol

protected

std::string DtUniversalHlaObjStrategy::theStrategyName

staticprotected

The documentation for this class was generated from the following file:

universalHlaObj.h
