DtMode4StateRepository Class Reference

Instances of DtMode4StateRepository are used to store state data for IFFData.Mode4 objects. More...

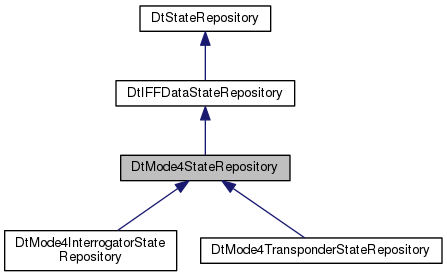

Inheritance diagram for DtMode4StateRepository:

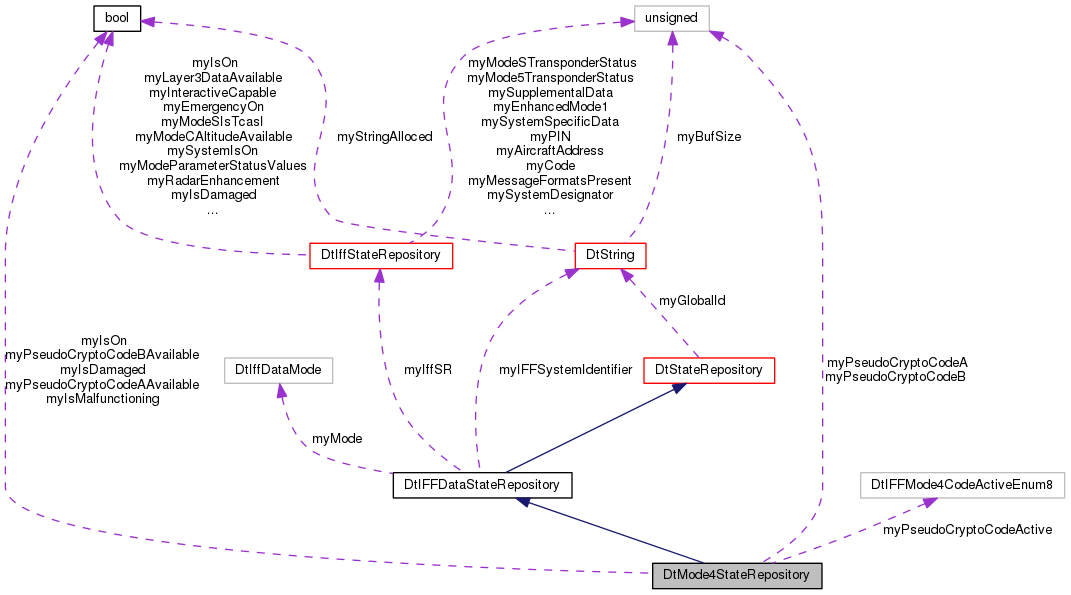

Collaboration diagram for DtMode4StateRepository:

Public Member Functions
	DtMode4StateRepository ()
	Constructor. More...
virtual	~DtMode4StateRepository ()
	Destructor. More...
	DtMode4StateRepository (const DtMode4StateRepository &orig)
	Copy Constructor. More...
DtMode4StateRepository &	operator= (const DtMode4StateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setIsOn (bool val)
	Set the IsOn. More...
virtual bool	isOn () const
	Get the IsOn.". More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged. More...
virtual bool	isDamaged () const
	Get the IsDamaged.". More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning.". More...
virtual void	setPseudoCryptoCodeAAvailable (bool val)
	Set the PseudoCryptoCodeAAvailable. More...
virtual bool	pseudoCryptoCodeAAvailable () const
	Get the PseudoCryptoCodeAAvailable.". More...
virtual void	setPseudoCryptoCodeA (DtU16 val)
	Set the PseudoCryptoCodeA. More...
virtual DtU16	pseudoCryptoCodeA () const
	Get the PseudoCryptoCodeA.". More...
virtual void	setPseudoCryptoCodeBAvailable (bool val)
	Set the PseudoCryptoCodeBAvailable. More...
virtual bool	pseudoCryptoCodeBAvailable () const
	Get the PseudoCryptoCodeBAvailable.". More...
virtual void	setPseudoCryptoCodeB (DtU16 val)
	Set the PseudoCryptoCodeB. More...
virtual DtU16	pseudoCryptoCodeB () const
	Get the PseudoCryptoCodeB.". More...
virtual void	setPseudoCryptoCodeActive (const DtIFFMode4CodeActiveEnum8 &val)
	Set the PseudoCryptoCodeActive. More...
virtual const DtIFFMode4CodeActiveEnum8 &	pseudoCryptoCodeActive () const
	Get the PseudoCryptoCodeActive.". More...
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier.". More...
virtual void	setIffStateRepository (DtIffStateRepository *sr)
virtual DtIffStateRepository *	isr ()
virtual void	copyToIffSR ()
	Copy various status internal stuff to myIffSR, override per leaf class. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtMode4StateRepository *	create ()
	Create a DtMode4StateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning
bool	myPseudoCryptoCodeAAvailable
DtU16	myPseudoCryptoCodeA
bool	myPseudoCryptoCodeBAvailable
DtU16	myPseudoCryptoCodeB
DtIFFMode4CodeActiveEnum8	myPseudoCryptoCodeActive
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIffDataMode	myMode
DtIffStateRepository *	myIffSR

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtMode4StateRepository are used to store state data for IFFData.Mode4 objects.

Constructor & Destructor Documentation

DtMode4StateRepository::DtMode4StateRepository

(

)

Constructor.

virtual DtMode4StateRepository::~DtMode4StateRepository ( )

virtual

Destructor.

DtMode4StateRepository::DtMode4StateRepository

(

const DtMode4StateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtMode4StateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtMode4TransponderStateRepository, and DtMode4InterrogatorStateRepository.

static DtMode4StateRepository* DtMode4StateRepository::create ( )

static

Create a DtMode4StateRepository.

virtual bool DtMode4StateRepository::isDamaged ( ) const

virtual

Get the IsDamaged.".

virtual bool DtMode4StateRepository::isMalfunctioning ( ) const

virtual

Get the IsMalfunctioning.".

virtual bool DtMode4StateRepository::isOn ( ) const

virtual

Get the IsOn.".

DtMode4StateRepository& DtMode4StateRepository::operator=

(

const DtMode4StateRepository &

orig

)

Assignment Operator.

virtual void DtMode4StateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtMode4TransponderStateRepository, and DtMode4InterrogatorStateRepository.

virtual void DtMode4StateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

Reimplemented in DtMode4TransponderStateRepository, and DtMode4InterrogatorStateRepository.

virtual DtU16 DtMode4StateRepository::pseudoCryptoCodeA ( ) const

virtual

Get the PseudoCryptoCodeA.".

virtual bool DtMode4StateRepository::pseudoCryptoCodeAAvailable ( ) const

virtual

Get the PseudoCryptoCodeAAvailable.".

virtual const DtIFFMode4CodeActiveEnum8& DtMode4StateRepository::pseudoCryptoCodeActive ( ) const

virtual

Get the PseudoCryptoCodeActive.".

virtual DtU16 DtMode4StateRepository::pseudoCryptoCodeB ( ) const

virtual

Get the PseudoCryptoCodeB.".

virtual bool DtMode4StateRepository::pseudoCryptoCodeBAvailable ( ) const

virtual

Get the PseudoCryptoCodeBAvailable.".

virtual void DtMode4StateRepository::setIsDamaged ( bool  val )

virtual

Set the IsDamaged.

virtual void DtMode4StateRepository::setIsMalfunctioning ( bool  val )

virtual

Set the IsMalfunctioning.

virtual void DtMode4StateRepository::setIsOn ( bool  val )

virtual

Set the IsOn.

virtual void DtMode4StateRepository::setPseudoCryptoCodeA ( DtU16  val )

virtual

Set the PseudoCryptoCodeA.

virtual void DtMode4StateRepository::setPseudoCryptoCodeAAvailable ( bool  val )

virtual

Set the PseudoCryptoCodeAAvailable.

virtual void DtMode4StateRepository::setPseudoCryptoCodeActive ( const DtIFFMode4CodeActiveEnum8 &  val )

virtual

Set the PseudoCryptoCodeActive.

virtual void DtMode4StateRepository::setPseudoCryptoCodeB ( DtU16  val )

virtual

Set the PseudoCryptoCodeB.

virtual void DtMode4StateRepository::setPseudoCryptoCodeBAvailable ( bool  val )

virtual

Set the PseudoCryptoCodeBAvailable.

Member Data Documentation

bool DtMode4StateRepository::myIsDamaged

protected

bool DtMode4StateRepository::myIsMalfunctioning

protected

bool DtMode4StateRepository::myIsOn

protected

DtU16 DtMode4StateRepository::myPseudoCryptoCodeA

protected

bool DtMode4StateRepository::myPseudoCryptoCodeAAvailable

protected

DtIFFMode4CodeActiveEnum8 DtMode4StateRepository::myPseudoCryptoCodeActive

protected

DtU16 DtMode4StateRepository::myPseudoCryptoCodeB

protected

bool DtMode4StateRepository::myPseudoCryptoCodeBAvailable

protected

---

The documentation for this class was generated from the following file:

• IFFDataStateRepository.h
