DtBaseEmitterBeamDecoder Class Reference

class DtBaseEmitterBeamDecoder: More...

Inheritance diagram for DtBaseEmitterBeamDecoder:

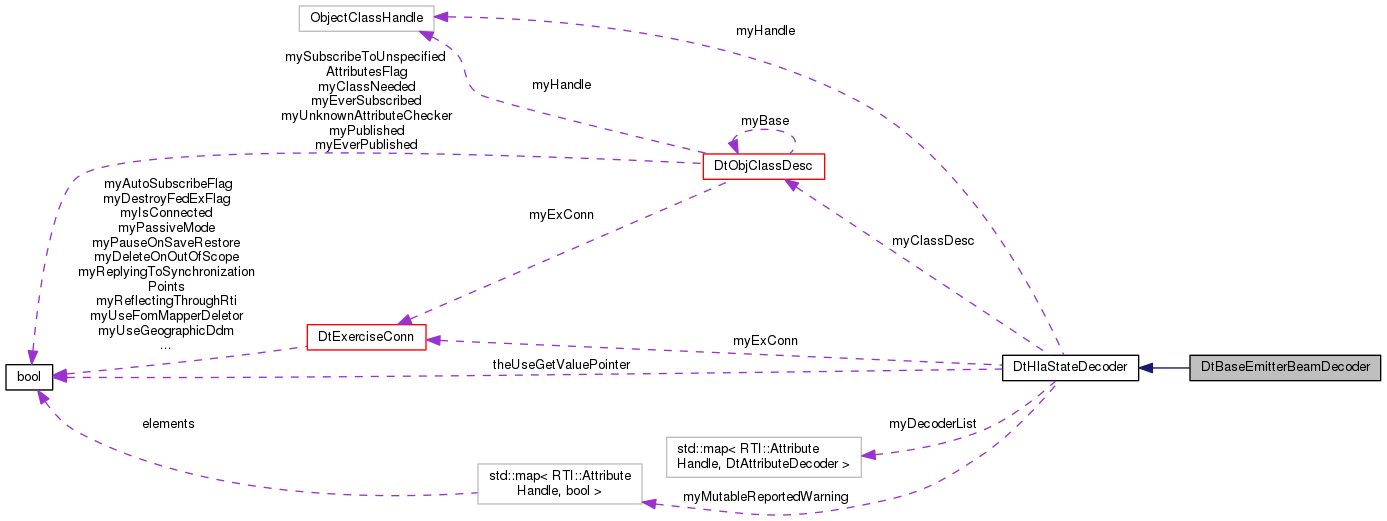

Collaboration diagram for DtBaseEmitterBeamDecoder:

Public Member Functions
	DtBaseEmitterBeamDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	default constructor More...
virtual	~DtBaseEmitterBeamDecoder ()
	destructor More...
	DtBaseEmitterBeamDecoder (const DtBaseEmitterBeamDecoder &orig)
	copy constructor More...
DtBaseEmitterBeamDecoder &	operator= (const DtBaseEmitterBeamDecoder &orig)
	assignment operator More...
Public Member Functions inherited from DtHlaStateDecoder
	DtHlaStateDecoder (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	constructor More...
virtual	~DtHlaStateDecoder ()
	destructor More...
	DtHlaStateDecoder (const DtHlaStateDecoder &orig)
	copy constructor More...
DtHlaStateDecoder &	operator= (const DtHlaStateDecoder &orig)
	assignment operator More...
DtAttributeDecoder	addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func)
	Add/Remove a decoding function for the attribute specified by handle. More...
DtAttributeDecoder	removeDecoder (RTI::AttributeHandle h)
DtAttributeDecoder	addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true)
	Add/Remove a decoding function for the attribute specified by name. More...
DtAttributeDecoder	removeDecoder (char *attrName, bool complain=true)
virtual DtAttributeDecoder	decoder (const RTI::AttributeHandle &handle) const
	Get the attribute decoder for the specified handle. More...
virtual void	decode (const DtStateMsg &msg, DtStateRepository *stateRep) const
	Decode the state message into the state repository. More...
virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle. More...
virtual DtHlaStateDecoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtHlaStateDecoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

Static Public Member Functions
static DtHlaStateDecoder *	create (DtExerciseConn *exConn, DtObjClassDesc *classDesc)
	Create a DtBaseEntityDecoder. Caller is responsible for deletion. More...
Static Public Member Functions inherited from DtHlaStateDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...
static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length)
	Returns a pointer to the attribute data. More...
static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName)
	Gets the attribute data and checks the expected size. More...
static DtNetEventId *	eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index)
	Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data. More...

Protected Member Functions
void	addMyDecoders ()
	Add decoding functions for the attributes. More...
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamParameterIndex)
	Static decode<AttributeName> member functions. More...
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (FrequencyRange)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (PulseWidth)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (SweepSynch)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (AzimuthCenter)
	For versions <= 0.8. More...
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (AzimuthSweep)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamFunction)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamID)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (ElevationCenter)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (ElevationSweep)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (EmittingSystemID)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (ERP)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (EntityID)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (EventID)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (Frequency)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (PRF)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamAzimuthCenter)
	For versions > 0.8. More...
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamAzimuthSweep)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamFunctionCode)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamIdentifier)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamElevationCenter)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (BeamElevationSweep)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (EmitterSystemIdentifier)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (EffectiveRadiatedPower)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (EventIdentifier)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (EmissionFrequency)
	DtDECLARE_EMITTERBEAM_ATTR_DECODER (PulseRepetitionFrequency)
Protected Member Functions inherited from DtHlaStateDecoder
virtual void	decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const
	Decode the attribute at the specified index in the attribute handle pair set. More...
virtual void	copyDecFuncs (const DtHlaStateDecoder &orig)

Additional Inherited Members
Public Types inherited from DtHlaStateDecoder
typedef void(*	DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex)
	Attribute decoding function declaration. More...
Static Public Attributes inherited from DtHlaStateDecoder
static bool	theUseGetValuePointer
Protected Types inherited from DtHlaStateDecoder
typedef std::map < RTI::AttributeHandle, DtAttributeDecoder >	AttributeHandleDecoderMap
typedef std::map < RTI::AttributeHandle, bool >	AttributeHandleBoolMap
Protected Attributes inherited from DtHlaStateDecoder
DtExerciseConn *	myExConn
DtObjClassDesc *	myClassDesc
RTI::ObjectClassHandle	myHandle
AttributeHandleDecoderMap	myDecoderList
	myDecoderList is a map of decoders for each attribute registered to this state. More...

Detailed Description

class DtBaseEmitterBeamDecoder:

Instances of DtBaseEmitterBeamDecoder are used to Decode a base emitter beam entity state message into a state repository in and HLA environment.

Constructor & Destructor Documentation

DtBaseEmitterBeamDecoder::DtBaseEmitterBeamDecoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

default constructor

virtual DtBaseEmitterBeamDecoder::~DtBaseEmitterBeamDecoder ( )

virtual

destructor

DtBaseEmitterBeamDecoder::DtBaseEmitterBeamDecoder

(

const DtBaseEmitterBeamDecoder &

orig

)

copy constructor

Member Function Documentation

void DtBaseEmitterBeamDecoder::addMyDecoders ( )

protected

Add decoding functions for the attributes.

Note: Non-virtual since meant to be called from constructors to add decoders.

static DtHlaStateDecoder* DtBaseEmitterBeamDecoder::create ( DtExerciseConn *  exConn, DtObjClassDesc *  classDesc  )

static

Create a DtBaseEntityDecoder. Caller is responsible for deletion.

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamParameterIndex  )

protected

Static decode<AttributeName> member functions.

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( FrequencyRange  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( PulseWidth  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( SweepSynch  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( AzimuthCenter  )

protected

For versions <= 0.8.

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( AzimuthSweep  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamFunction  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamID  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( ElevationCenter  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( ElevationSweep  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( EmittingSystemID  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( ERP  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( EntityID  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( EventID  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( Frequency  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( PRF  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamAzimuthCenter  )

protected

For versions > 0.8.

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamAzimuthSweep  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamFunctionCode  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamIdentifier  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamElevationCenter  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( BeamElevationSweep  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( EmitterSystemIdentifier  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( EffectiveRadiatedPower  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( EventIdentifier  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( EmissionFrequency  )

protected

DtBaseEmitterBeamDecoder::DtDECLARE_EMITTERBEAM_ATTR_DECODER ( PulseRepetitionFrequency  )

protected

DtBaseEmitterBeamDecoder& DtBaseEmitterBeamDecoder::operator=

(

const DtBaseEmitterBeamDecoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• baseEmitterBeamDecoder.h
