DtInteractionWithDataEncoder Class Reference

class DtInteractionWithDataEncoder: More...

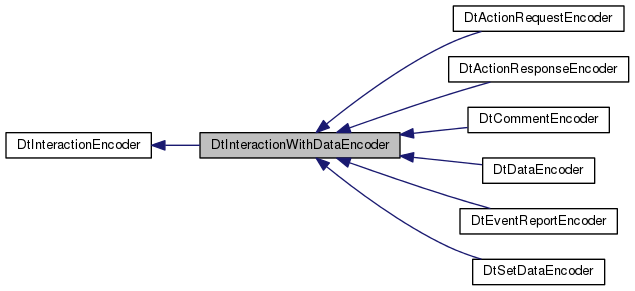

Inheritance diagram for DtInteractionWithDataEncoder:

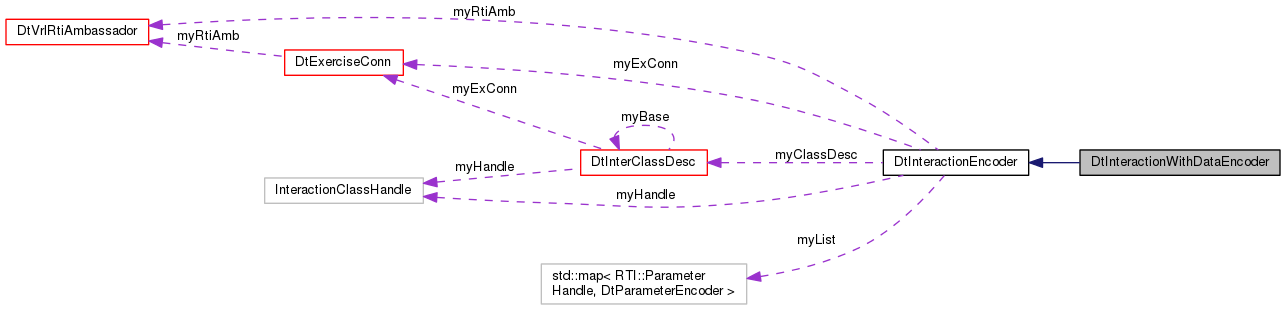

Collaboration diagram for DtInteractionWithDataEncoder:

Public Member Functions
	DtInteractionWithDataEncoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc, bool containsFixedDatums=true)
	constructor More...
virtual	~DtInteractionWithDataEncoder ()
	destructor More...
	DtInteractionWithDataEncoder (const DtInteractionWithDataEncoder &orig)
	copy constructor More...
DtInteractionWithDataEncoder &	operator= (const DtInteractionWithDataEncoder &orig)
	assignment operator More...
Public Member Functions inherited from DtInteractionEncoder
	DtInteractionEncoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor More...
virtual	~DtInteractionEncoder ()
	destructor More...
	DtInteractionEncoder (const DtInteractionEncoder &orig)
	copy constructor More...
DtInteractionEncoder &	operator= (const DtInteractionEncoder &orig)
	assignment operator More...
virtual DtParameterEncoder	addEncoder (RTI::ParameterHandle hand, DtParameterEncoder func)
	Add a parameter encoder function by parameter handle. More...
virtual DtParameterEncoder	addEncoder (char *name, DtParameterEncoder proc)
	Add a parameter encoder function by parameter name. More...
virtual DtParameterEncoder	encoder (RTI::ParameterHandle hand)
	Get the parameter encoder for the specified handle. More...
virtual void	encode (const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *pvList)
	Encode necessary values from the protocol-independent interaction. More...
virtual RTI::InteractionClassHandle	interClassHandle ()
	Get the object's class handle. More...
virtual DtInteractionEncoder *	clone () const
	Returns a new-ed clone of this object. More...
virtual DtInteractionEncoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_INTERWDATA_PARAM_ENCODER (FixedDatums)
	Individual parameter encoders. More...
	DtDECLARE_INTERWDATA_PARAM_ENCODER (VariableDatumSet)

Static Protected Member Functions
static void	encodeVariableDatumSet_2_d_14 (const DtInteractionWithData &inter, RTI::ParameterHandleValuePairSet *params, RTI::ParameterHandle paramHandle)
static void	encodeVariableDatumSet_2_d_17 (const DtInteractionWithData &inter, RTI::ParameterHandleValuePairSet *params, RTI::ParameterHandle paramHandle)

Additional Inherited Members
Public Types inherited from DtInteractionEncoder
typedef void(*	DtParameterEncoder )(const DtInteractionRep &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)
	Attribute encoding function declaration. More...
Static Public Member Functions inherited from DtInteractionEncoder
static void	encodeGenericParameter (const DtInteractionWithEncDec &inter, RTI::ParameterHandleValuePairSet *avlist, RTI::ParameterHandle handle)
Protected Attributes inherited from DtInteractionEncoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
DtVrlRtiAmbassador *	myRtiAmb
RTI::InteractionClassHandle	myHandle
std::map< RTI::ParameterHandle, DtParameterEncoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

class DtInteractionWithDataEncoder:

Instances of DtInteractionWithDataEncoder are used to encode the datum of RPR FOM Interactions that use fixed and var datum records.

Constructor & Destructor Documentation

DtInteractionWithDataEncoder::DtInteractionWithDataEncoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc,
		bool	containsFixedDatums = true
	)

constructor

virtual DtInteractionWithDataEncoder::~DtInteractionWithDataEncoder ( )

virtual

destructor

DtInteractionWithDataEncoder::DtInteractionWithDataEncoder

(

const DtInteractionWithDataEncoder &

orig

)

copy constructor

Member Function Documentation

DtInteractionWithDataEncoder::DtDECLARE_INTERWDATA_PARAM_ENCODER ( FixedDatums  )

protected

Individual parameter encoders.

DtInteractionWithDataEncoder::DtDECLARE_INTERWDATA_PARAM_ENCODER ( VariableDatumSet  )

protected

static void DtInteractionWithDataEncoder::encodeVariableDatumSet_2_d_14 ( const DtInteractionWithData &  inter, RTI::ParameterHandleValuePairSet *  params, RTI::ParameterHandle  paramHandle  )

staticprotected

static void DtInteractionWithDataEncoder::encodeVariableDatumSet_2_d_17 ( const DtInteractionWithData &  inter, RTI::ParameterHandleValuePairSet *  params, RTI::ParameterHandle  paramHandle  )

staticprotected

DtInteractionWithDataEncoder& DtInteractionWithDataEncoder::operator=

(

const DtInteractionWithDataEncoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• interactionWithDataEncoder.h
